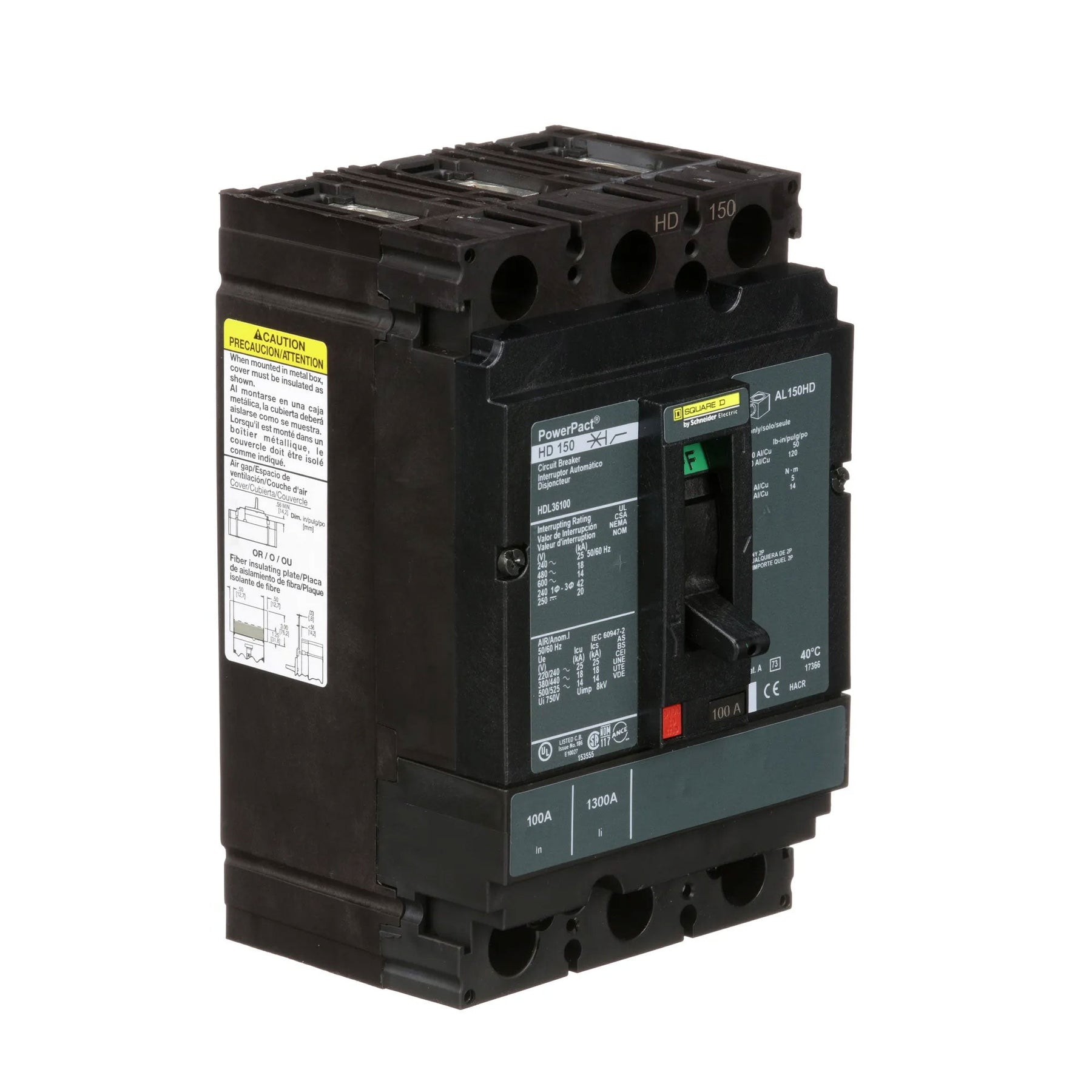

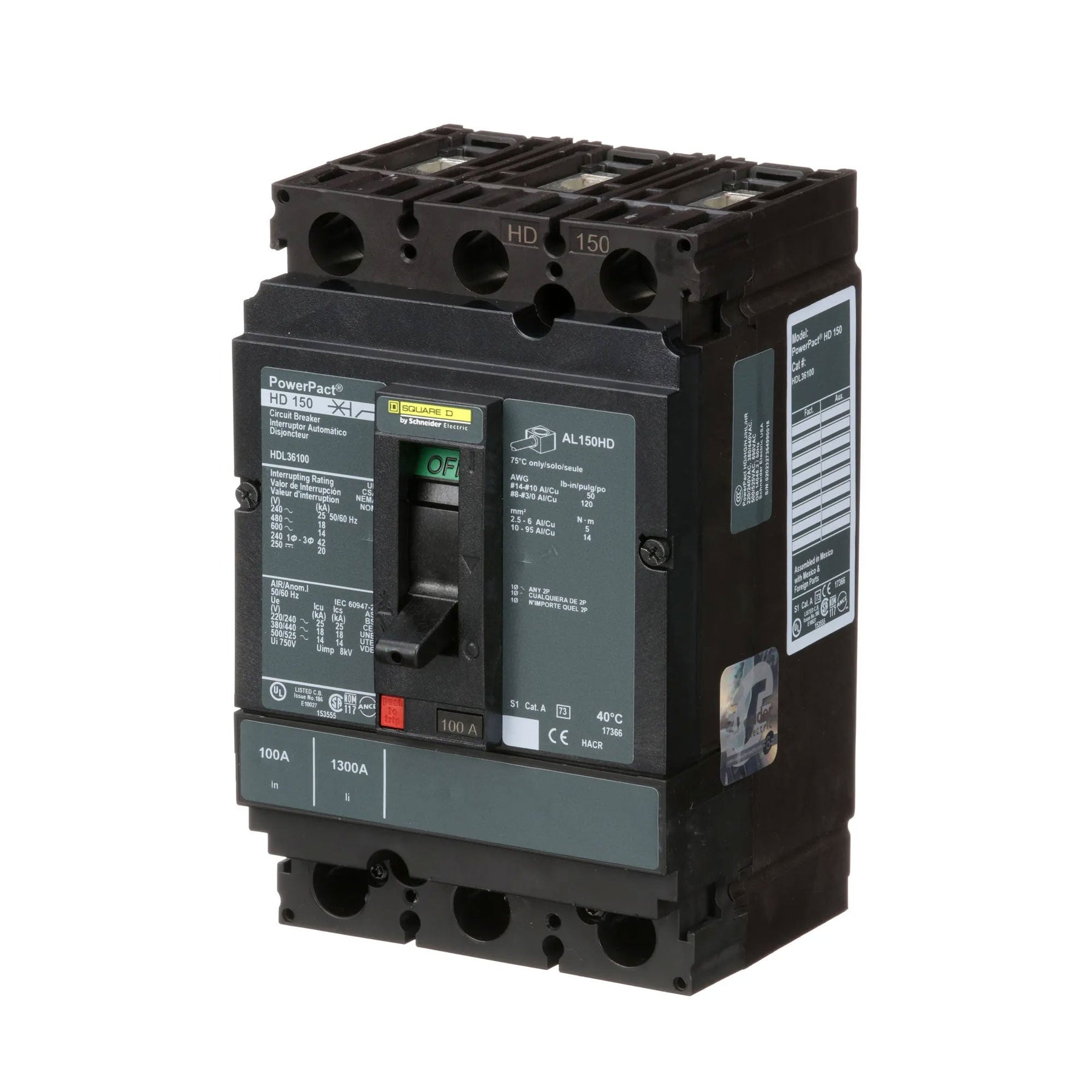

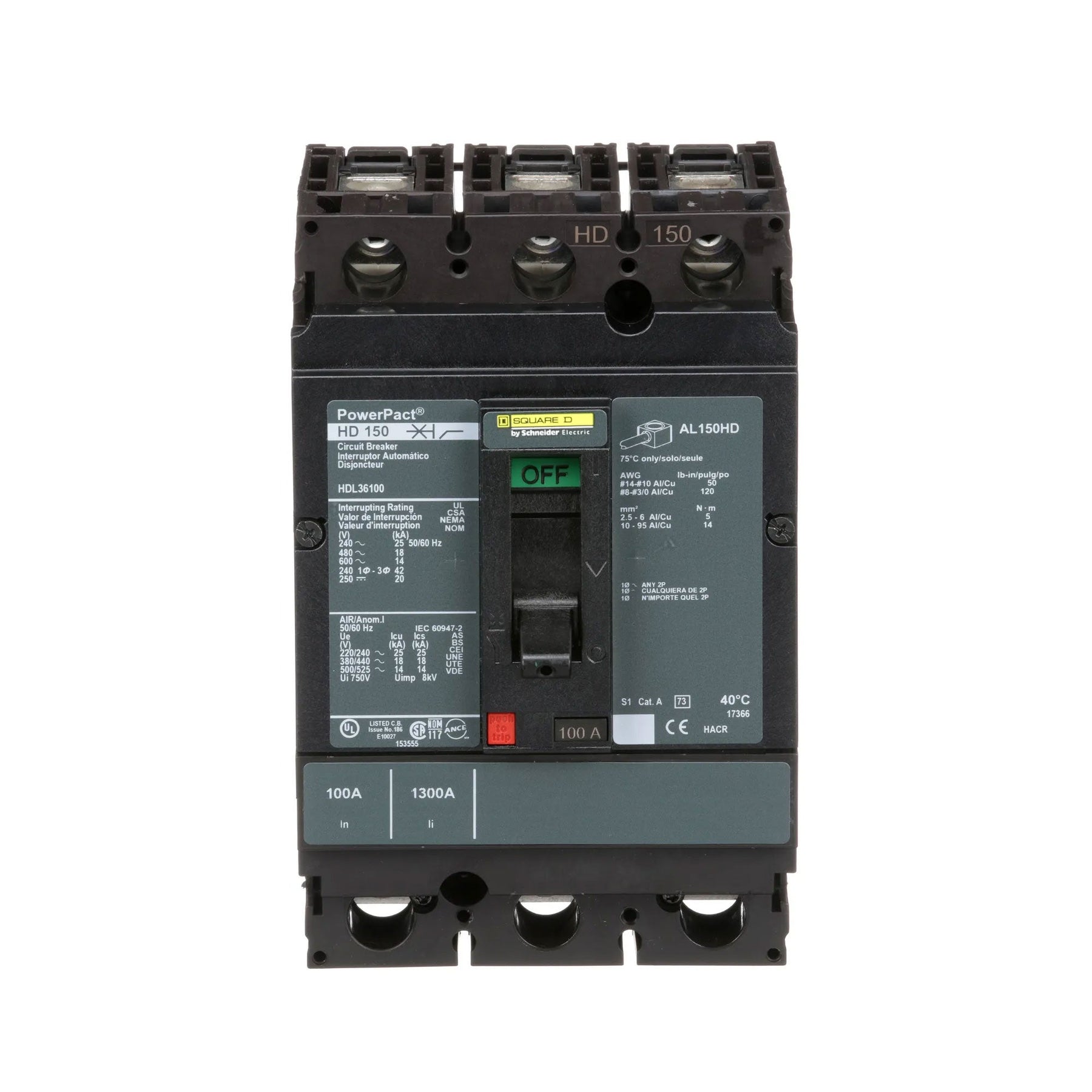

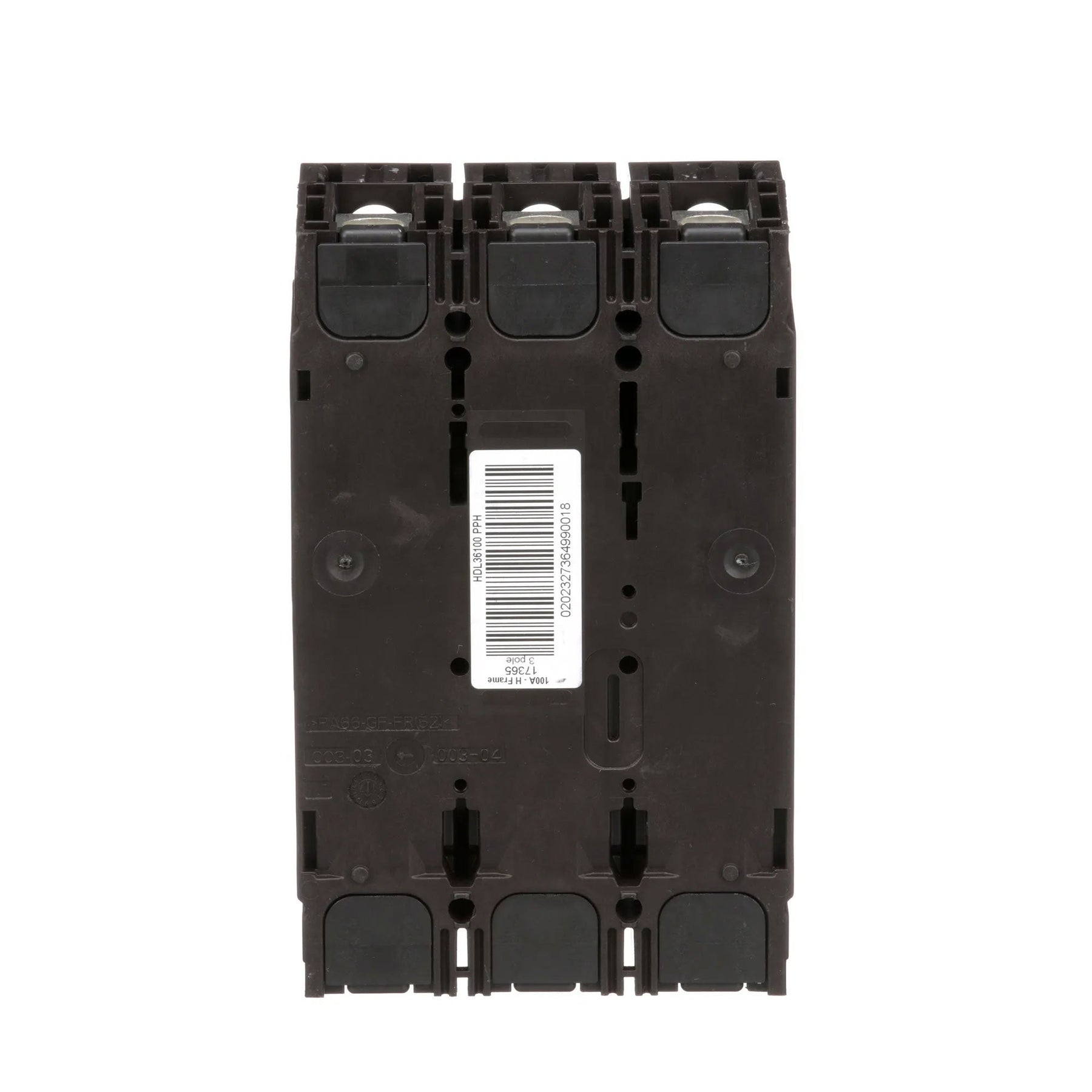

Square D HDL36100 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V voltage rating, housed within a compact 150A/HD frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.149 lb. The breaker utilizes a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions, ensuring compliance with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its 18kA interrupting capacity at 480V and bolt-on connection with line/load lugs for AWG 14 to 3/0 wire make it suitable for panelboards, switchboards, and industrial control panels operating in ambient temperatures from -2 to 70 °C.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker
  • Voltage Rating: 600V AC
  • Current Rating: 100A

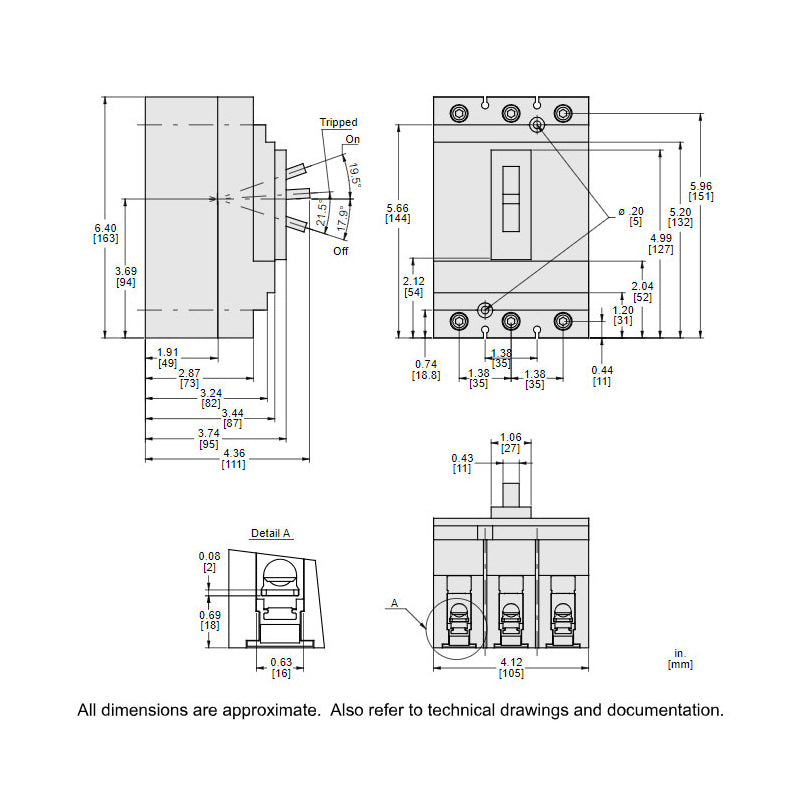

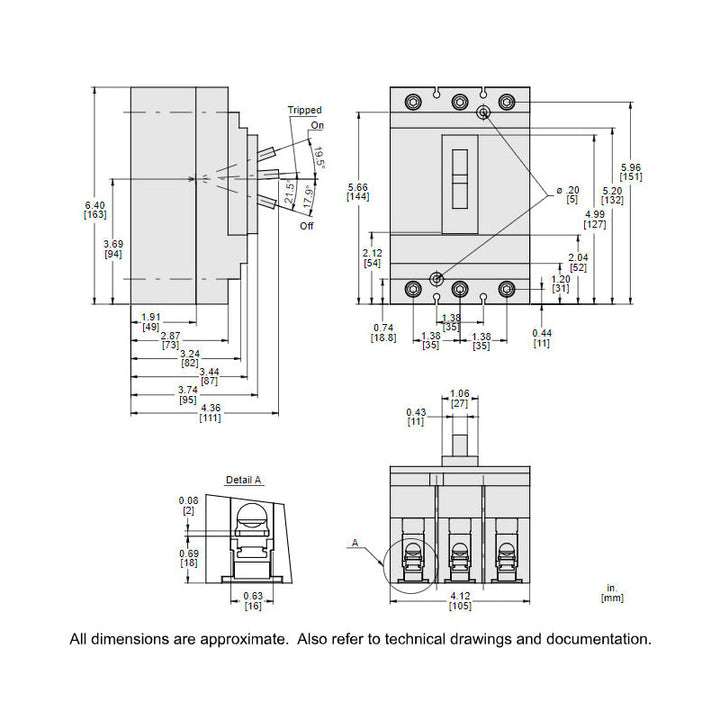

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 150A/HD
  • Breaker Type: Standard
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Terminal Connection: Line/Load Lug
  • Phase Connection: ABC
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Weight: 4.149 lb


Product Identification
  • UPC: 785901839934
  • GTIN: 00785901839934
