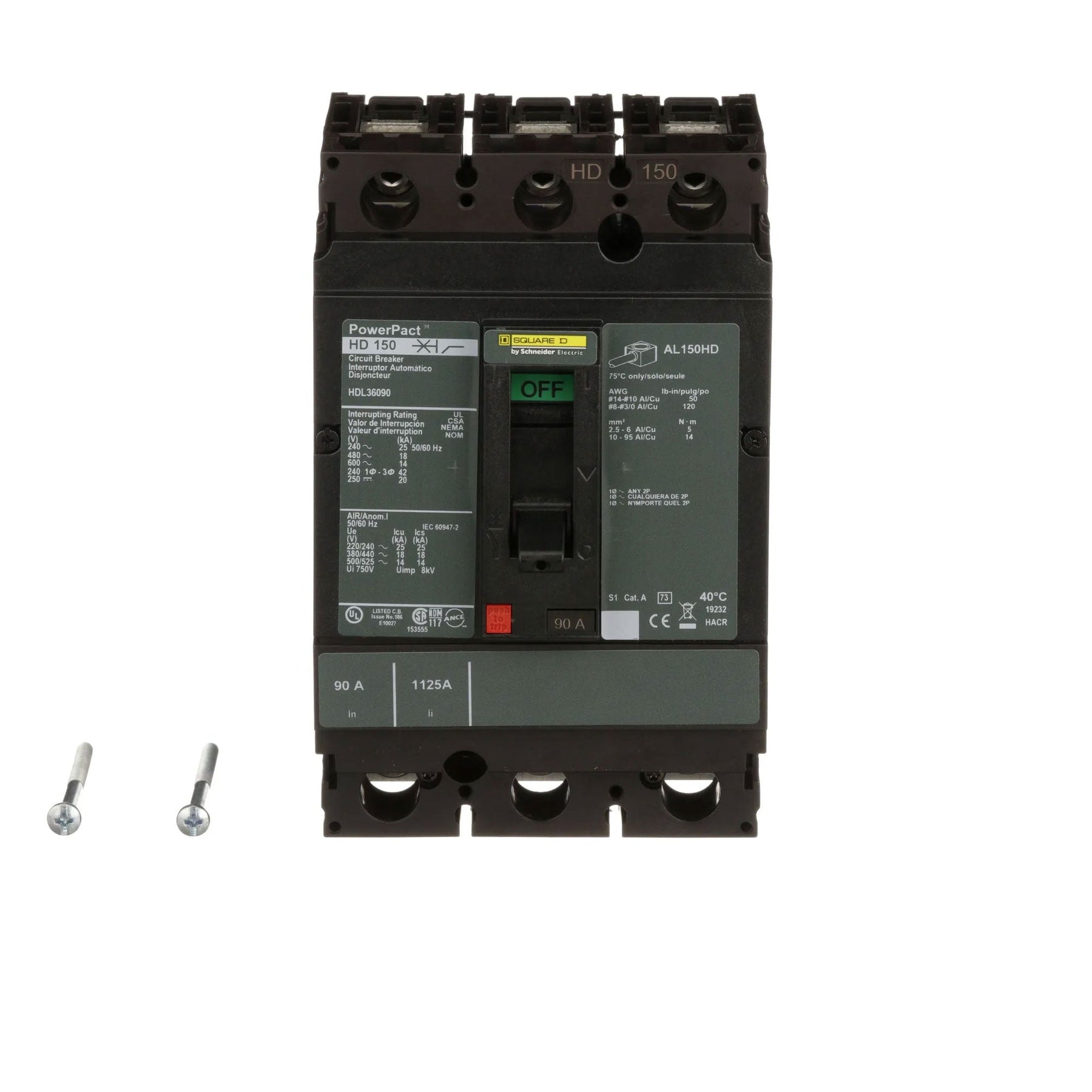

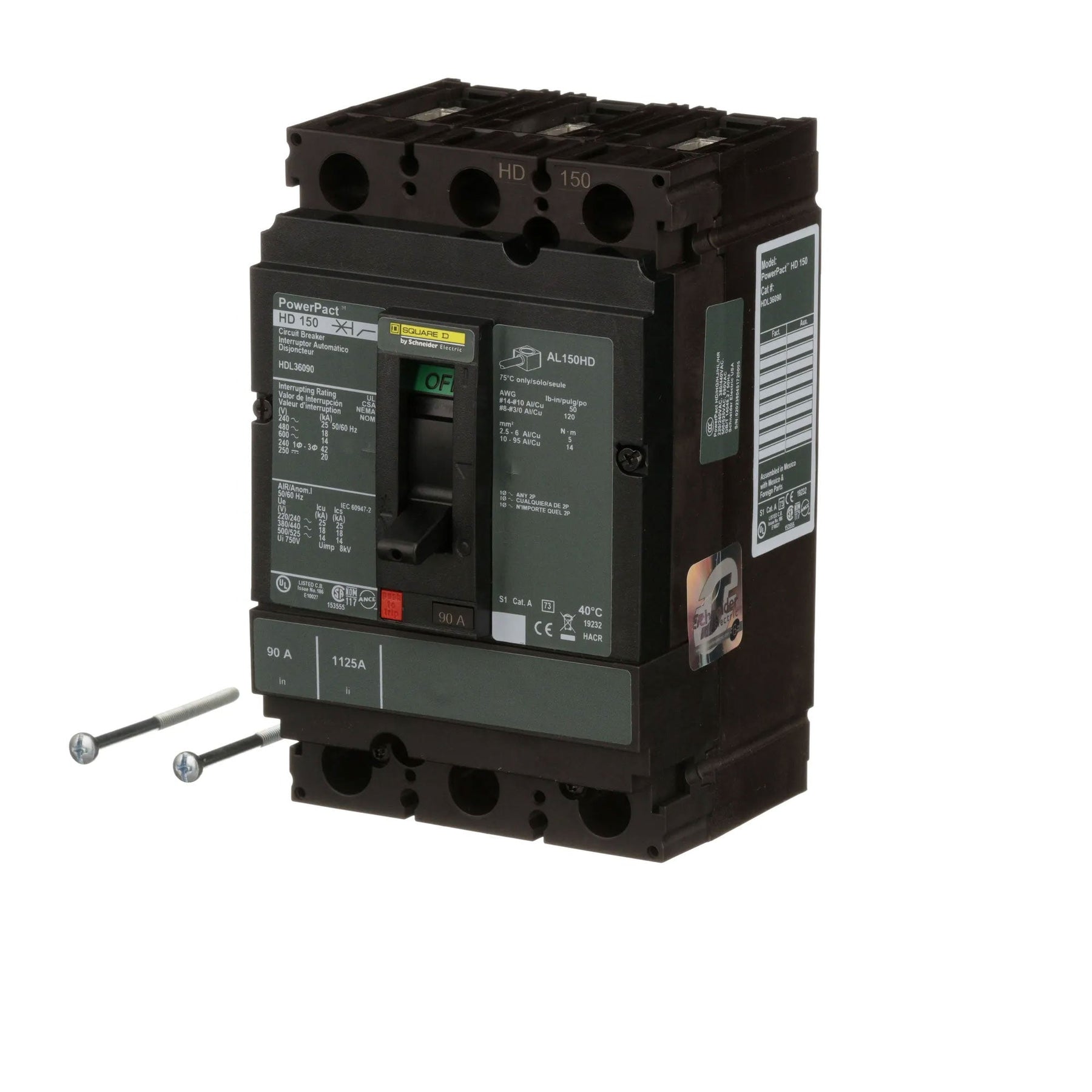

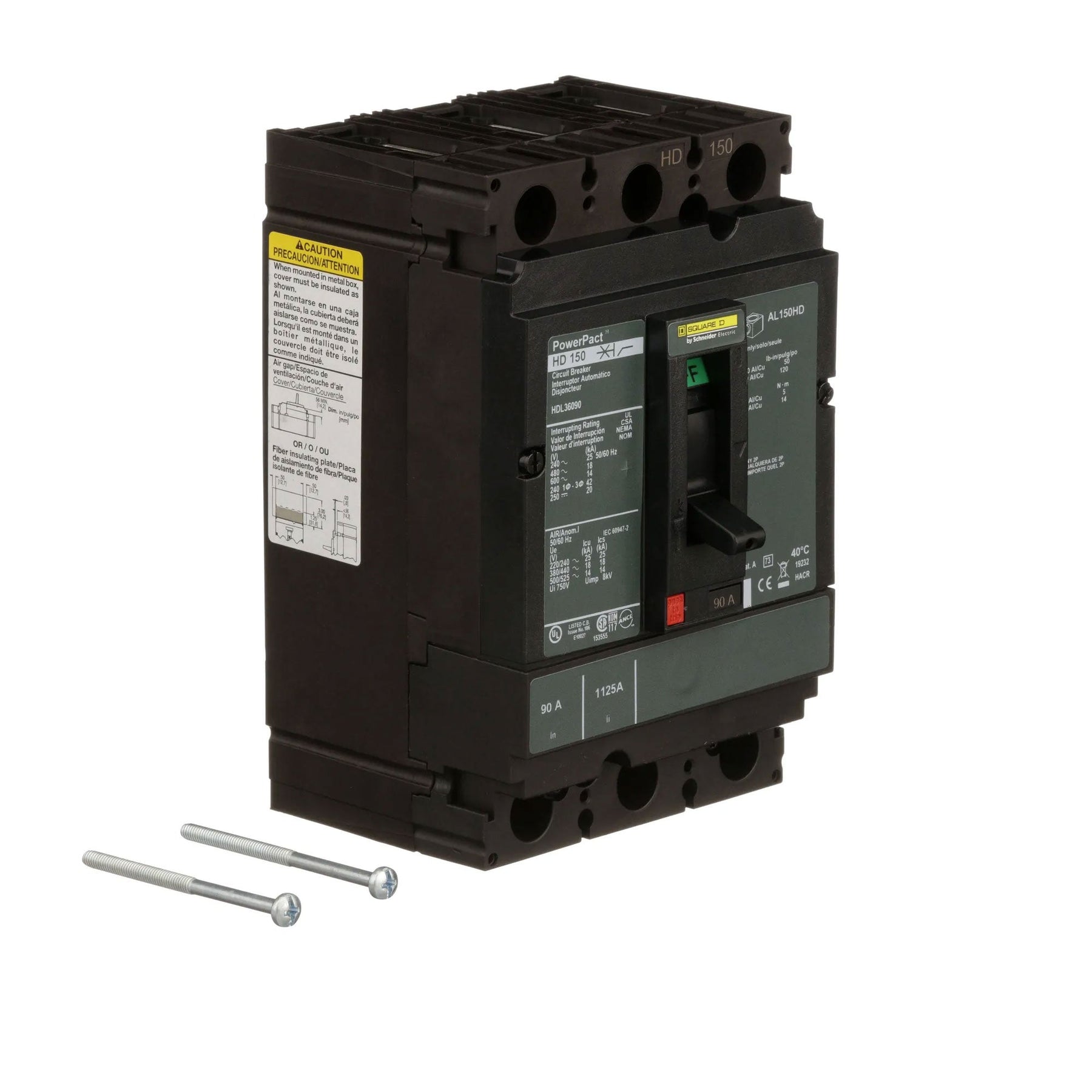

Square D HDL36090 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact 150A/HD frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.123 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) functions and is constructed for operation in temperatures from -25 to 70 °C. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial panelboard and switchboard applications requiring a feed-thru connection and an interrupting capacity of 18kA at 480V.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker with long-time and instantaneous (LI) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 90A

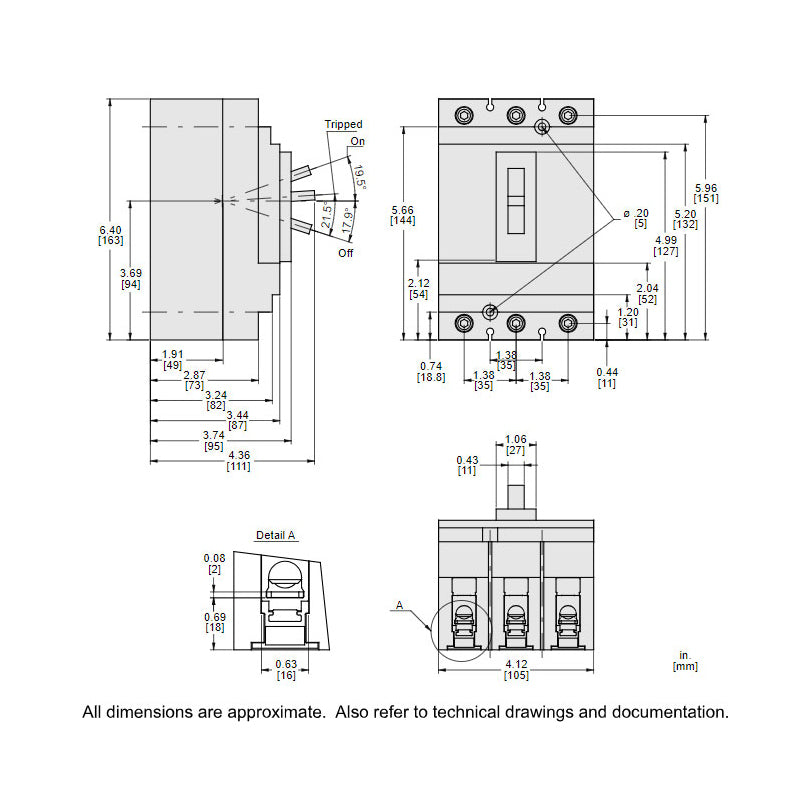

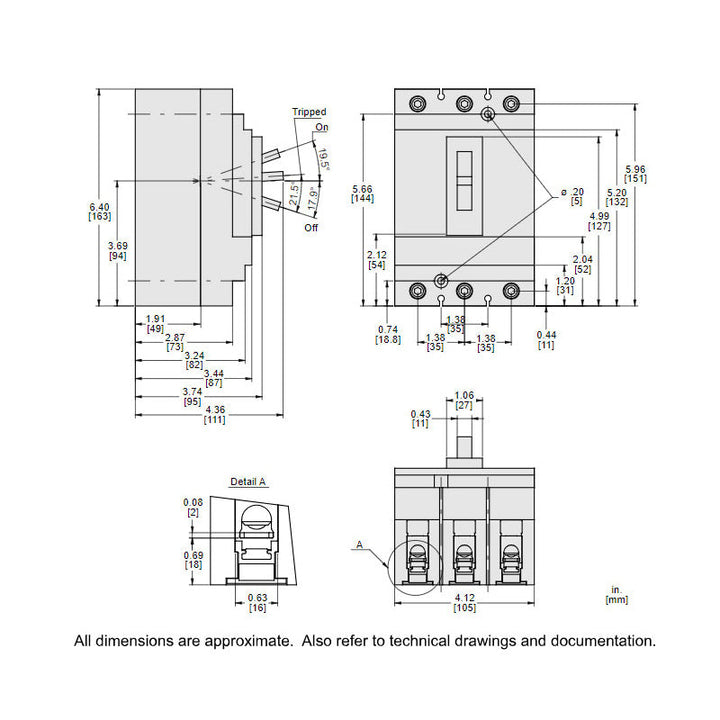

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 4.123 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Phase: 3
  • Voltage: 600V
  • Amperage: 90A
  • AIC rating: 18kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 150A/HD
  • Breaker Type: Standard
  • Phase Connection: ABC
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 3 AWG
  • Terminal Connection: Line/Load Lug
  • Wire Size: AWG 14 to AWG 3/0 aluminium/copper terminal
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901955917
  • GTIN: 00785901955917
