Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)
Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)

Square D HDL36070 - 3P Circuit Breaker 70A 600V (18kA AIC)

Square D
Price
Save $678.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

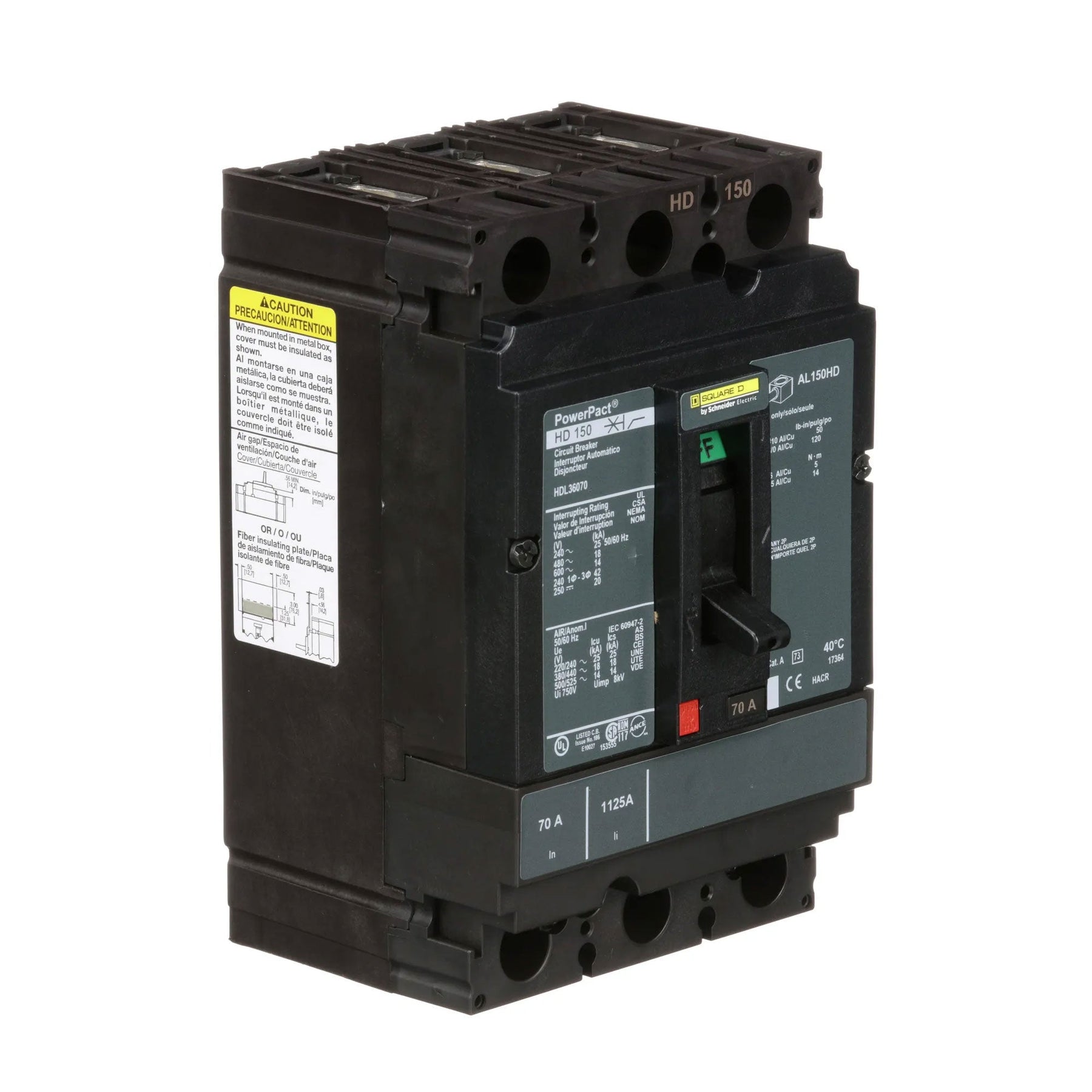

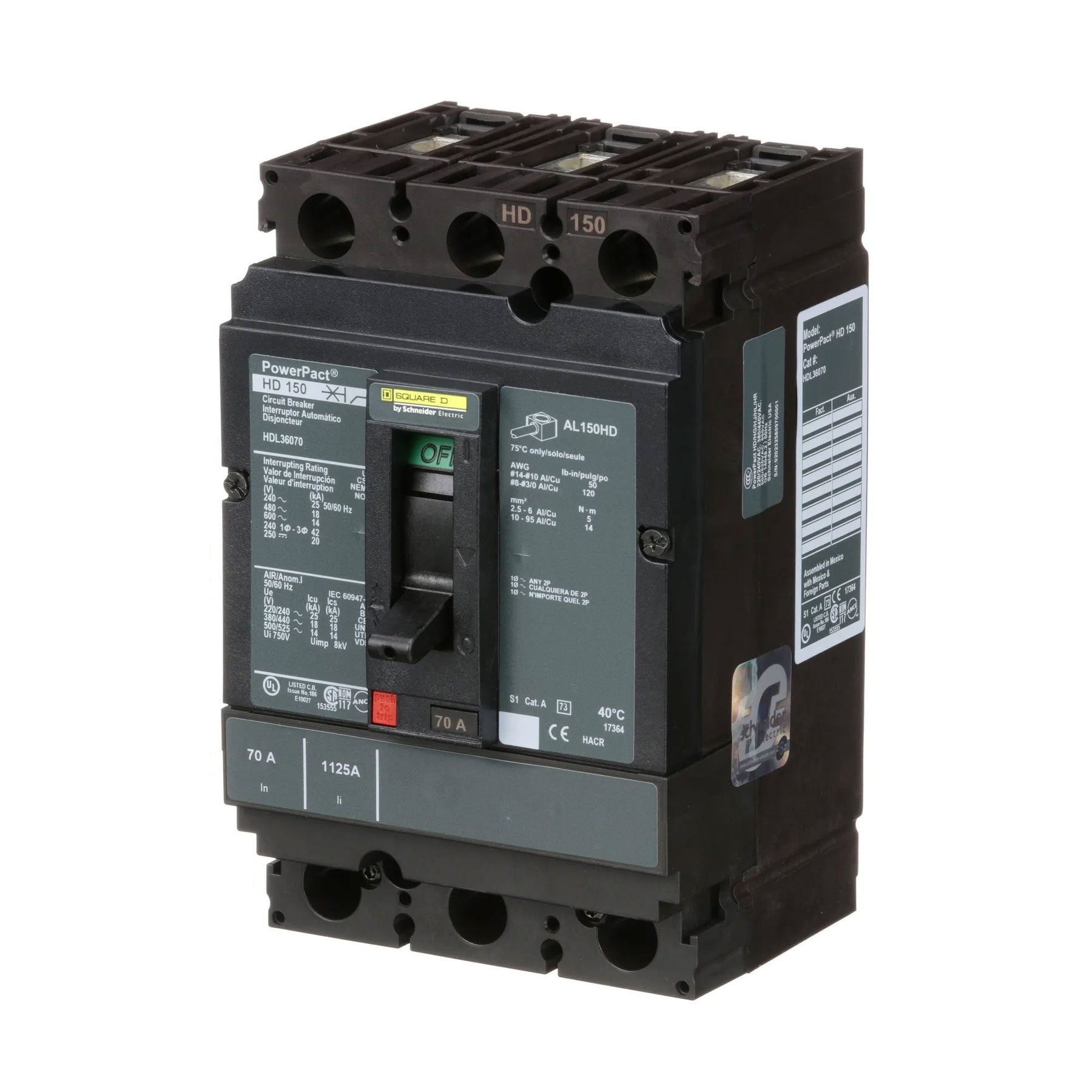

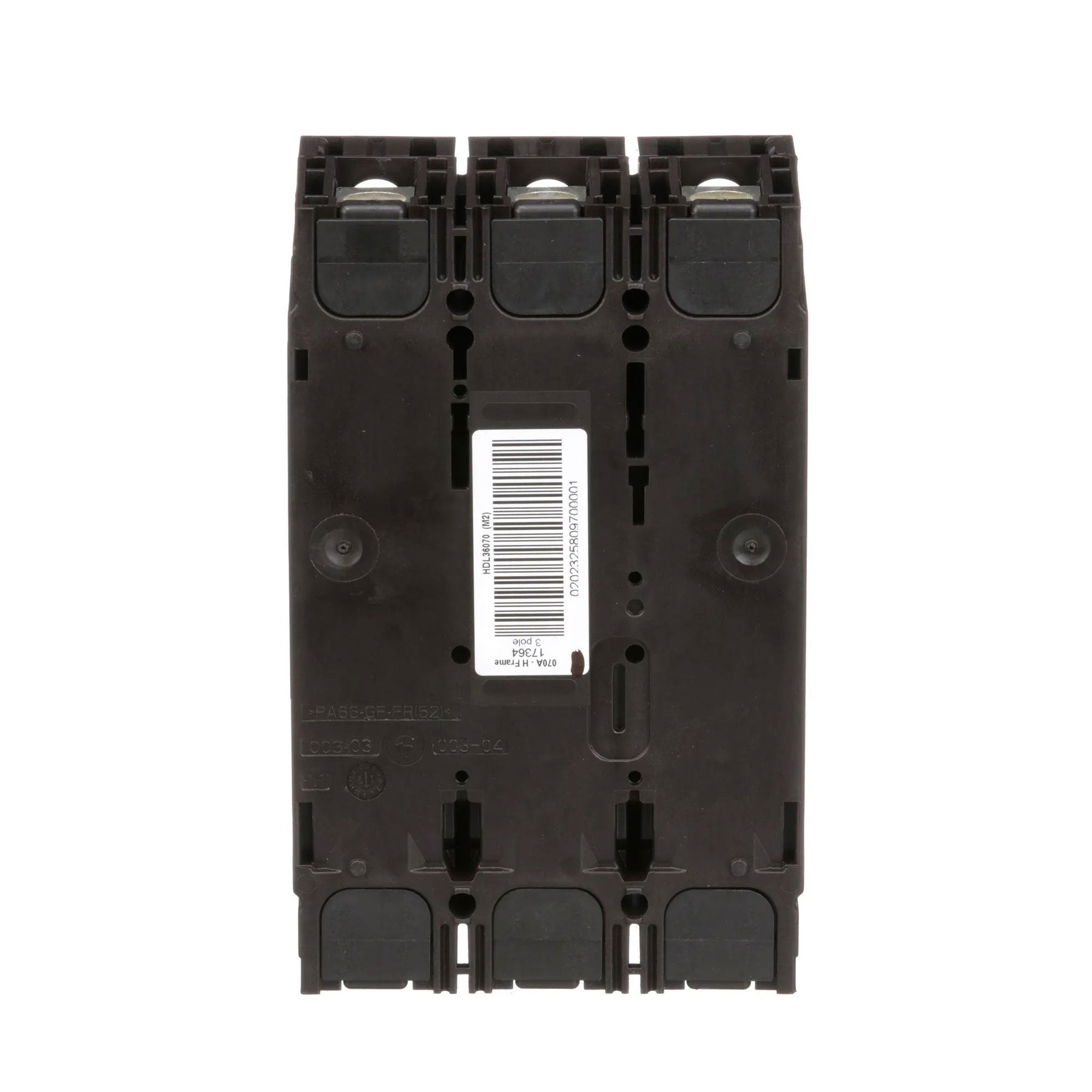

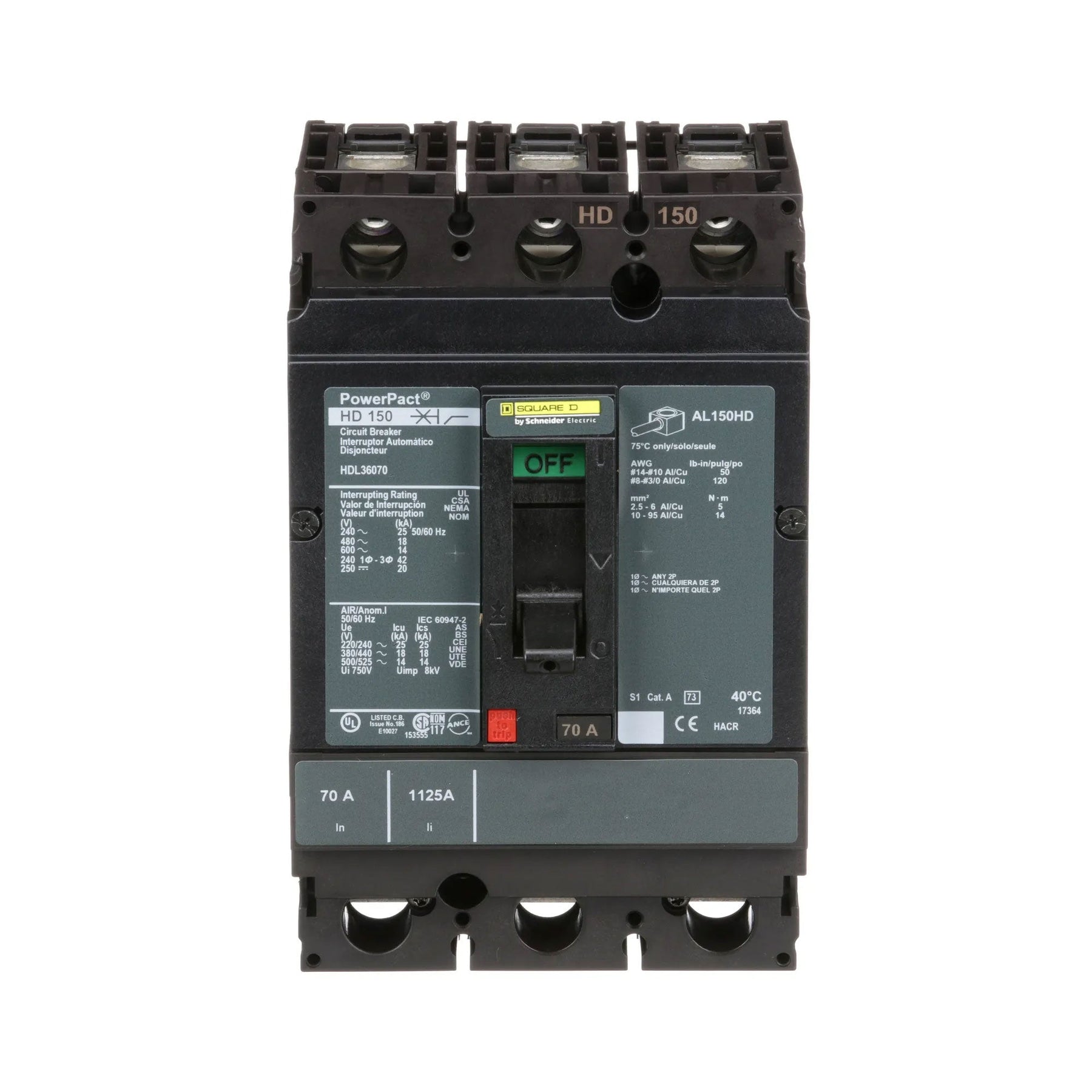

Square D HDL36070 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 70A current rating and a 600V AC voltage rating, housed within a compact 150A/HD frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.12 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is constructed for feed-thru connection with line/load lugs compatible with copper or aluminum wire from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for an interrupting capacity of 18kA at 480V AC, making it suitable for a wide range of commercial and industrial panelboards and switchboards operating in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Standard, three-pole (3P) molded case circuit breaker with thermal-magnetic protection and long-time/instantaneous (LI) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 70A

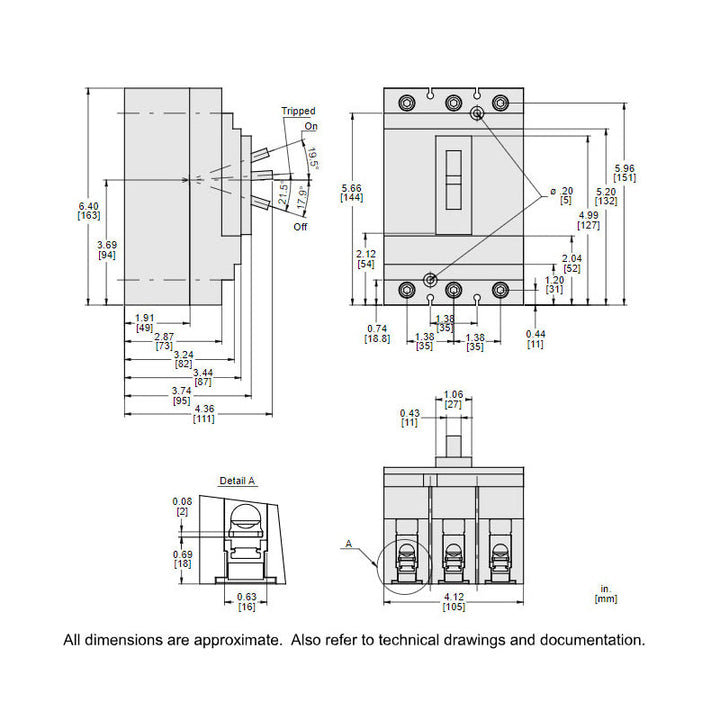

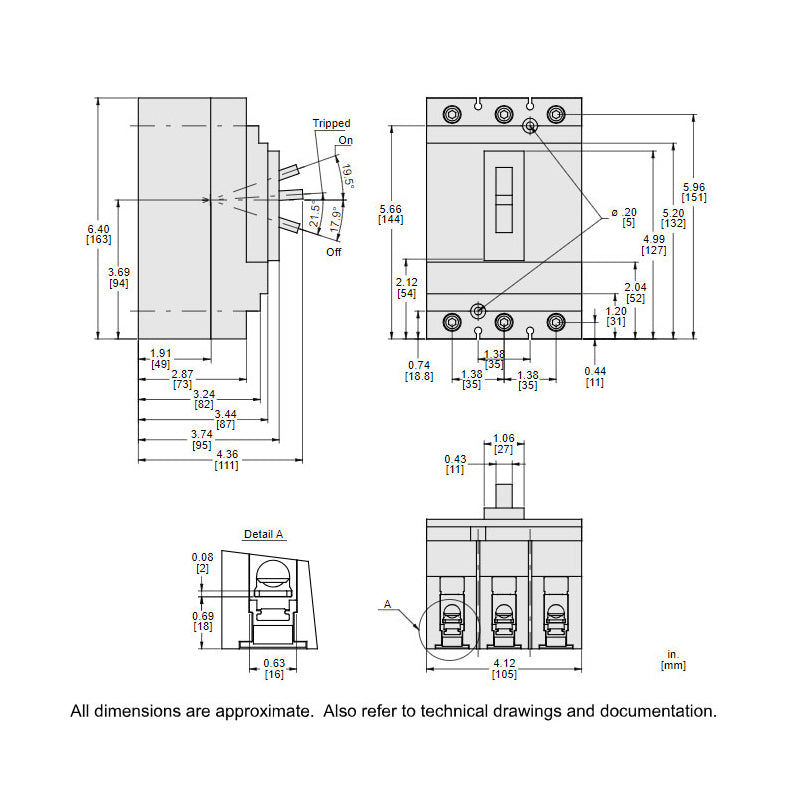

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 4.12 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial and commercial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 150A/HD
  • Breaker Type: Standard
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Line/Load Lug
  • MCM Size: Min. 14 AWG, Max. 3 AWG


Product Identification
  • UPC: 785901839859
  • GTIN: 00785901839859
