Square D
Price
Save $616.31
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

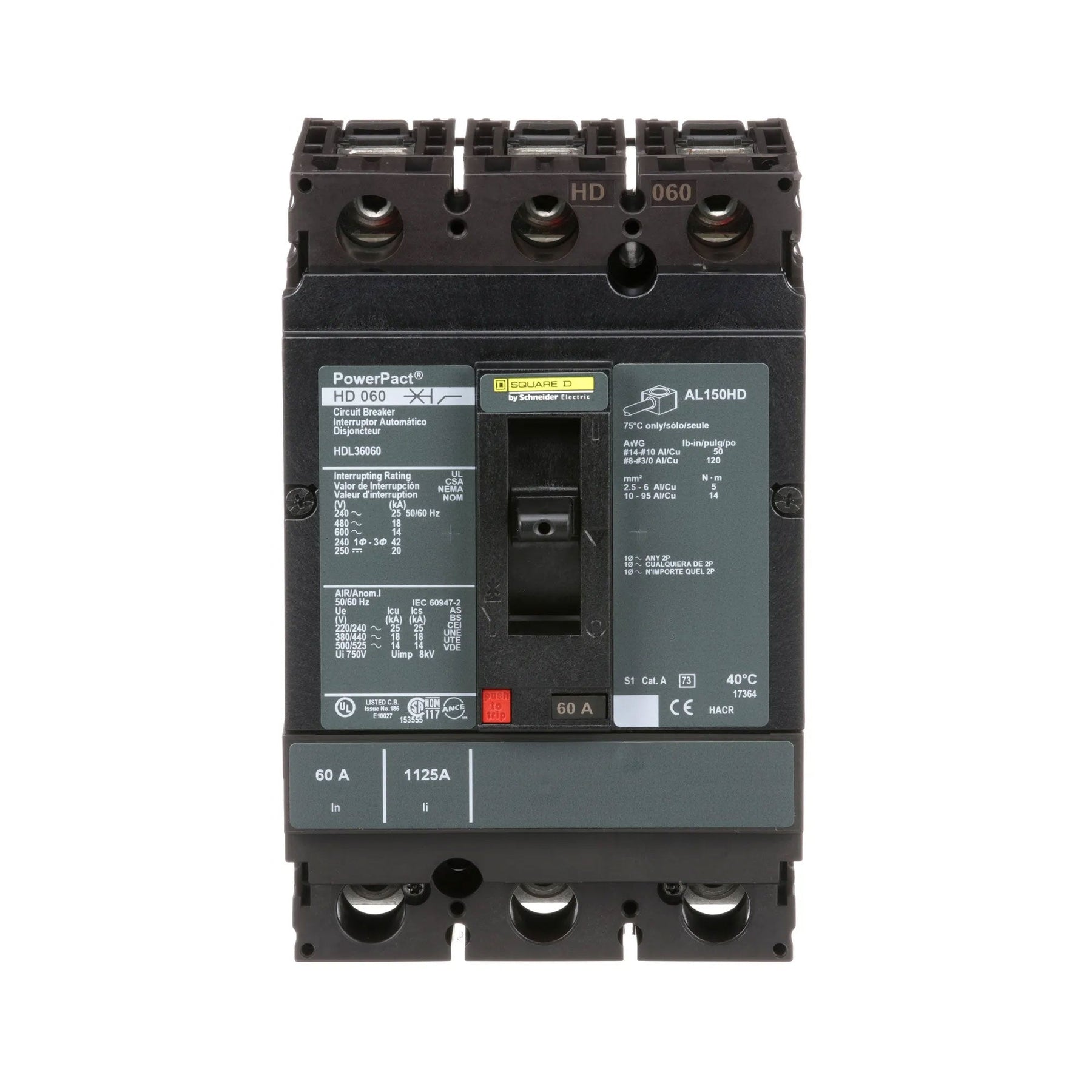

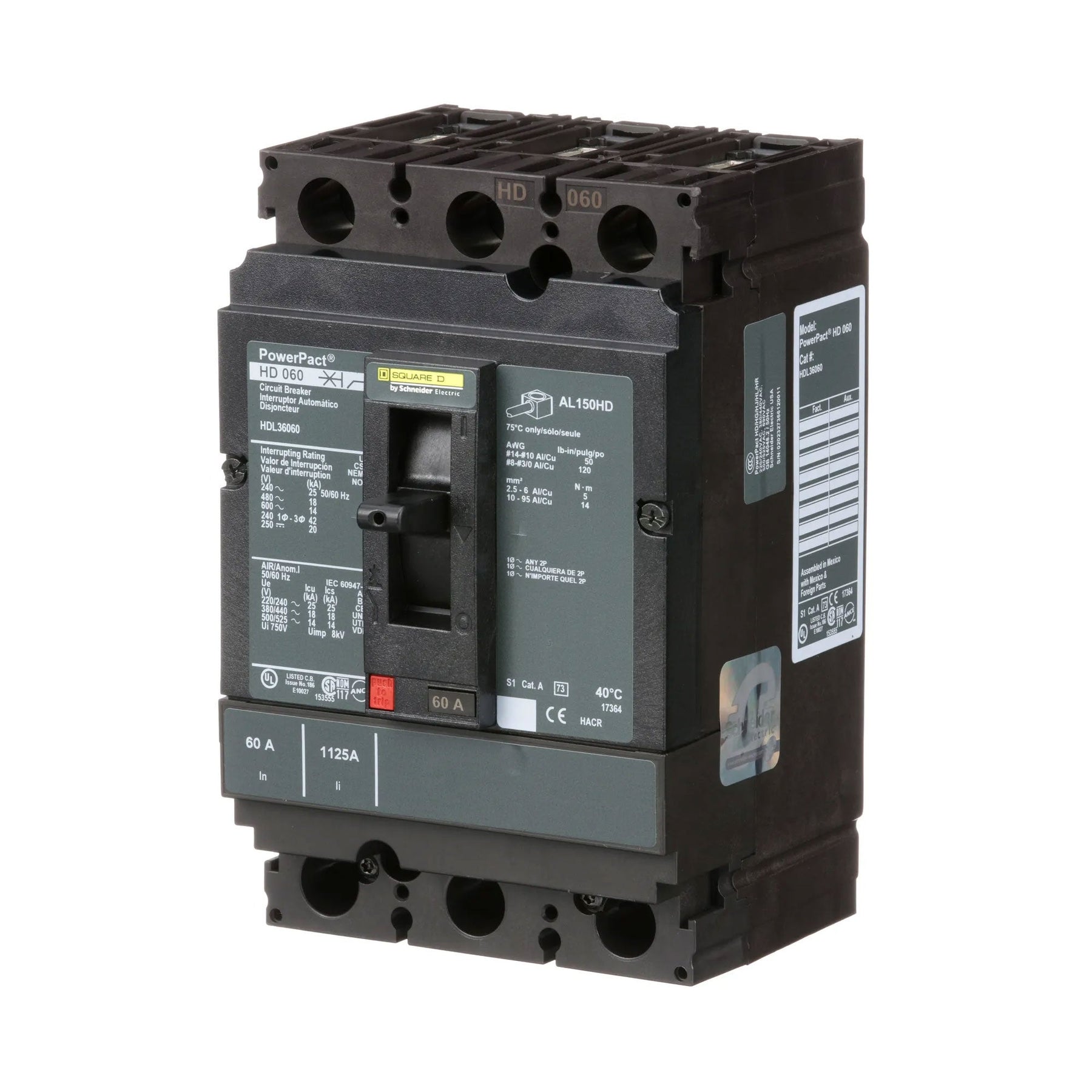

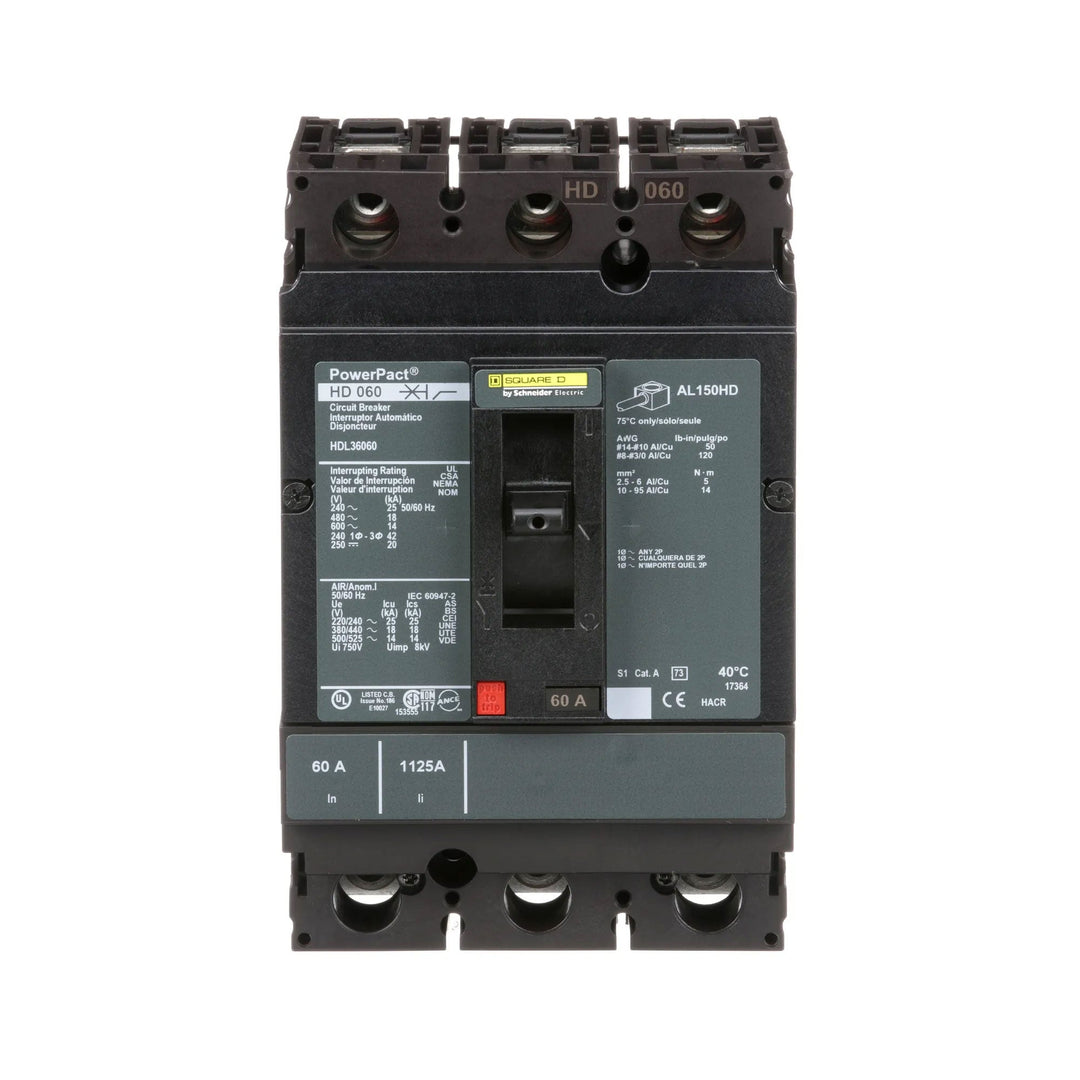

Square D HDL36060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 60A current rating and a 600V voltage rating, housed within a compact 150A/HD frame measuring 163 mm x 104 mm x 86 mm (H x W x D) with a bolt-on connection for secure installation. This thermal-magnetic breaker complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring safe operation across a temperature range of -25 to 70 °C. Its 18kA interrupting capacity at 480V and long-time plus instantaneous (LI) trip functions make it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker with bolt-on connection
  • Voltage Rating: 600V AC
  • Current Rating: 60A

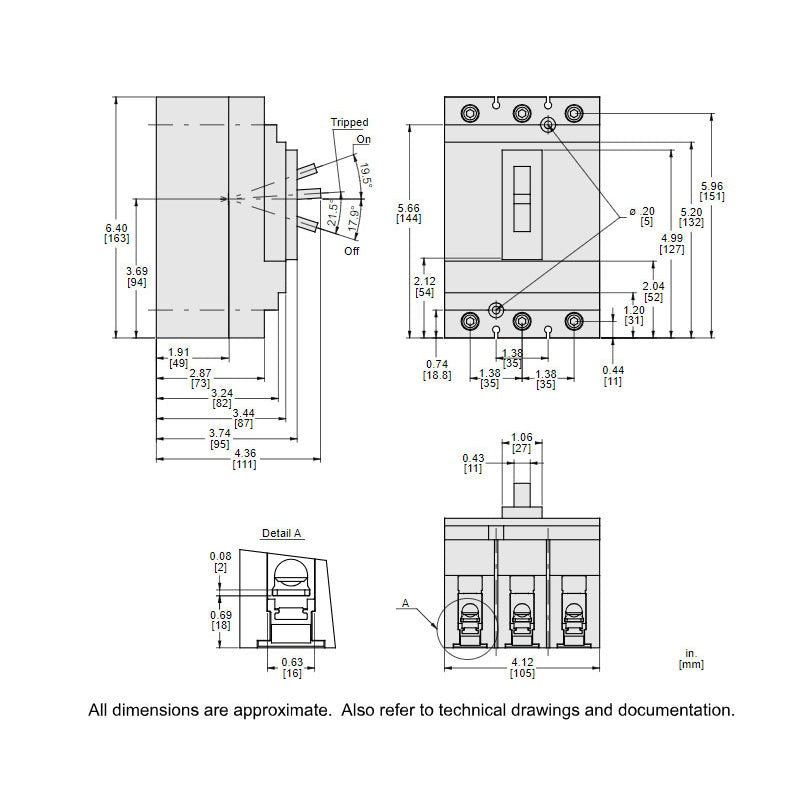

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboard protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 150A/HD
  • Breaker Type: Standard
  • Phase Connection: ABC
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 3 AWG
  • Terminal Connection: Line/Load Lug
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Weight: 4.07 lb


Product Identification
  • UPC: 785901577959
  • GTIN: 00785901577959
