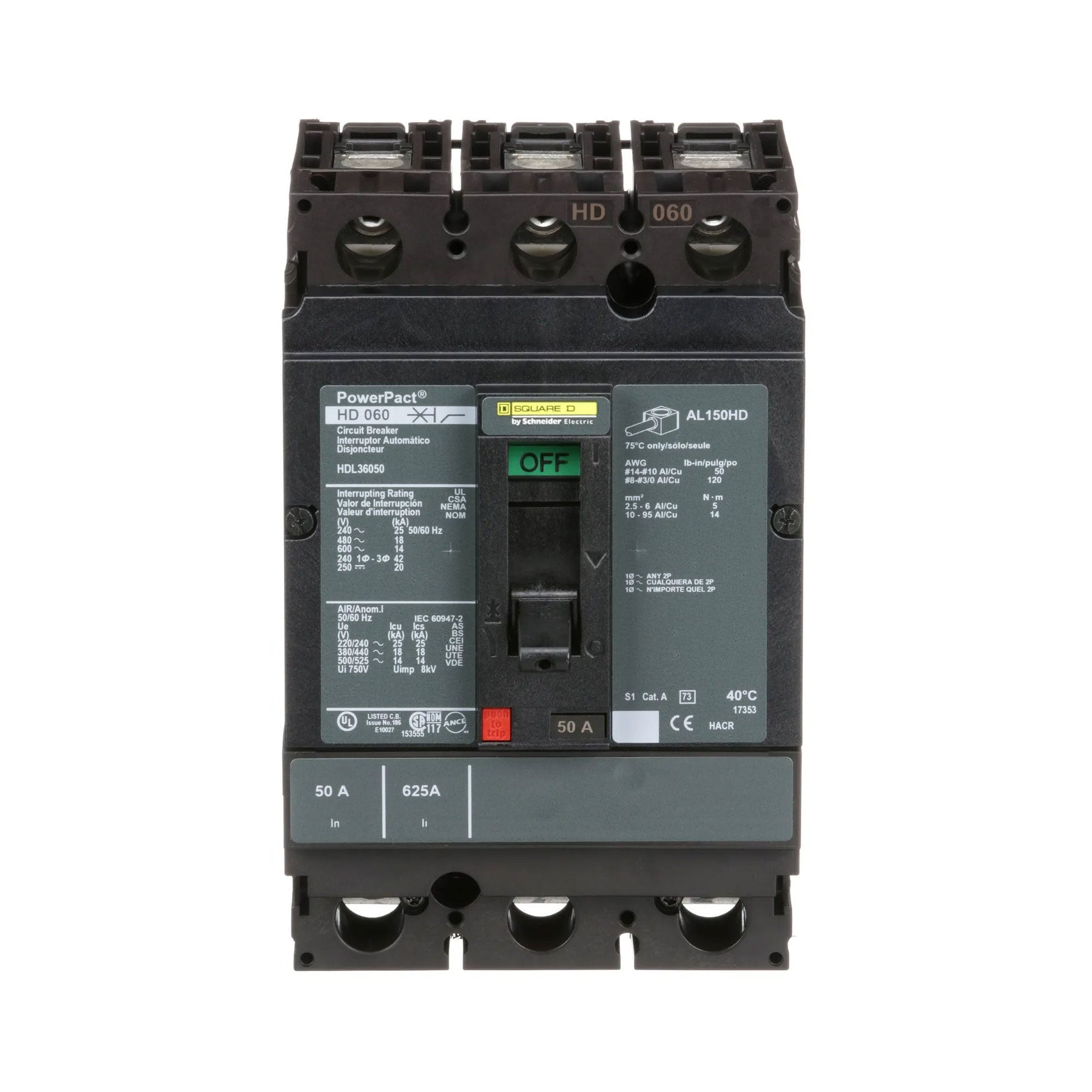

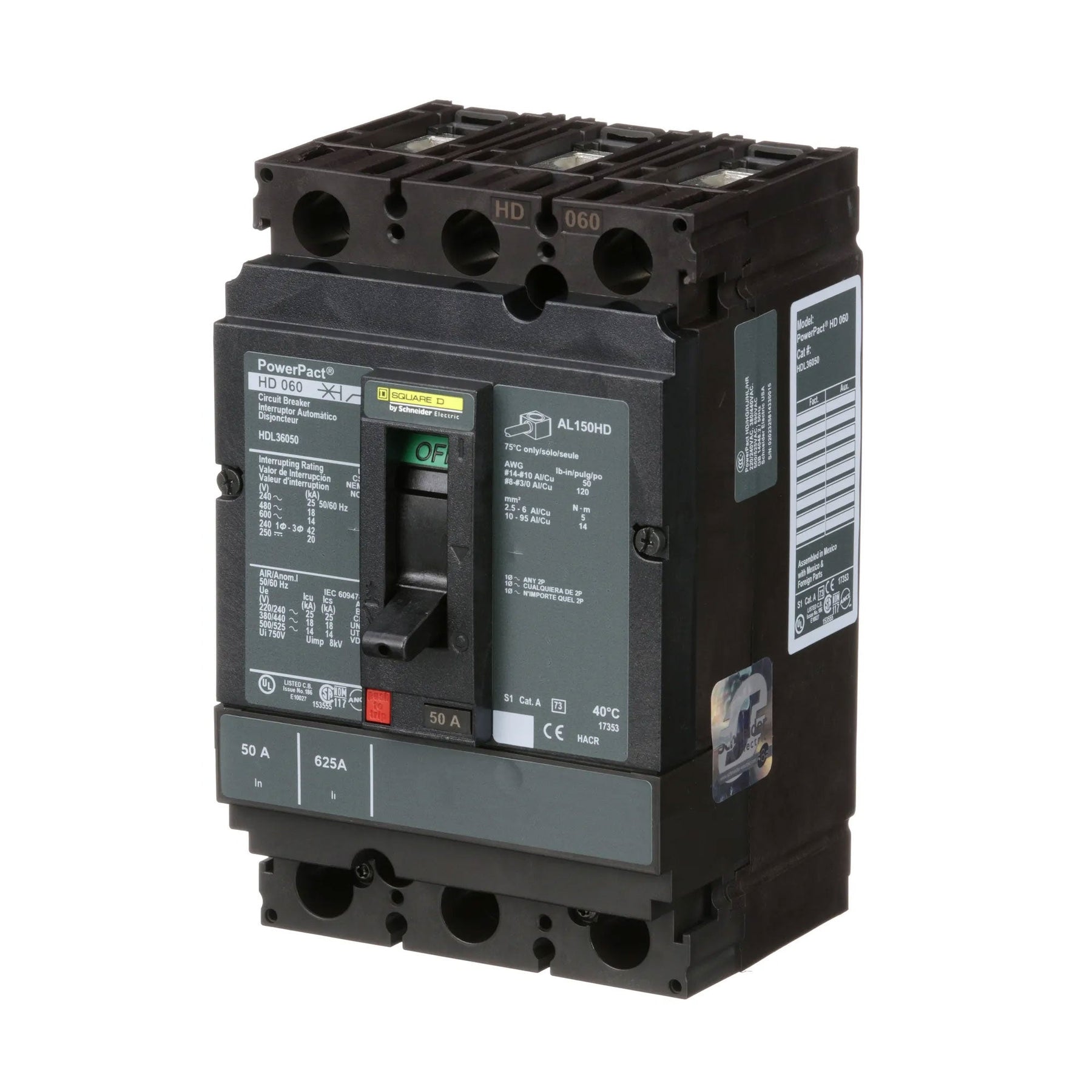

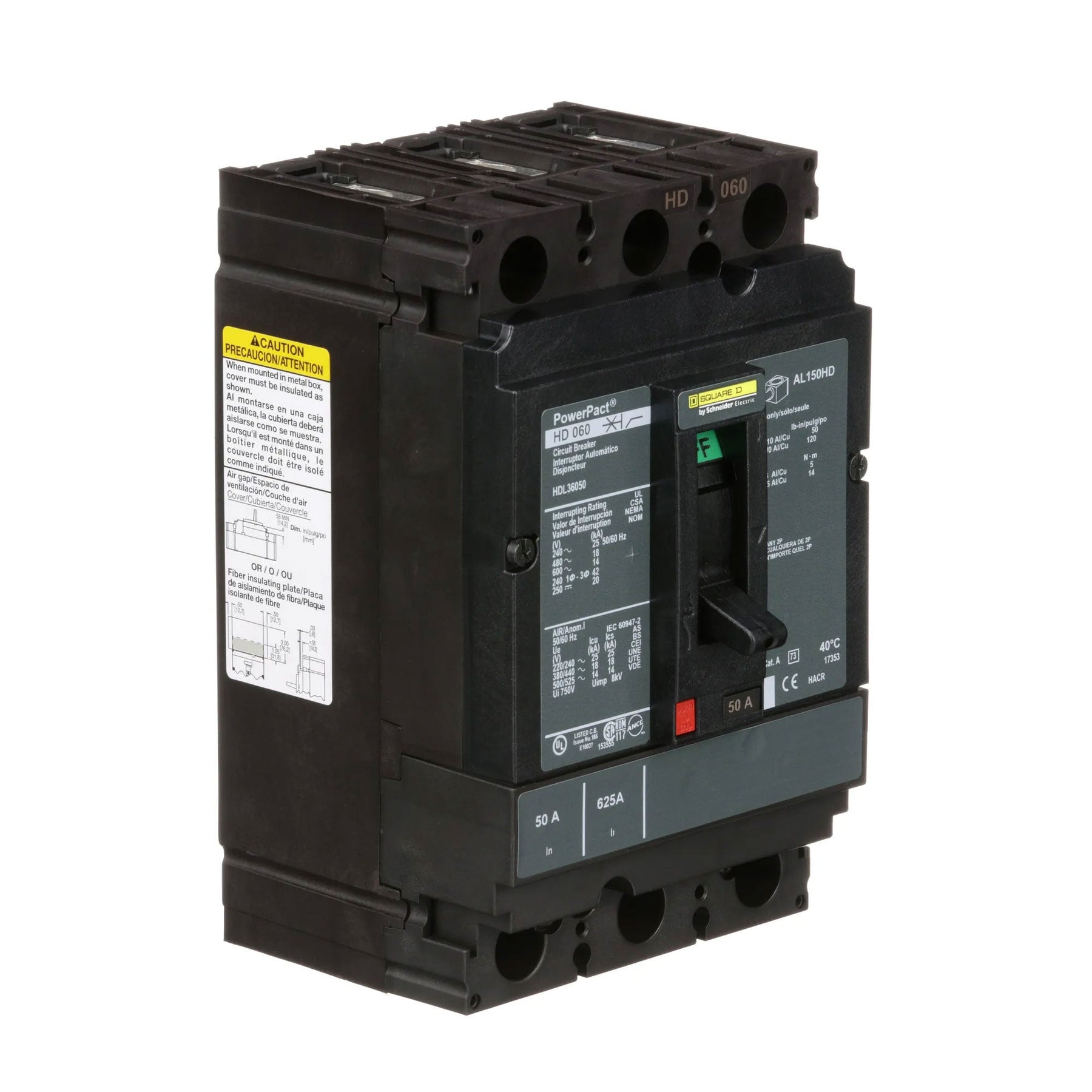

Square D HDL36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 50A current rating and a 600V voltage rating, housed within a compact 150A/HD frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.05 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is certified to UL, CSA, NOM, and IEC 60947-2 standards. Its three-pole, bolt-on configuration with line/load lugs for AWG 14 to 3/0 wire makes it suitable for three-phase applications in panelboards and switchboards, offering an interrupting capacity of 18kA at 480V AC and an operational temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Standard molded case circuit breaker with thermal-magnetic protection and LI (Long-time & Instantaneous) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 50A

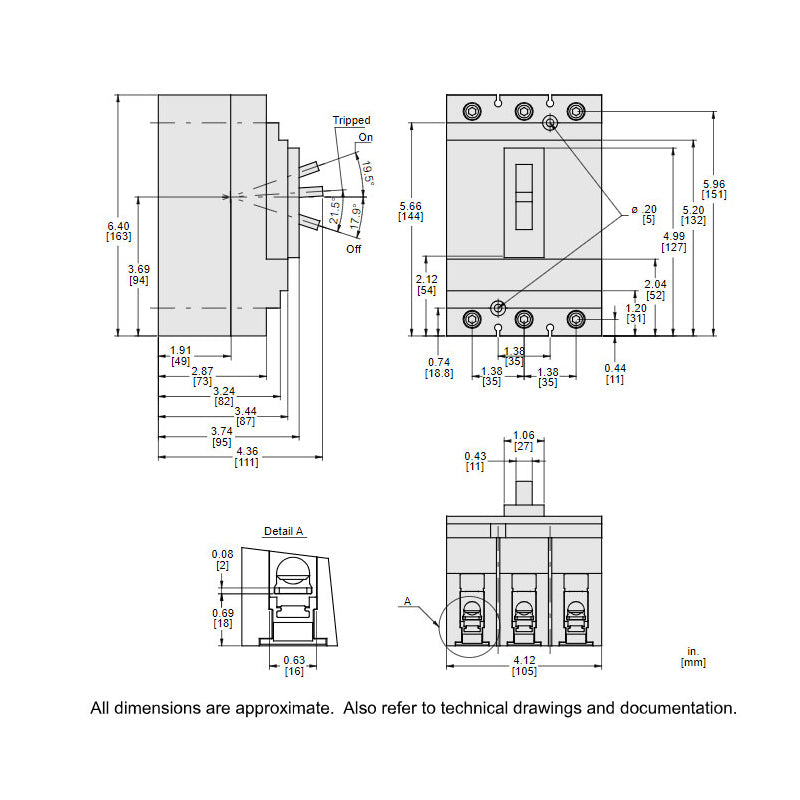

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.05 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution in panelboards and switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Three-pole (3P)
  • Connection: Bolt-On
  • Terminal Connection: Line/Load Lug
  • Phase: 3
  • Phase Connection: ABC
  • AIC Rating: 18kA @ 480V AC
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 150A/HD
  • Breaker Type: Standard
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 3 AWG
  • Certification: UL, CSA, NOM


Product Identification
  • UPC: 785901706700
  • GTIN: 00785901706700
