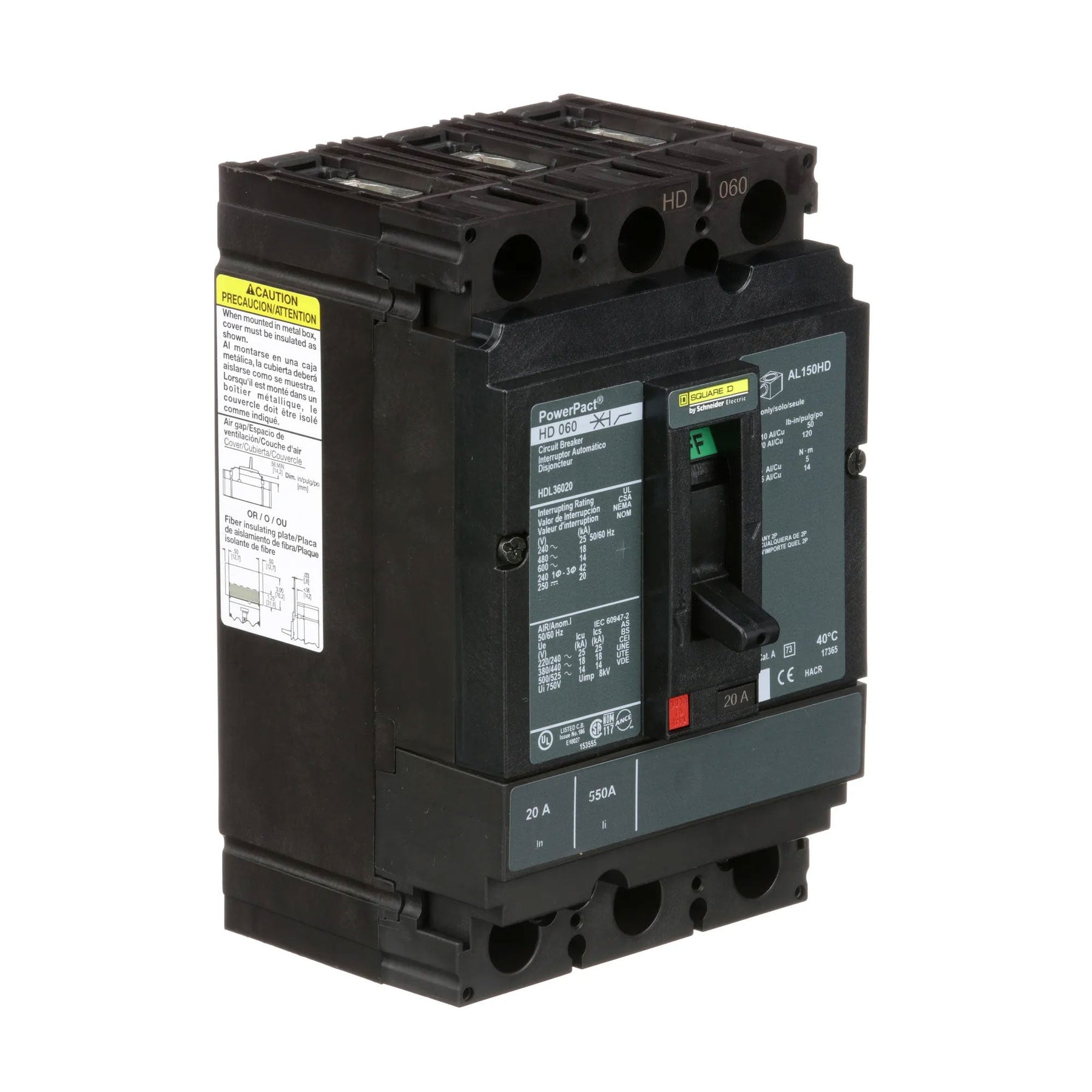

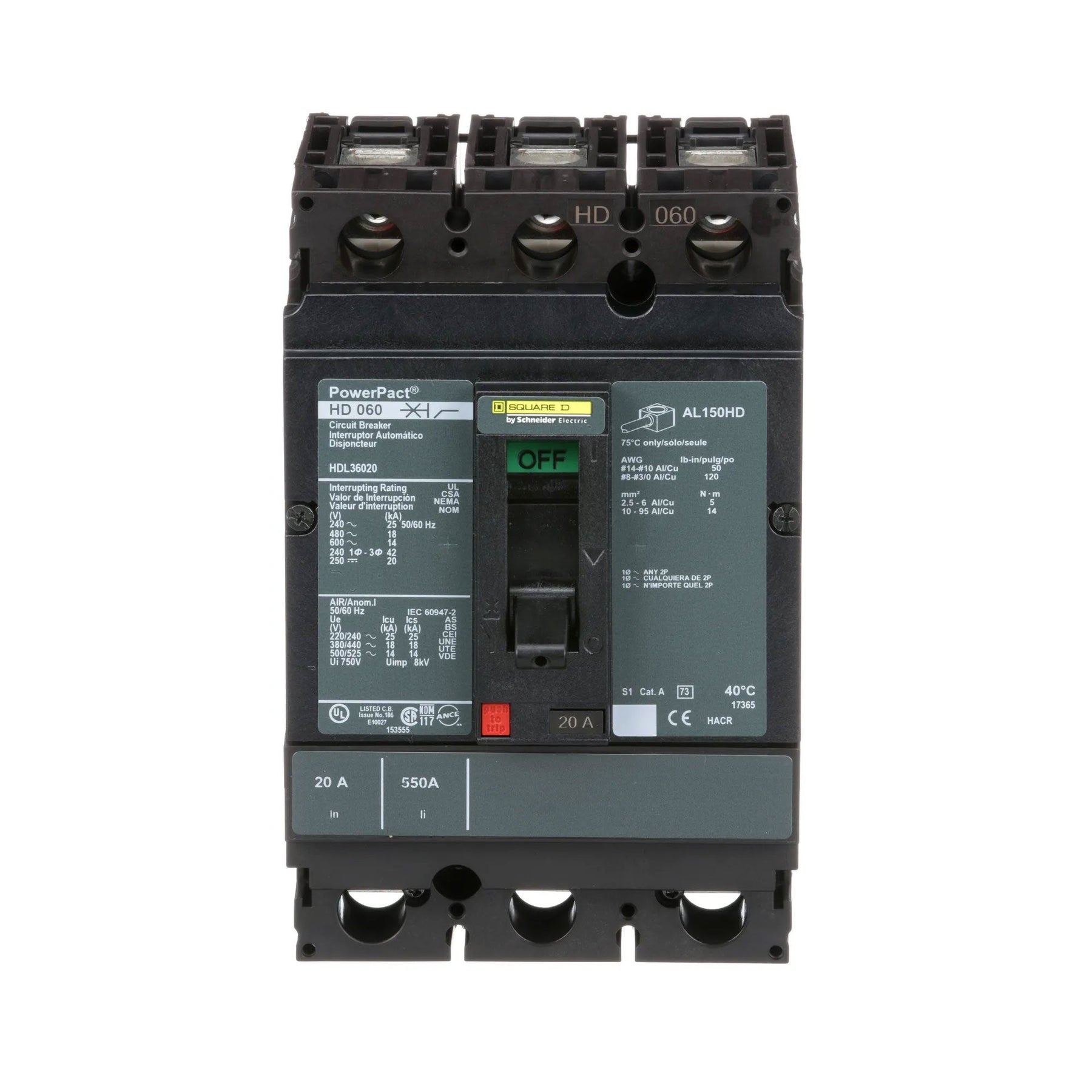

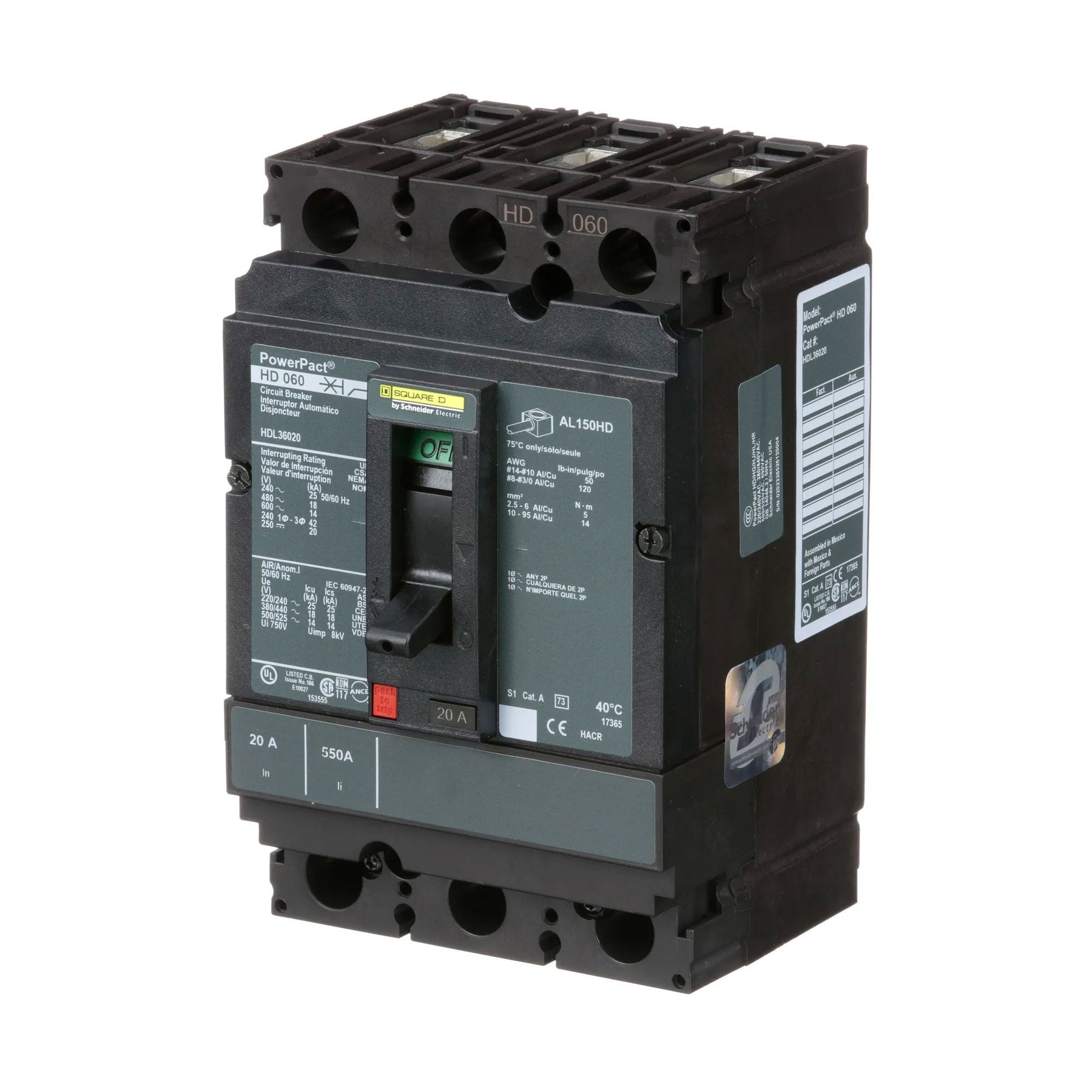

Square D HDL36020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact 150A/HD frame with dimensions of 163 mm H x 104 mm W x 86 mm D and a weight of 4.061 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is constructed with bolt-on connections and line/load lugs compatible with wire sizes from 14 AWG to 3/0 AWG, and operates within a temperature range of -25 to 70 °C. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, making it suitable for panelboards, switchboards, and industrial control panels where an 18kA interrupting rating at 480V is required.

Key Features & Specifications
  • Type: Standard molded case circuit breaker with thermal-magnetic protection and LI (Long-time & Instantaneous) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 20A

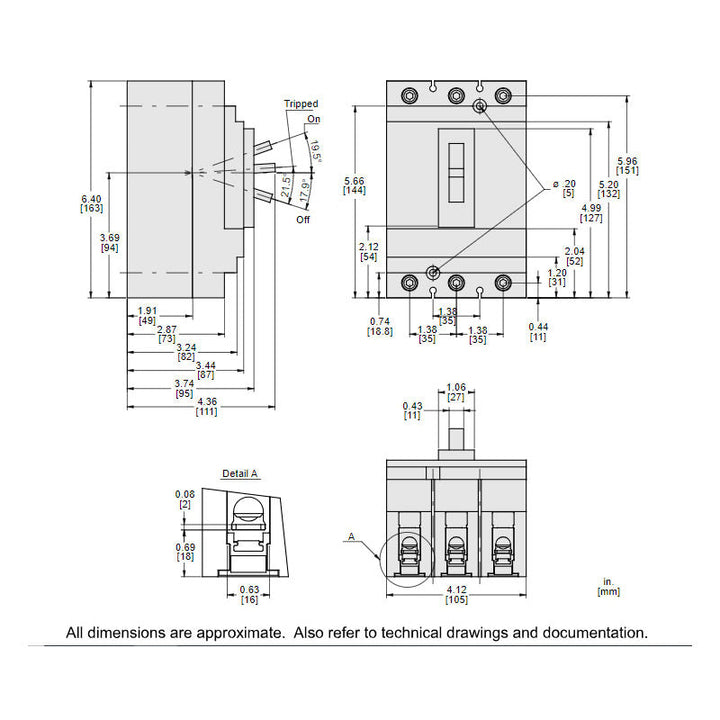

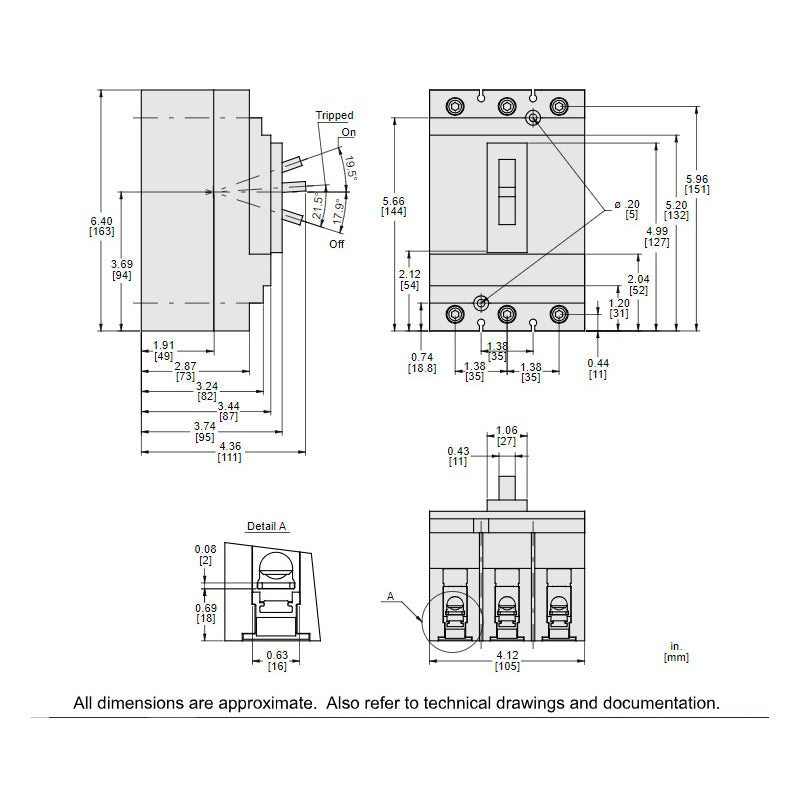

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Three-pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 150A/HD
  • Breaker Type: Standard
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Line/Load Lug
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 3 AWG
  • Weight: 4.061 lb


Product Identification
  • UPC: 785901706694
  • GTIN: 00785901706694
