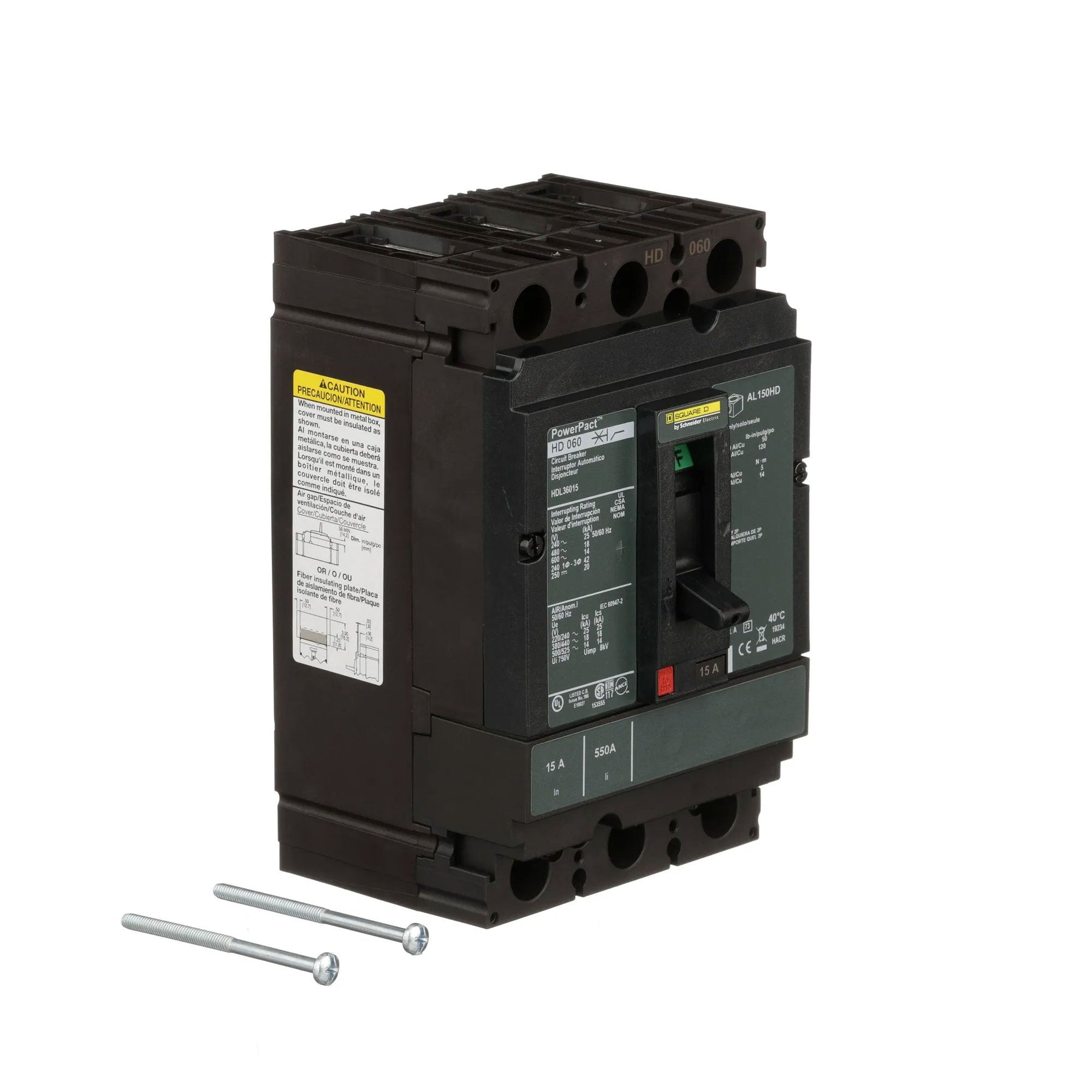

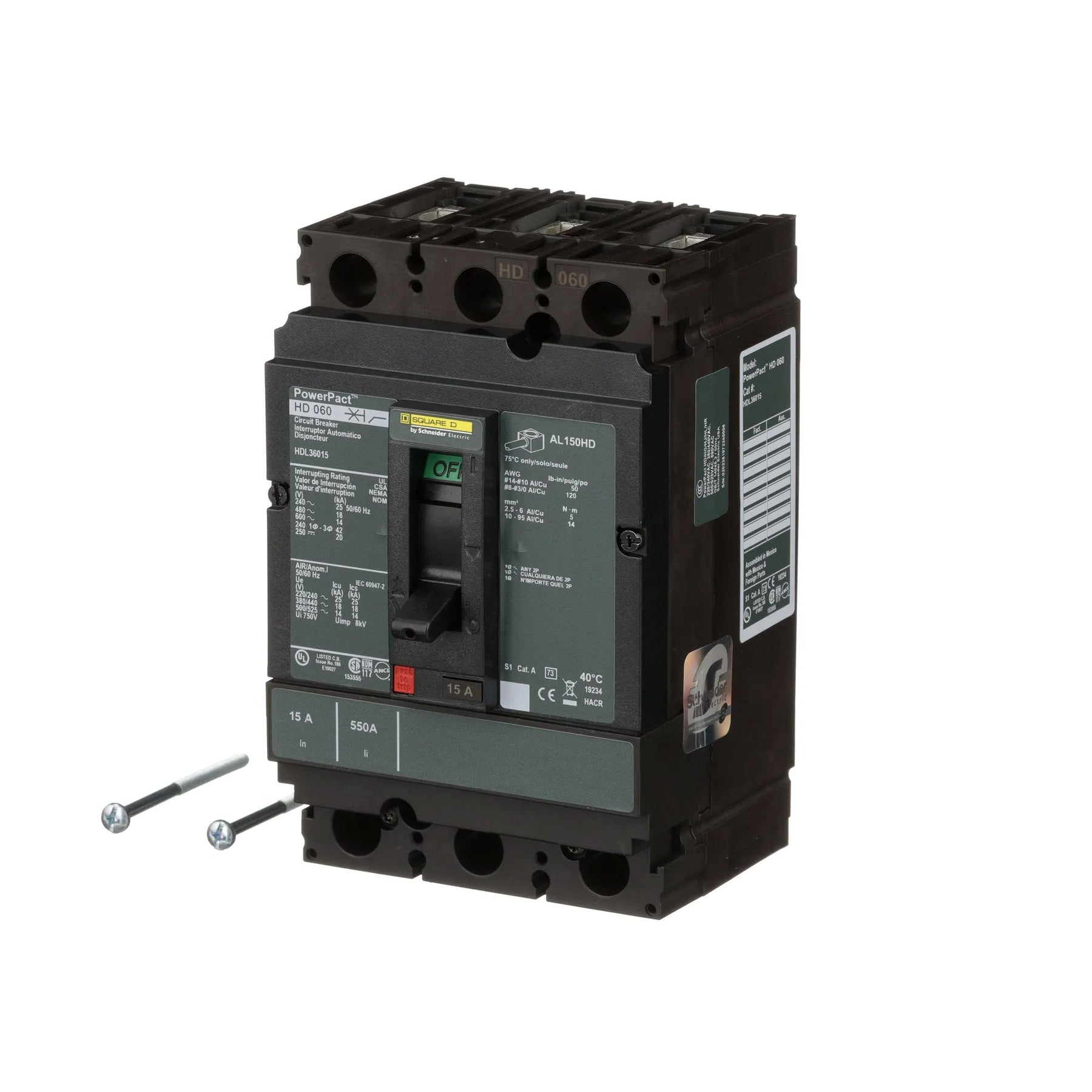

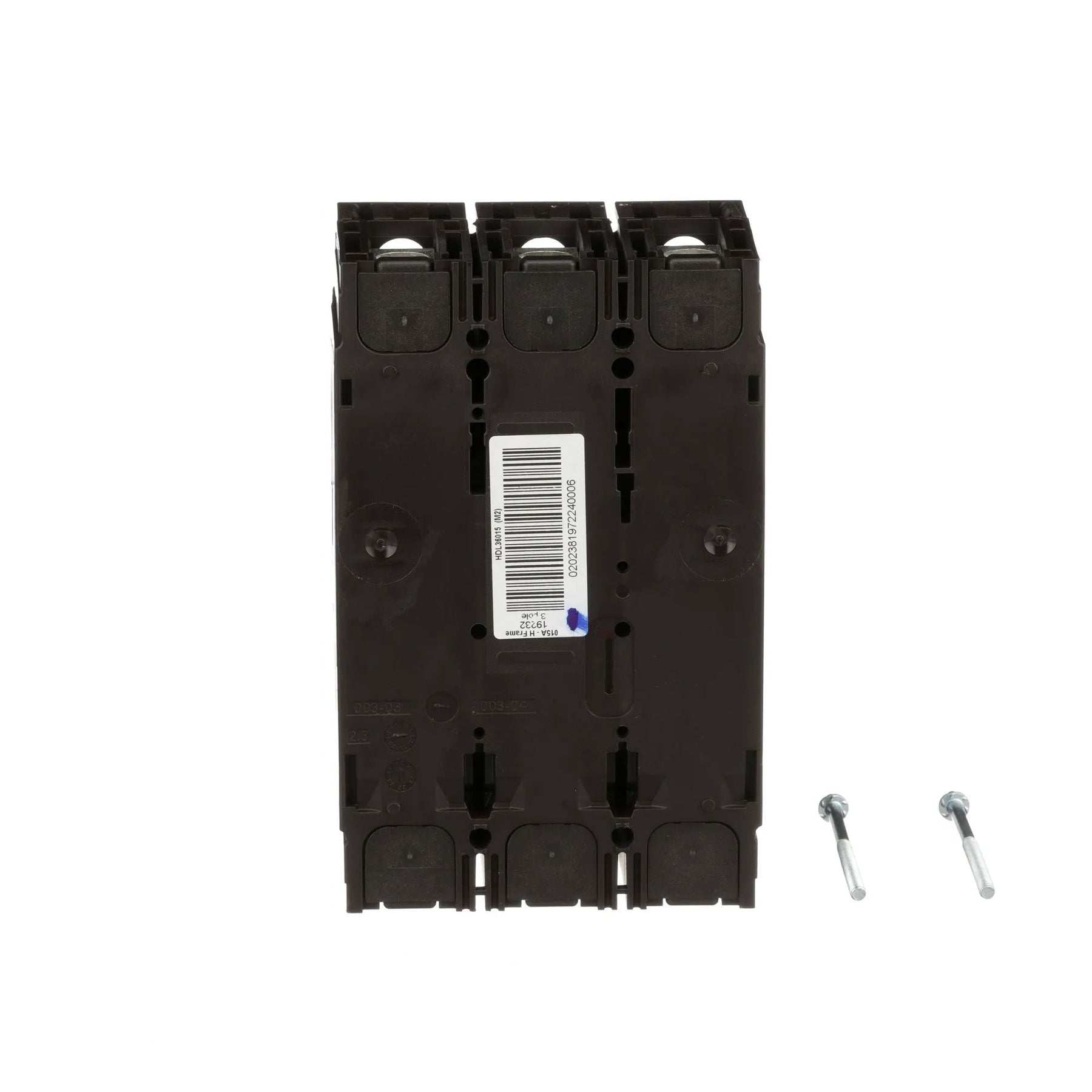

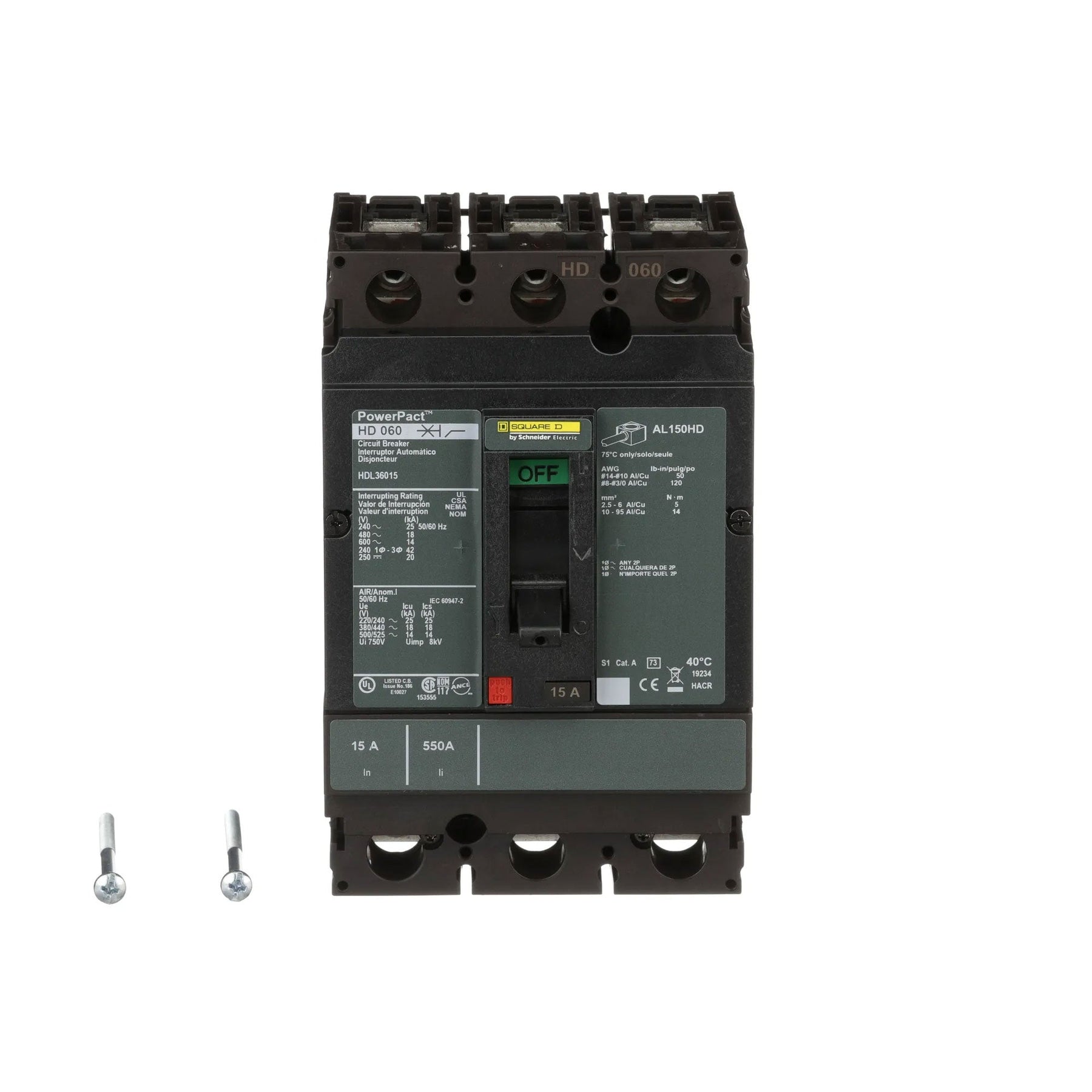

Square D HDL36015 - 3-Pole Circuit Breaker 15A 600V

Price
Regular price $466.64
Regular price $1,088.00 Sale price $466.64
Save $621.36
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D HDL36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact 150A/HD frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.1 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) functions and offers an interrupting capacity of 18kA at 480V AC. It is compliant with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial panelboard and switchboard applications.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker, bolt-on connection
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Frame Size: 150A/HD
  • Poles: 3
  • Phase Connection: ABC
  • AIC Rating: 18kA @ 480V AC
  • Protection: Thermal Magnetic
  • Trip Functions: LI (Long-time and Instantaneous)
  • Connection: Bolt-On, Line/Load Lug
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper terminal)

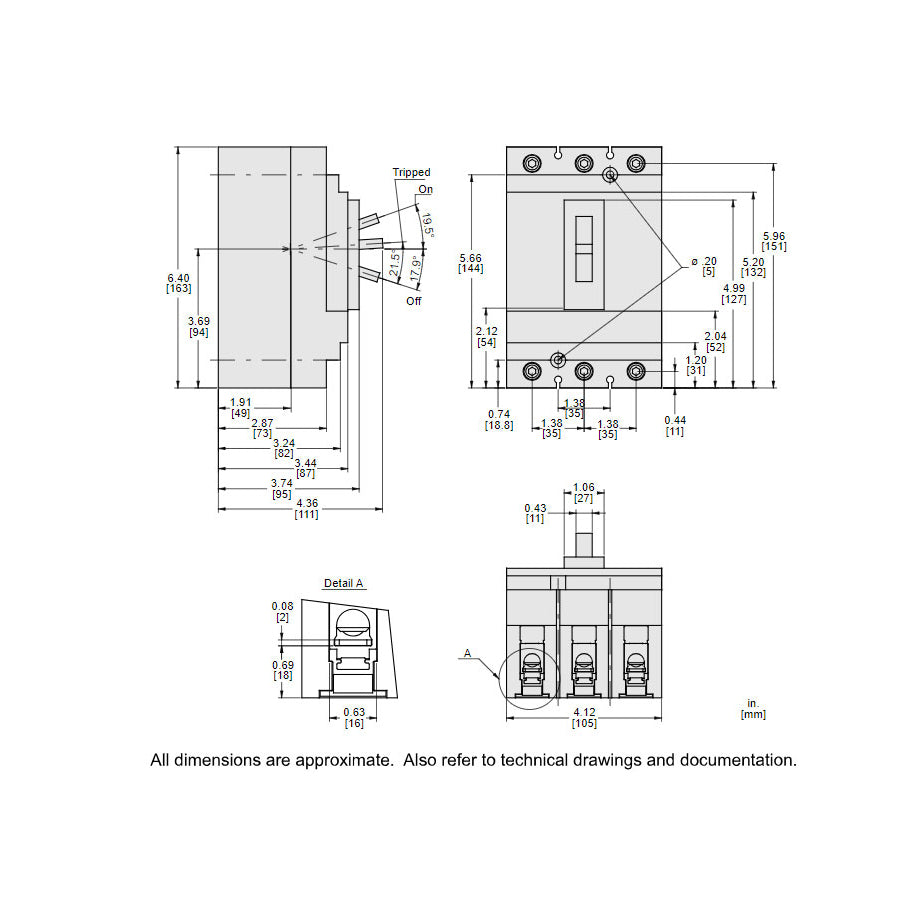

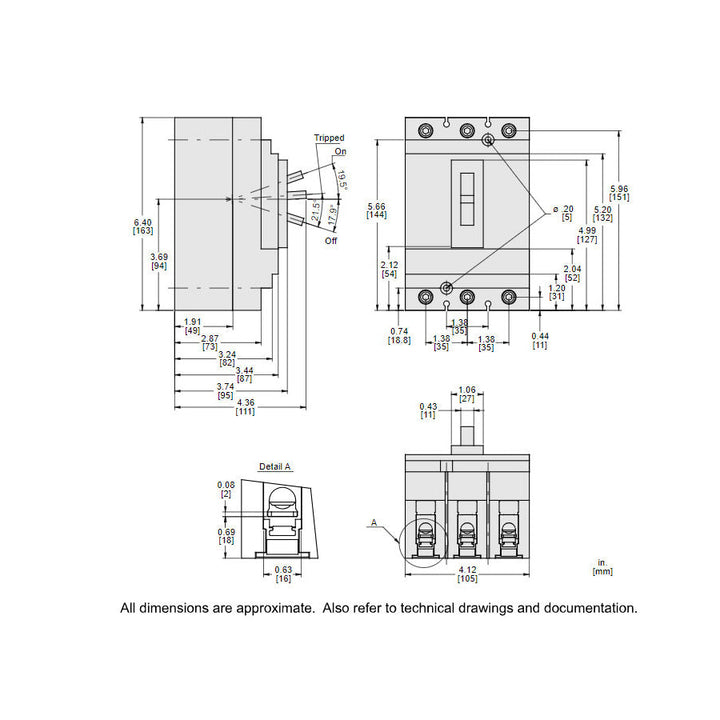

  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Weight: 4.1 lb
  • Operating Temperature: -25 to 70 °C (-13 to 158 °F)
  • Standards & Certification: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901577867
  • GTIN: 00785901577867
