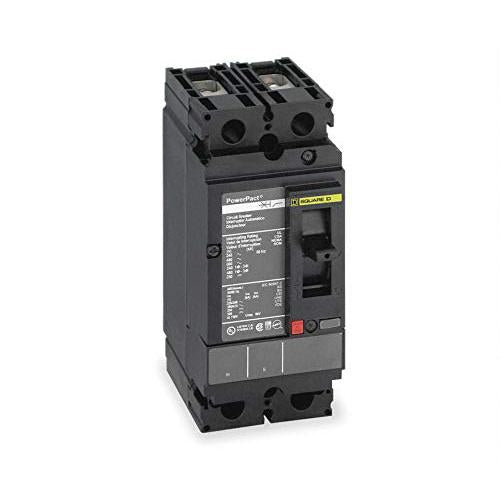

Square D HDL26150 - Molded Case Circuit Breaker 150A 600V 2-Pole
Square D HDL26150 - Molded Case Circuit Breaker 150A 600V 2-Pole

Square D HDL26150 - Molded Case Circuit Breaker 150A 600V 2-Pole

Square D
Price
Save $992.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HDL26150 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 150A current rating and a 600V voltage rating, housed within a compact 150A/HD frame measuring 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D and weighing 2.95 lb. The breaker is constructed with a thermal-magnetic trip unit for LI (Long-time and Instantaneous) protection and complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, making it suitable for a wide range of commercial and industrial panelboard applications.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker with bolt-on connection
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Frame Size: 150A/HD
  • Poles: 2
  • Phase: 1
  • AIC Rating: 18kA at 480V
  • Protection: Thermal Magnetic (LI - Long-time and Instantaneous)
  • Connection: Bolt-On
  • Terminal Connection: Line/Load Lug
  • Wire Size: 14 AWG to 3/0 AWG (aluminium/copper)
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 2.95 lb
  • Breaker Type: Standard
  • Phase Connection: Not Applicable
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901577850
  • GTIN: 00785901577850
