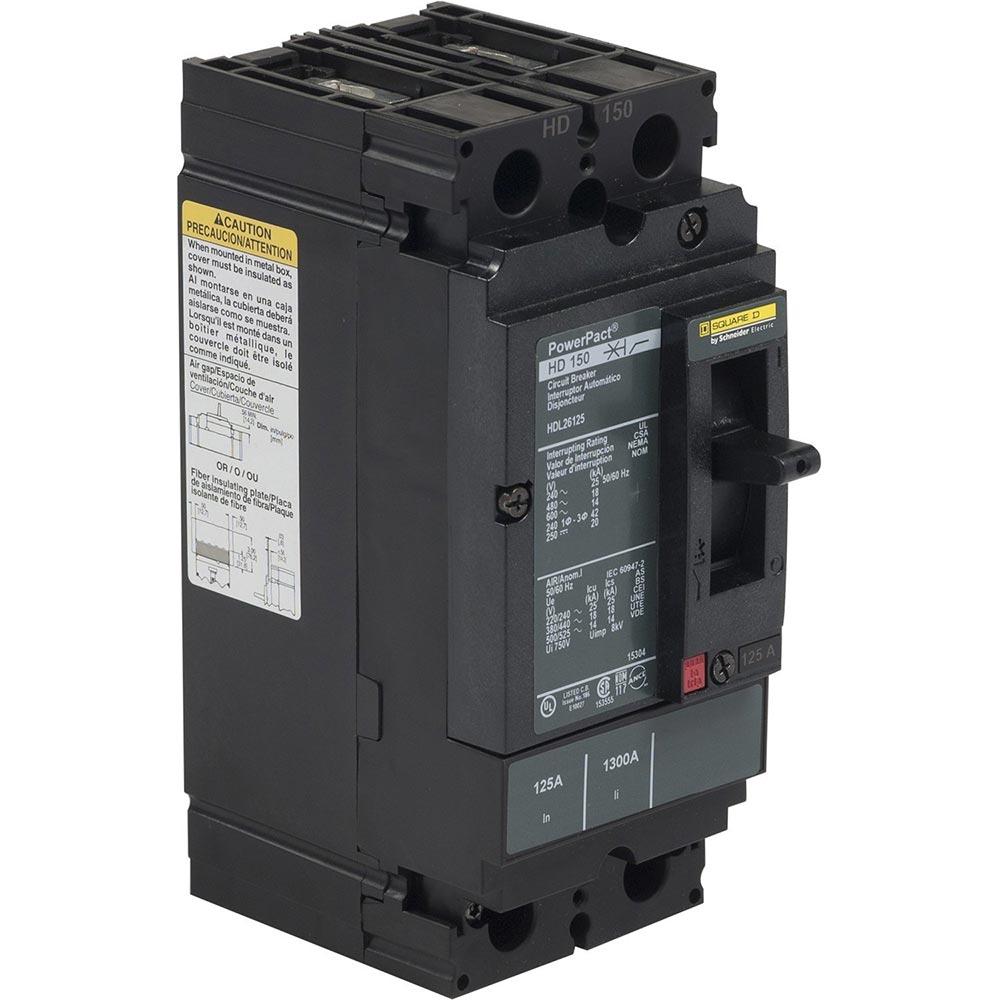

Square D HDL26125 - Molded Case Circuit Breaker 125A 600V 2-Pole
Square D HDL26125 - Molded Case Circuit Breaker 125A 600V 2-Pole

Square D HDL26125 - Molded Case Circuit Breaker 125A 600V 2-Pole

Square D
Price
Save $1,261.34
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D HDL26125 is a molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial electrical systems. It provides a 125A current rating and a 600V voltage rating, housed within a compact 150A/HD frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 3.06 lb. The breaker features thermal-magnetic protection with long-time and instantaneous (LI) trip functions, ensuring compliance with UL, CSA, NEMA, and IEC 60947-2 standards. Its bolt-on connection with line/load lugs accommodates wire sizes from 14 AWG to 3/0 AWG, making it suitable for panelboards, switchboards, and industrial control panels requiring an 18kA interrupting capacity at 480V AC.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker with bolt-on connection
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Panelboards, switchboards, industrial control panels
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 1
  • AIC Rating: 18kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 150A/HD
  • Breaker Type: Standard
  • MCM Size: 14 AWG to 3/0 AWG
  • Terminal Connection: Line/Load Lug
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: Not Applicable
  • Weight: 3.06 lb


Product Identification
  • UPC: 785901461944
  • GTIN: 00785901461944
