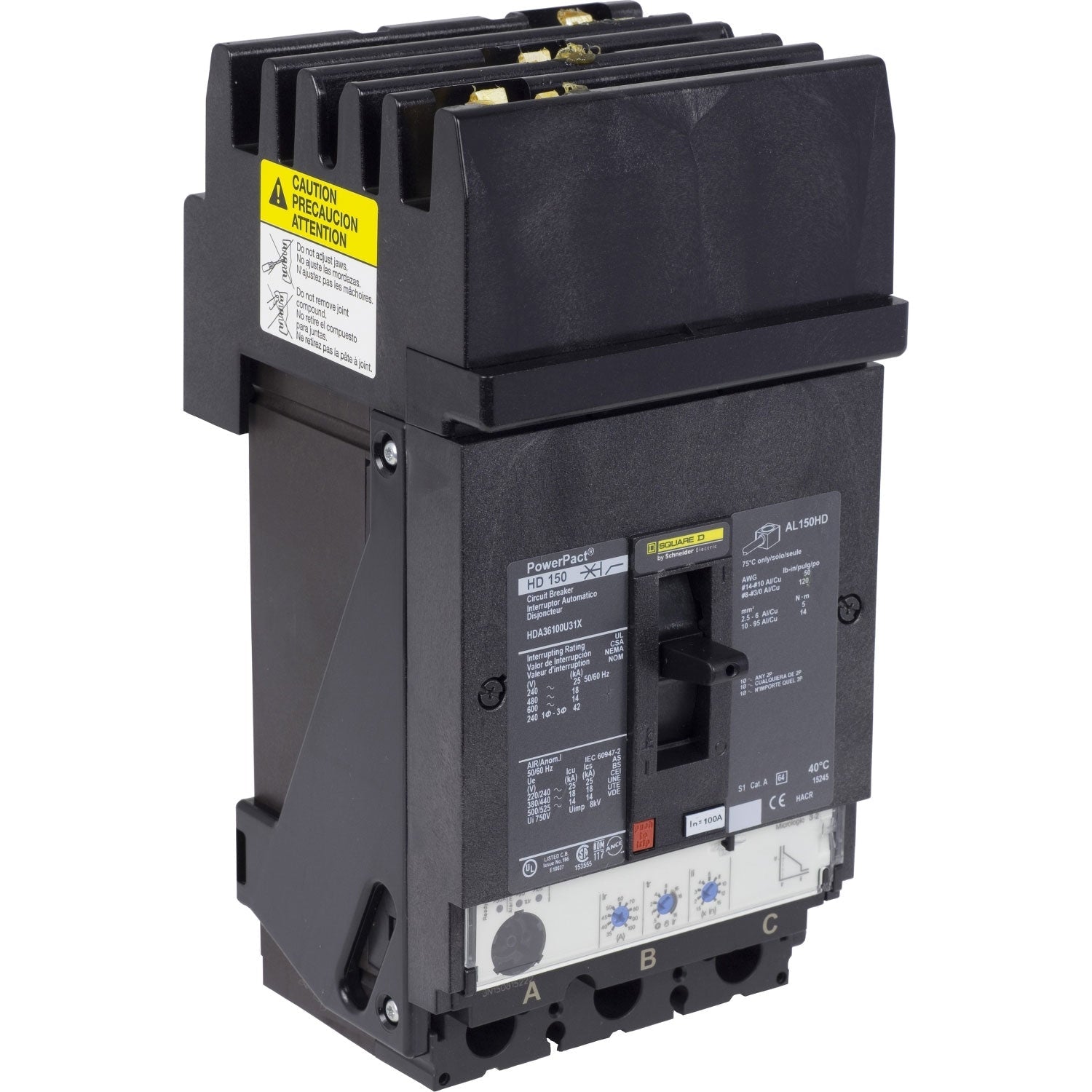

Square D HDA36100U31X is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 6.171 lb. The breaker utilizes solid-state protection with Long-Time and Instantaneous (LI) trip functions and offers an interrupting capacity of 18kA at 480V AC. It is constructed for I-Line style plug-in connection with lug terminals, accepting wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors, and is rated for operation from -2 to 70 °C. This unit complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, making it suitable for use in industrial panelboards and switchboards.

Key Features & Specifications
  • Type: HDA Molded Case Circuit Breaker, Solid State Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A

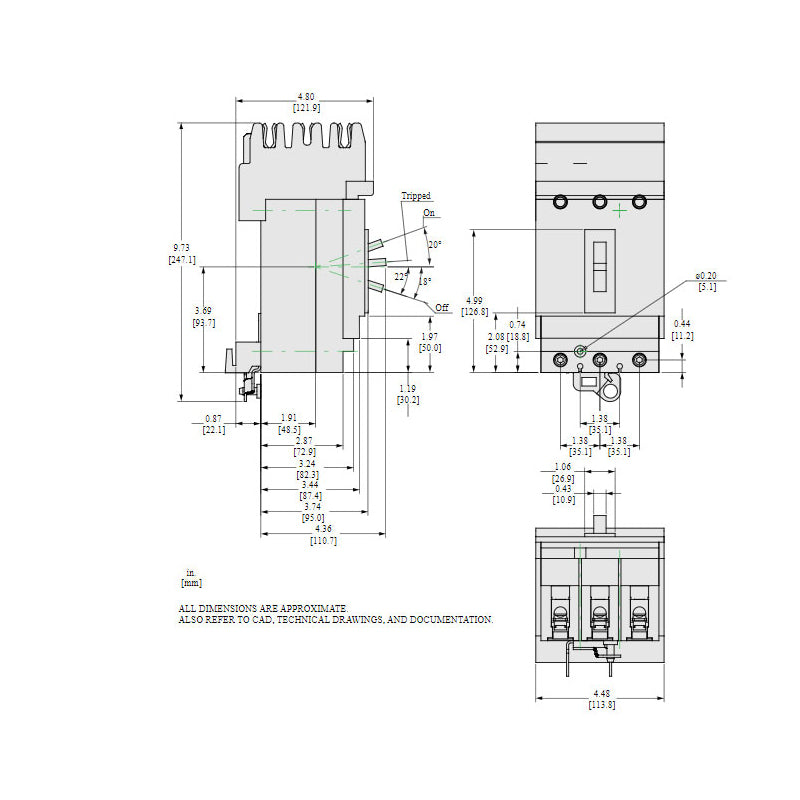

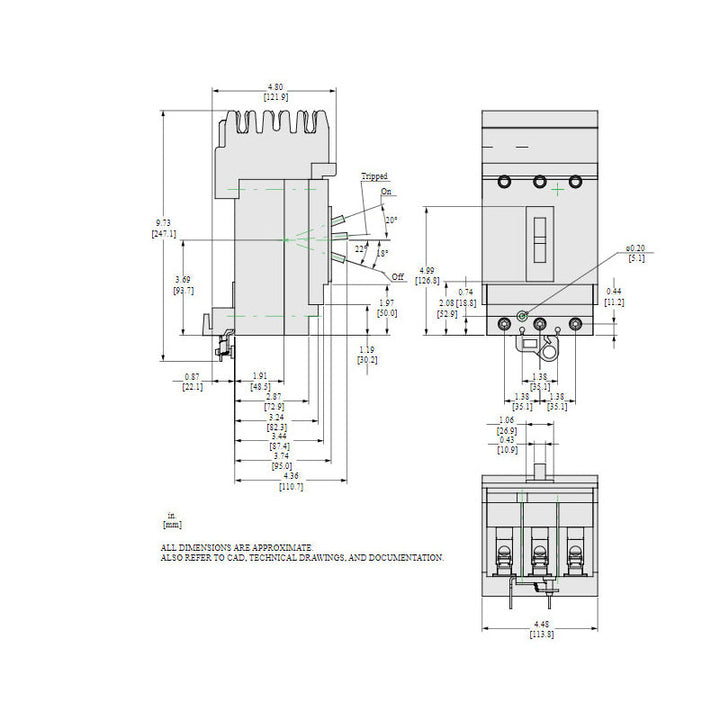

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Phase: 3
  • Voltage: 600V
  • Amperage: 100A
  • AIC rating: 18kA@480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Solid State
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: H
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: I-Line, Lug
  • Wire Size: AWG 14...AWG 3/0 aluminium/copper terminal
  • MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Weight: 6.171 lb


Product Identification
  • UPC: 785901154426
  • GTIN: 00785901154426
