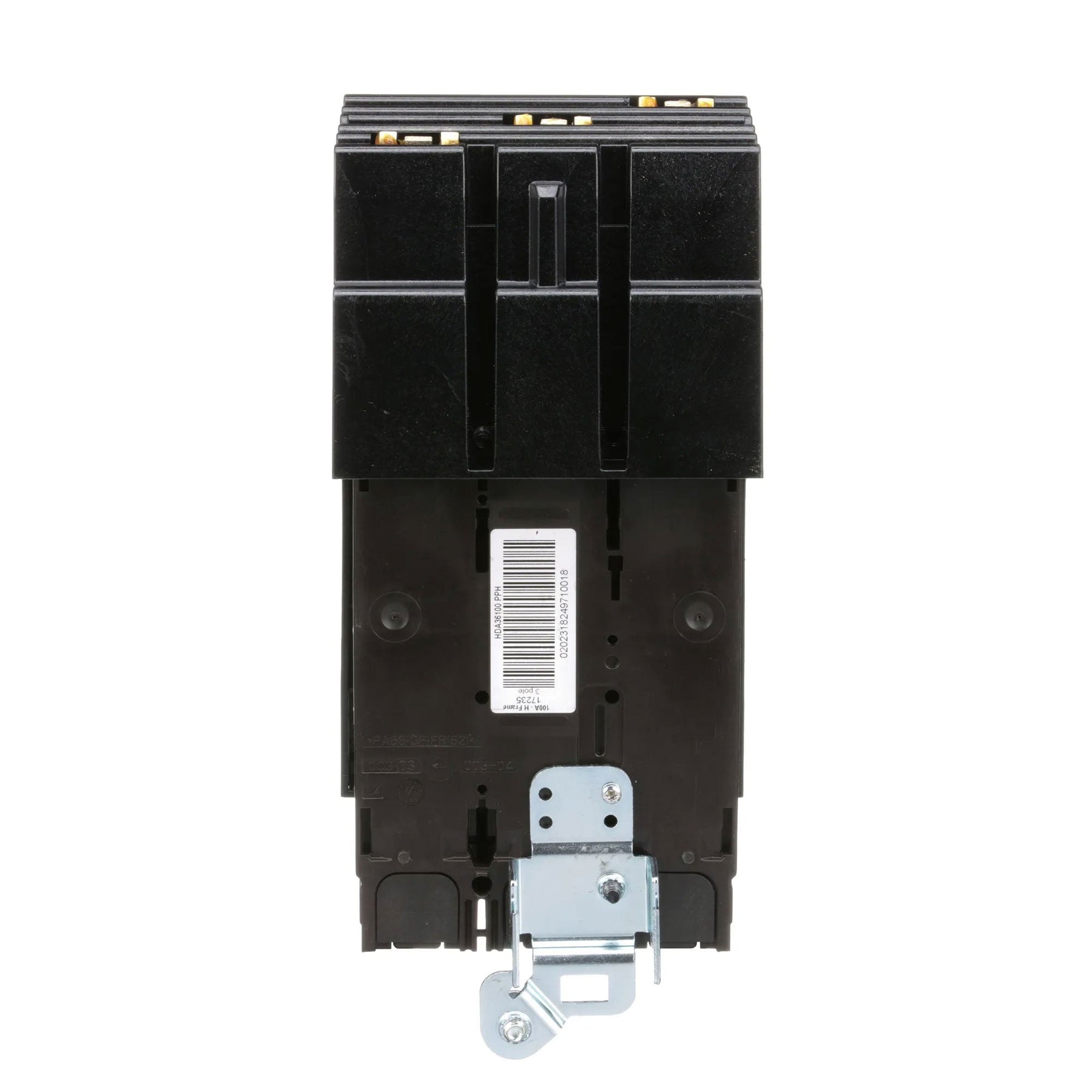

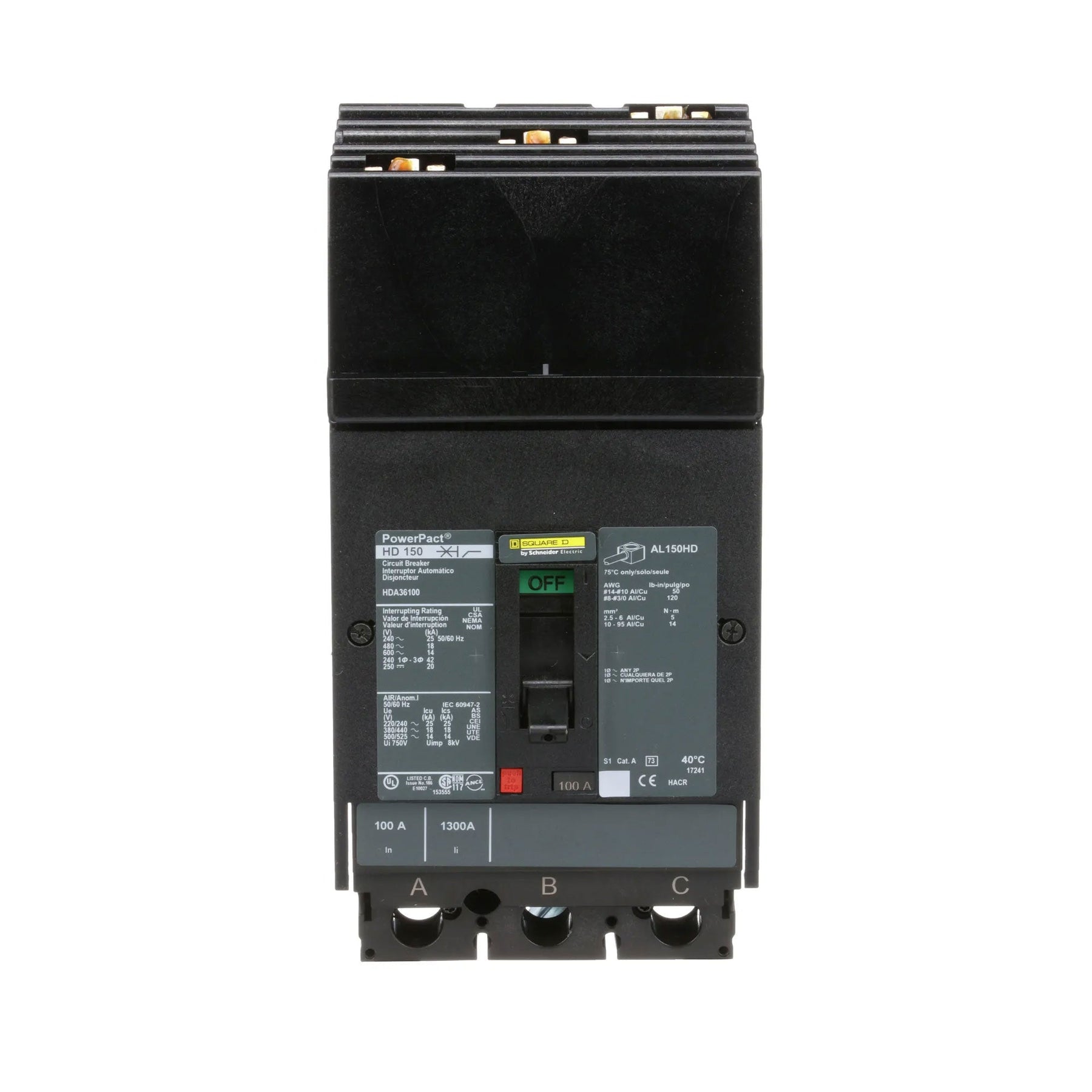

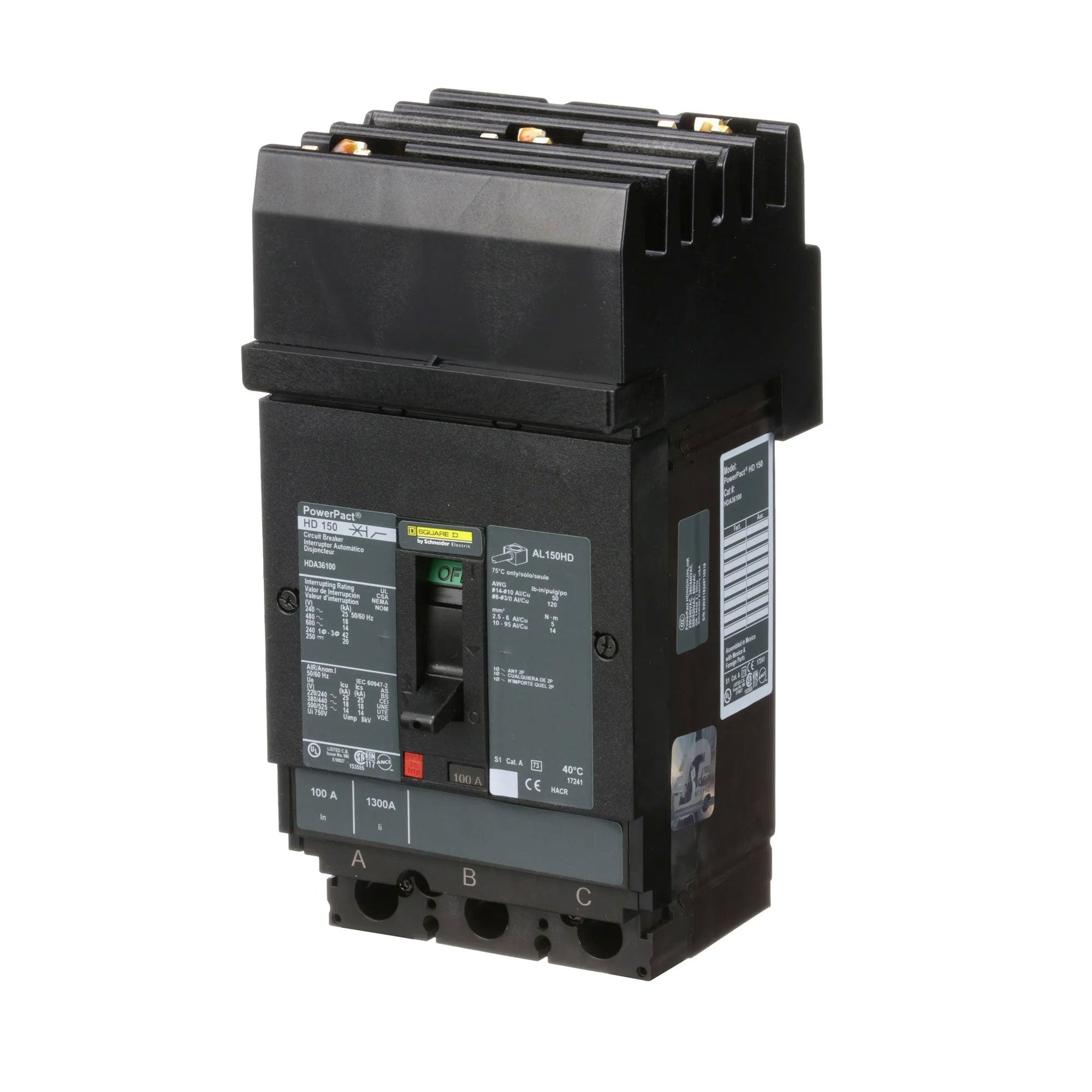

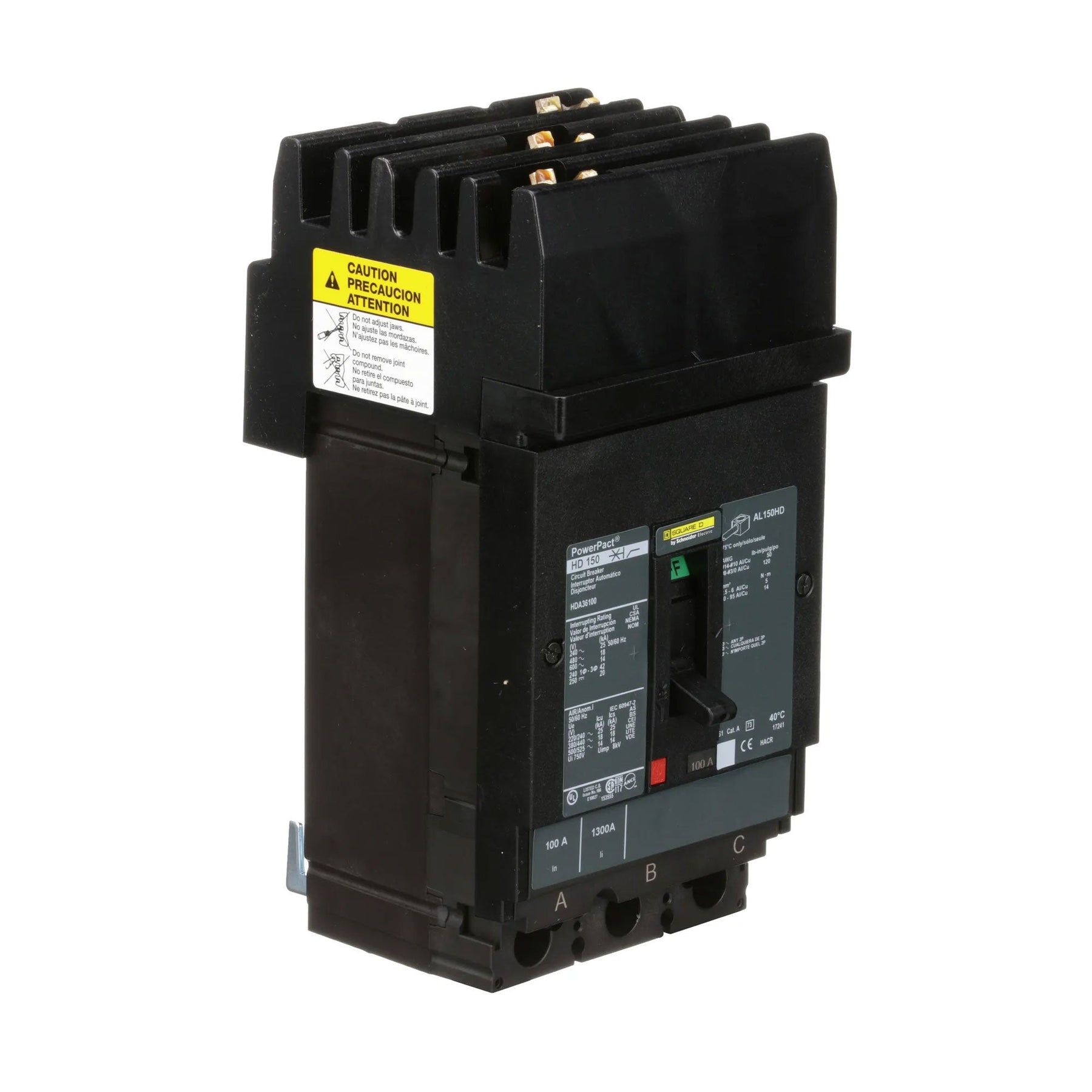

Square D HDA36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5.549 lb. The breaker is constructed for robust performance with a thermal-magnetic trip unit providing long-time and instantaneous (LI) protection, and it complies with key industry standards including UL, CSA, NEMA, and IEC 60947-2. Its I-Line style plug-in connection and lug terminals facilitate efficient installation in panelboards, making it suitable for a wide range of commercial and industrial applications.

Key Features & Specifications
  • Type: HDA Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A

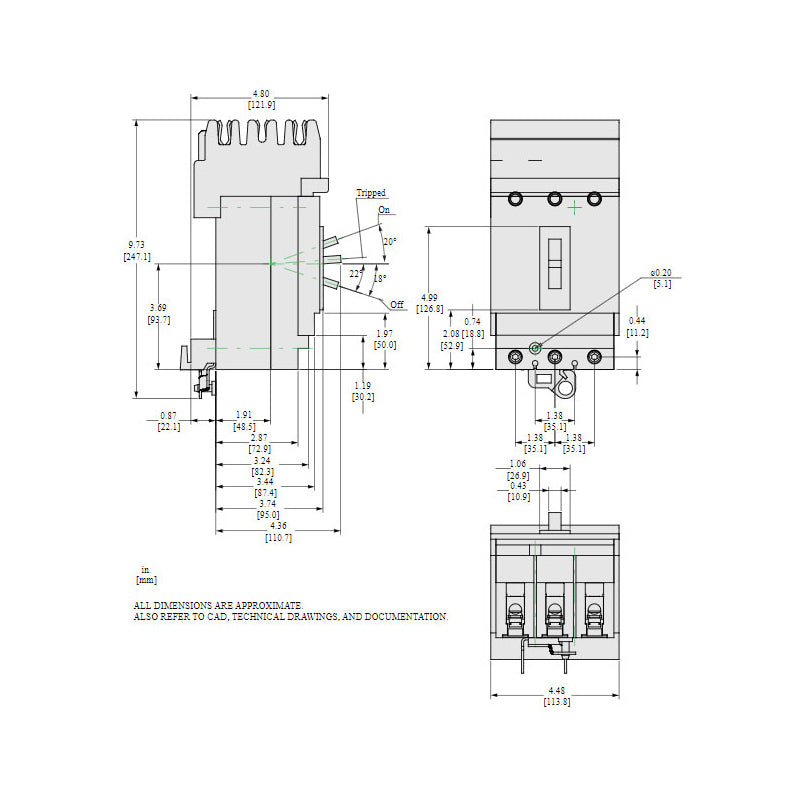

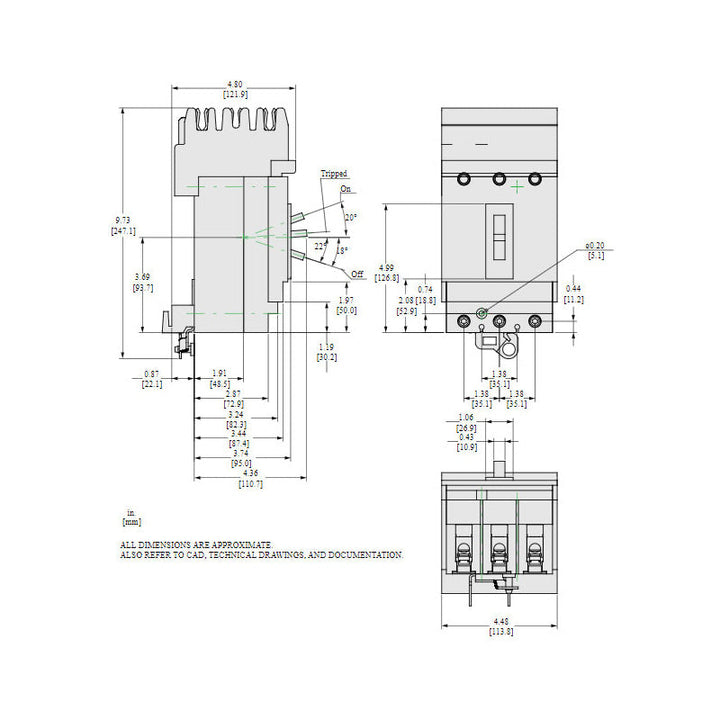

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 100A
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: H
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Terminal Connection: I-Line, Lug
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 5.549 lb


Product Identification
  • UPC: 785901419983
  • GTIN: 00785901419983
