Square D
Price
Save $750.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

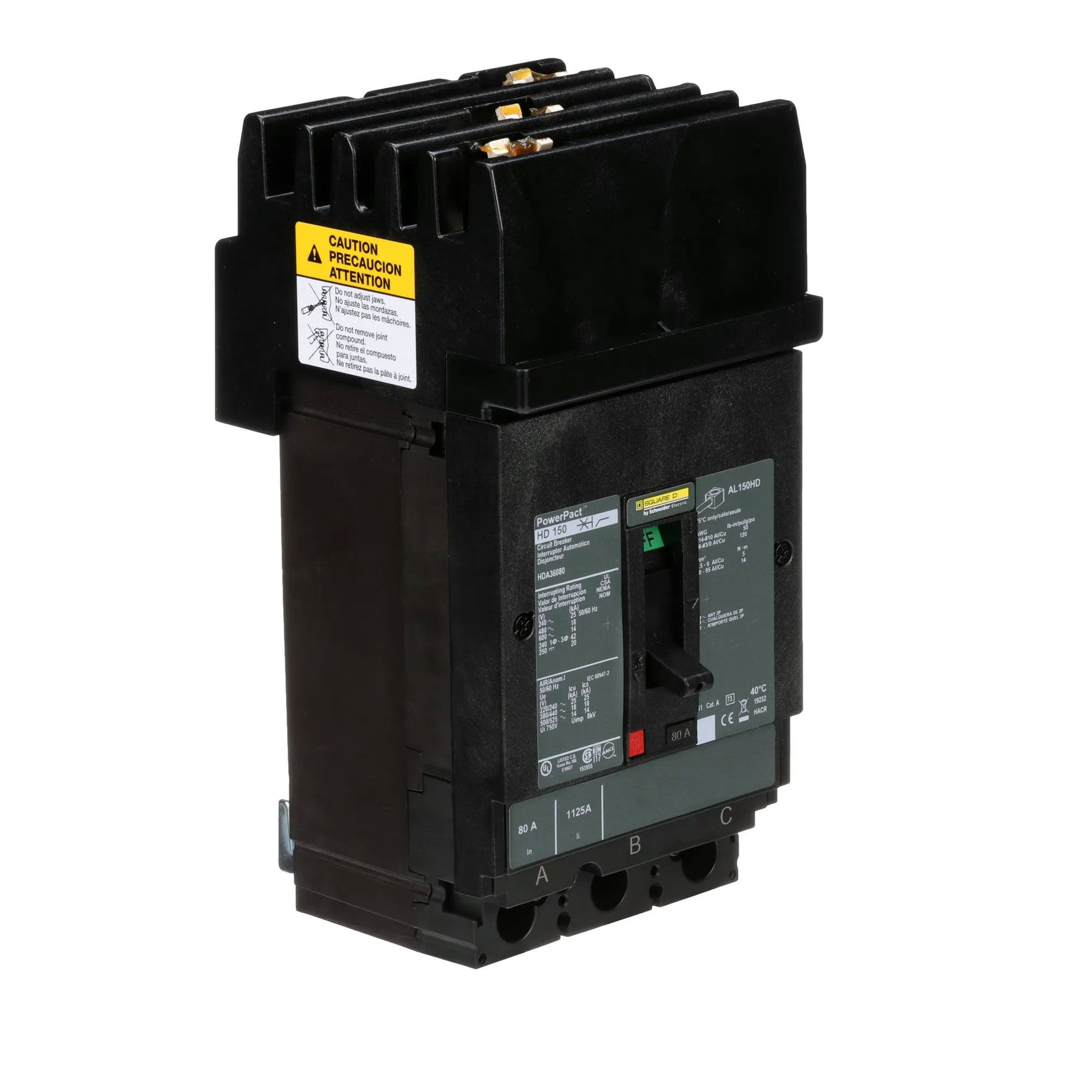

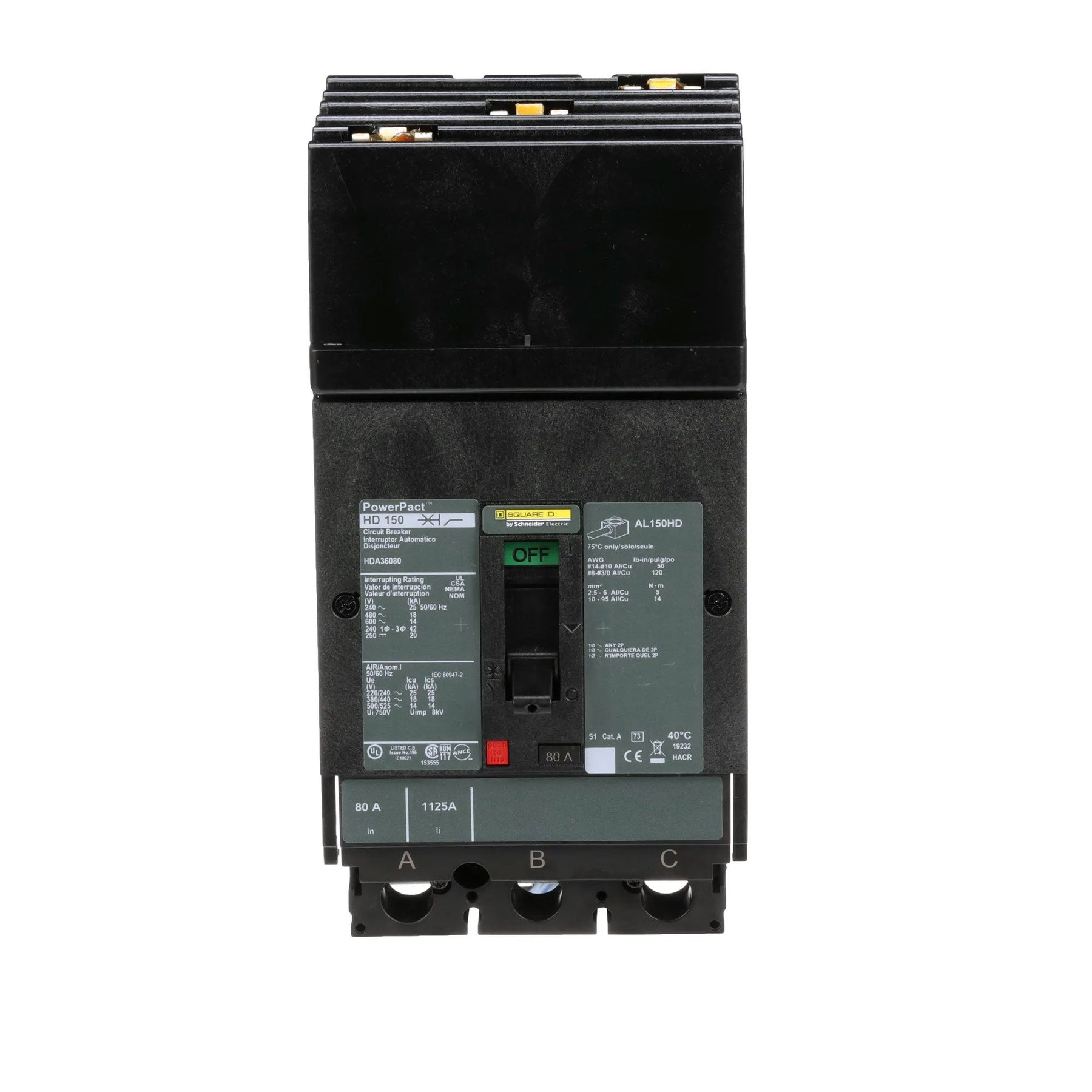

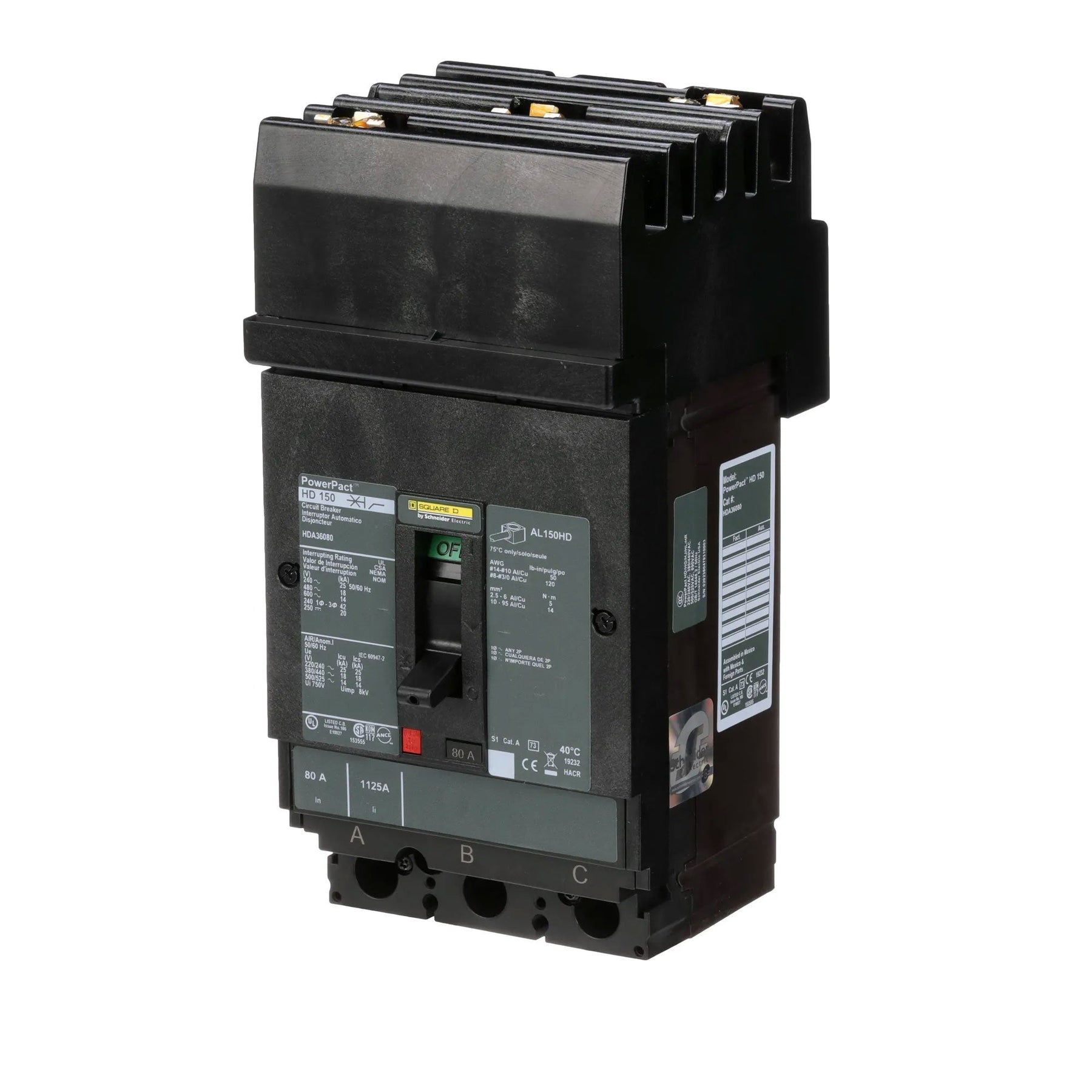

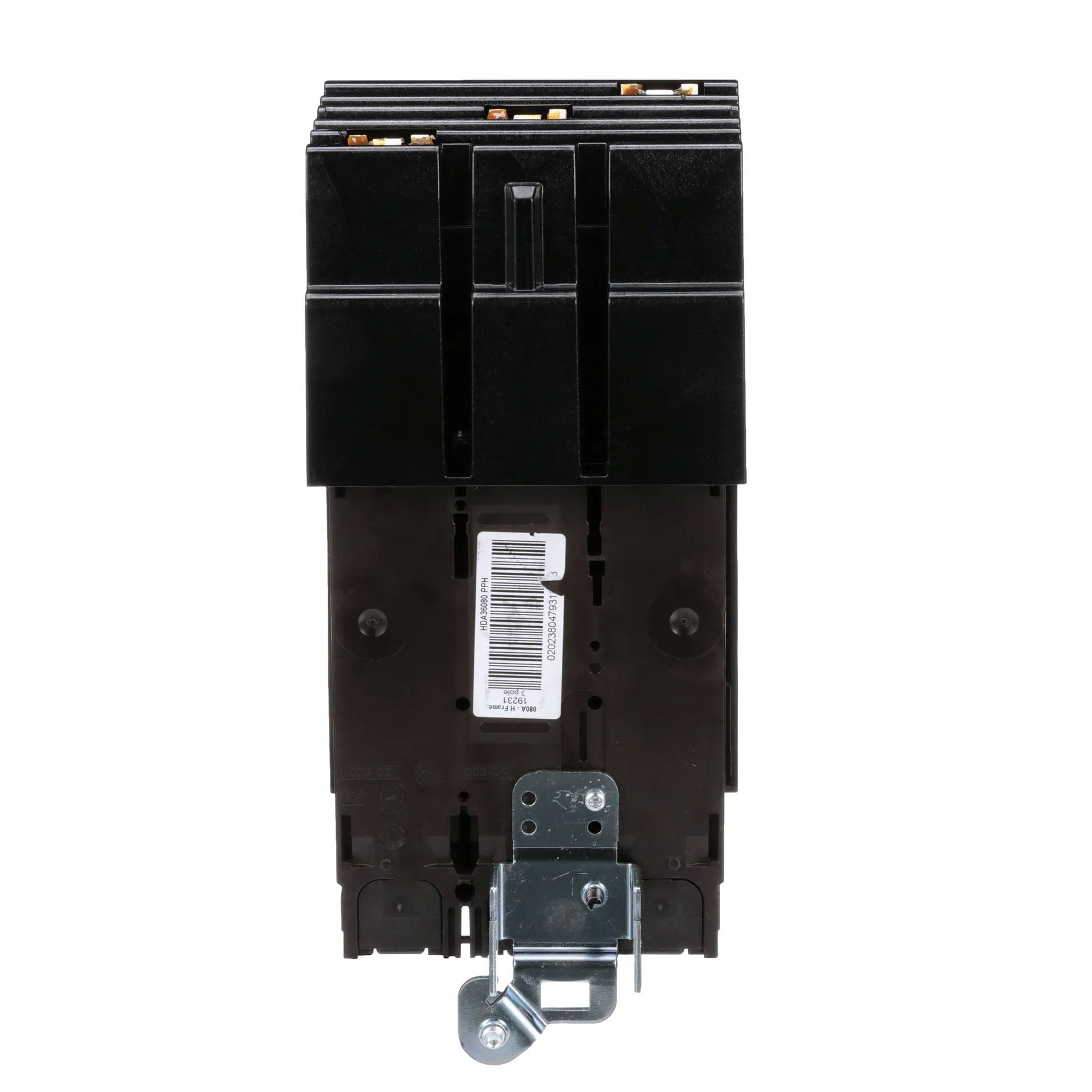

Square D HDA36080 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 80A continuous current and 600V AC maximum voltage with an interrupting capacity of 18kA at 480V AC. The breaker is constructed with a compact H-frame in a plug-in, I-Line style configuration measuring 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in) and weighing 5.49 lb, featuring lug terminals compatible with copper or aluminum conductors from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards and is rated for operation in ambient temperatures from -25°C to 70°C (-13°F to 158°F). Typical applications include main circuit protection and feeder protection in industrial panelboards and switchboards.

Key Features & Specifications
  • Type: HDA Molded Case Circuit Breaker, Thermal Magnetic Protection, I-Line Style Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 80A

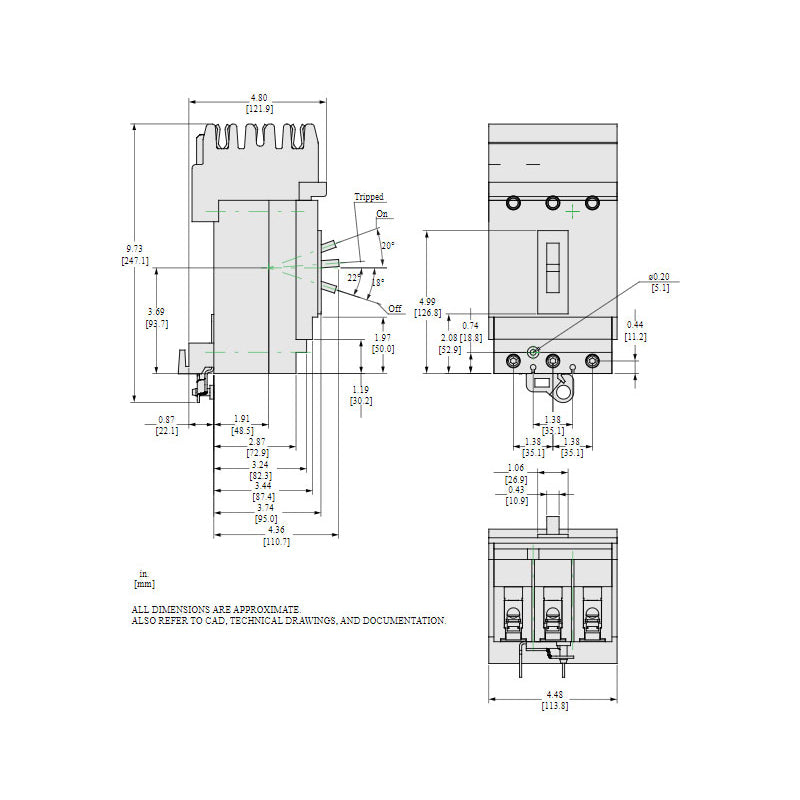

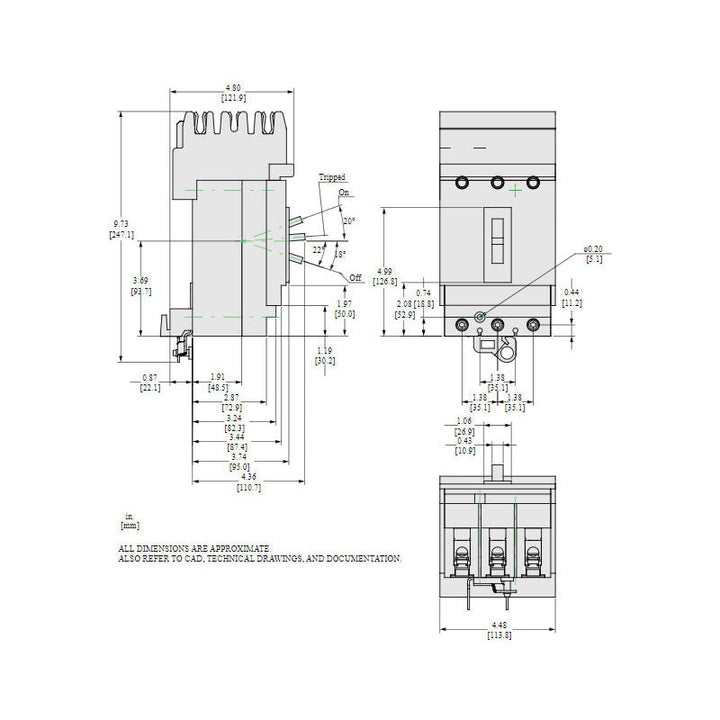

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Configuration: 3-Pole
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: I-Line Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: H
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Weight: 5.49 lb
  • Country of Origin: Mexico
  • Family: Powerpact


Product Identification
  • UPC: 785901507277
  • GTIN: 00785901507277
