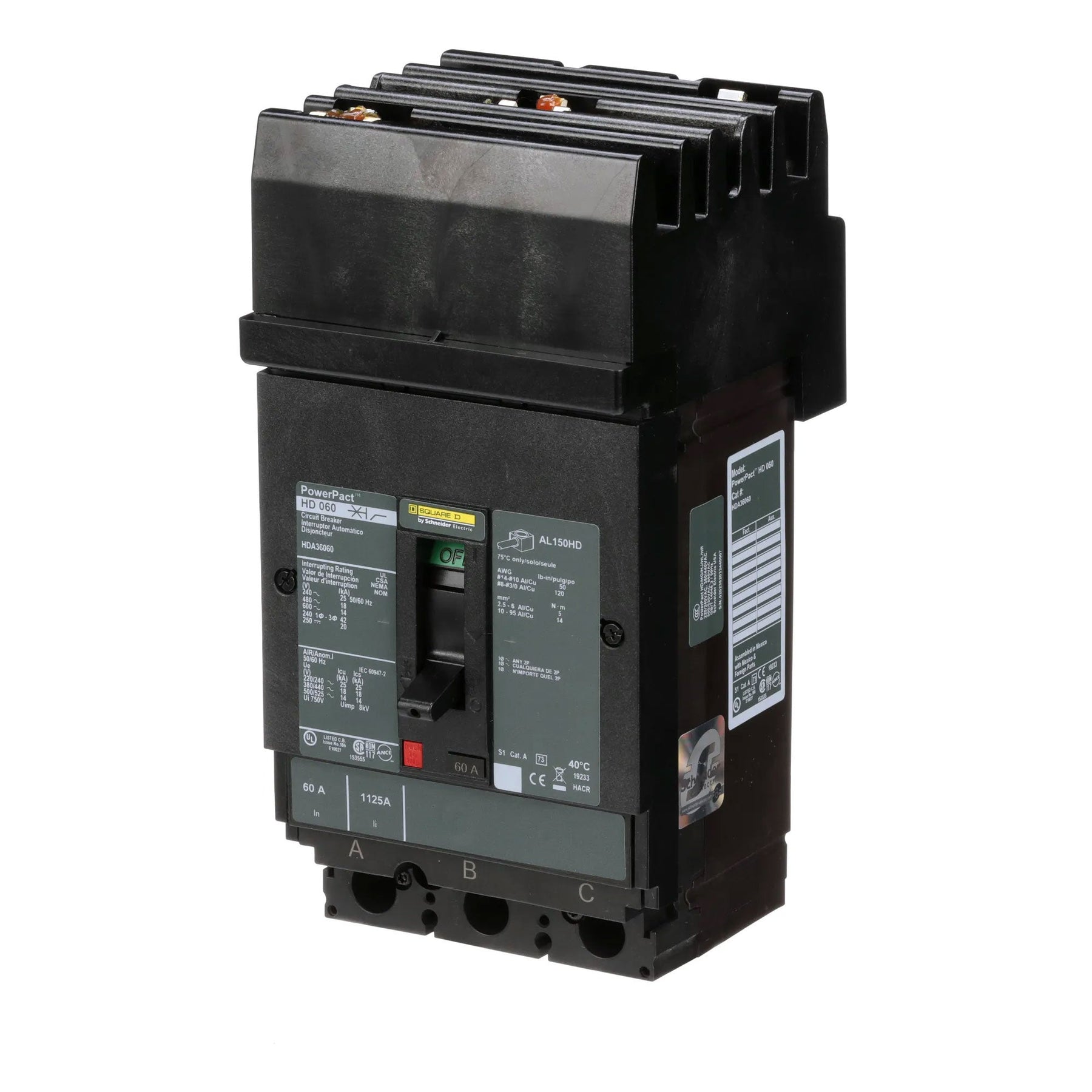

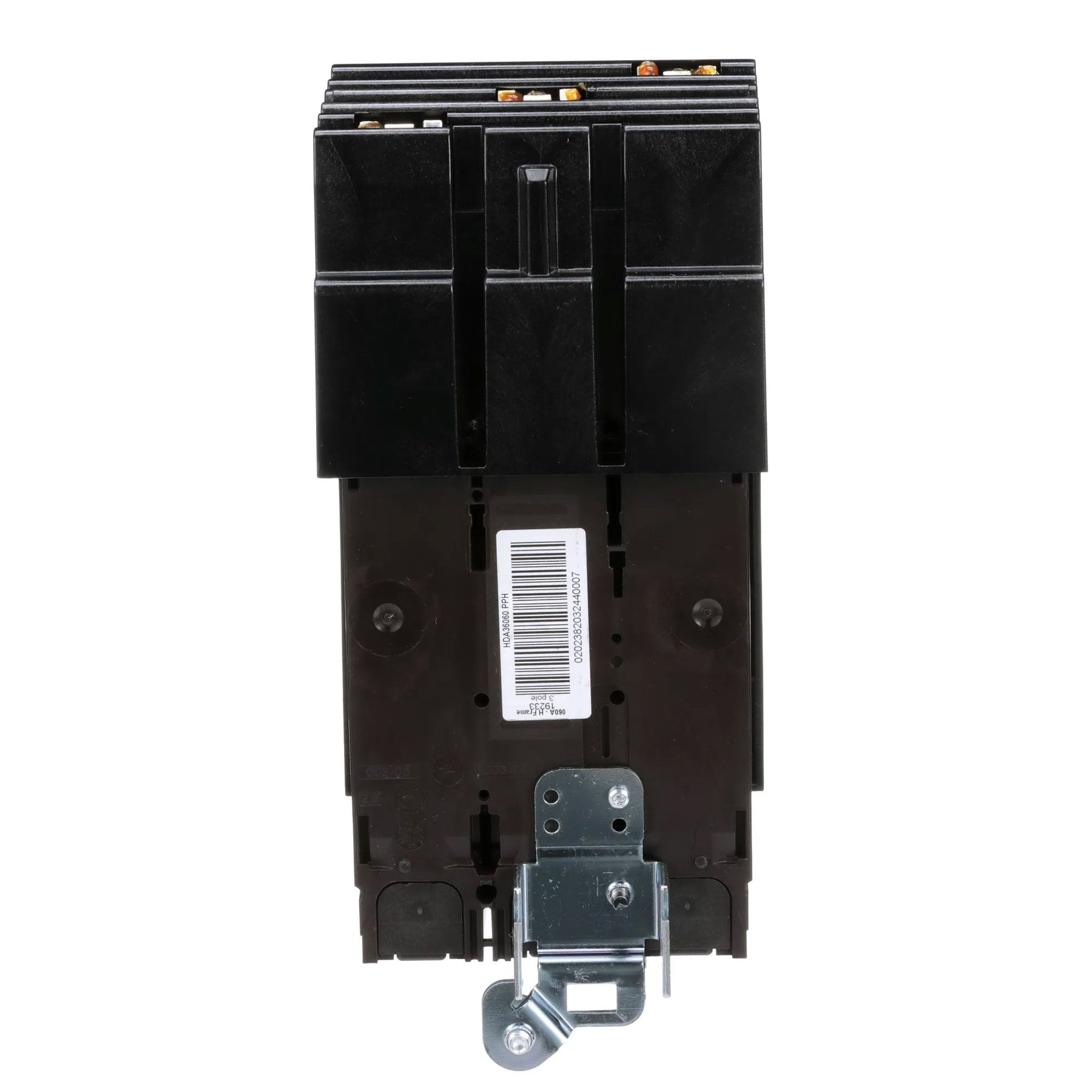

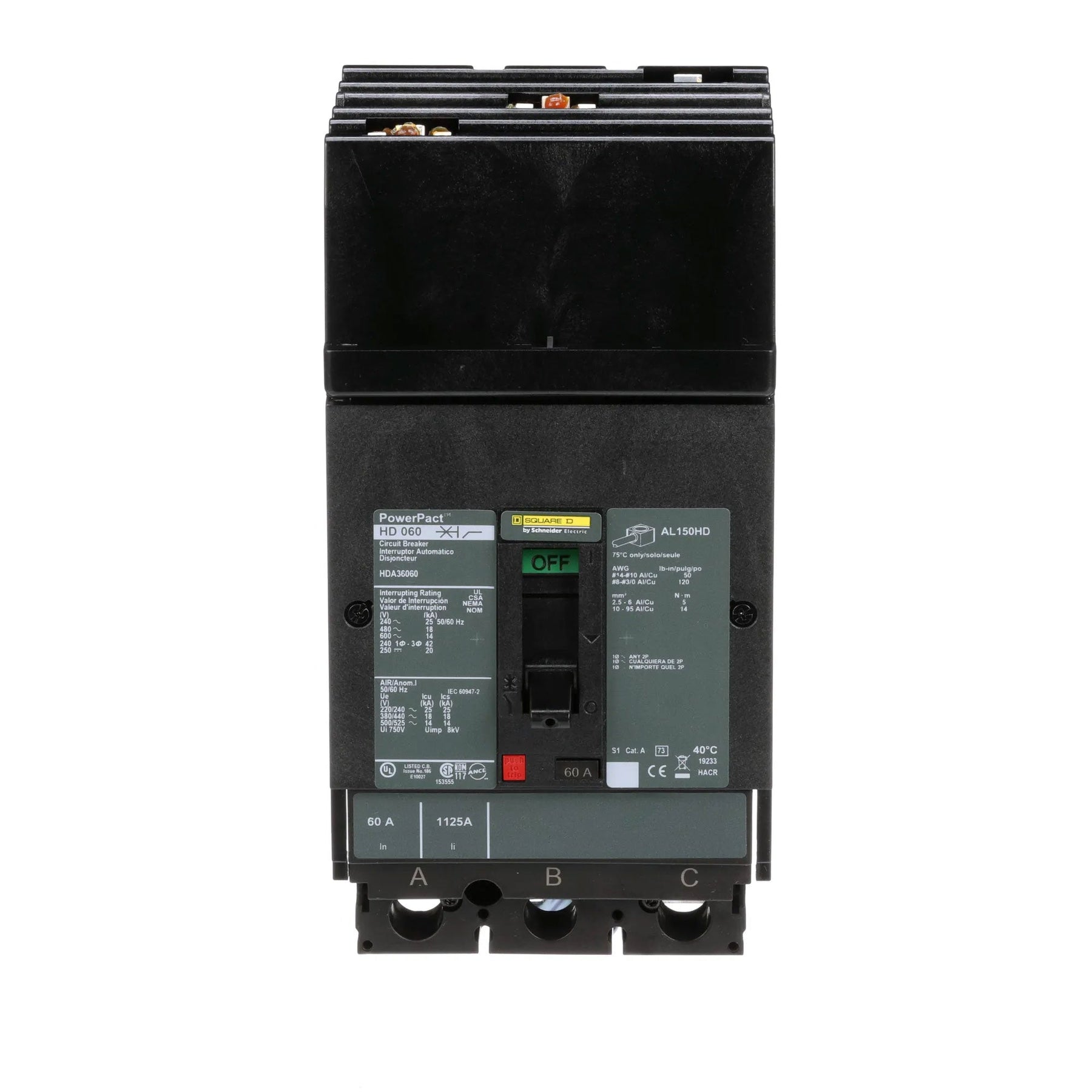

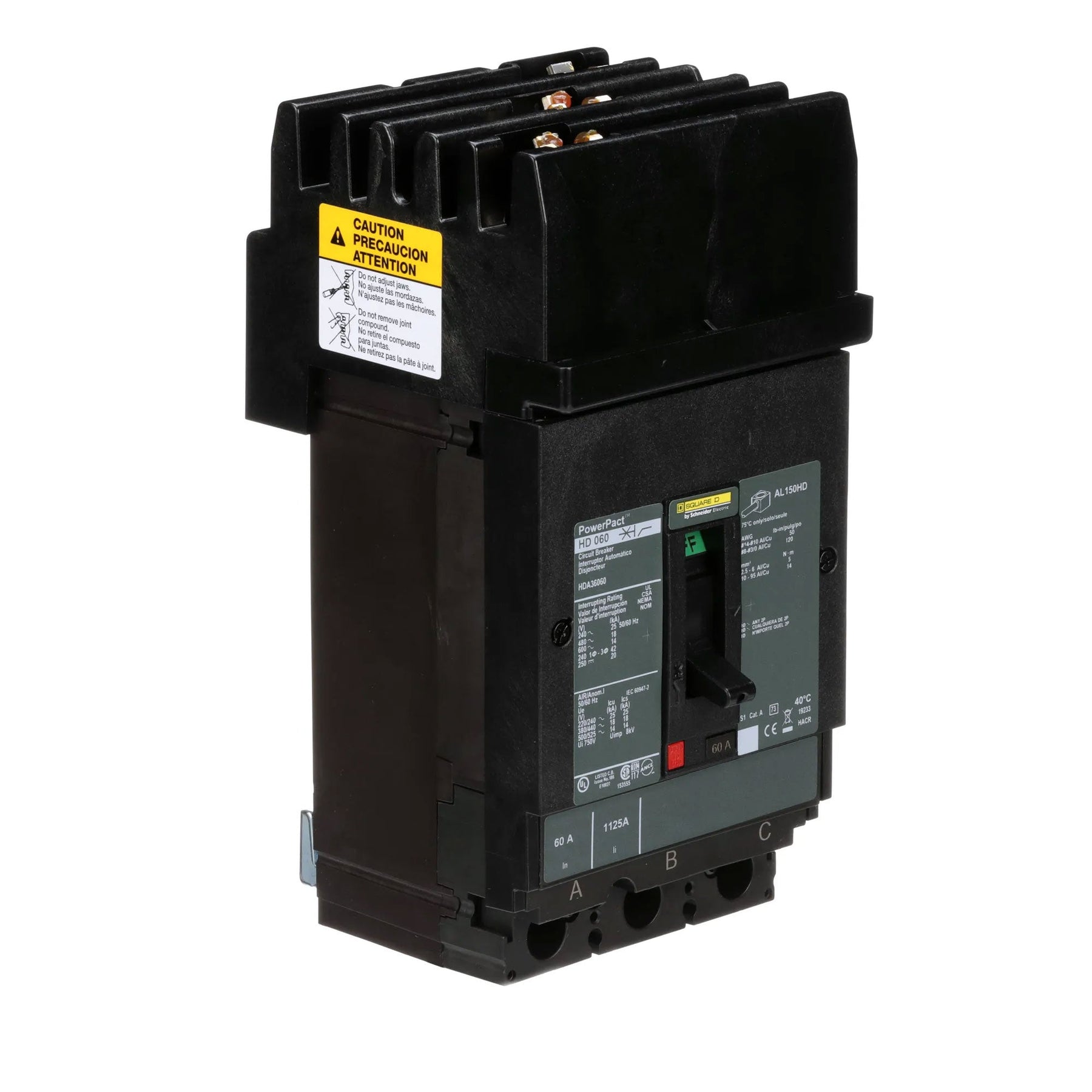

Square D HDA36060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact H-frame construction measuring 163 mm high by 104 mm wide by 86 mm deep and weighing 5.441 lb. The breaker is engineered for compliance with UL, CSA, NEMA, and IEC 60947-2 standards and utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions. Its I-Line style plug-in connection with lug terminals facilitates installation in compatible panelboards, supporting wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors, and it is rated for an interrupting capacity of 18kA at 480V AC across an operating temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 60A

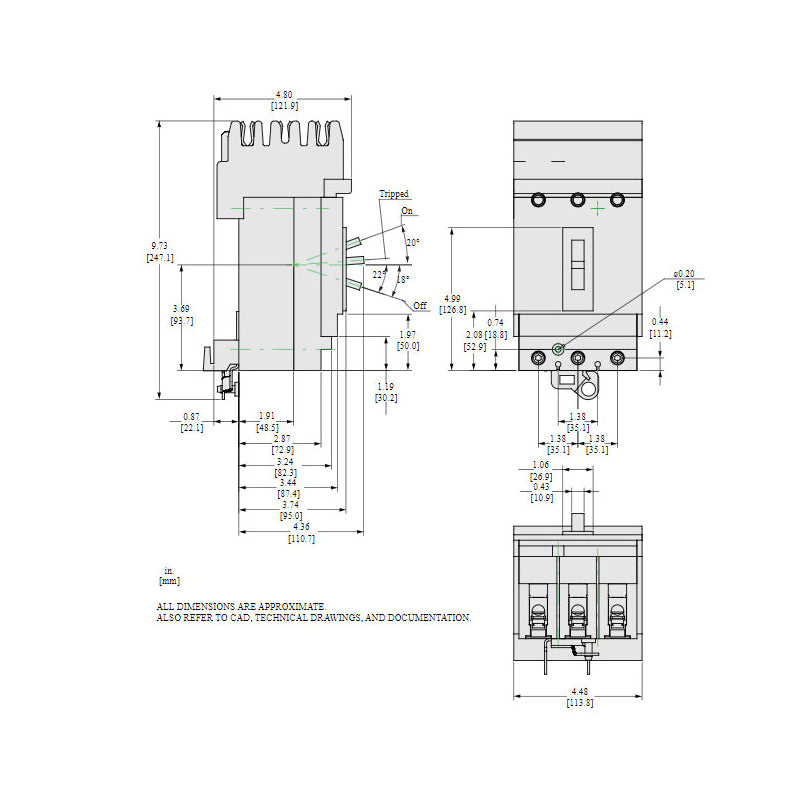

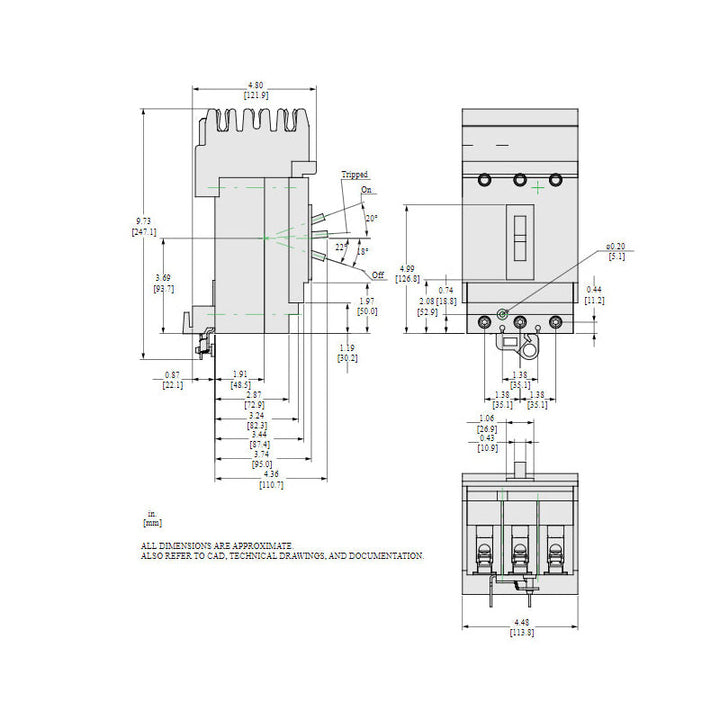

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 5.441 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboard Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Poles: 3
  • Phase: 3
  • Phase Connection: ABC
  • Connection: I-Line Style Plug-In
  • Terminal Connection: I-Line, Lug
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • AIC Rating: 18kA @ 480V
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901419969
  • GTIN: 00785901419969
