Square D HDA36025 - Molded Case Circuit Breaker 25A 600V 3-Pole
Square D HDA36025 - Molded Case Circuit Breaker 25A 600V 3-Pole
Square D HDA36025 - Molded Case Circuit Breaker 25A 600V 3-Pole
Square D HDA36025 - Molded Case Circuit Breaker 25A 600V 3-Pole

Square D HDA36025 - Molded Case Circuit Breaker 25A 600V 3-Pole

Square D
Price
Save $390.85
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price

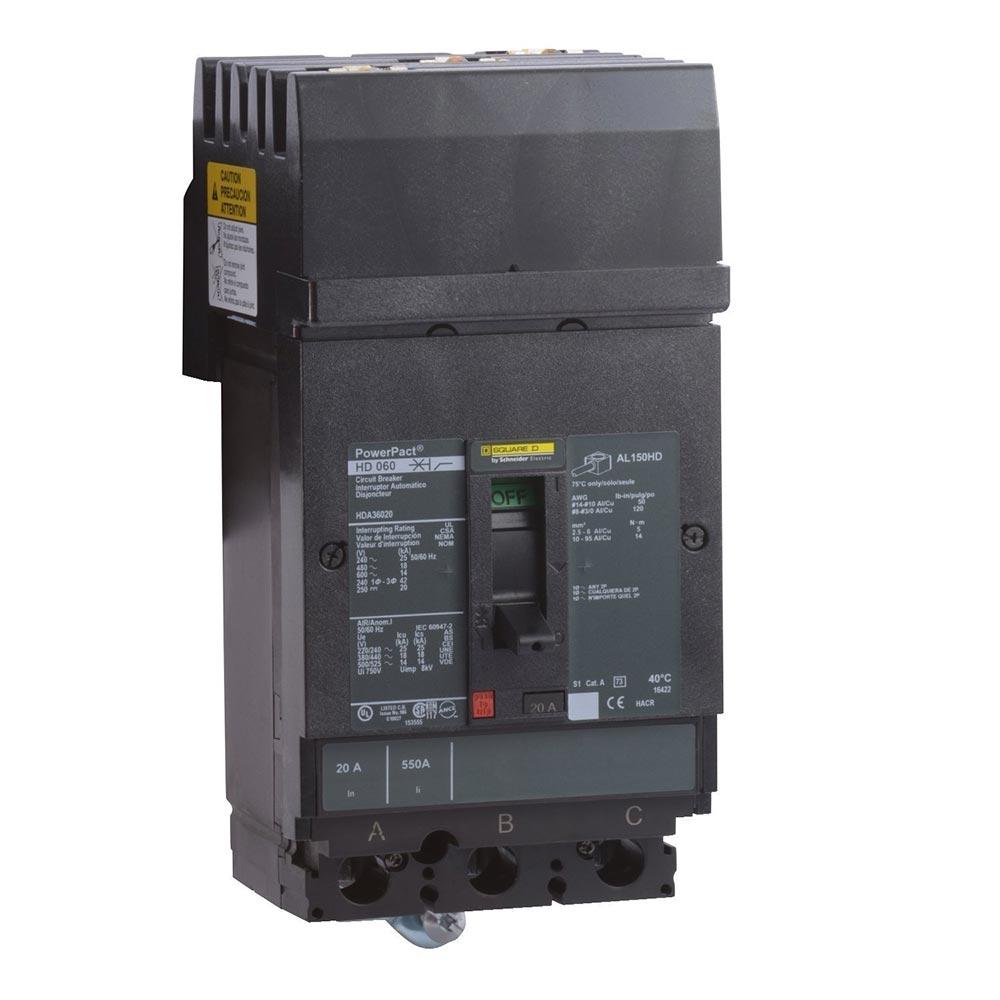

Square D HDA36025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 25A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5.47 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous protection, is configured as a 3-pole, I-Line style plug-in unit with lug terminals, and is rated for an interrupting capacity of 18kA at 480V. It is engineered for compliance with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial applications operating within a temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip (LI)
  • Voltage Rating: 600V AC
  • Current Rating: 25A

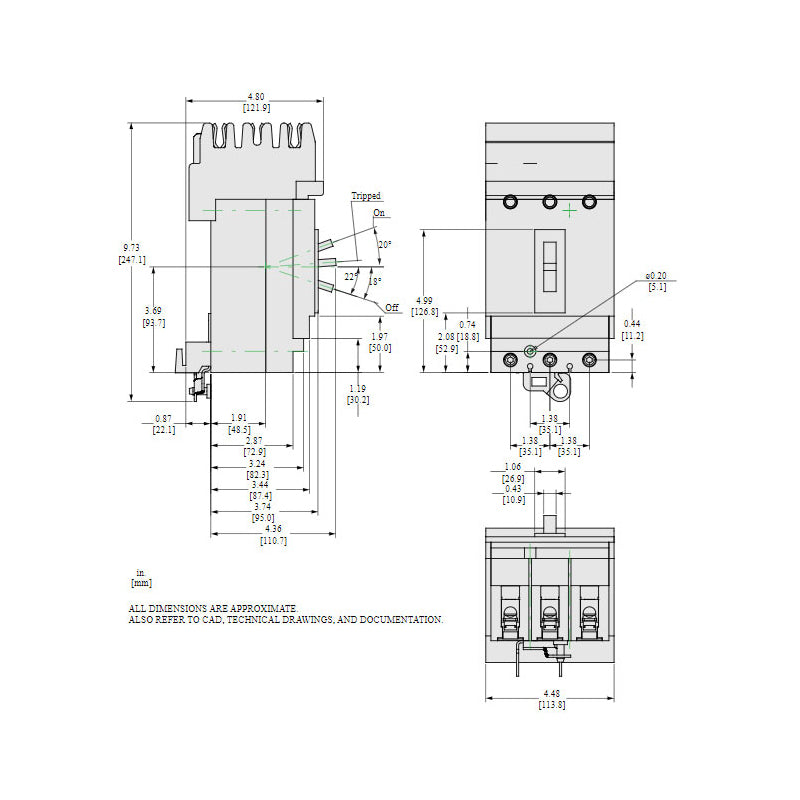

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution
  • Configuration: 3-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time & Instantaneous Trip
  • Frame Size: H
  • Phase: 3
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Weight: 5.47 lb


Product Identification
  • UPC: 785901422822
  • GTIN: 00785901422822
