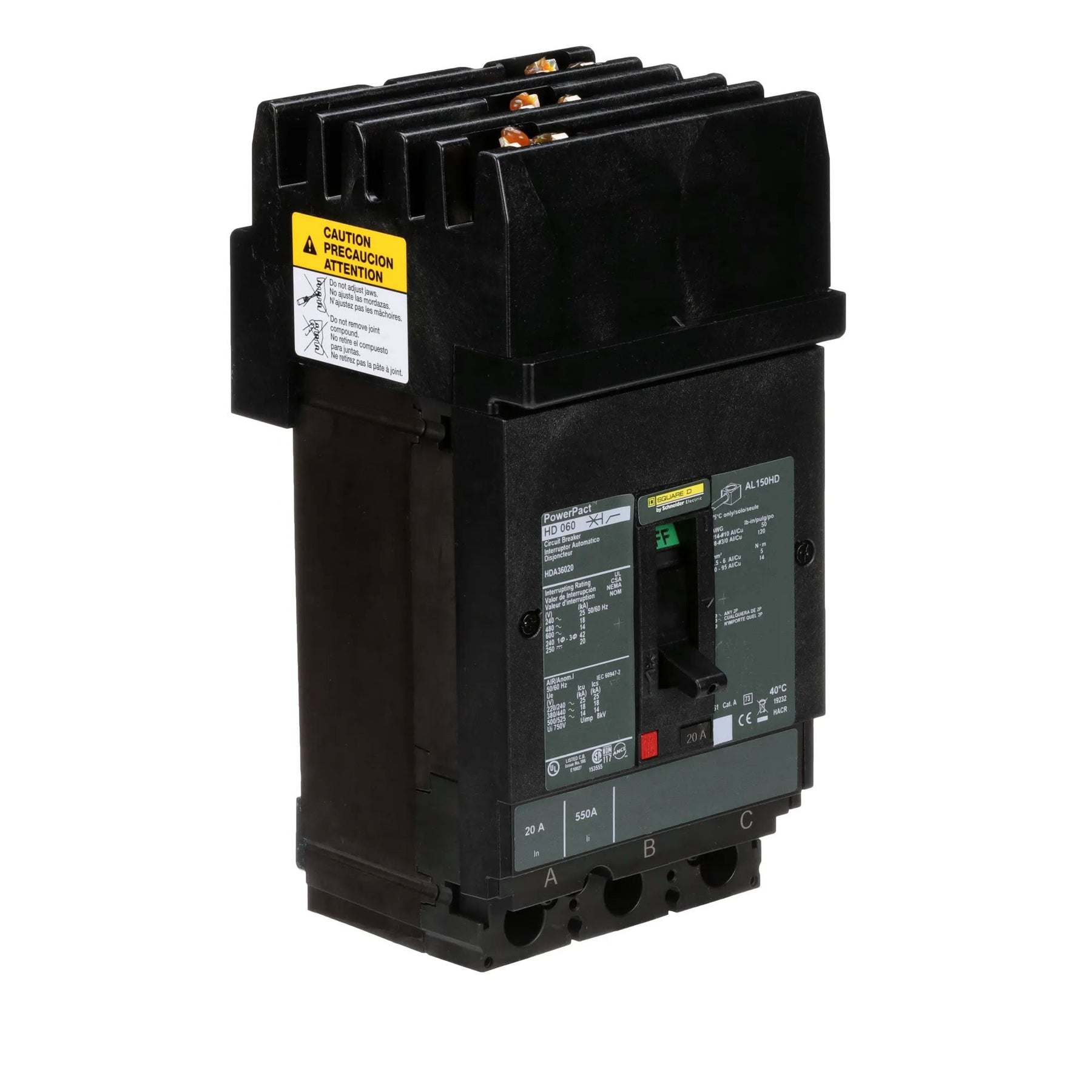

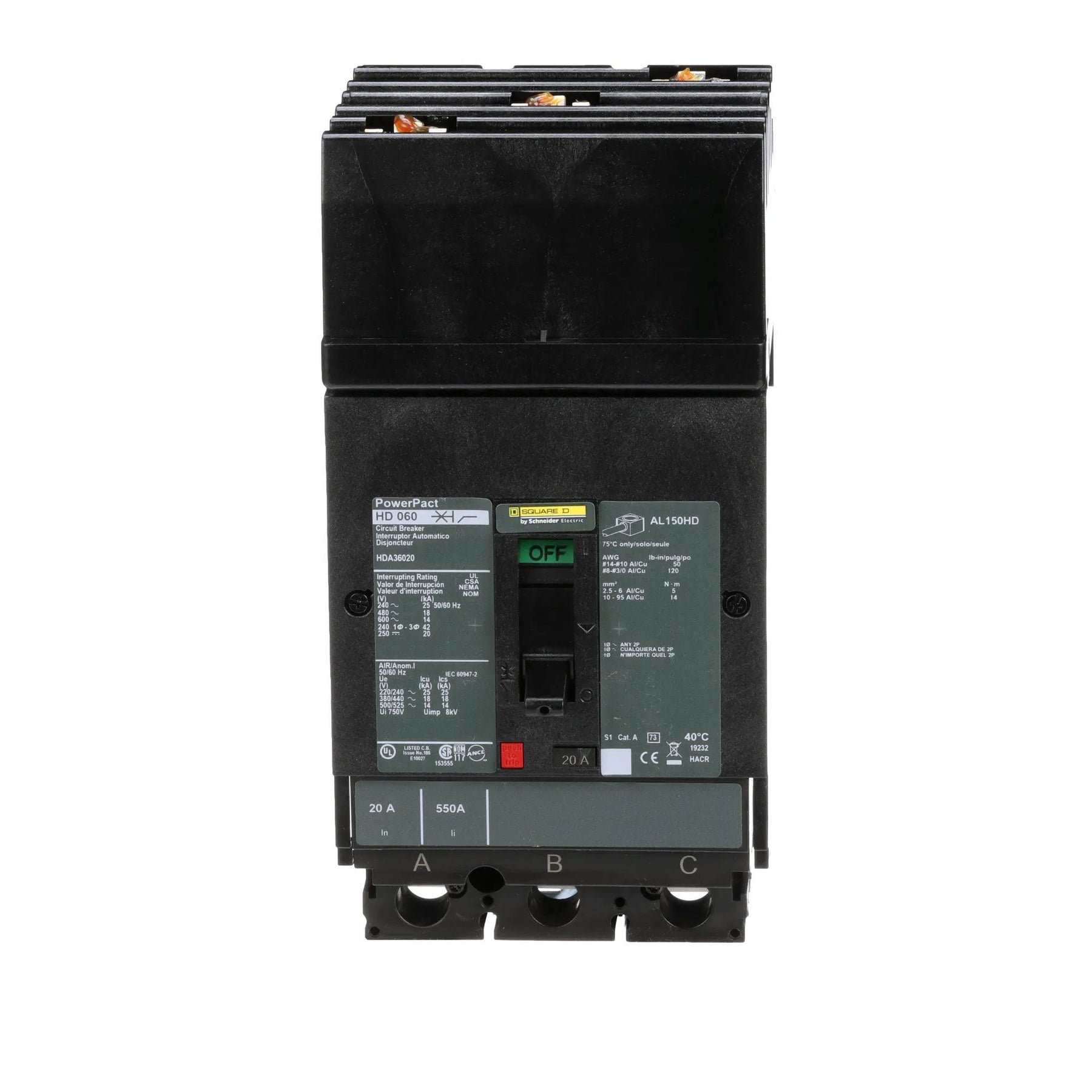

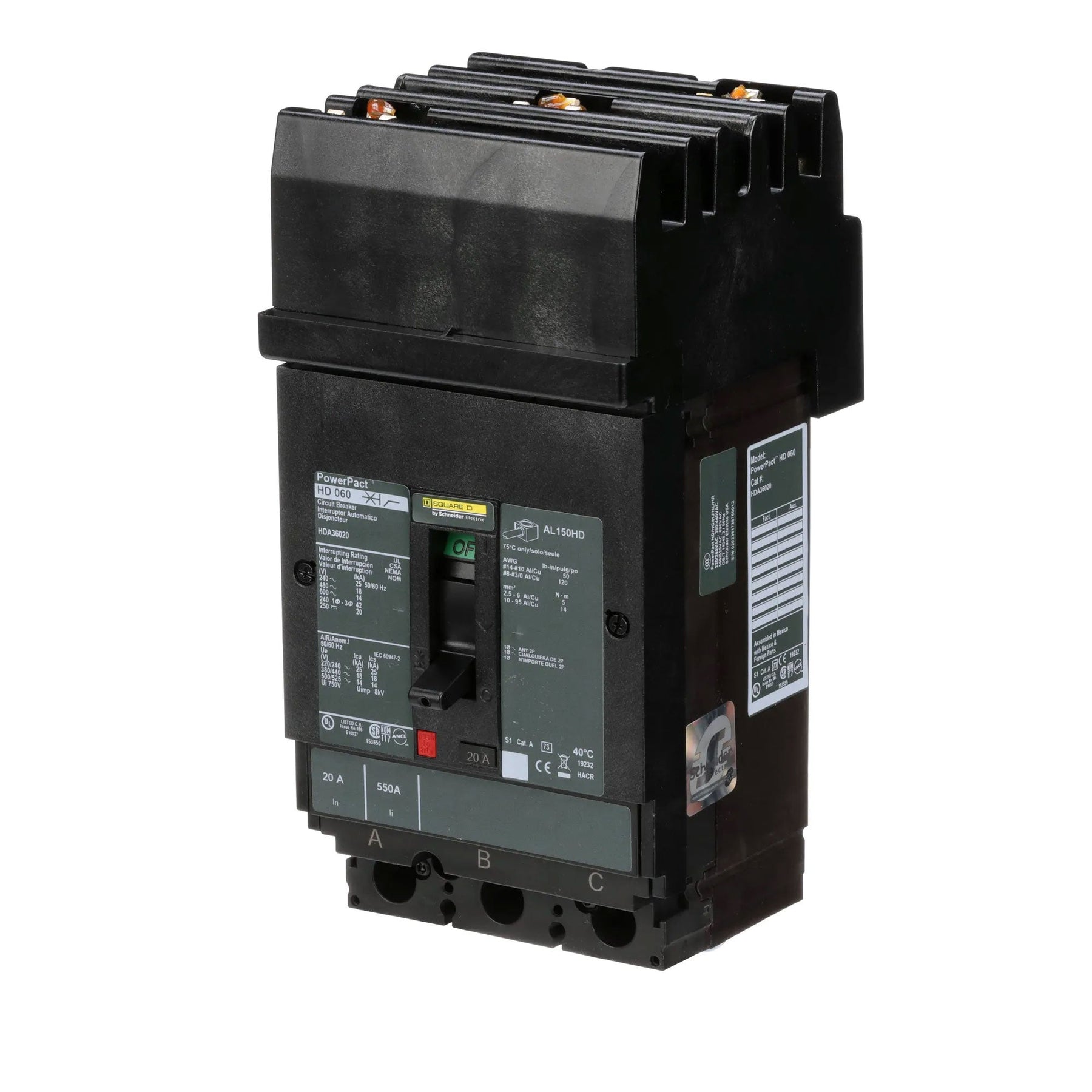

Square D HDA36020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (6.4 in x 4.09 in x 3.4 in) and weighing 5.47 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is certified to UL, CSA, NOM, and IEC 60947-2 standards. Its I-Line plug-in connection and lug terminals facilitate installation in panelboards for applications requiring an 18kA interrupting capacity at 480V AC.

Key Features & Specifications
  • Type: HDA Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 20A

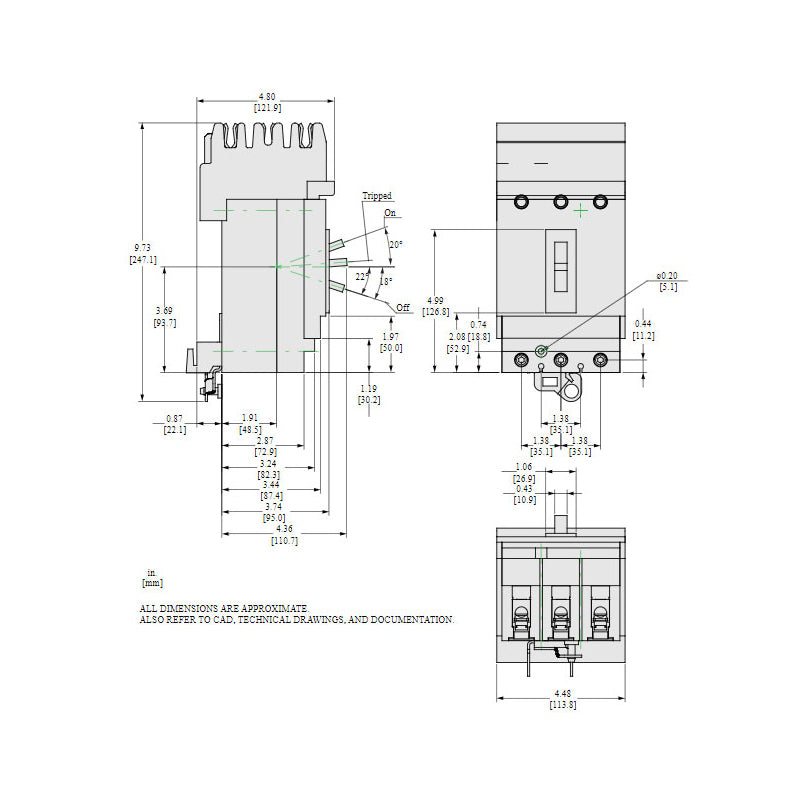

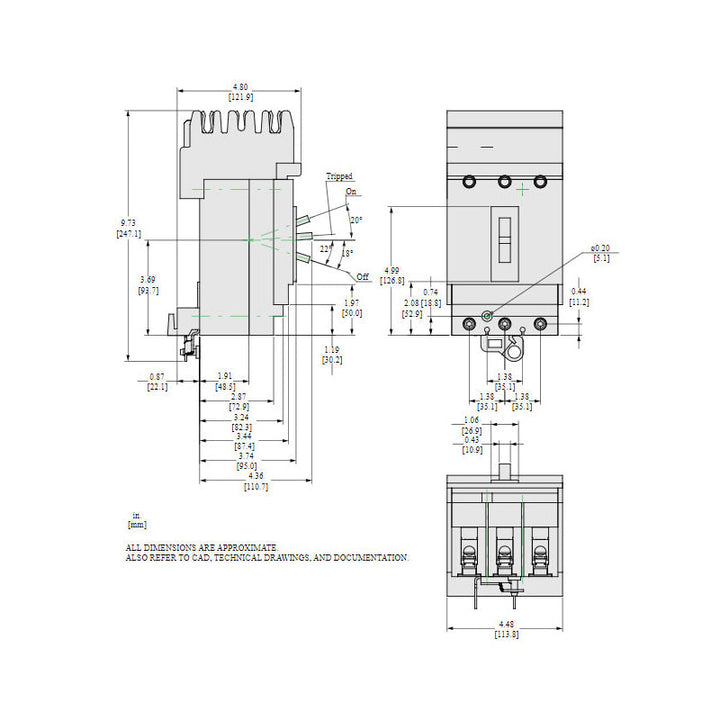

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 18kA @ 480V AC
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Mounting: Plug-In
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Compatible Frames: I-Line Panelboards
  • Installation Type: Panelboard Mount
  • Breaker Frame: H
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901405245
  • GTIN: 00785901405245
