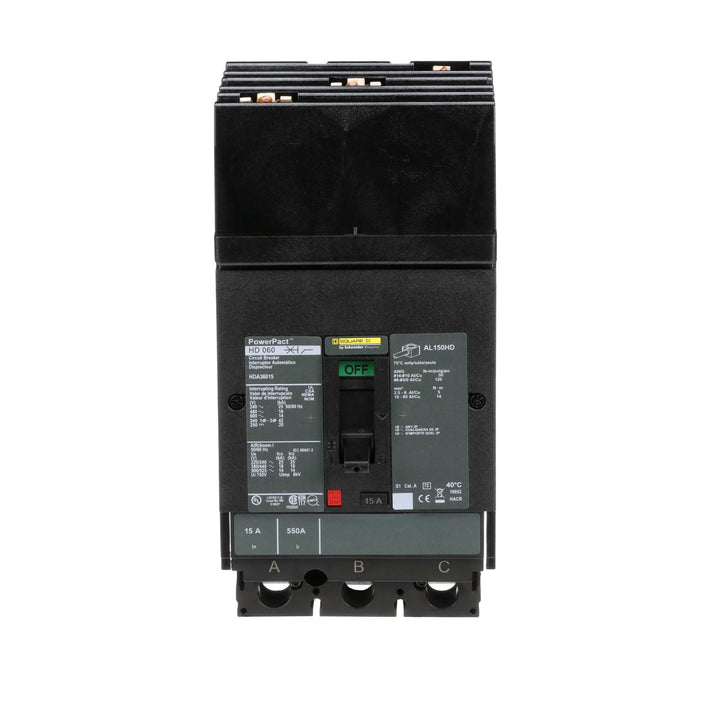

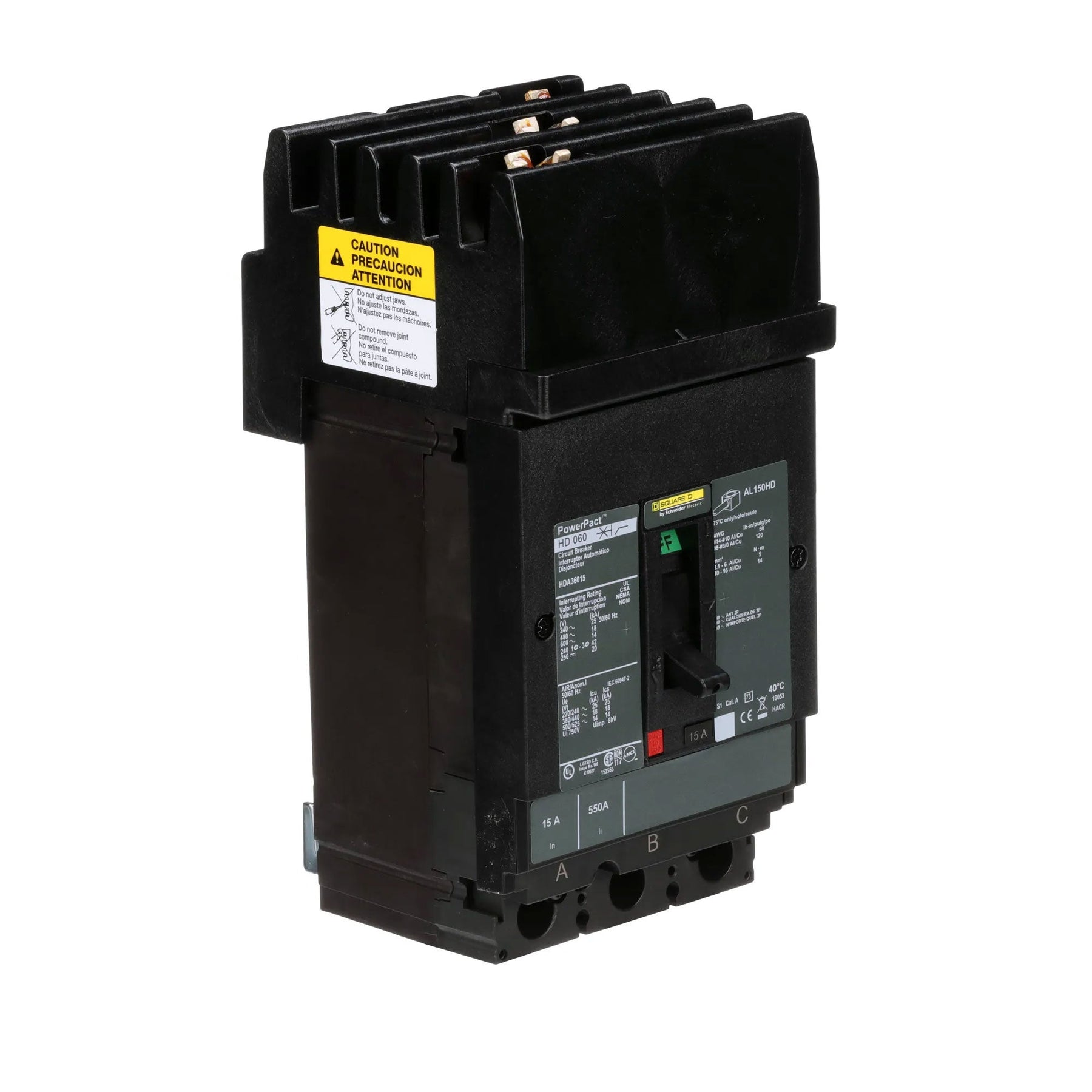

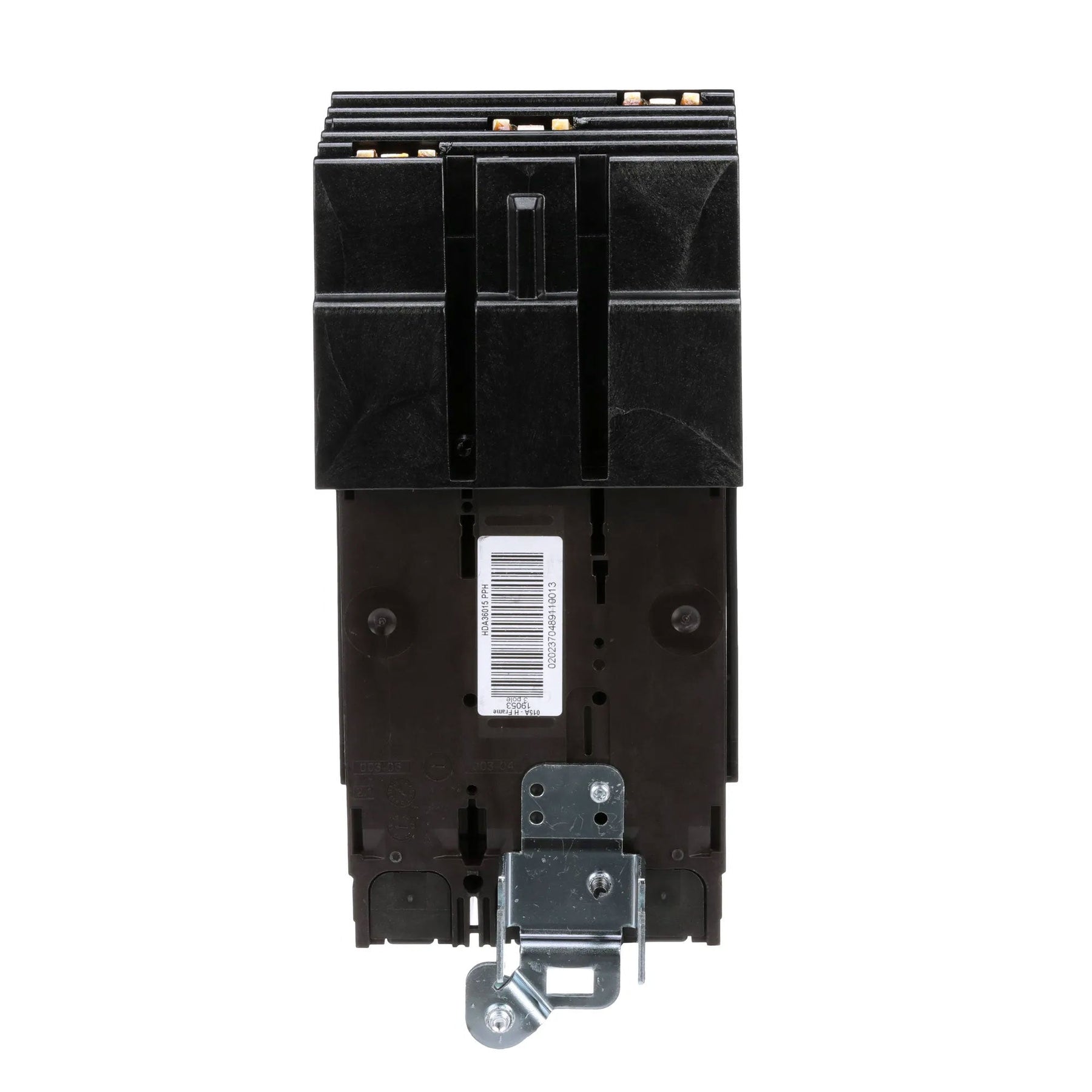

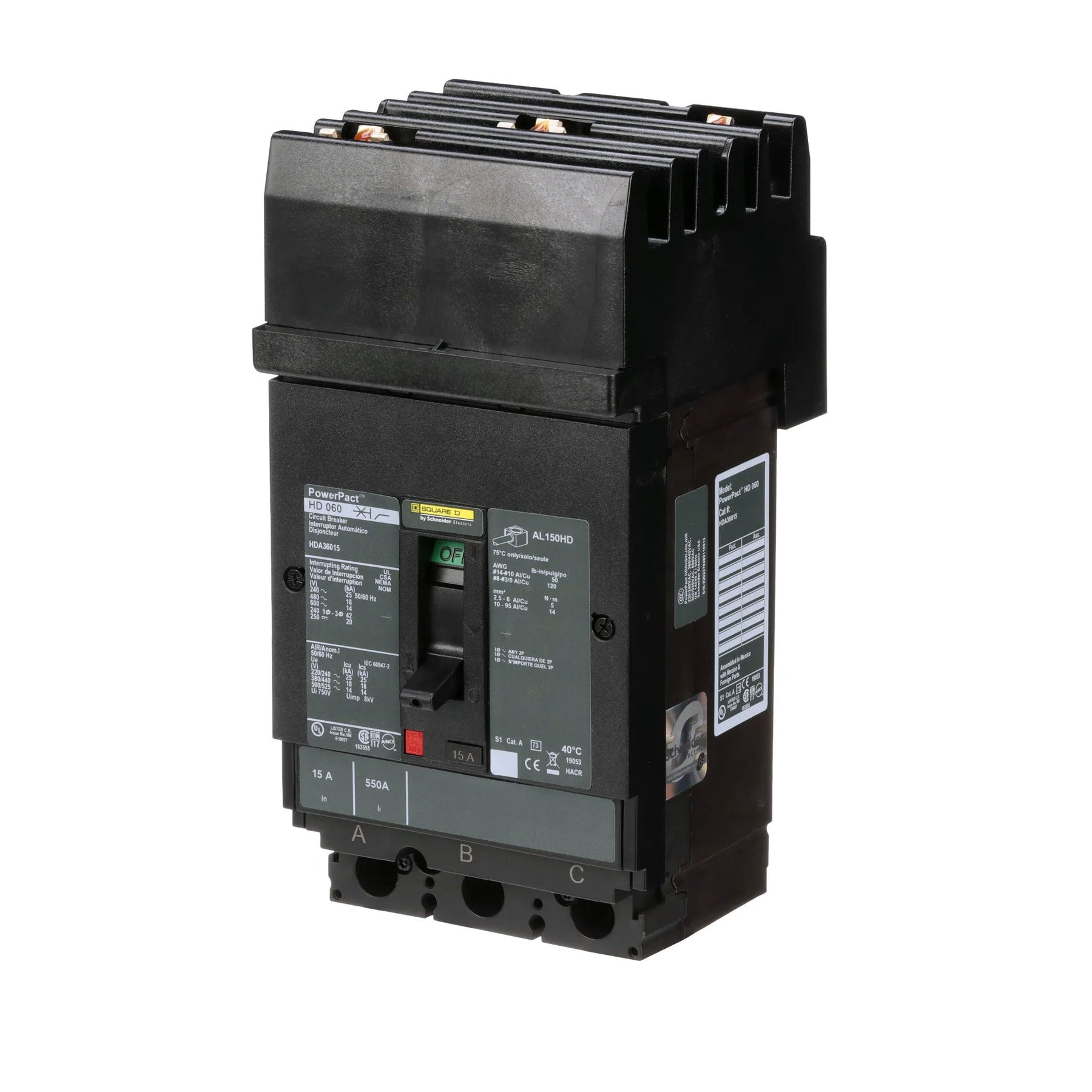

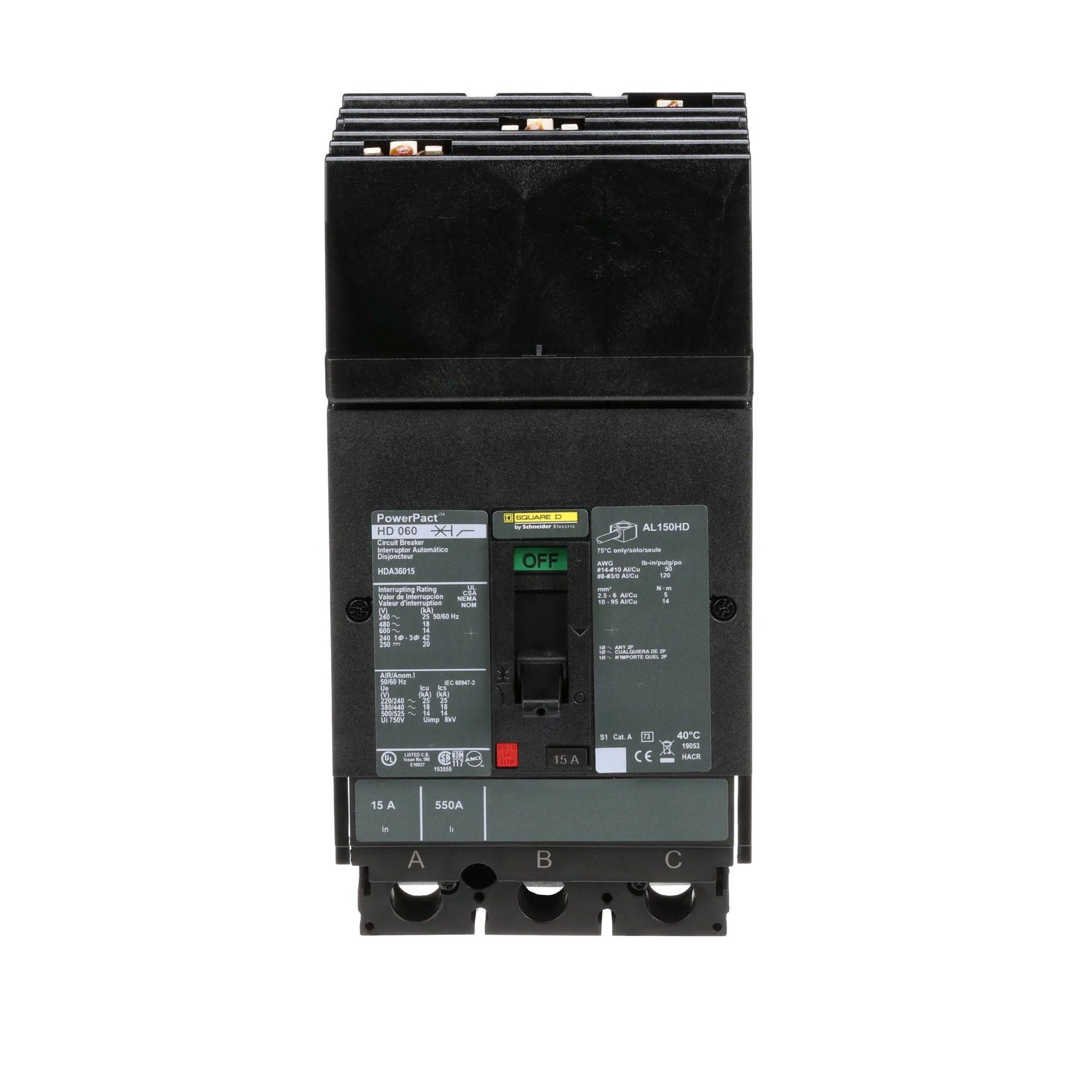

Square D HDA36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5.419 lb. The breaker complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring robust performance and safety. Its thermal-magnetic trip unit with long-time and instantaneous (LI) functions and an 18kA interrupting rating at 480V makes it suitable for protecting feeders and branch circuits in commercial and industrial facilities.

Key Features & Specifications
  • Type: HDA Molded Case Circuit Breaker, Thermal-Magnetic Protection with LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 15A

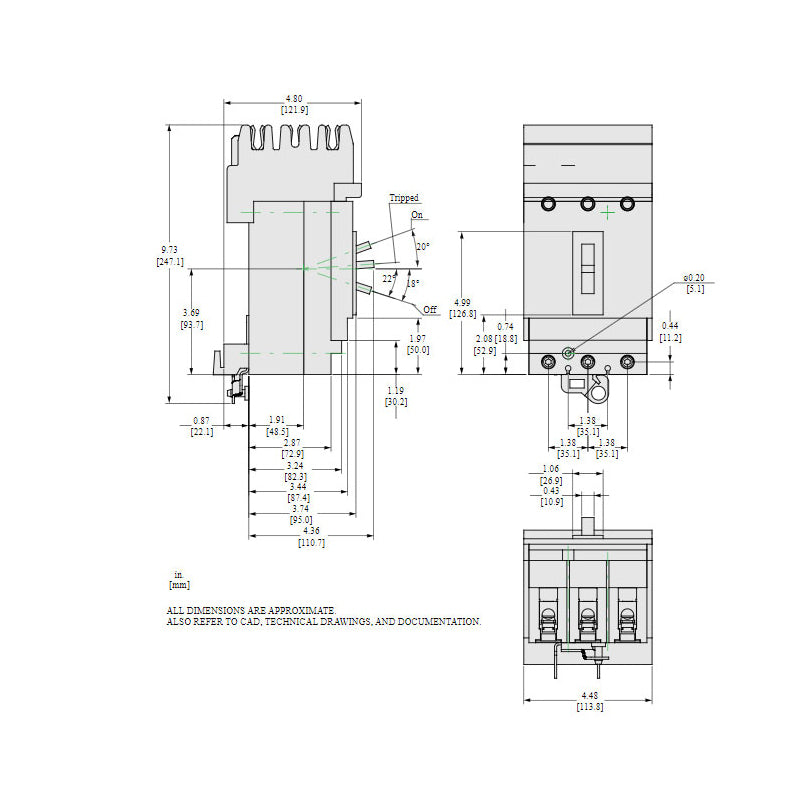

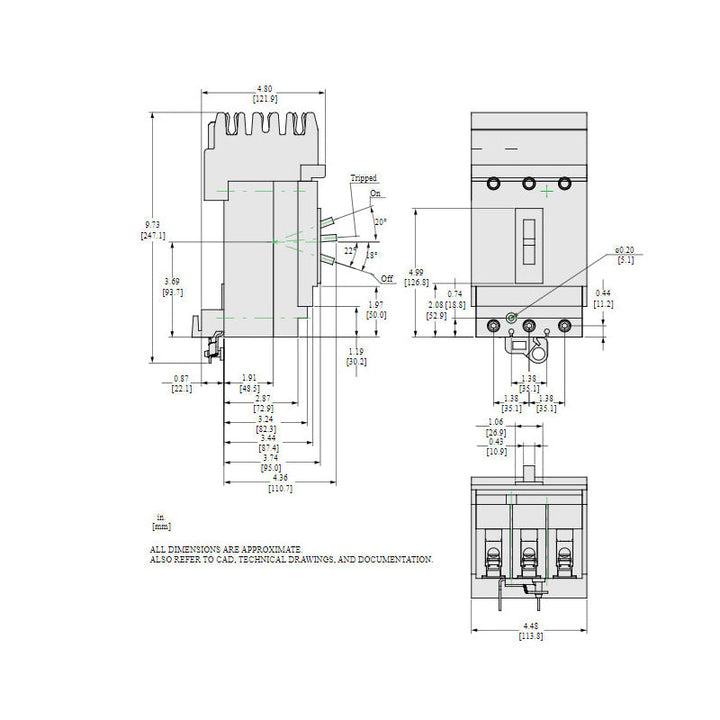

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Mounting: Plug-In
  • Terminal Connection: I-Line, Lug
  • Compatible Frames: I-Line Panelboards


Product Identification
  • UPC: 785901419105
  • GTIN: 00785901419105
