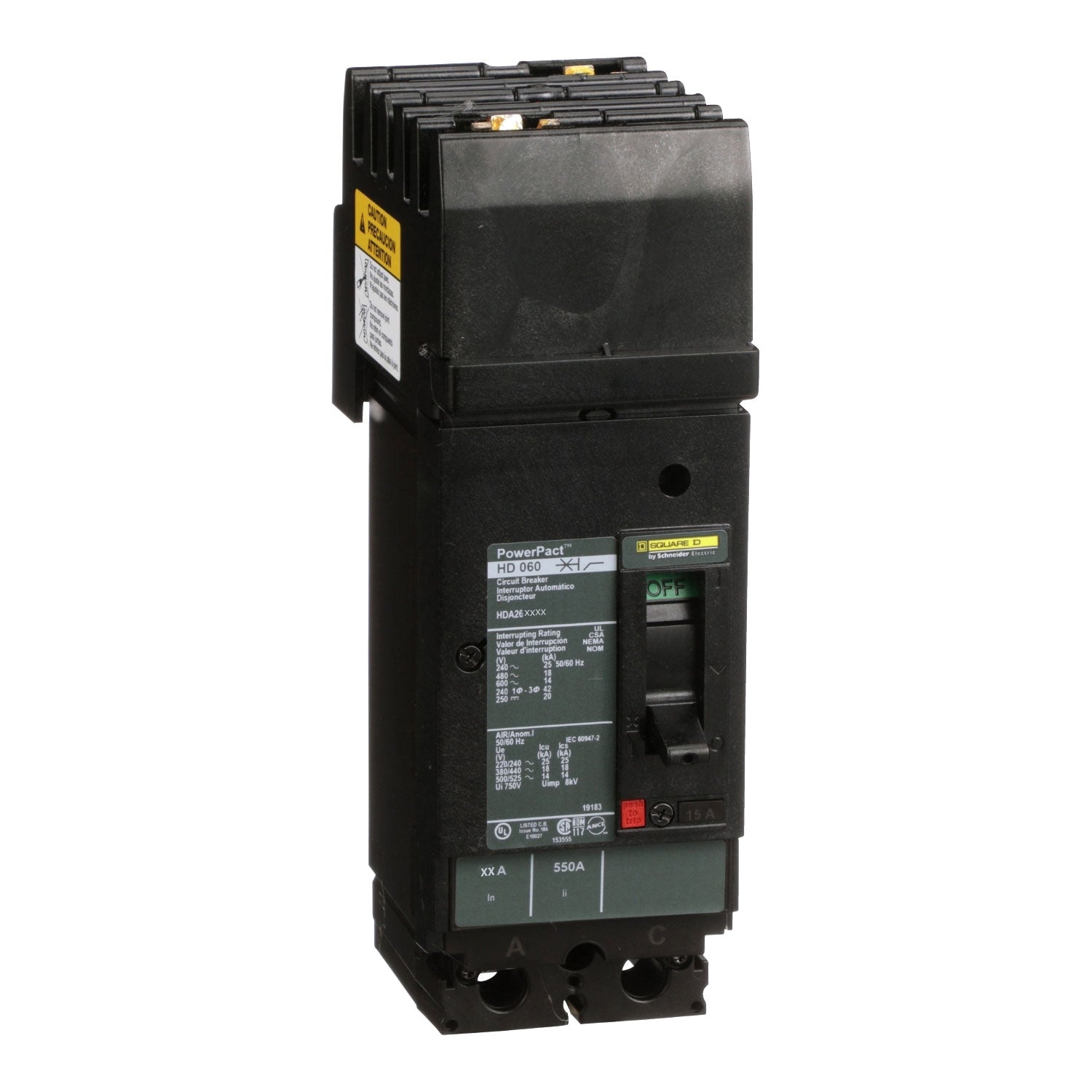

Square D HDA261504 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 150A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 3.001 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is constructed for plug-in connection to I-Line panelboards with lug terminals, accepting wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors. It complies with UL, CSA, NEMA, and IEC 60947-2 standards and is rated for an interrupting capacity of 18kA at 480V AC in single-phase BC configurations, operating effectively within an ambient temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip (LI)
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboard protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 1
  • AIC Rating: 18kA @ 480V AC
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H
  • Phase Connection: BC
  • Wire Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Certification: UL, CSA, NOM
  • Country of Origin: United States


Product Identification
  • UPC: 785901558347
  • GTIN: 00785901558347
