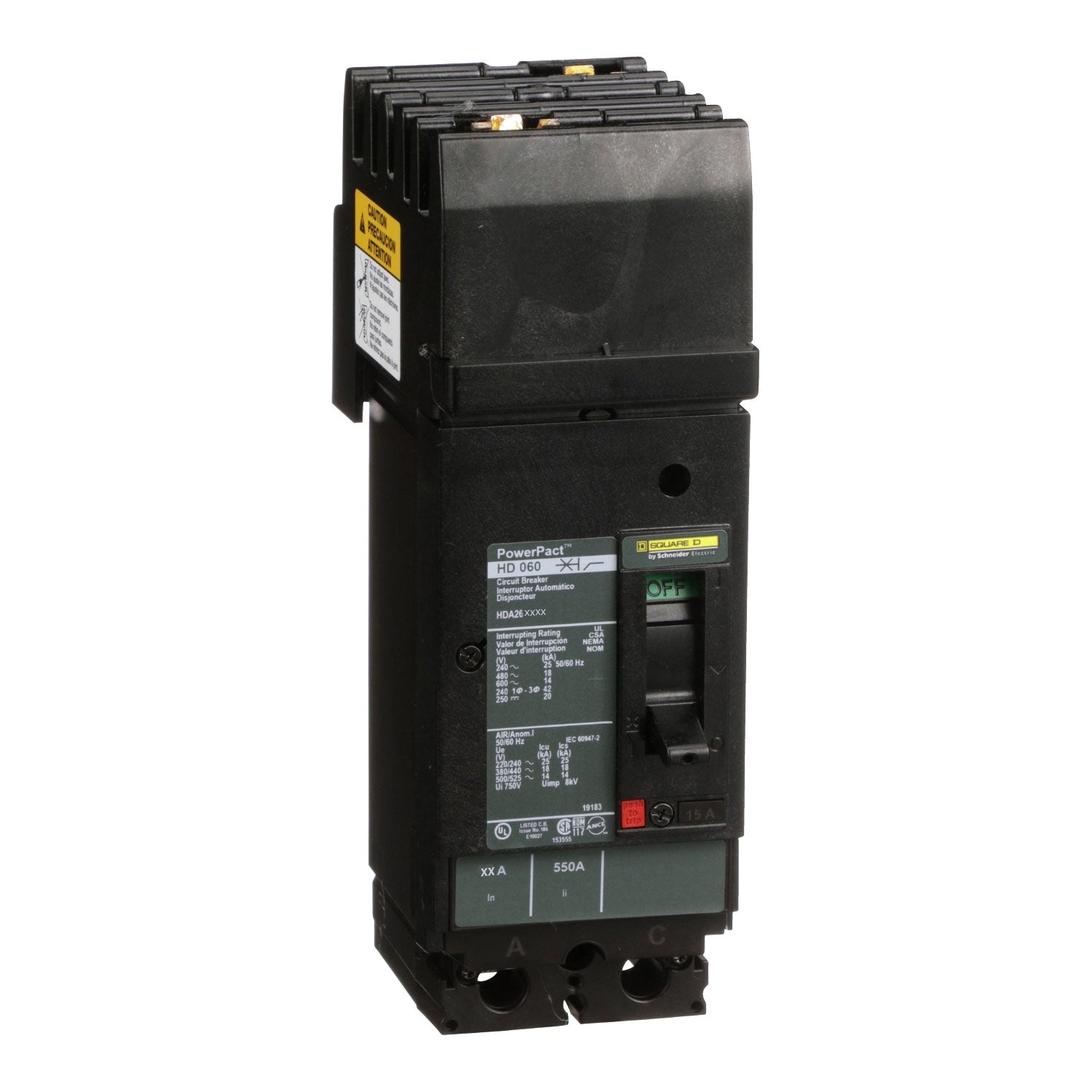

Square D HDA261502 - Molded Case Circuit Breaker 150A 600V 2-Pole
Square D HDA261502 - Molded Case Circuit Breaker 150A 600V 2-Pole

Square D HDA261502 - Molded Case Circuit Breaker 150A 600V 2-Pole

Square D
Price
Save $1,652.04
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D HDA261502 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 150A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.96 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is constructed for I-Line style plug-in connection with lug terminals, accepting wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for an interrupting capacity of 18kA at 480V AC, making it suitable for a wide range of commercial and industrial panelboards and switchboards operating in ambient temperatures from -2 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Phase: 1
  • AIC rating: 18kA @ 480V AC
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • Phase Connection: AC
  • Wire Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Certification: UL, CSA, NOM
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Terminal Connection: I-Line, Lug
  • Family: Powerpact
  • Country of Origin: United States


Product Identification
  • UPC: 785901754459
  • GTIN: 00785901754459
