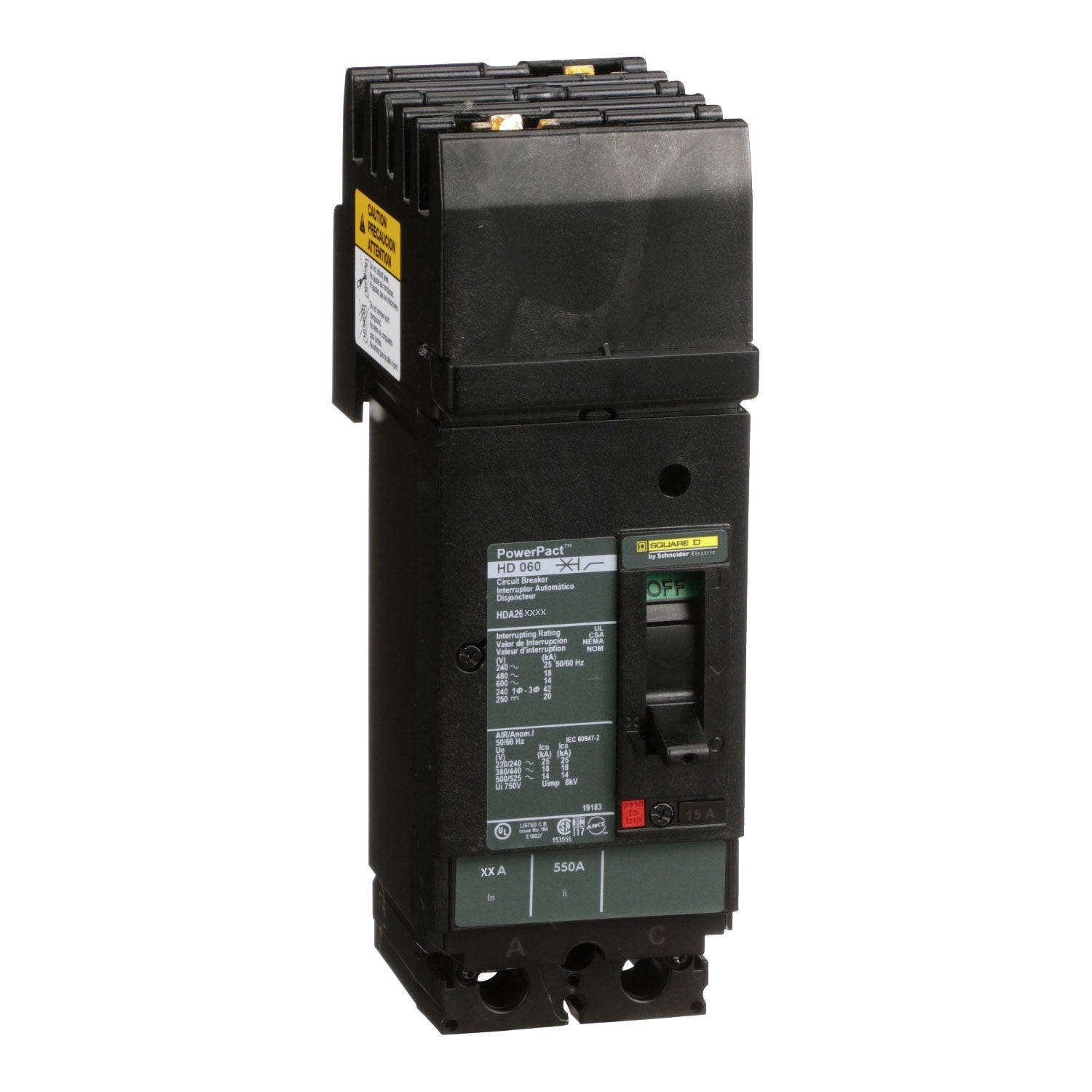

Square D HDA261001 - Molded Case Circuit Breaker 100A 600V 2-Pole
Square D HDA261001 - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D HDA261001 - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D
Price
Save $74.19
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HDA261001 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.167 lb. This thermal-magnetic breaker is engineered for compliance with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring robust performance. Its I-Line style plug-in connection and 18kA interrupting capacity at 480V make it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: HDA Series, Molded Case, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Feeder & Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Phase: 1
  • AIC Rating: 18kA @ 480V AC
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: AB
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901419051
  • GTIN: 00785901419051
