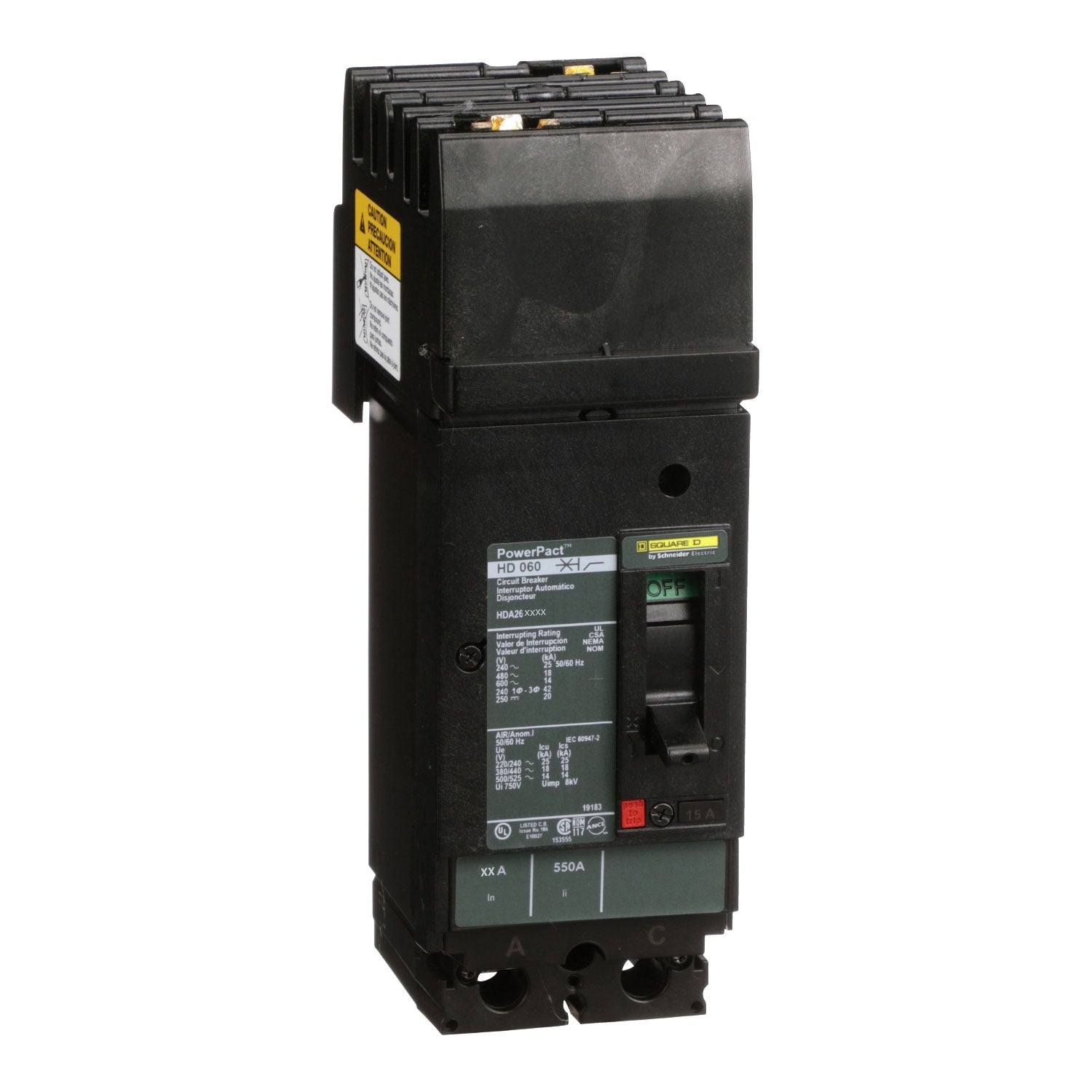

Square D HDA260904 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 90A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 3.001 lb. The breaker is constructed with thermal-magnetic protection for both long-time and instantaneous (LI) functions, ensuring compliance with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its I-Line style plug-in connection and compatibility with AWG 14 to 3/0 aluminum or copper wire make it suitable for a wide range of commercial and industrial panelboard applications, operating effectively in ambient temperatures from -2 to 70 °C.

Key Features & Specifications
  • Type: HDA Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (HxWxD)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Phase: 1
  • Amperage: 90A
  • AIC Rating: 18kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: H Frame
  • Wire Size: AWG 14...AWG 3/0 aluminium/copper terminal
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 3.001 lb


Product Identification
  • UPC: 796474955037
