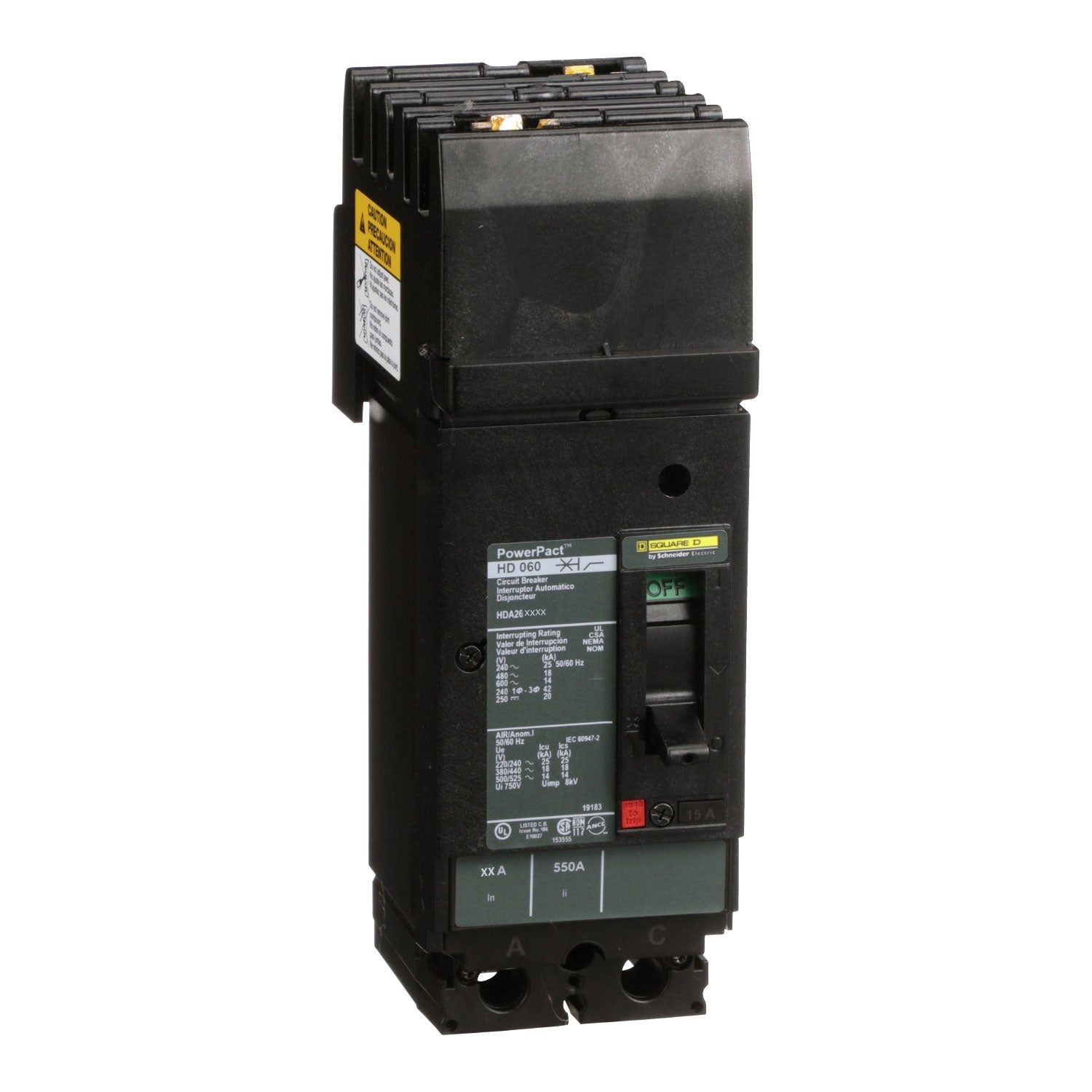

Square D HDA260902 - Molded Case Circuit Breaker 90A 600V 2-Pole
Square D HDA260902 - Molded Case Circuit Breaker 90A 600V 2-Pole

Square D HDA260902 - Molded Case Circuit Breaker 90A 600V 2-Pole

Square D
Price
Save $-1,101.54
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HDA260902 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 90A current rating and a 600V voltage rating, housed within a compact H-frame measuring 6.4 in (163 mm) high, 4.09 in (104 mm) wide, and 3.4 in (86 mm) deep with a weight of 3.001 lb. This thermal magnetic breaker, offering LI (Long-time and Instantaneous) protection functions, is constructed for I-Line style plug-in connection and complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards. It is typically applied in commercial and industrial panelboards for protecting feeder and branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, I-Line Style Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 6.4 in H x 4.09 in W x 3.4 in D (163 mm x 104 mm x 86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboard protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Phase: 1
  • Amperage: 90A
  • AIC rating: 18kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: H Frame
  • Wire Size: AWG 14...AWG 3/0 aluminium/copper terminal
  • Certification: UL, CSA, NOM
  • Weight: 3.001 lb


Product Identification
  • UPC: 785901049548
  • GTIN: 00785901049548
