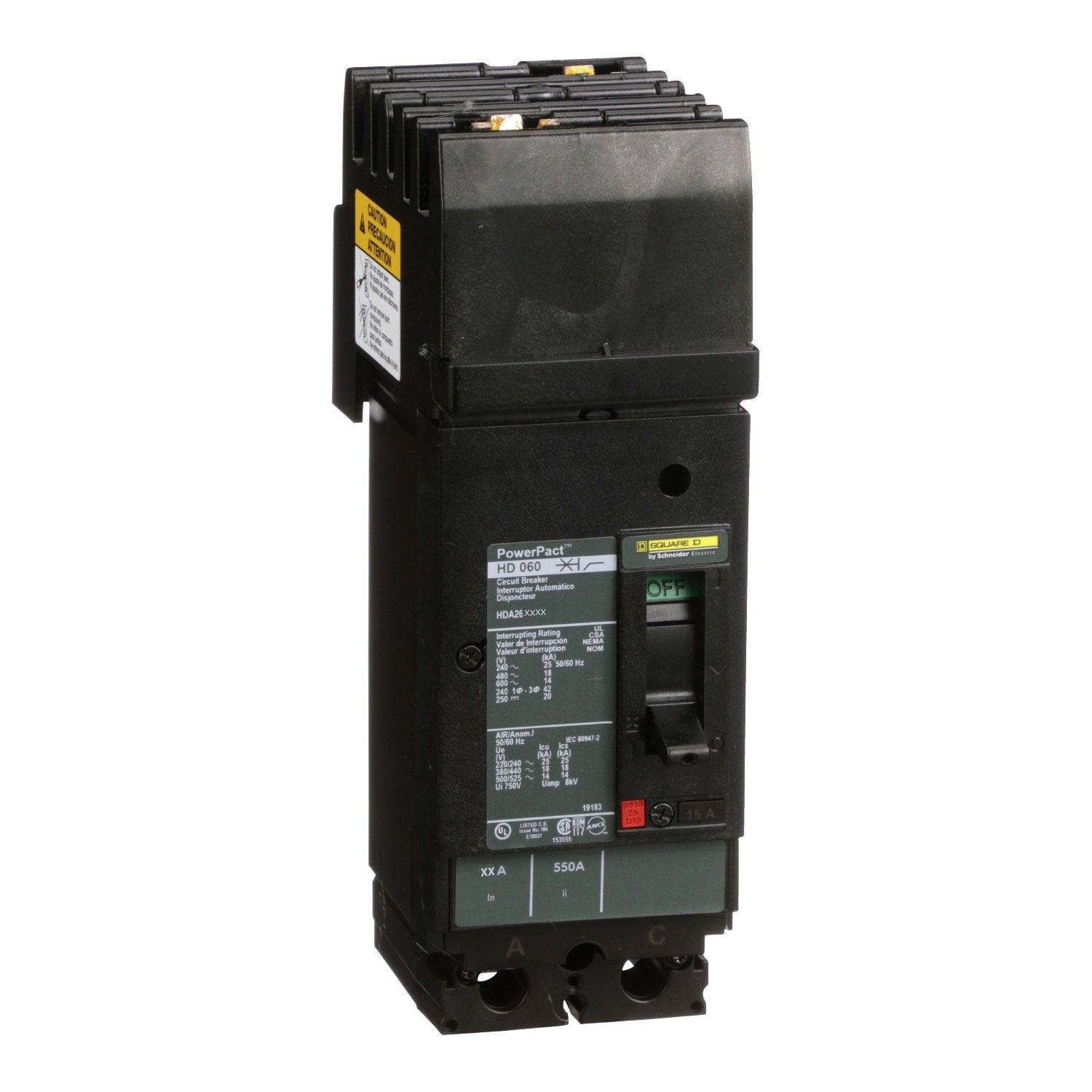

Square D HDA260602 - Molded Case Circuit Breaker 60A 600V 2-Pole
Square D HDA260602 - Molded Case Circuit Breaker 60A 600V 2-Pole

Square D HDA260602 - Molded Case Circuit Breaker 60A 600V 2-Pole

Square D
Price
Save $258.47
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HDA260602 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.321 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and is constructed for I-Line style plug-in connection with lug terminals, accepting wire sizes from 14 AWG to 3/0 AWG for copper or aluminum conductors. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is typically applied in panelboards and switchboards for commercial and industrial power distribution, offering an interrupting capacity of 18kA at 480V AC.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial & Commercial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 1
  • Amperage: 60A
  • AIC rating: 18kA @ 480V AC
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Certification: UL, CSA, NOM
  • Phase Connection: AC
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Mounting: Plug-In
  • Hz: 50/60 Hz
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Compatible Frames: I-Line Panelboards
  • Installation Type: Plug-In Mount
  • Breaker Frame: H-Frame
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901632573
  • GTIN: 00785901632573
