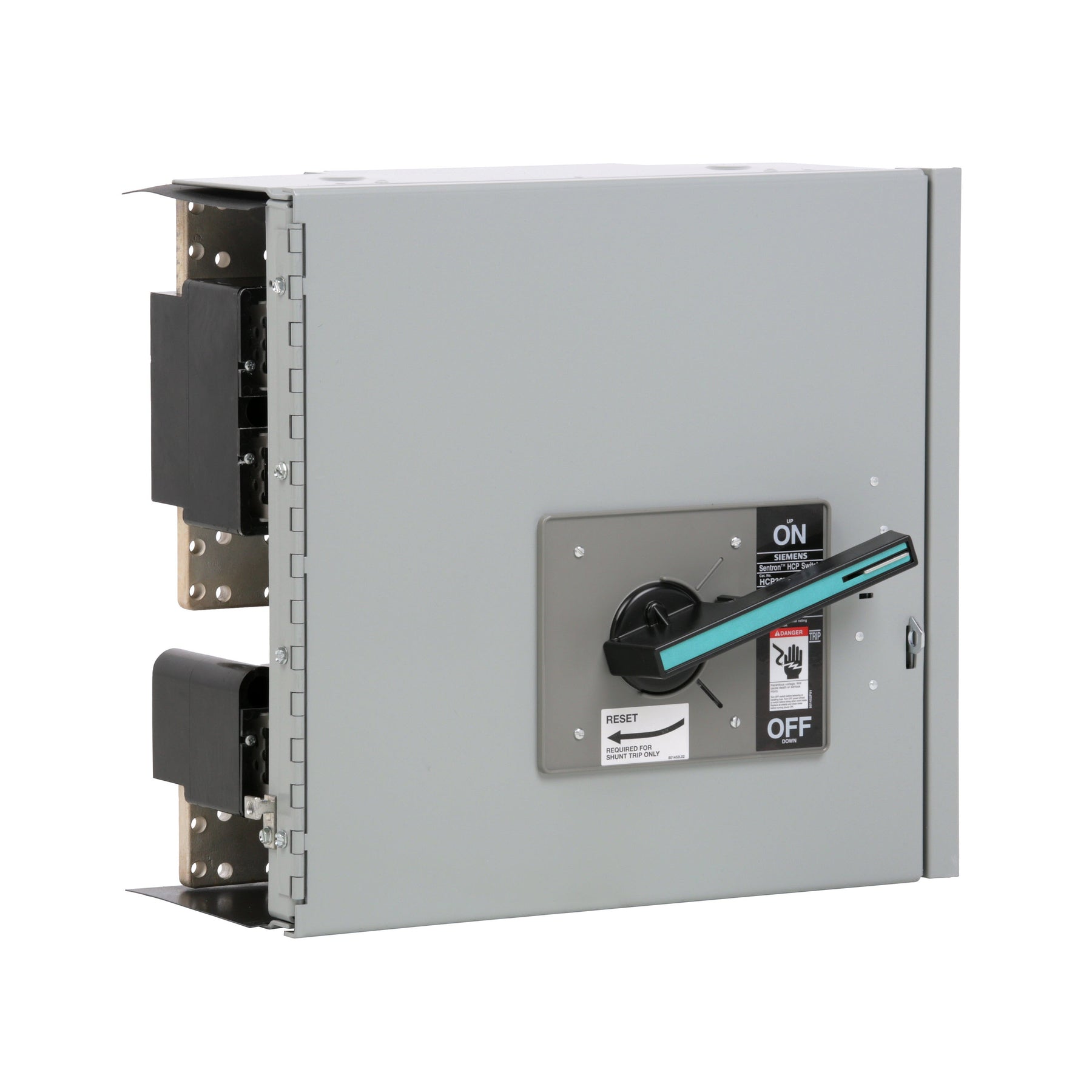

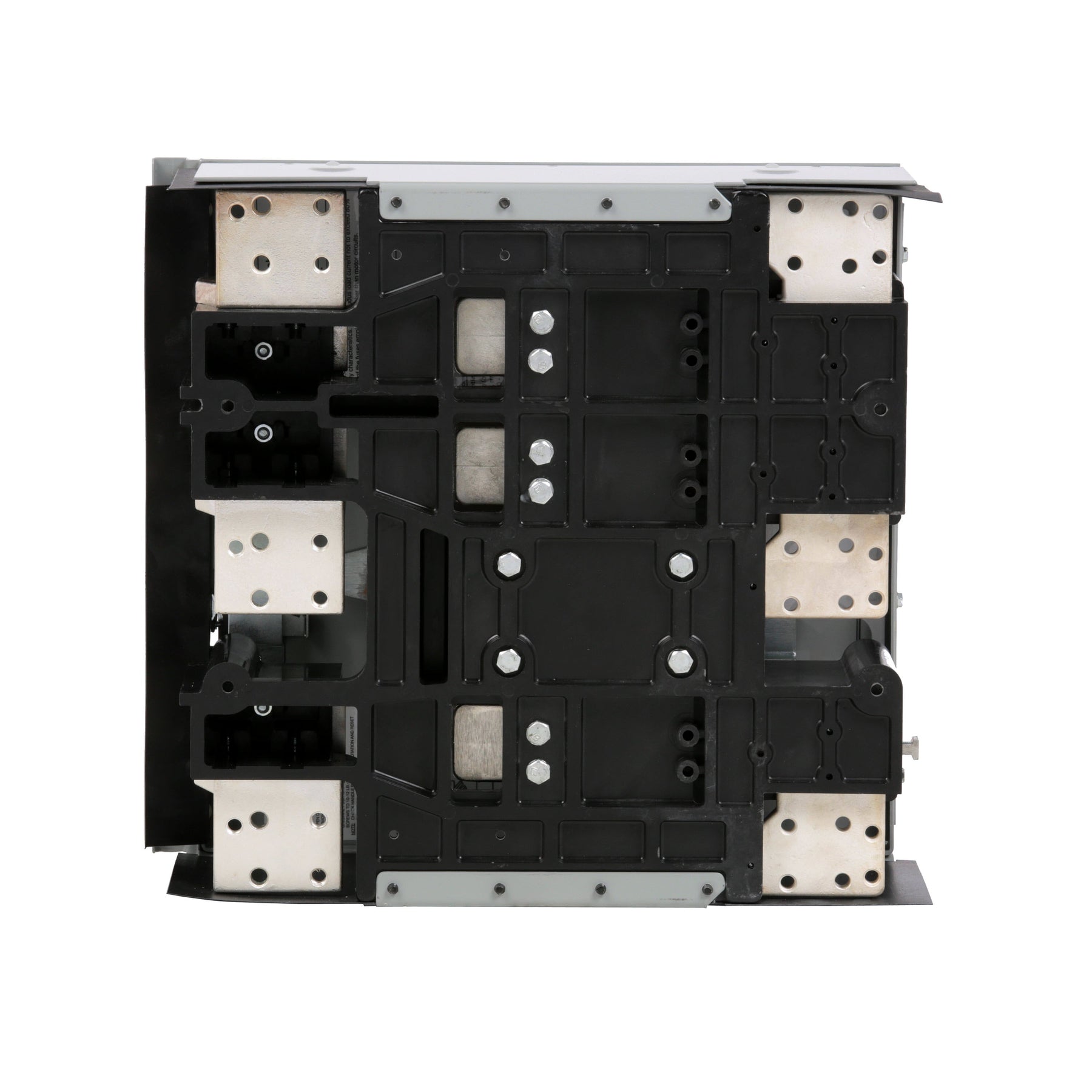

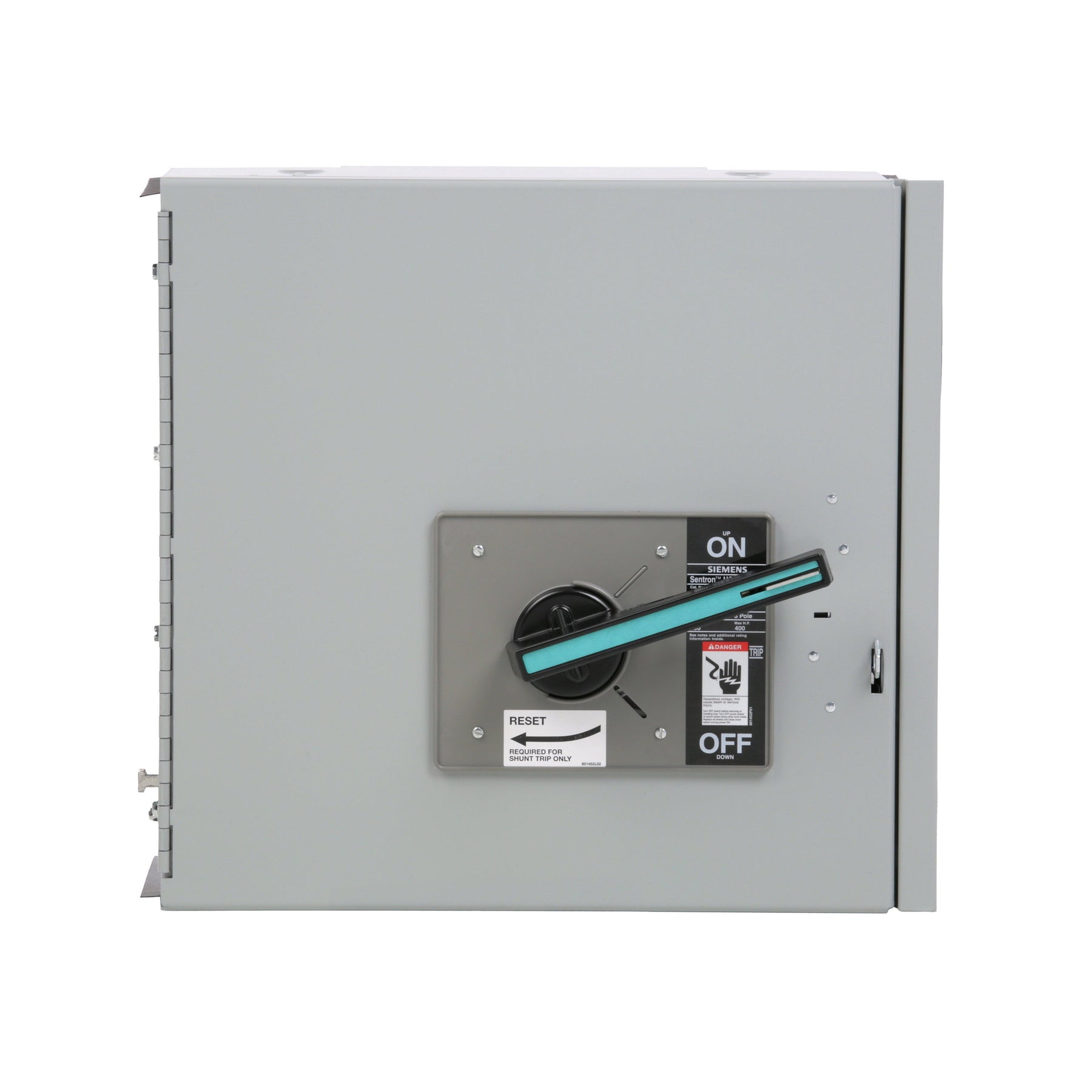

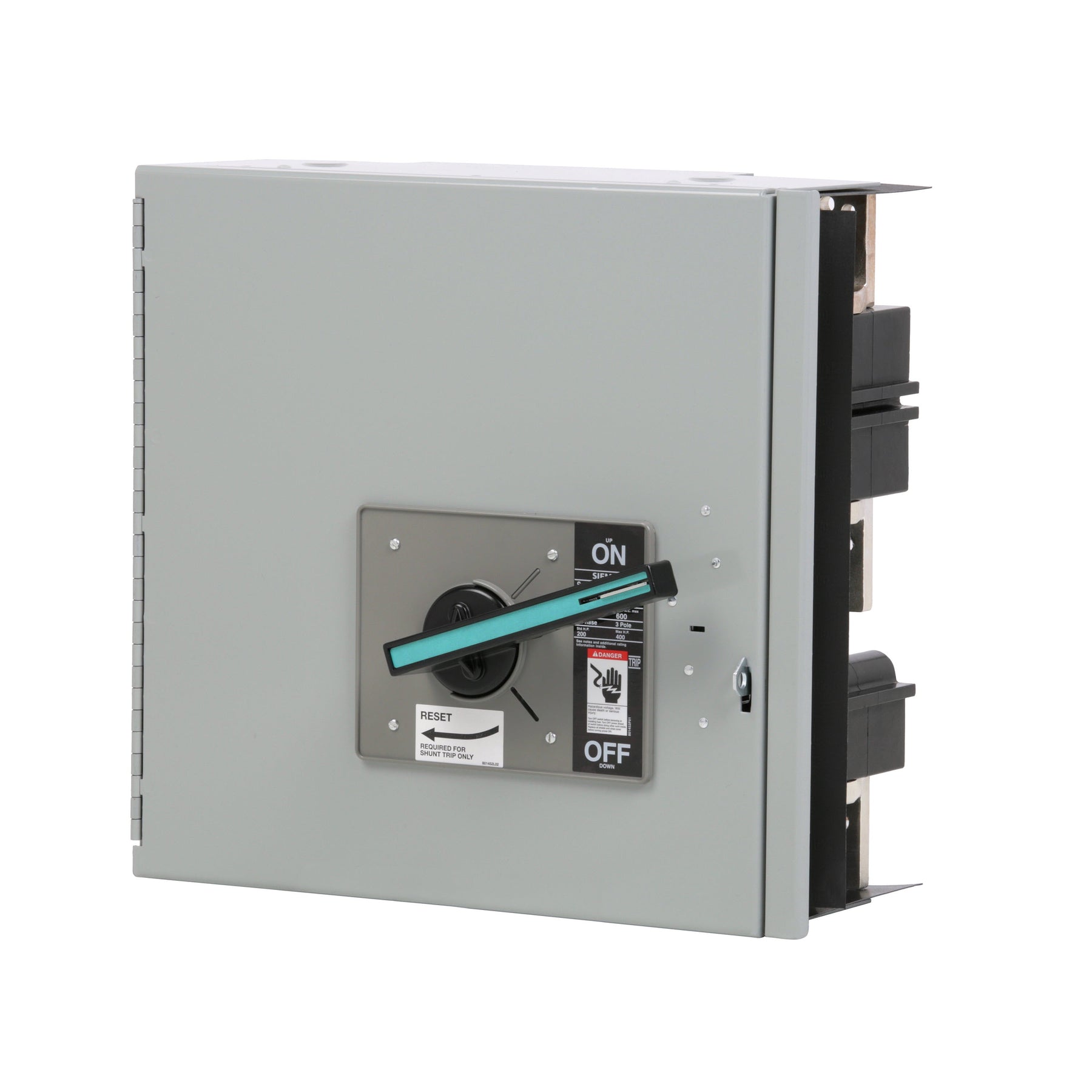

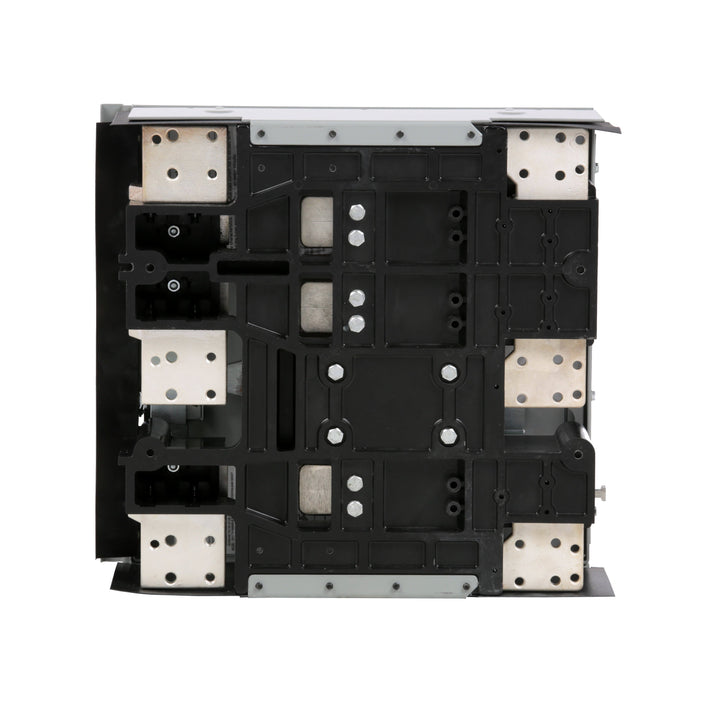

Siemens HCP367HJ600 is a panel-mounted fusible safety switch designed for providing reliable circuit protection and isolation in three-phase industrial power distribution systems. It features a 600V AC voltage rating and an 800A current rating, housed within a robust NEMA 1 enclosure weighing 80.001 lb for durable performance. The switch is engineered to meet industry standards with a 200kA interrupting capacity at 480V and is compatible with MHP frames and Class J fuses. Its primary applications include protecting motors, feeders, and branch circuits in manufacturing plants, data centers, and commercial facilities where high fault current protection is critical.
Key Features & Specifications
Type: HCP Series, Fusible Safety Switch, Panel Mount
Voltage Rating: 600V AC
Current Rating: 800A
Configuration: Single
Poles: 3
Phase: 3-Phase
AIC Rating: 200kA @ 480V AC
Fuse Class: Class J
Compatible Frames: MHP
Switch Style: Fusible
NEMA Rating: NEMA 1
Weight: 80.001 lb
Standards: Designed for industrial compliance
Applications: Motor protection, feeder & branch circuit protection in industrial and commercial power distribution
