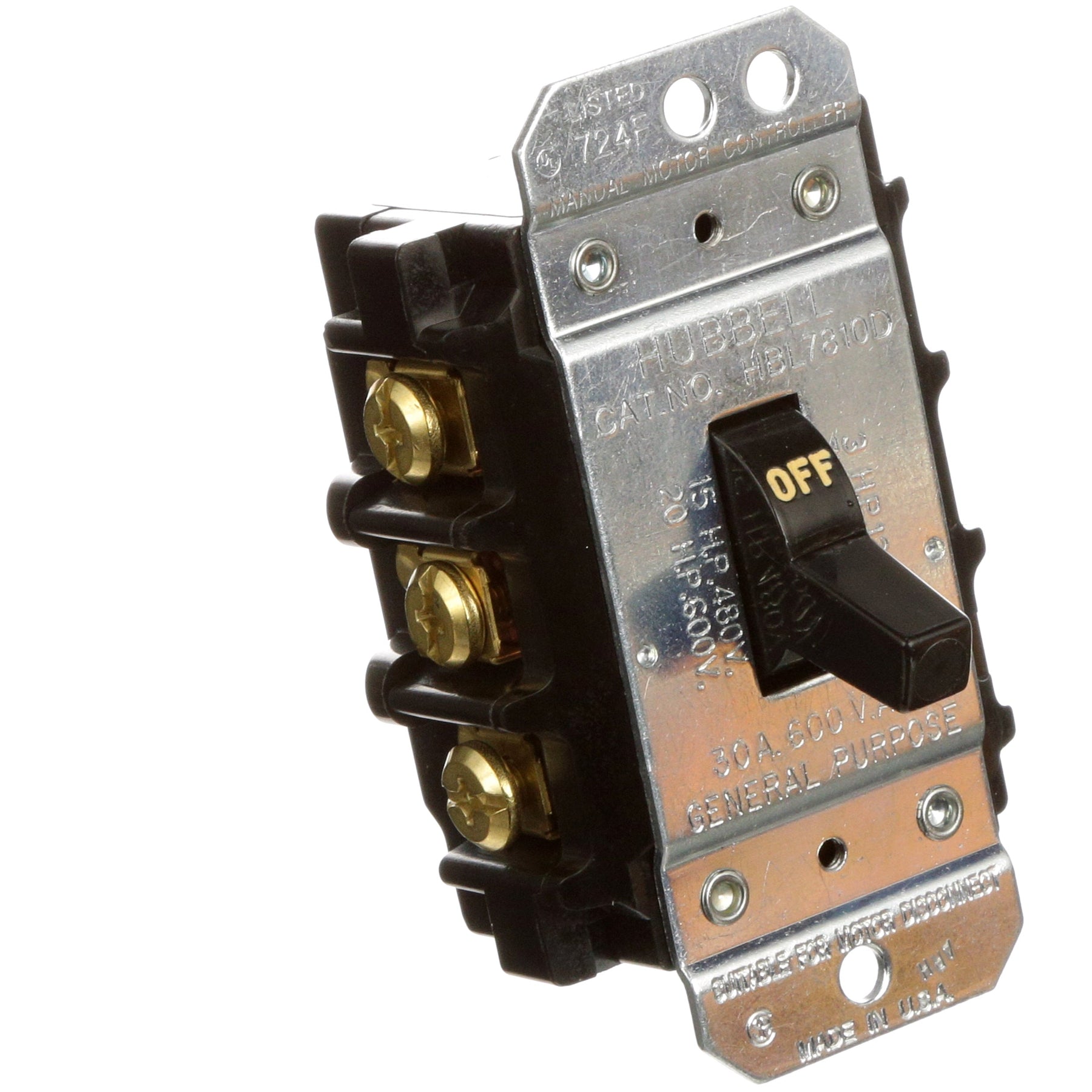

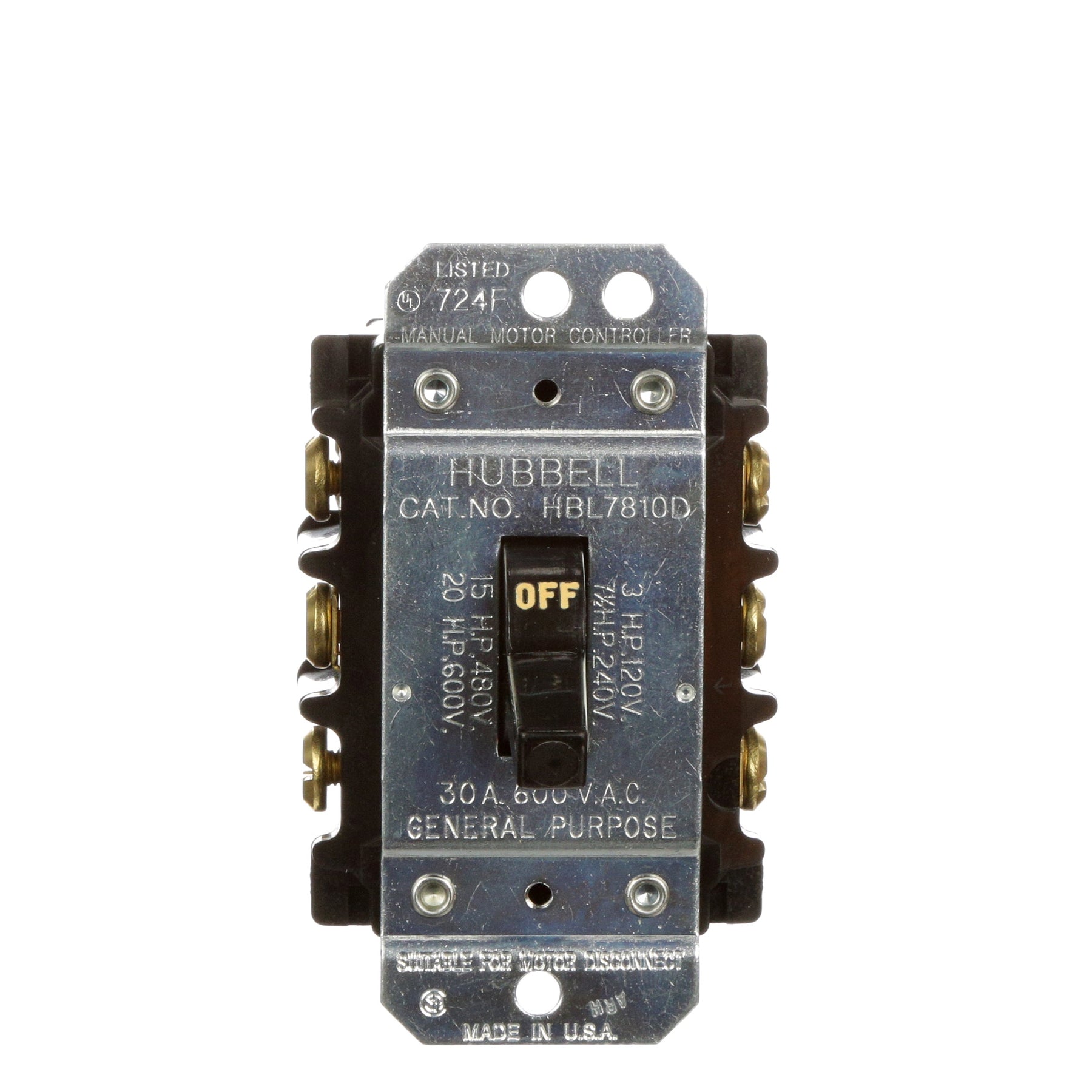

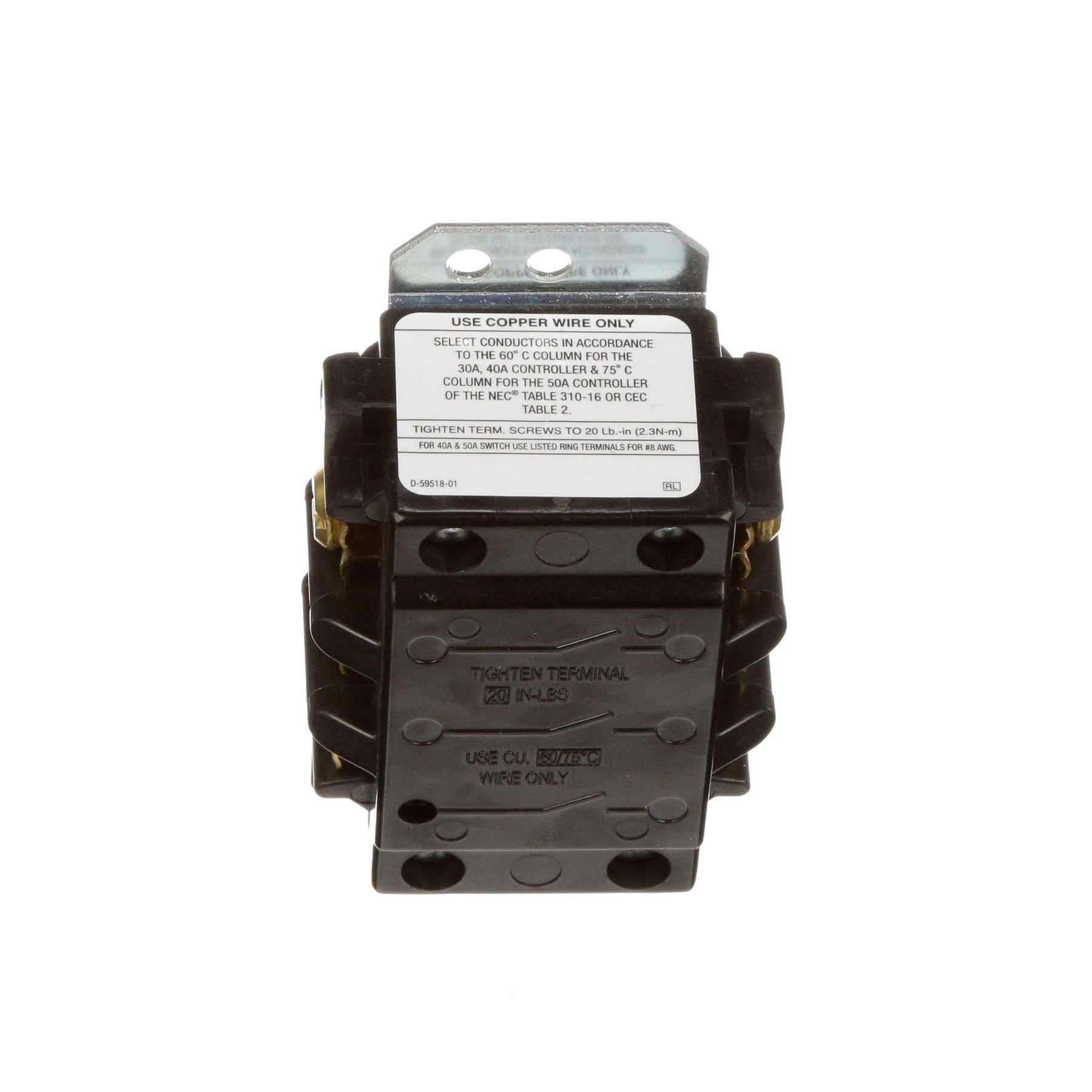

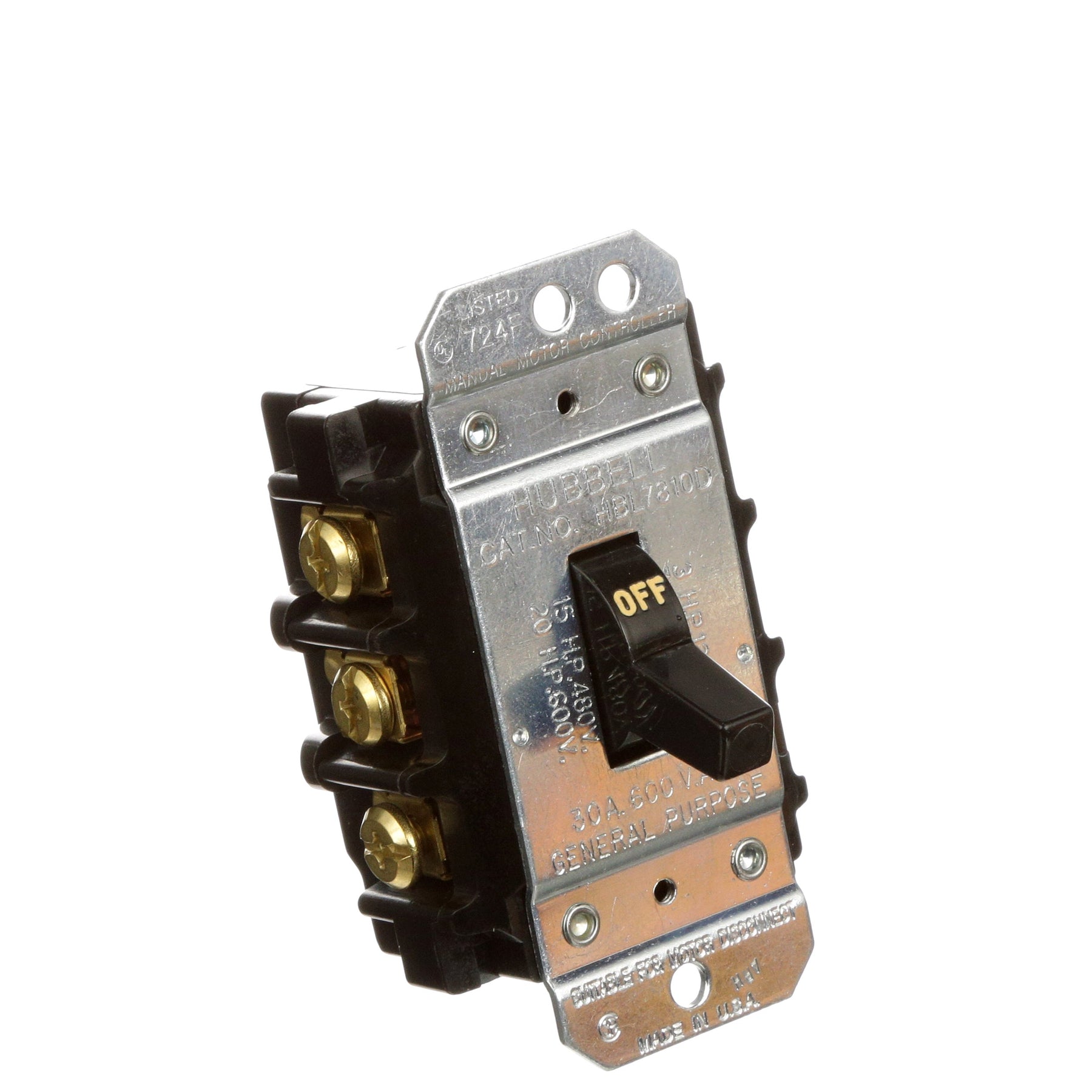

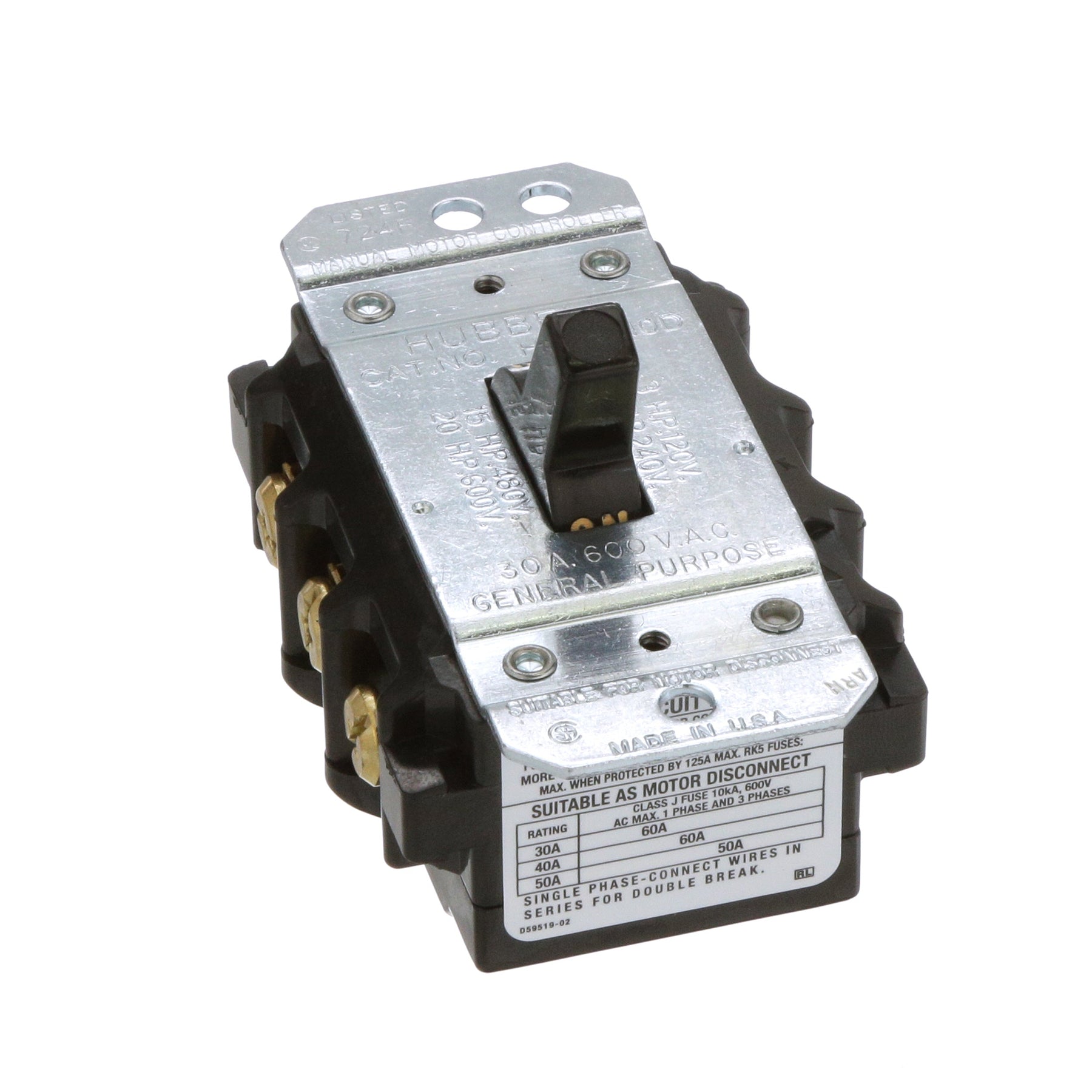

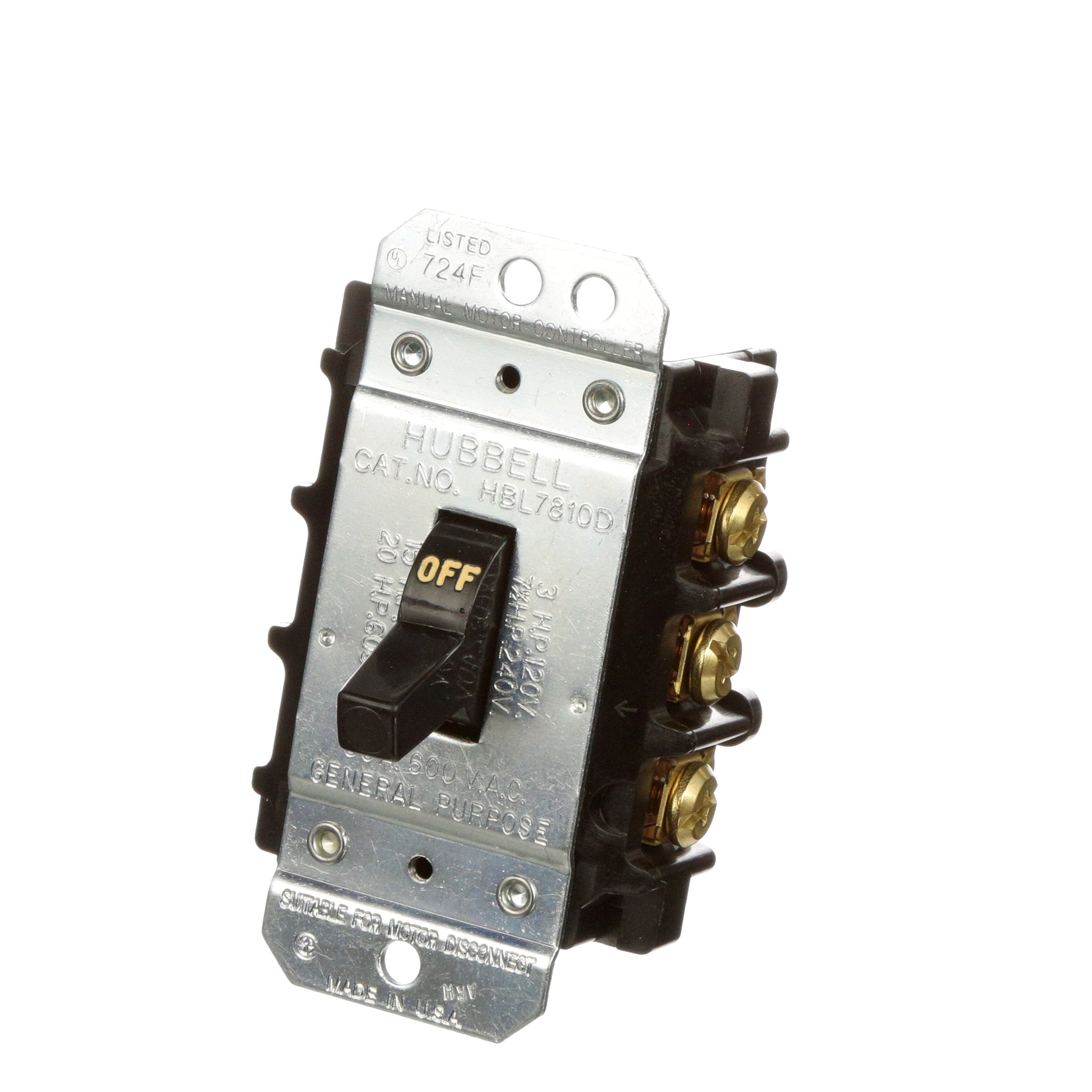

Hubbell HBL7810D is a solid state disconnect switch designed for industrial circuit protection applications. This 3-pole device operates at 600V AC with a 28A current rating and features bolt-on connections for secure installation. The switch provides comprehensive protection through long-time and instantaneous (LI) functions and offers a 42kA interrupting capacity at 600V, housed within a robust construction compatible with FAP frames. It maintains reliable performance across an operating temperature range of -25°C to 70°C (-13°F to 158°F) and requires 24V control voltage for operation. This disconnect is engineered for three-phase industrial power systems where reliable circuit protection and disconnection capabilities are essential.
Key Features & Specifications
Type: Solid State Disconnect Switch, 3-Pole, Bolt-On Connection
Voltage Rating: 600V AC
Current Rating: 28A
Phase: 3
AIC Rating: 42kA@600V
Protection: Solid State
Functions: LI - Long-Time and Instantaneous
Control Voltage: 24V
Operating Temperature: -25°C to 70°C (-13°F to 158°F)
Compatible Frames: FAP
Wire: 4
Weight: 45 lb
Standards: Industrial disconnect specifications
Applications: Industrial power distribution, motor control centers, panelboards
