Square D H60XFA1212 - Non-Fusible Disconnect Switch, 600V 60A 3P

Square D
Price
Save $-2,085.53
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

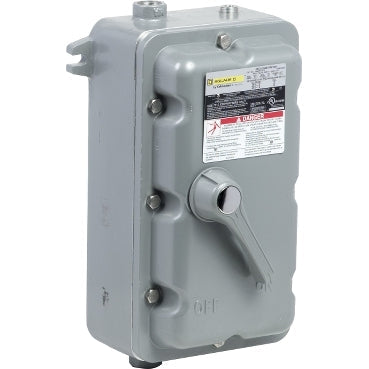

The Square D H60XFA1212 is a heavy-duty, non-fusible safety disconnect switch designed to provide reliable isolation for three-phase industrial power circuits. It is rated for 600V AC systems with a 60A current capacity, housed in a robust enclosure measuring 404.62 mm H x 250.70 mm W x 176.78 mm D and weighing 28.069 lb. The switch is UL Listed and CSA Approved, meeting NEMA 9-Jul standards for hazardous locations, and is engineered for integration into compatible Series E ED frames to safely de-energize motor control centers and industrial machinery for maintenance.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Series E, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Dimensions: 15.93 in (404.62 mm) x 9.87 in (250.70 mm) x 6.96 in (176.78 mm) (H x W x D)
  • Weight: 28.069 lb
  • Wire Size: AWG 14...AWG 3 copper, AWG 12...AWG 3 aluminium
  • Standards: UL LISTED, CSA APPROVED, NEMA 9-Jul
  • Switch Style: Non-Fusible
  • Compatible Frames: ED
  • Applications: Industrial motor control, power circuit isolation in hazardous locations


Product Identification
  • UPC: 785901083870
  • GTIN: 00785901083870
