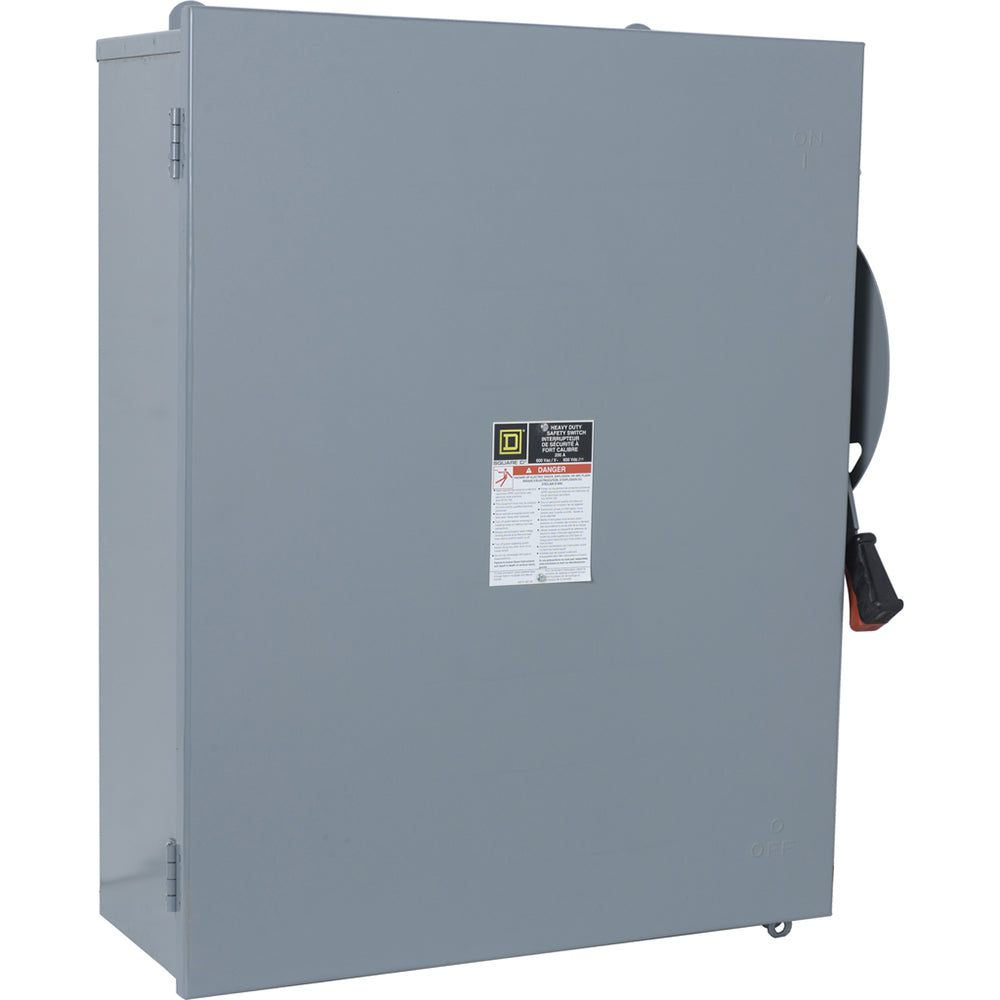

Square D H464 - Fusible Disconnect Switch 200A 600V (200kA AIC, NEMA 1)

Square D H464 is a fusible safety disconnect switch designed for industrial power distribution protection. This 600VAC-rated switch handles 200A continuous current with a 200kA@600V interrupting capacity, featuring a solid-state protection system with long-time and instantaneous (LI) trip functions. The NEMA 1-rated enclosure measures 24.88" x 8.75" x 29" (WxDxH) with a bolt-on connection configuration for four poles using Class R fuses. Compliant with industrial safety standards, this single-configuration switch is engineered for three-phase power systems in manufacturing facilities and heavy equipment applications.

Key Features & Specifications

• Type: Fusible disconnect switch with solid-state protection
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 24.88" x 8.75" x 29" (WxDxH)
• Standards: NEMA 1
• Applications: Industrial power distribution, motor control
• Switch Style: Fusible
• Configuration: Single
• Poles: 4
• Connection: Bolt-On
• Protection: Solid State
• Functions: LI (Long-Time & Instantaneous)
• Phase: 3
• AIC Rating: 200kA@600V
• Fuse Class: R
• Wire: 4
• Compatible Frames: ED
• Weight: 20.87 lb

Product Identification

• UPC: 785901482512
• GTIN: 00785901000000
