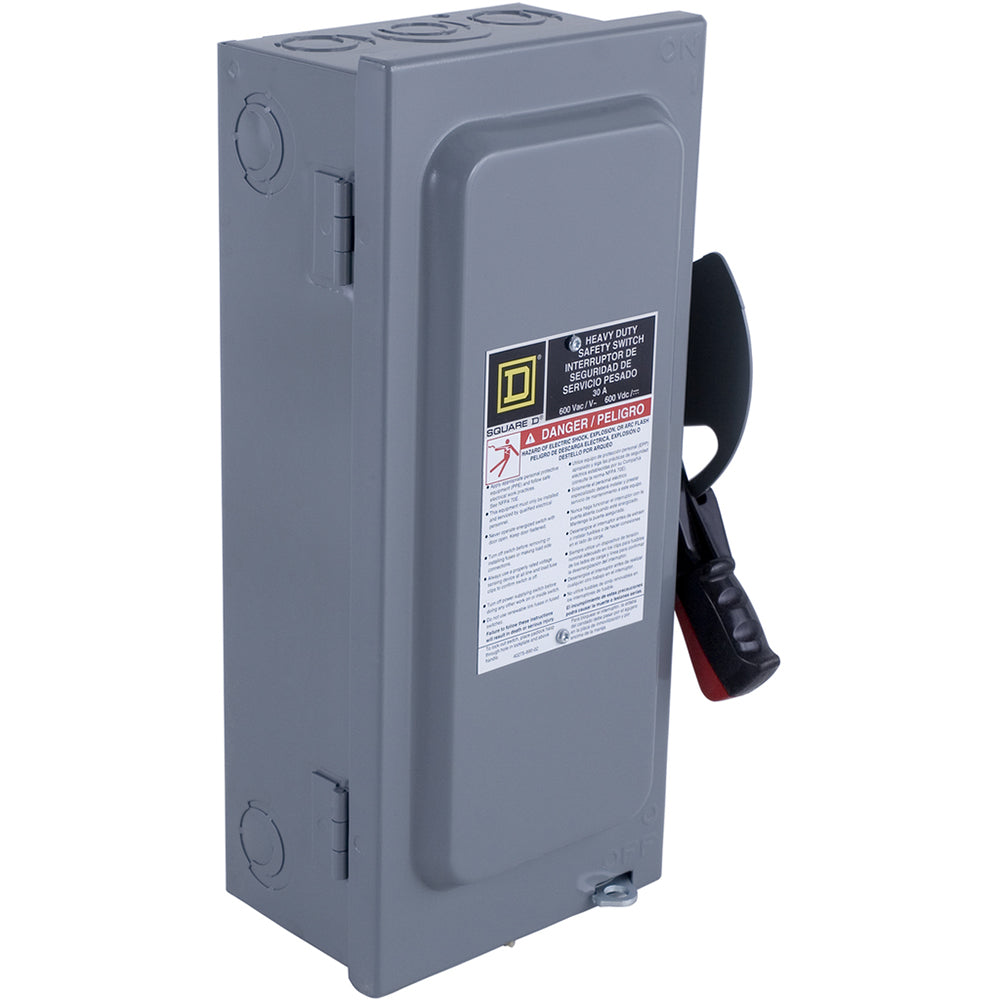

Square D H461 - Fusible Safety Switch 30A 600V 3-Phase

Square D
Price
Save $298.59
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D H461 is a fusible safety switch designed for providing reliable circuit protection and isolation in industrial power distribution systems. It features a 600V AC voltage rating and a 30A current rating for three-phase applications, housed within a robust NEMA 1 enclosure measuring 520.7 mm H x 409.7 mm W x 174.0 mm D and weighing 14.394 lb. The switch is compliant with industry standards and offers solid-state protection with long-time and instantaneous (LI) trip functions. Its design is suitable for integration into panelboards and switchboards, typically protecting motor circuits and feeder lines where high fault current interruption is required.

Key Features & Specifications
  • Type: Fusible Disconnect Safety Switch, Bolt-On Connection, Solid State Protection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 520.7 mm H x 409.7 mm W x 174.0 mm D (20.5 in x 16.13 in x 6.85 in)
  • Standards: NEMA 1 Enclosure Rating
  • Applications: Industrial Motor Protection, Feeder Circuit Isolation, Power Distribution
  • Switch Type: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 4
  • AIC rating: 200kA @ 600V
  • Protection: Solid State
  • Functions: LI (Long-Time and Instantaneous)
  • Fuse Class: R
  • Wire: 4
  • Compatible Frames: ED
  • Weight: 14.394 lb


Product Identification
  • UPC: 78590186833
  • GTIN: 785901868330
