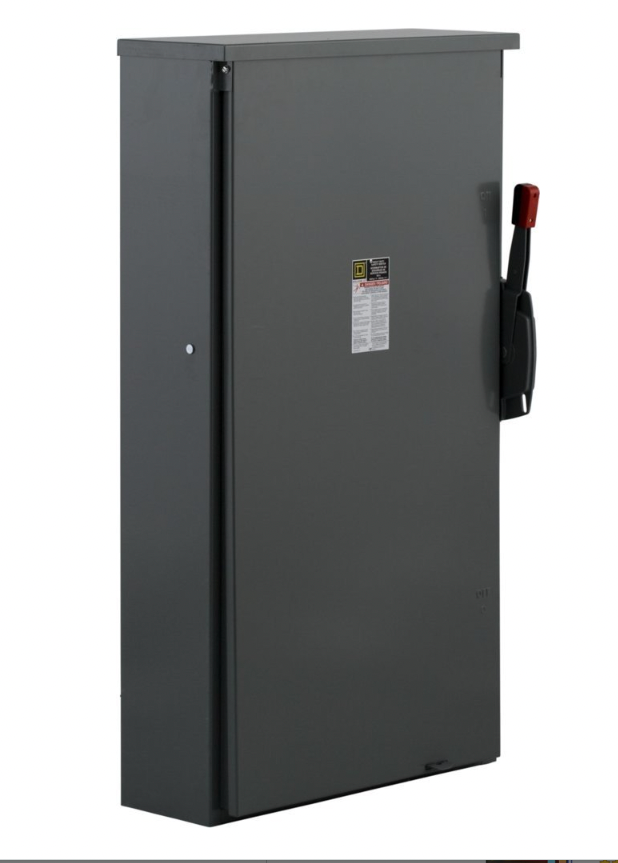

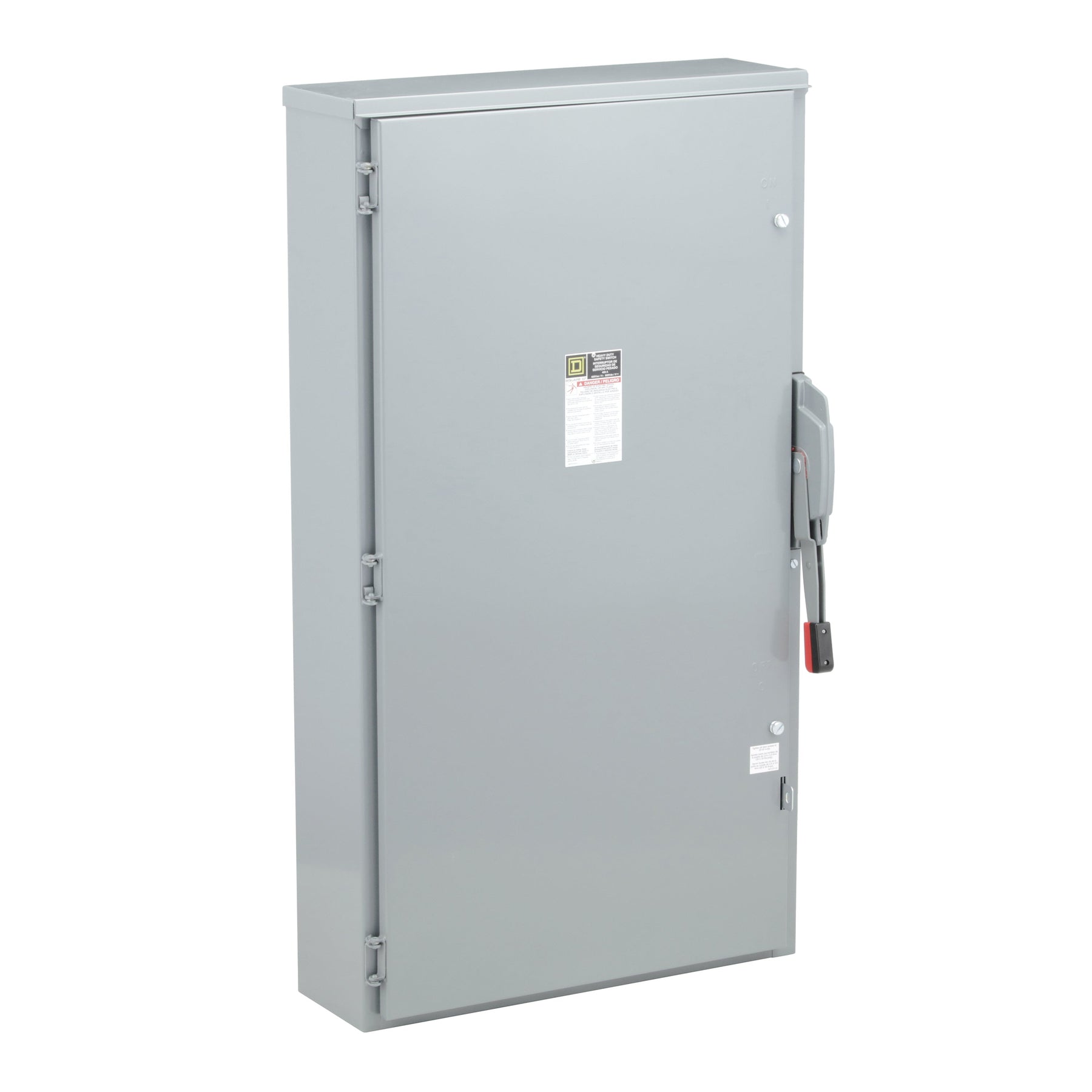

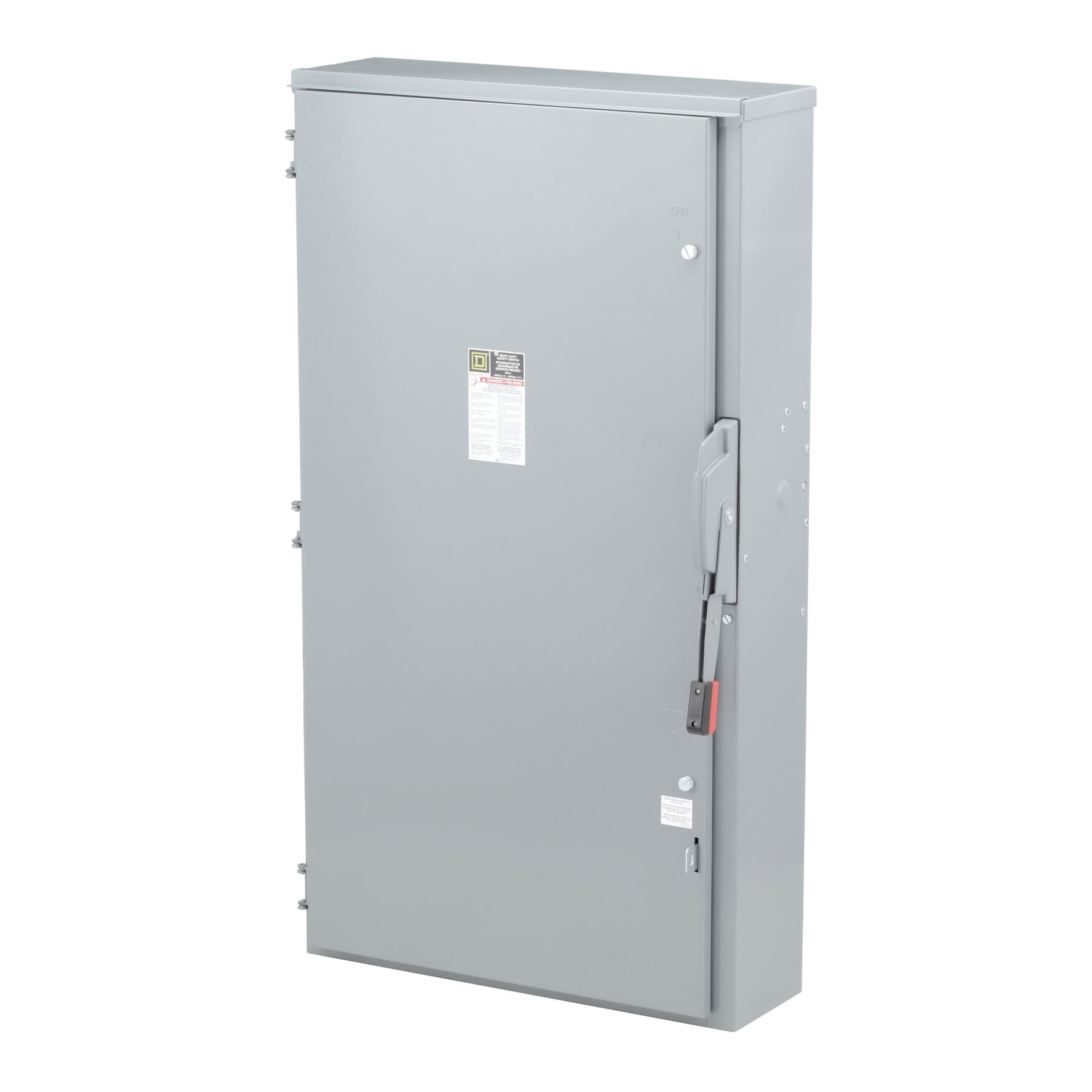

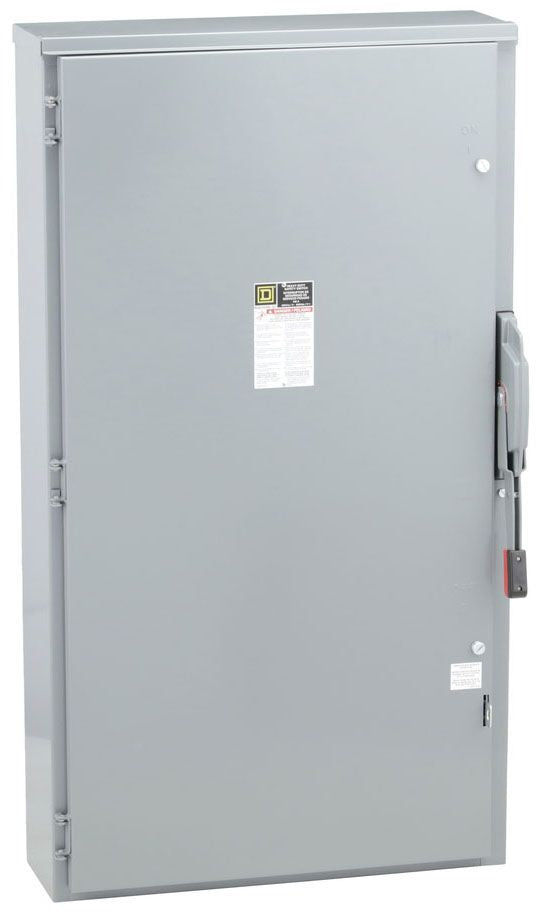

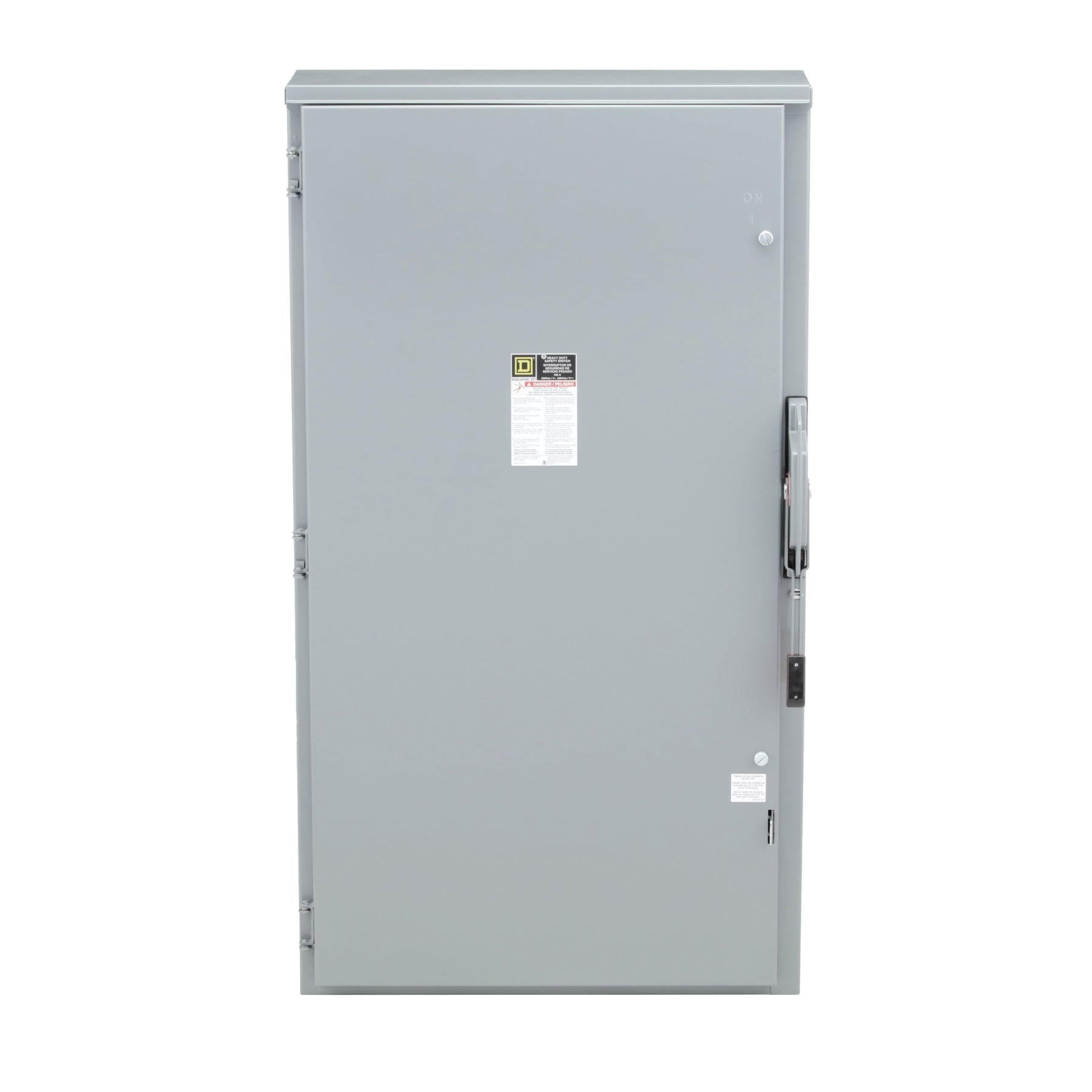

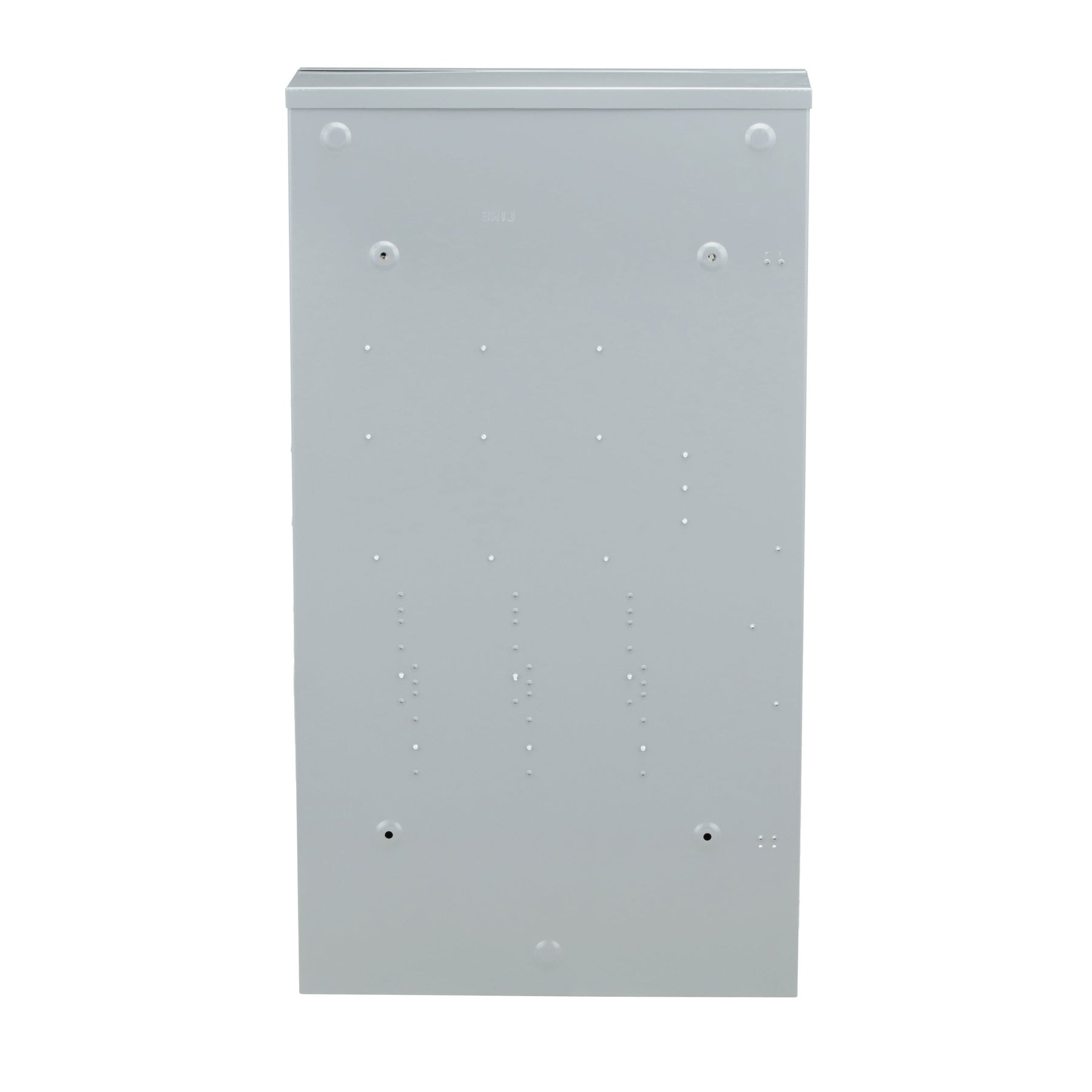

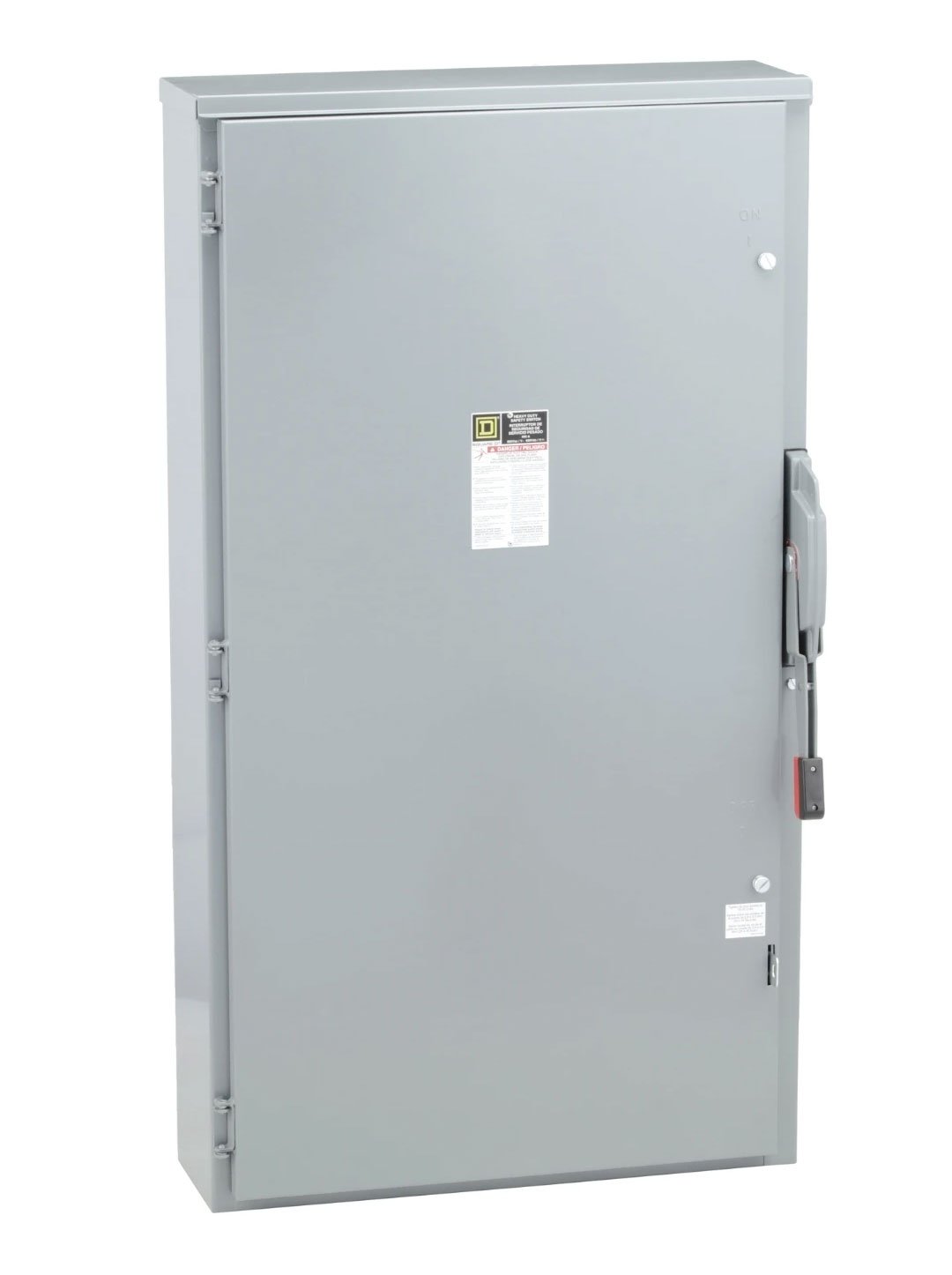

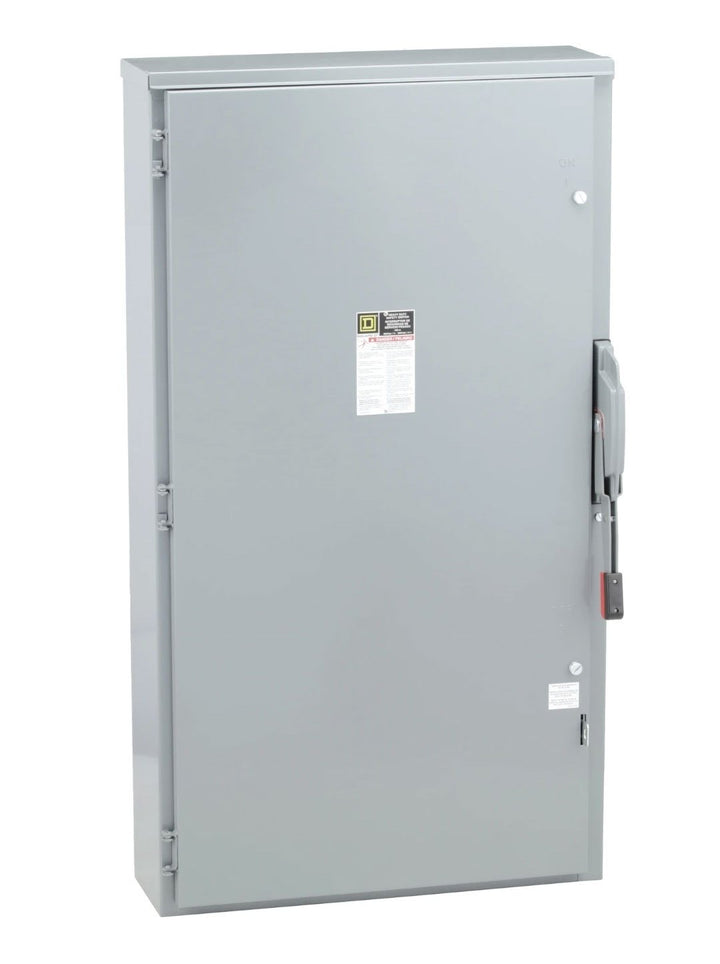

Square D H365R - Fusible Safety Switch, 400A 600V 3P (NEMA 3R)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D H365R is a heavy-duty industrial safety switch designed for providing a visible disconnect and protection for three-phase electrical circuits. It features a 600V AC voltage rating and a 400A current rating, housed within a robust NEMA 3R enclosure measuring 50.31 in (H) x 27.88 in (W) x 10.13 in (D) and weighing 181 lb for outdoor durability. This fusible disconnect switch is engineered to an interrupting capacity of 200kA at 600V and complies with industry standards for reliable circuit isolation. Its configuration makes it suitable for protecting motors, HVAC systems, and industrial machinery in demanding environments.

Key Features & Specifications
  • Type: H-Type, Fusible Safety Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 50.31 in (1277.87 mm) H x 27.88 in (708.15 mm) W x 10.13 in (257.30 mm) D
  • Standards: NEMA 3R Enclosure Rating
  • Applications: Motor, HVAC, and Industrial Machine Protection
  • Switch Type: Safety Disconnect
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Switch Style: Fusible
  • Weight: 181 lb
  • Family: Series E


Product Identification
  • UPC: 785901451877
  • GTIN: 00785901451877
