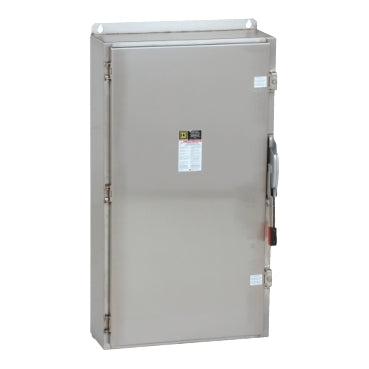

Square D H365NDS - Fusible Disconnect Switch, 400A 600V 3-Pole

Square D
Price
Save $3,003.48
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H365NDS is a heavy-duty industrial disconnect switch designed for providing a visible break and overcurrent protection in three-phase power distribution systems. It is rated for 600V AC and a continuous current of 400A, featuring a robust construction with dimensions of 1174.75 mm H x 666.75 mm W x 257.30 mm D and a weight of 185.001 lb. This fusible switch, compliant with NEMA 5 standards, incorporates Class R fuse compatibility and offers a high interrupting capacity of 200kA at 600V for reliable circuit isolation and protection in demanding industrial and commercial applications.

Key Features & Specifications
  • Type: H-Series, Fusible Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 1174.75 mm H x 666.75 mm W x 257.30 mm D (46.25 in x 26.25 in x 10.13 in)
  • Weight: 185.001 lb
  • Standards: NEMA 5
  • Applications: Industrial power distribution, motor control centers, main service disconnects
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Wire Size: AWG 1/0 to 750 Kcmil (Copper/Aluminum)
  • Family: Series E
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901195917
  • GTIN: 00785901195917
