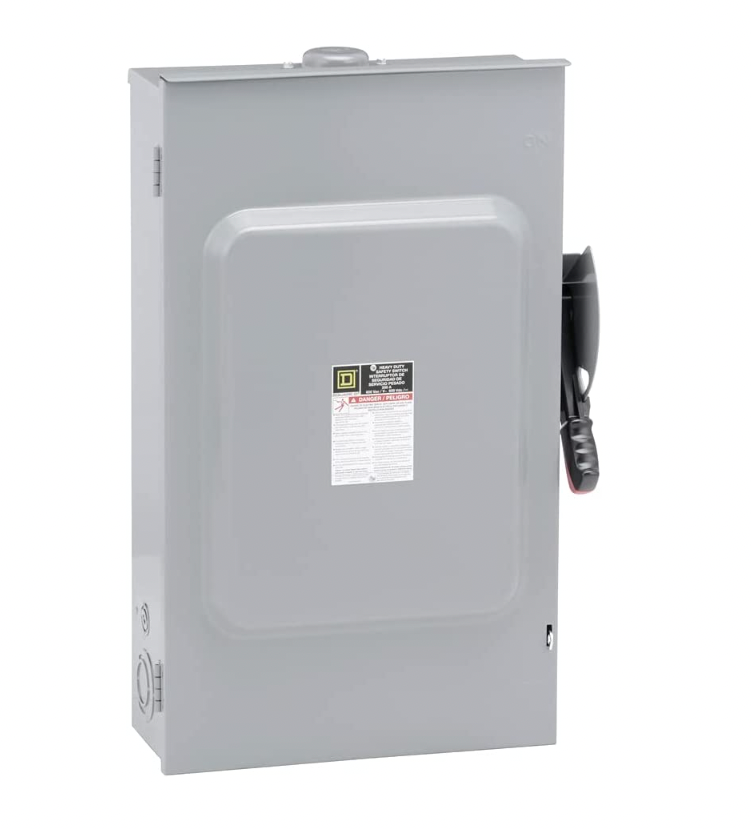

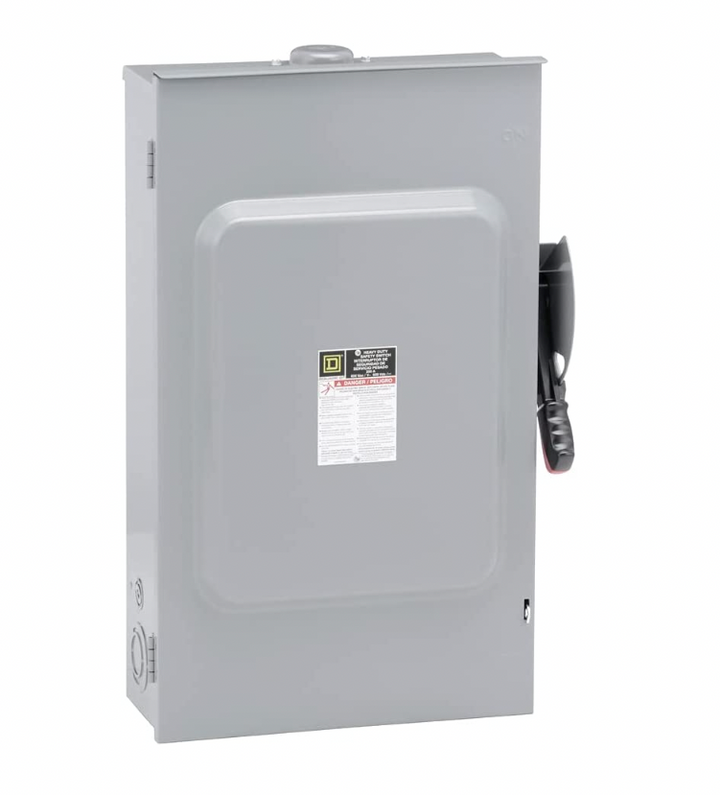

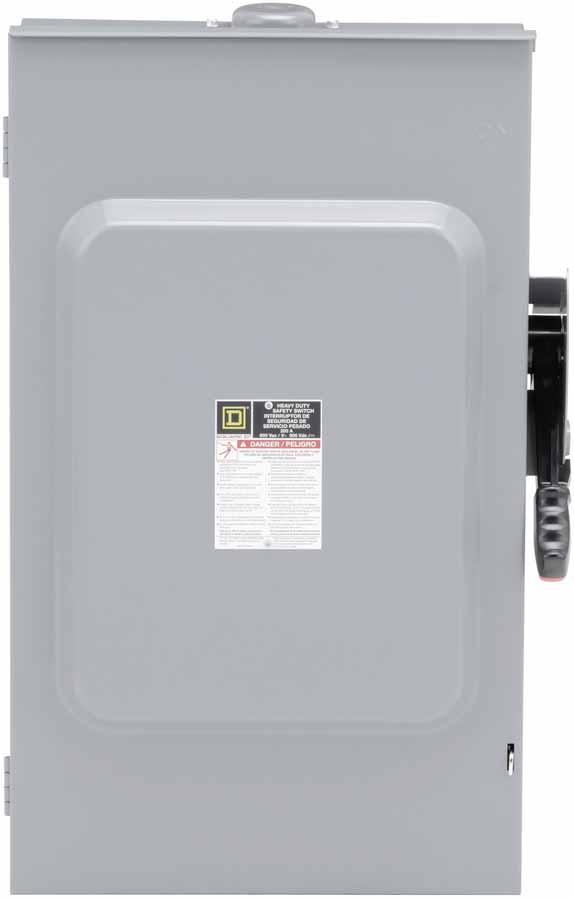

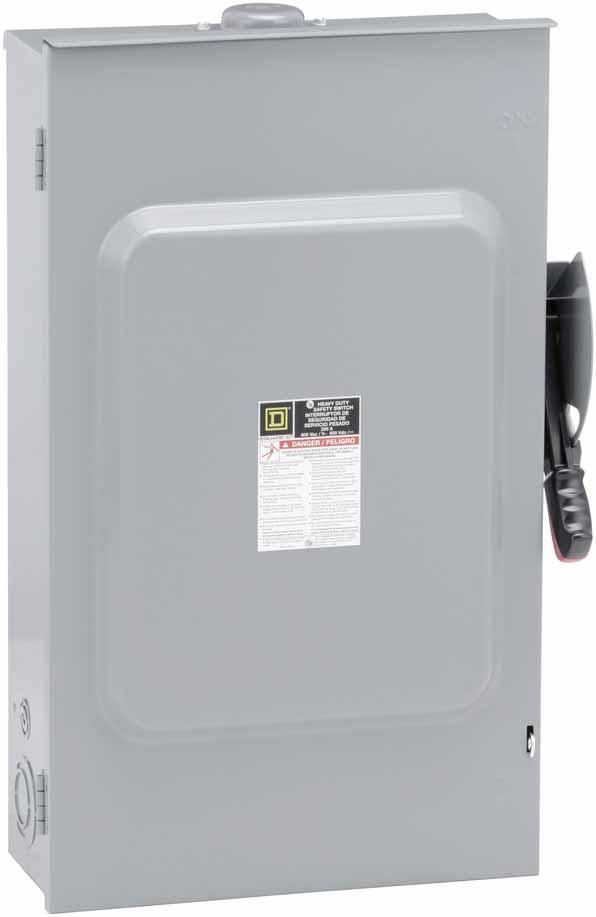

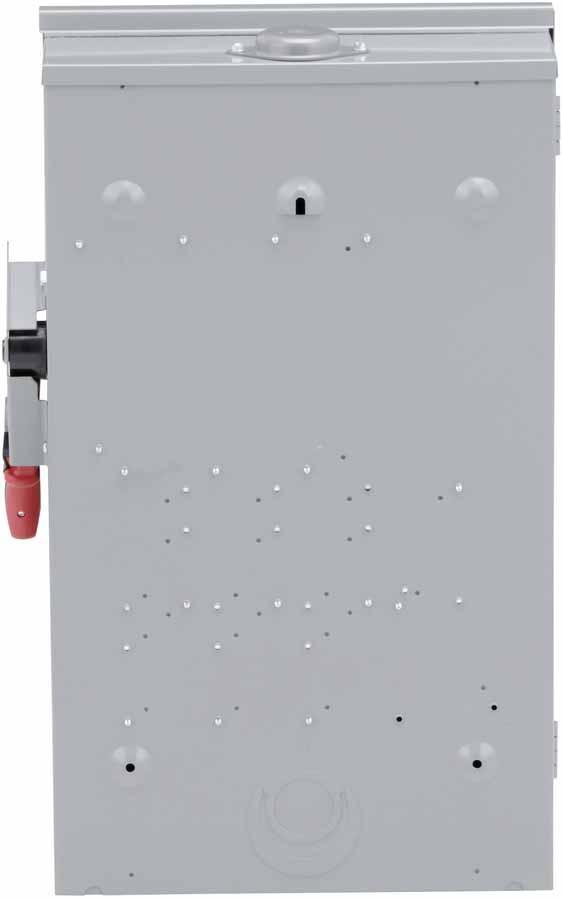

Square D H364NRB - Fusible Safety Switch, 600V 200A 3-Pole

Price
Regular price $1,202.81
Regular price $2,408.00 Sale price $1,202.81
Save $1,205.19
/
Title
  • Low stock - 5 items left
  • Backordered, shipping soon
Square D H364NRB is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in demanding industrial and commercial applications. It is rated for 600V AC systems and handles a continuous current of 200A across its three poles, housed within a robust enclosure measuring 742.95 mm H x 473.20 mm W x 215.9 mm D and weighing 46.251 lb. The switch is UL Listed and features a NEMA 3R rating for outdoor suitability, with a high interrupting capacity of 200kA at 600V to ensure system protection. Its fusible design utilizing Class R fuses and its ability to accommodate wire sizes from #6 to 250 AWG/kcmil make it suitable for service entrance, feeder circuits, and motor branch circuit protection.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 29.25 in (742.95 mm) H x 18.63 in (473.20 mm) W x 8.5 in (215.9 mm) D
  • Weight: 46.251 lb
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Service Entrance, Feeder & Branch Circuit Protection, Motor Disconnect
  • Switch Type: Fusible Disconnect
  • Configuration: Single Unit
  • Poles: 3
  • Phase: 3-Phase
  • AIC Rating: 200kA @ 600V
  • Wire Size: #6 to 250 AWG/kcmil (Aluminum/Copper)
  • Fuse Class: R


Product Identification
  • UPC: 785901616313
  • GTIN: 00785901616313
