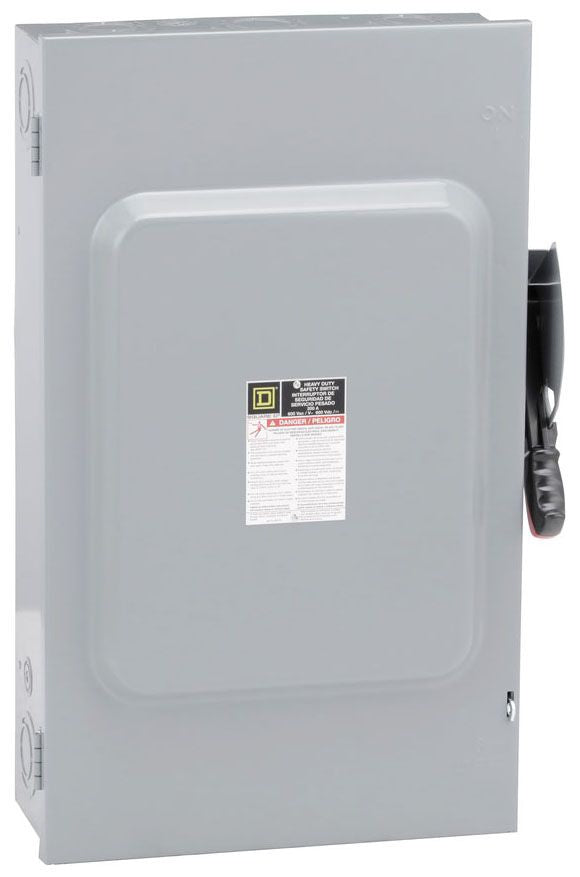

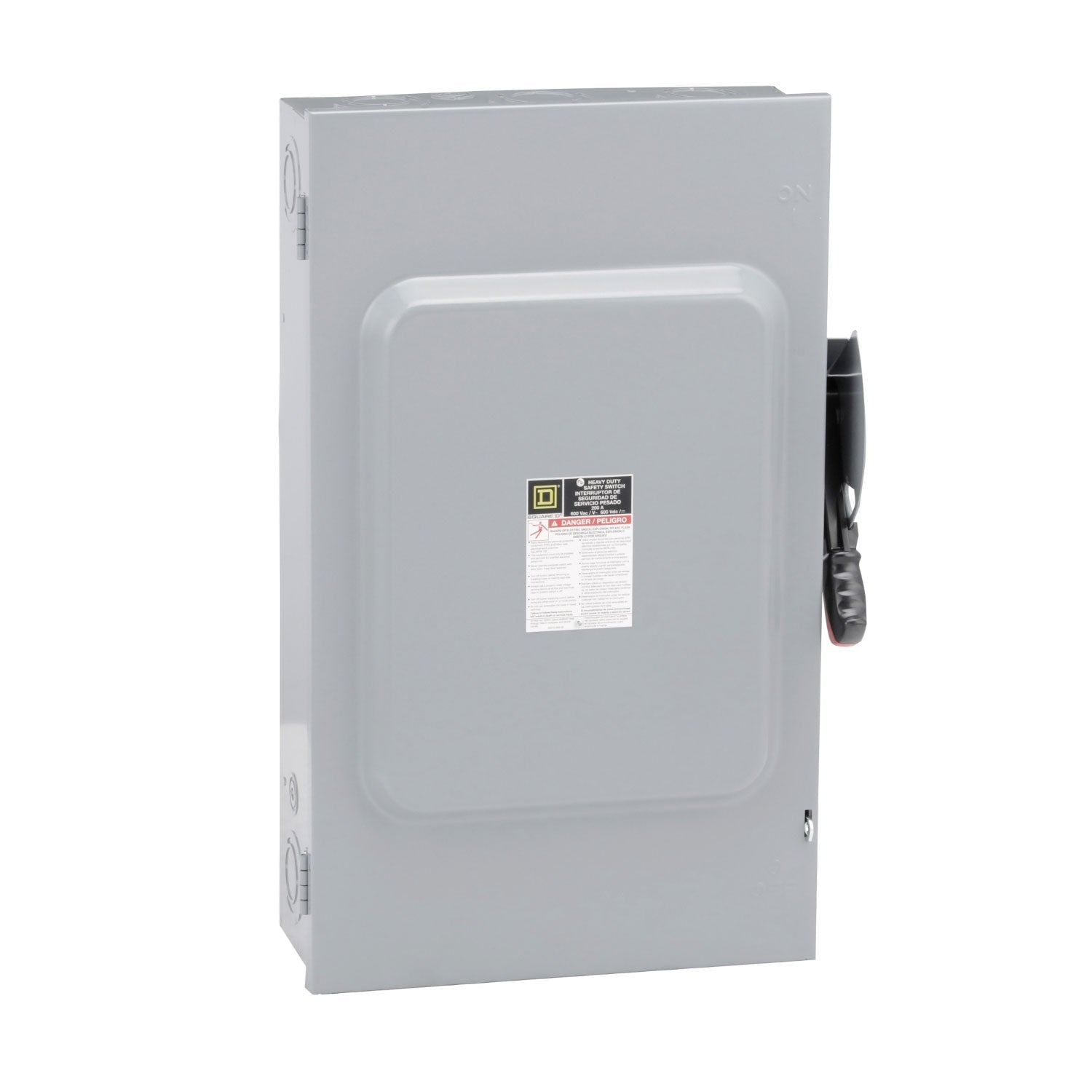

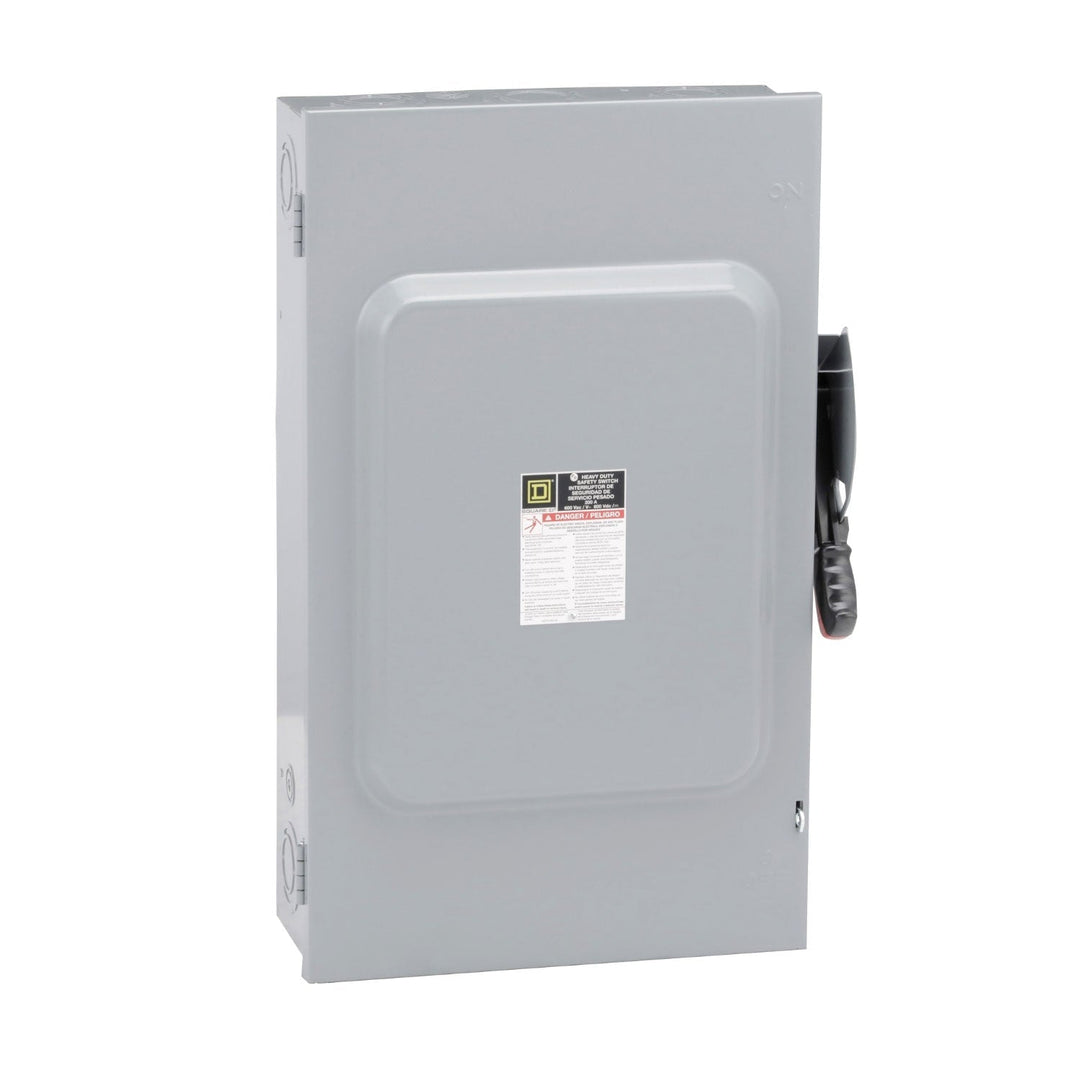

Square D H364N is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in demanding industrial environments. It features a 600V AC voltage rating and a 200A current rating, housed within a robust NEMA 1 enclosure measuring 736.6 mm H x 469.9 mm W x 209.55 mm D and weighing 45.79 lb. The switch is UL listed and offers a high interrupting capacity of 200kA at 600V, ensuring compliance with critical safety standards. Its three-pole, single-configuration design with Class R fuse compatibility and termination for 250 kcmil copper or 6 AWG aluminum conductors makes it suitable for motor control centers, power distribution panels, and other three-phase applications requiring secure disconnection.

Key Features & Specifications
  • Type: Fusible Safety Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 736.6 mm H x 469.9 mm W x 209.55 mm D (29 in x 18.5 in x 8.25 in)
  • Weight: 45.79 lb
  • Standards: UL Listed
  • Applications: Industrial motor control, power distribution, circuit isolation
  • Switch Style: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Protection: Overcurrent via Class R fuses
  • NEMA Rating: 1
  • Wire Size: 250 kcmil (Copper) / 6 AWG (Aluminum)
  • Compatible Frames: MD
  • Certification: UL Listed


Product Identification
  • UPC: 785901482338
  • GTIN: 00785901482338
