Square D H363NRB - Fusible Safety Switch 100A 600V 3P (NEMA 3R)
Square D H363NRB - Fusible Safety Switch 100A 600V 3P (NEMA 3R)
Square D H363NRB Disconnect Switch (Fusible) - Essential Electric Supply
Square D H363NRB - Fusible Safety Switch 100A 600V 3P (NEMA 3R)
Square D H363NRB - Fusible Safety Switch 100A 600V 3P (NEMA 3R)

Square D H363NRB - Fusible Safety Switch 100A 600V 3P (NEMA 3R)

Square D
Price
Save $835.62
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

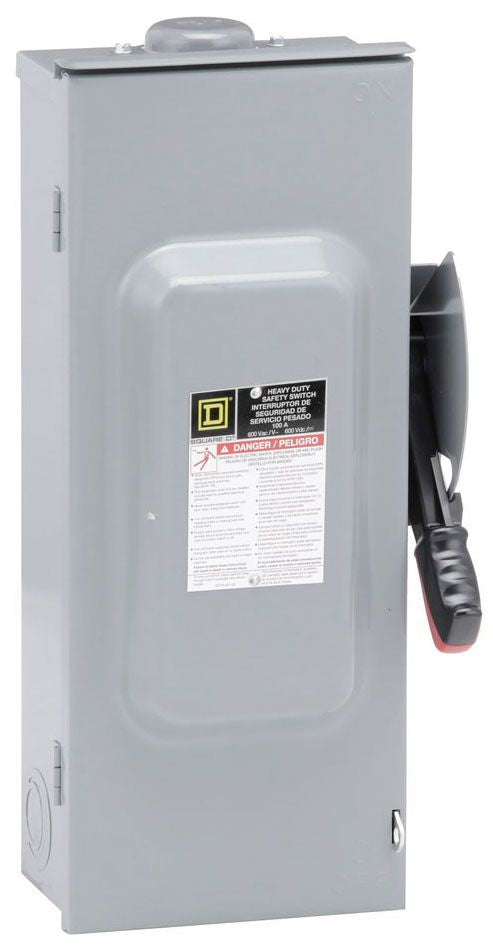

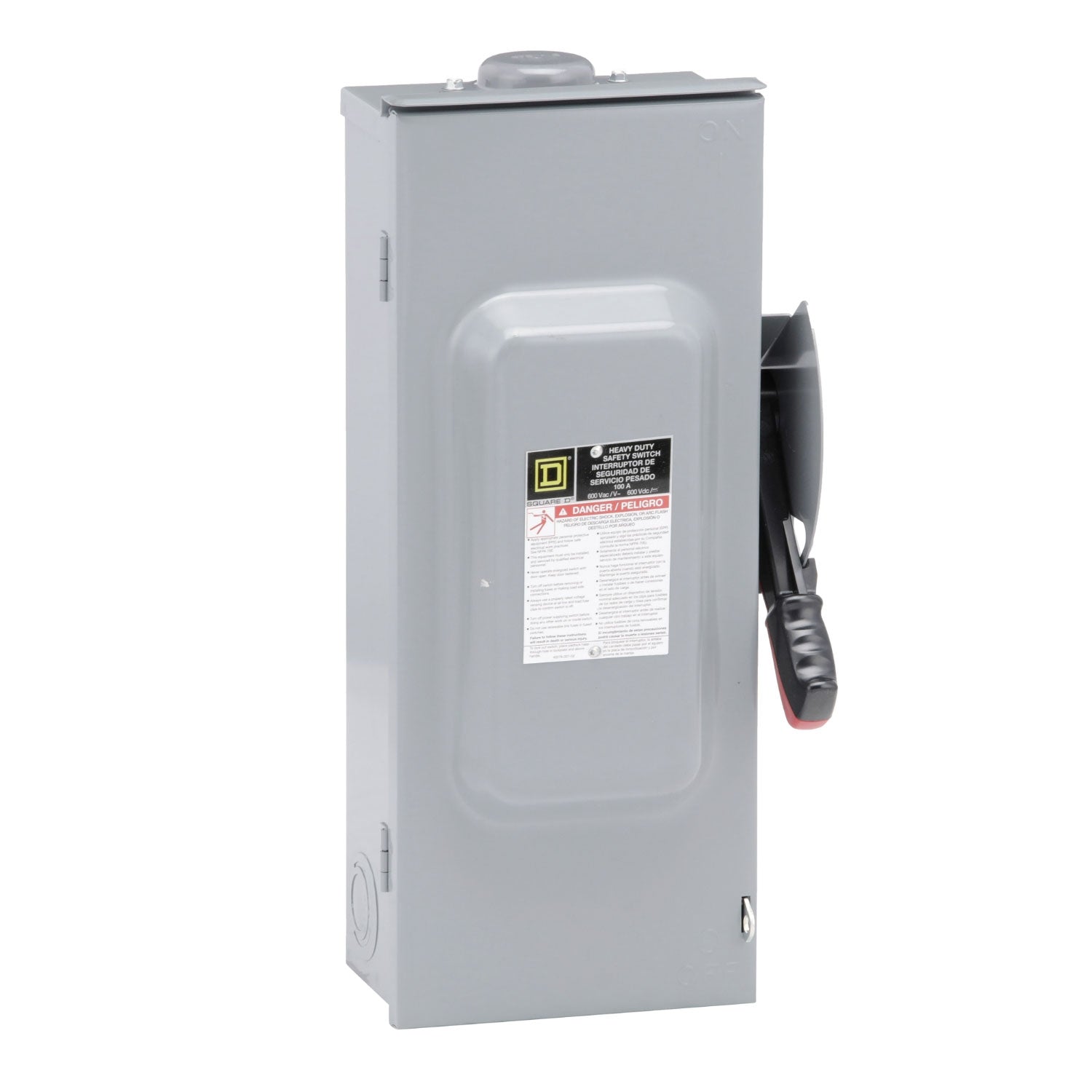

Square D H363NRB is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC and 100A, featuring a robust NEMA 3R outdoor-rated enclosure with dimensions of 539.75 mm H x 260.35 mm W x 162.05 mm D and a weight of 17.68 lb. The switch is engineered to a 200kA interrupting capacity at 600V and complies with industry standards for safety disconnects. Its construction makes it suitable for use in motor control centers, industrial machinery, and other applications requiring a reliable fused disconnect.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 21.25 in (539.75 mm) H x 10.25 in (260.35 mm) W x 6.38 in (162.05 mm) D
  • Standards: NEMA 3R Enclosure Rating
  • Applications: Industrial power distribution, motor control, machinery disconnects
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Compatible Frames: FD
  • Weight: 17.68 lb


Product Identification
  • UPC: 785901011576
  • GTIN: 00785901011576
