Square D H363N - Fusible Safety Switch 600V 100A 3-Pole
Square D H363N - Fusible Safety Switch 600V 100A 3-Pole
Square D H363N Disconnect Switch (Fusible) - Essential Electric Supply
Square D H363N - Fusible Safety Switch 600V 100A 3-Pole
Square D H363N - Fusible Safety Switch 600V 100A 3-Pole

Square D H363N - Fusible Safety Switch 600V 100A 3-Pole

Square D
Price
Save $1,012.05
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price

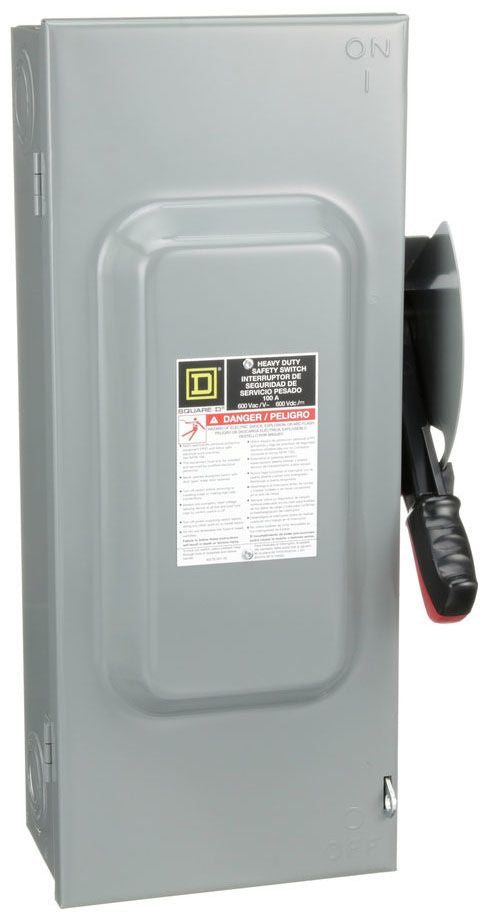

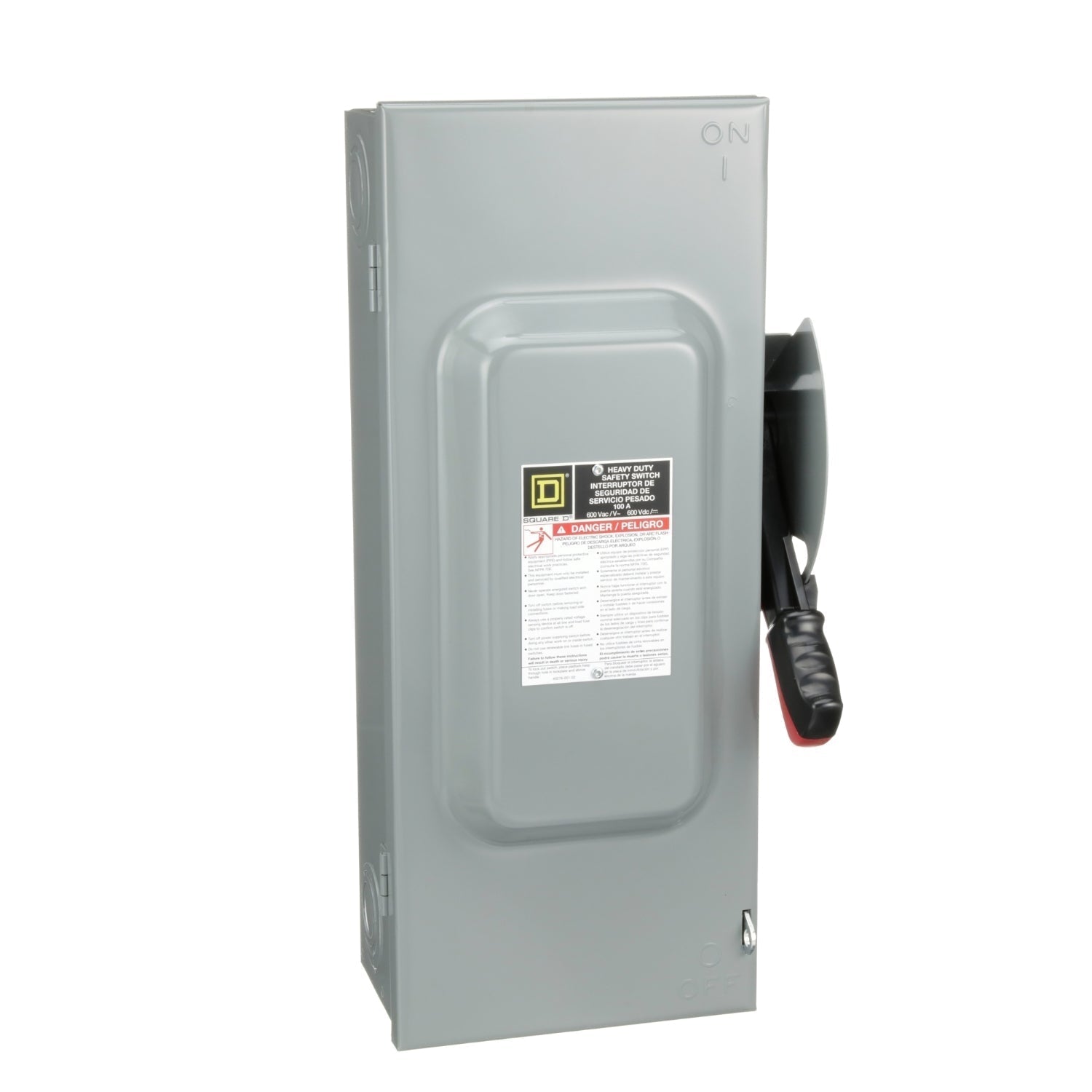

Square D H363N is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC and 100A, featuring a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed with a NEMA 1 general-purpose indoor enclosure measuring 539.75 mm H x 260.35 mm W x 162.05 mm D and a weight of 19.8 lb, and it is UL Listed for safety compliance. Its design accommodates Class R fuses and accepts copper wire from #14 to #1/0 AWG or aluminum from #12 to #1/0 AWG, making it suitable for use in motor control centers, industrial machinery, and panelboards where a visible disconnect is required.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Series F, Type H, single configuration
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 21.25 in (539.75 mm) H x 10.25 in (260.35 mm) W x 6.38 in (162.05 mm) D
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control centers, panelboards
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC rating: 200kA@600V
  • Fuse Class: R
  • Wire Size: #12 to #1/0 AWG(Al) or #14 to #1/0 AWG(Cu)
  • Nema Rating: 1
  • Weight: 19.8 lb
  • Compatible Frames: FD


Product Identification
  • UPC: 785901482277
  • GTIN: 00782113206813
