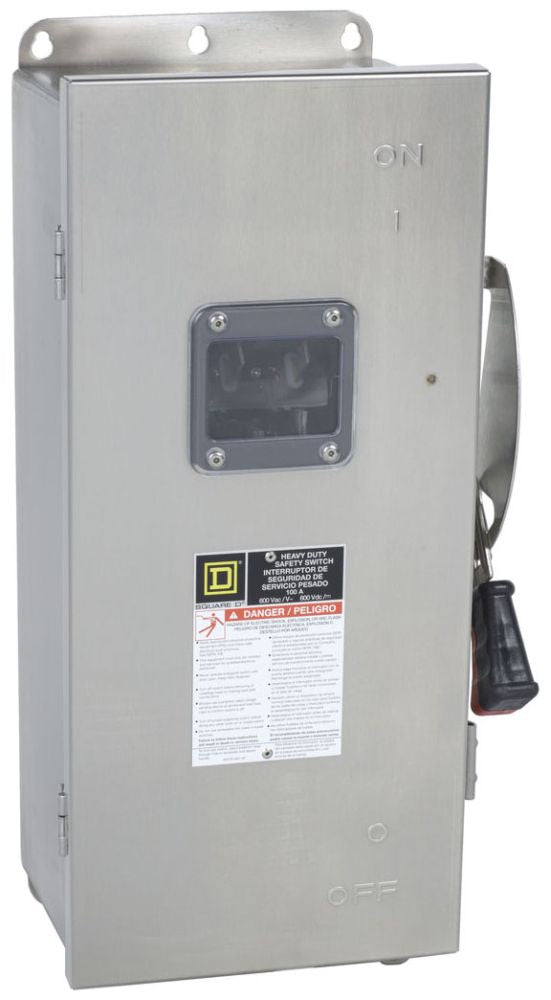

Square D H363DSVW - Fusible Safety Switch, 600V 100A 3-Pole

Square D
Price
Save $1,879.74
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H363DSVW is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and protection in demanding industrial environments. It is rated for 600V AC and 100A, featuring a robust three-pole, single-configuration design with a 200kA interrupting capacity at 600V for high-fault protection. The switch is constructed within a NEMA 4/4X rated enclosure measuring 528.83 mm H x 285.75 mm W x 177.04 mm D and weighing 10 lb, ensuring durability against harsh conditions. It complies with industry standards for safety disconnects and is engineered for use with Class R fuses and compatible with FD series frames. Typical applications include motor control centers, industrial machinery, and power distribution panels where secure isolation is critical.

Key Features & Specifications
  • Type: H-Type, Series F, Fusible Safety Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 528.83 mm H x 285.75 mm W x 177.04 mm D (20.82 in x 11.25 in x 6.97 in)
  • Weight: 10 lb
  • Standards: NEMA 4/4X Enclosure Rating
  • Applications: Industrial machinery, motor control centers, power distribution
  • Switch Type: Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Protection: Class R Fuse Compatible
  • Wire Size: Accepts AWG 12-14 and AWG 1/0 for copper or aluminum conductors
  • Compatible Frames: FD Series


Product Identification
  • UPC: 078590120874
  • GTIN: 00785901208747
