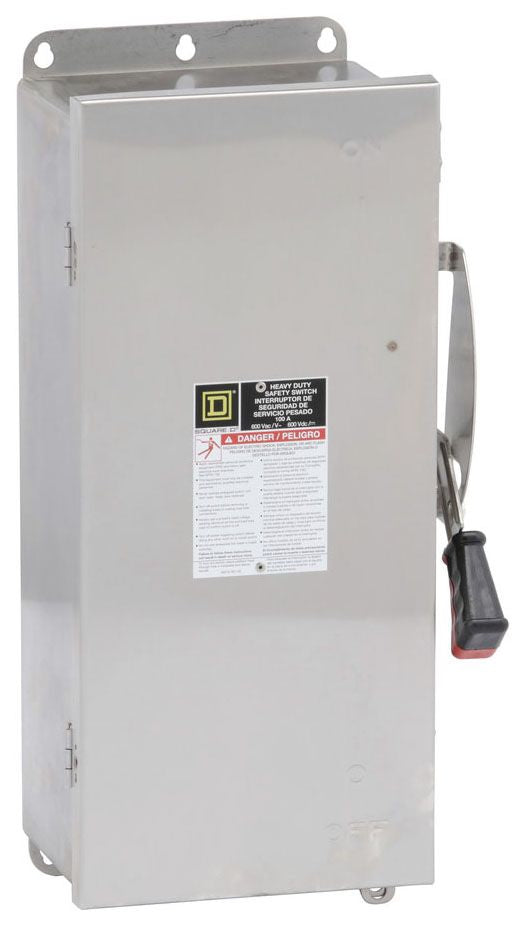

Square D H363DS - Fusible Disconnect Switch 600V 100A (200kA AIC @600V)

Square D H363DS is a fusible safety disconnect switch designed for industrial power distribution systems requiring reliable circuit protection. This 600V-rated switch handles 100A current loads with a 200kA interrupting capacity, housed in a durable NEMA 4/4X/5 enclosure measuring 711.20 mm (H) × 112.78 mm (W) × 78.49 mm (D) and weighing 10.39 lb. Compliant with industry standards for safety disconnects, it features a 3-pole single-throw configuration with Class R fuse compatibility for motor control centers and heavy equipment applications.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Series F, Type H construction
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 711.20 mm (H) × 112.78 mm (W) × 78.49 mm (D)
• Standards: NEMA 4/4X/5 enclosure rating
• Applications: Industrial power distribution, motor control centers
• Switch Style: Fusible disconnect
• Configuration: Single throw
• Poles: 3
• AIC rating: 200kA@600V
• Phase: 3
• Fuse Class: R
• Compatible Frames: FD
• Weight: 10.39 lb

Product Identification

• UPC: 785901023708
• GTIN: 00785901023708
