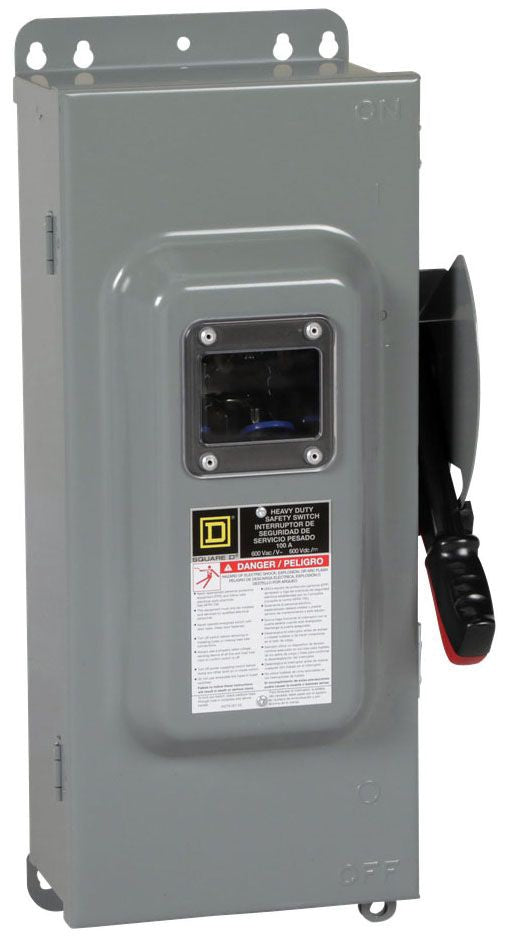

Square D H363AWKVW - Fusible Disconnect Switch 100A 600V 3-Pole

Square D
Price
Save $1,196.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H363AWKVW is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power systems. It is rated for 600V AC and 100A, featuring a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed within a NEMA 3R/12-rated enclosure measuring 520.7 mm H x 266.7 mm W x 177.8 mm D and weighs 20.999 lb, designed for compatibility with Series F, Type H and ED frames. It complies with industry standards for safety disconnects and is typically applied in motor control centers, industrial machinery, and power distribution panels where a fused disconnect is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 20.5 in (520.7 mm) H x 10.5 in (266.7 mm) W x 7 in (177.8 mm) D
  • Standards: NEMA 3R/12
  • Applications: Industrial power distribution, motor control centers, machinery
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Phase: 3
  • AIC rating: 200kA @ 600V
  • Poles: 3
  • Fuse Class: R
  • Compatible Frames: ED
  • Weight: 20.999 lb


Product Identification
  • UPC: 078590120884
  • GTIN: 00785901208846
