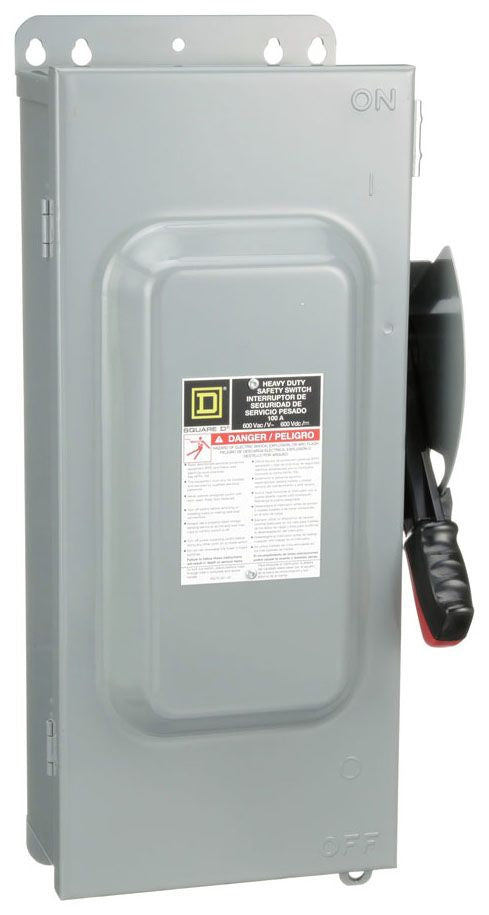

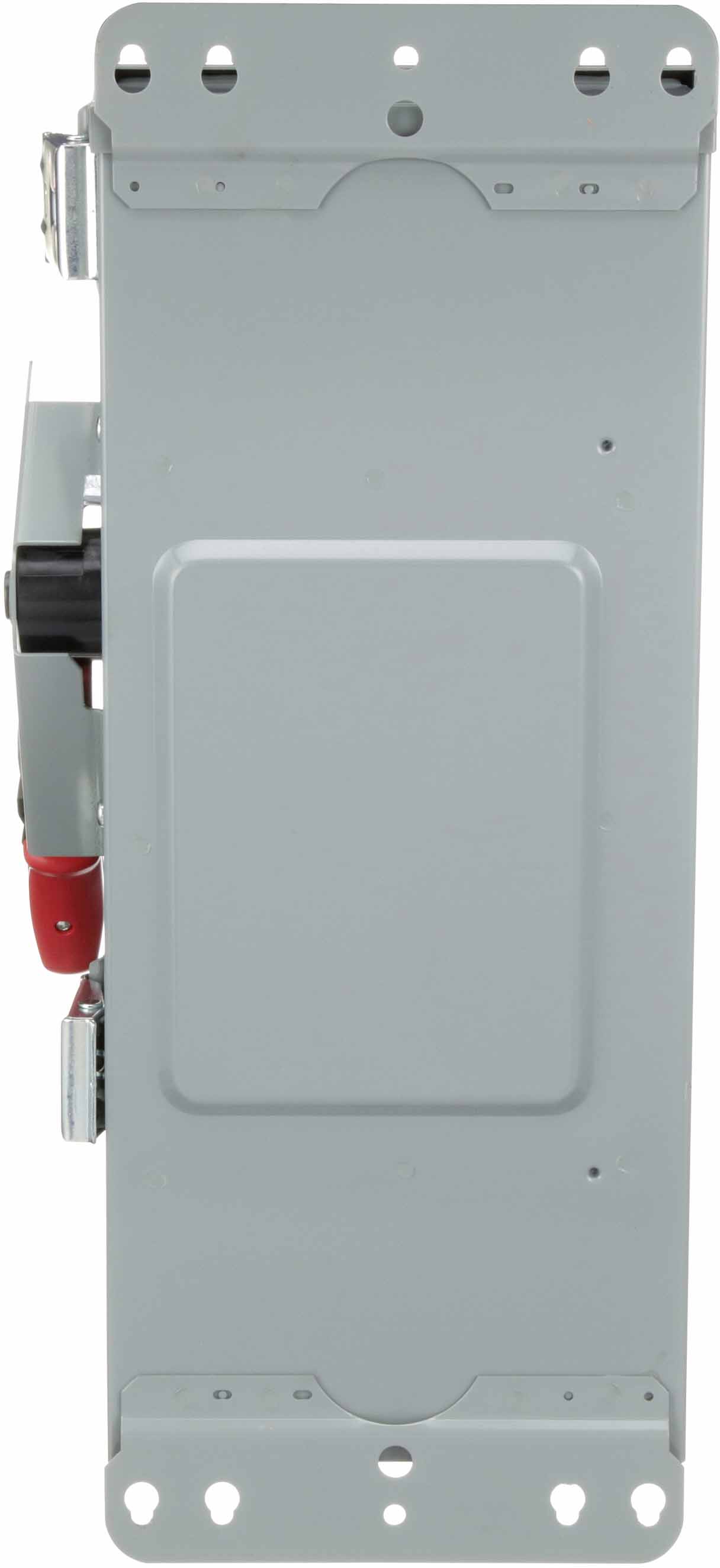

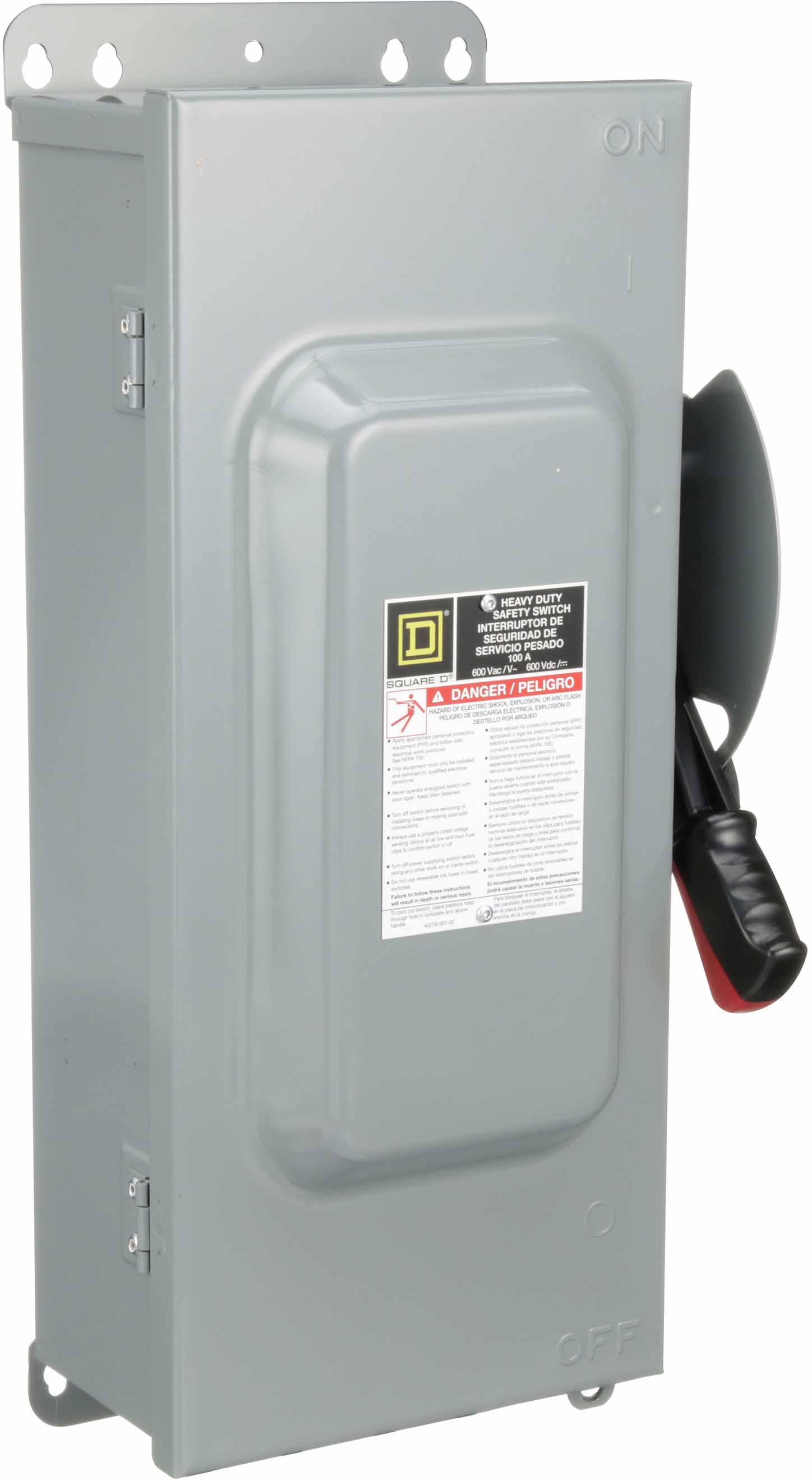

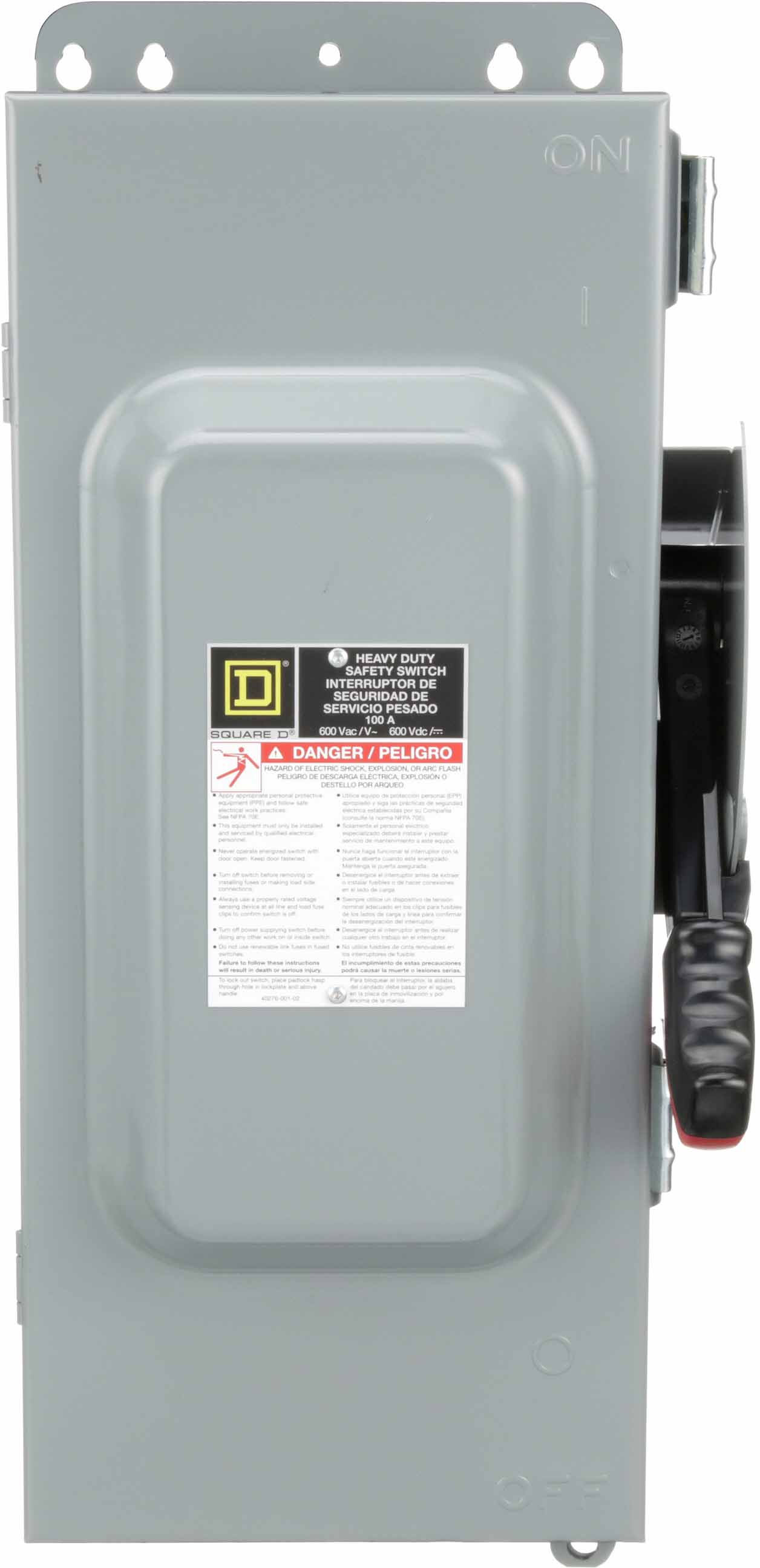

Square D H363AWK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC and 100A continuous current, featuring a robust construction with dimensions of 520.7 mm H x 266.7 mm W x 177.8 mm D (20.5 in x 10.5 in x 7 in) and a weight of 19.82 lb for durable panel mounting. The switch complies with NEMA 3R/12 standards for indoor/outdoor use and offers an interrupting capacity of 200kA at 600V, making it suitable for service entrance, motor control centers, and main feeder disconnects where high fault current protection is required.
Key Features & Specifications
Type: Fusible Disconnect Safety Switch, Series F, Type H
Voltage Rating: 600V AC
Current Rating: 100A
Configuration: Single, 3-Pole
Phase: 3
AIC Rating: 200kA @ 600V
Fuse Class: R
NEMA Rating: 3R/12
Compatible Frames: ED
Dimensions: 20.5 in H x 10.5 in W x 7 in D (520.7 mm x 266.7 mm x 177.8 mm)
Weight: 19.82 lb
Standards: Meets applicable industry standards for safety switches
Applications: Main service disconnects, industrial feeder circuits, motor control isolation
Product Identification
UPC: 785901482307
GTIN: 00785901482307
Same-day Shipping Available
Same-day Delivery Availabile
24/7 Customer Support

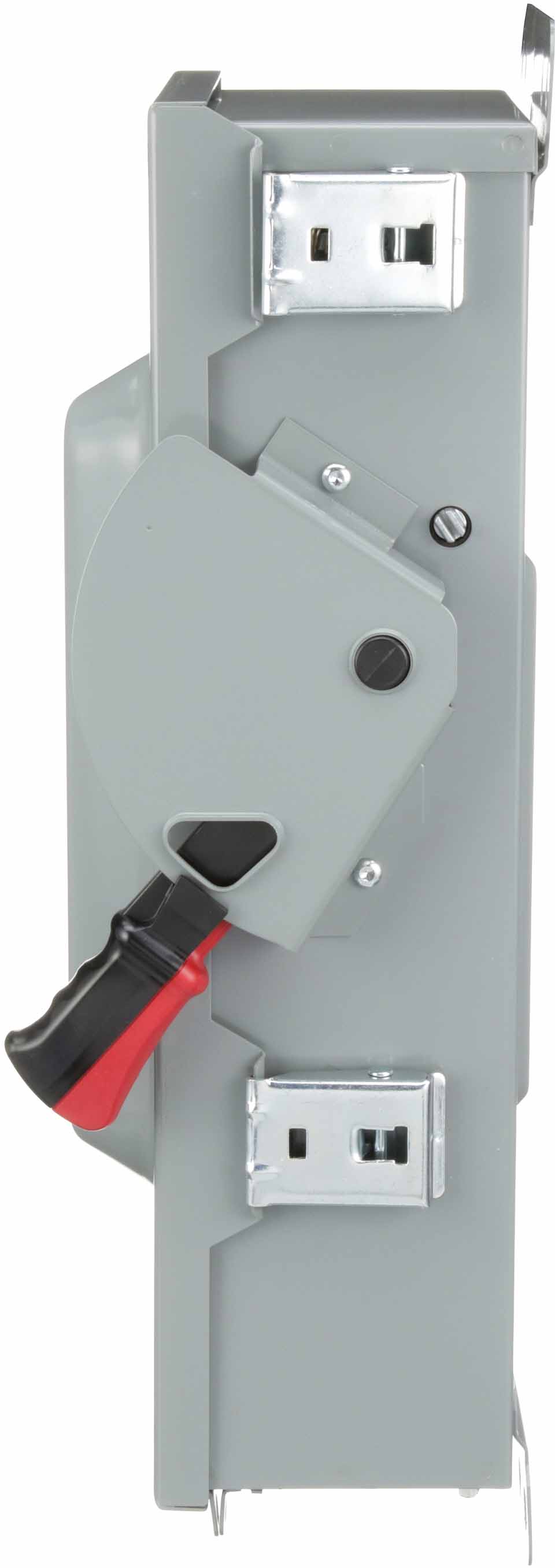

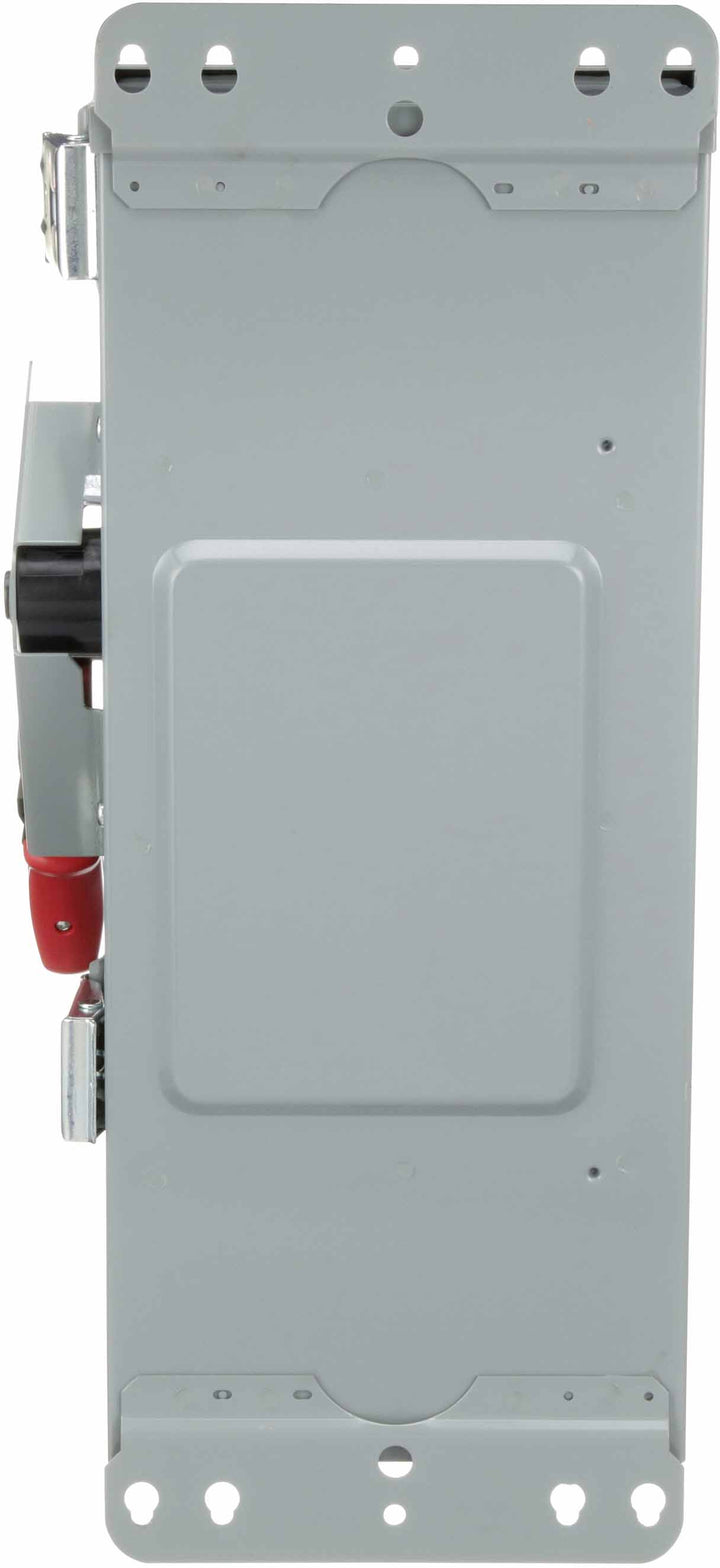

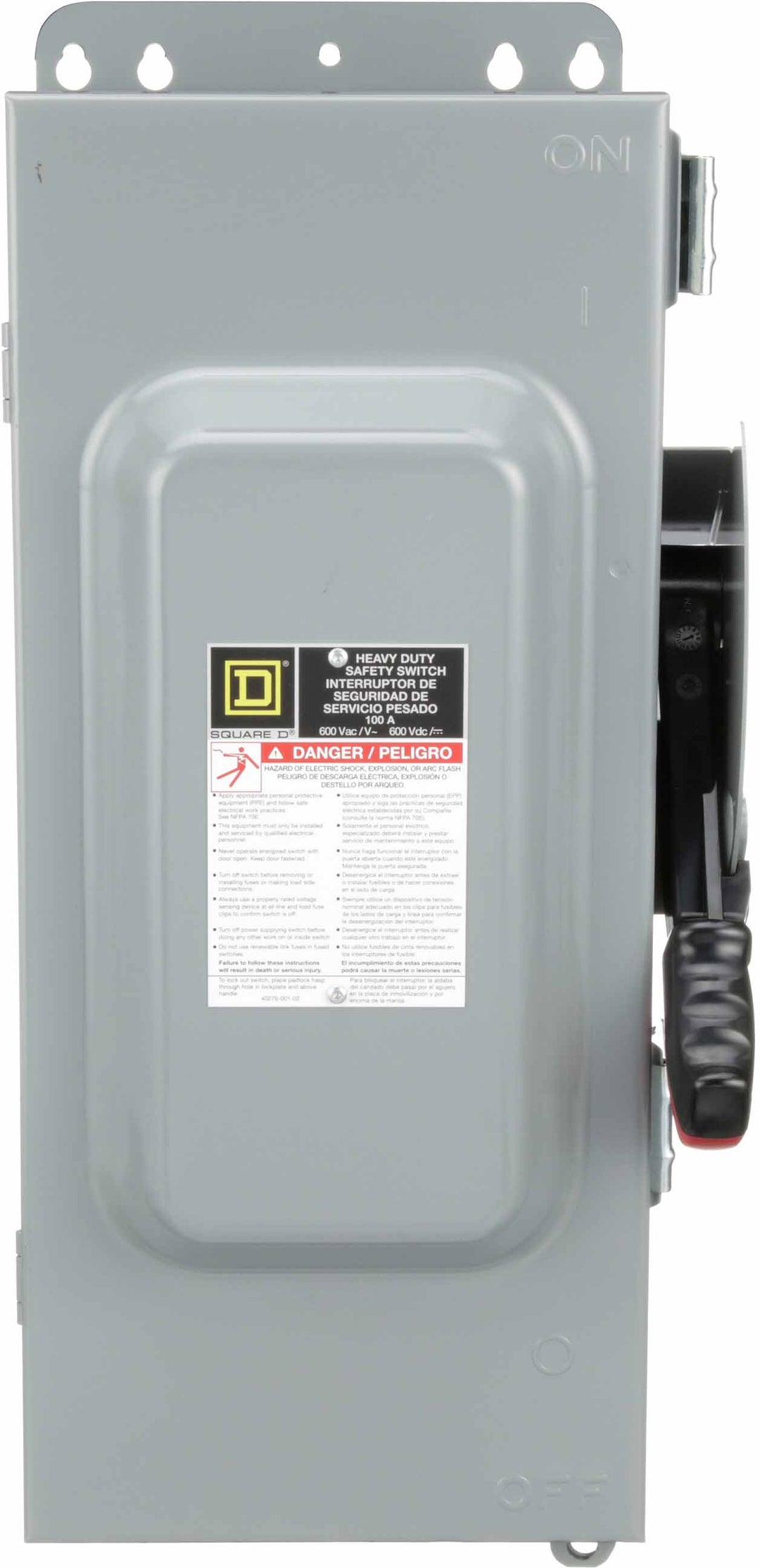

Square D H363AWK - Fusible Safety Switch 100A 600V 3-Pole
