Square D H363 - Fusible Safety Switch 100A 600V 3-Pole
Square D H363 - Fusible Safety Switch 100A 600V 3-Pole
Square D H363 Disconnect Switch (Fusible) - Essential Electric Supply
Square D H363 - Fusible Safety Switch 100A 600V 3-Pole
Square D H363 - Fusible Safety Switch 100A 600V 3-Pole

Square D H363 - Fusible Safety Switch 100A 600V 3-Pole

Square D
Price
Save $897.50
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

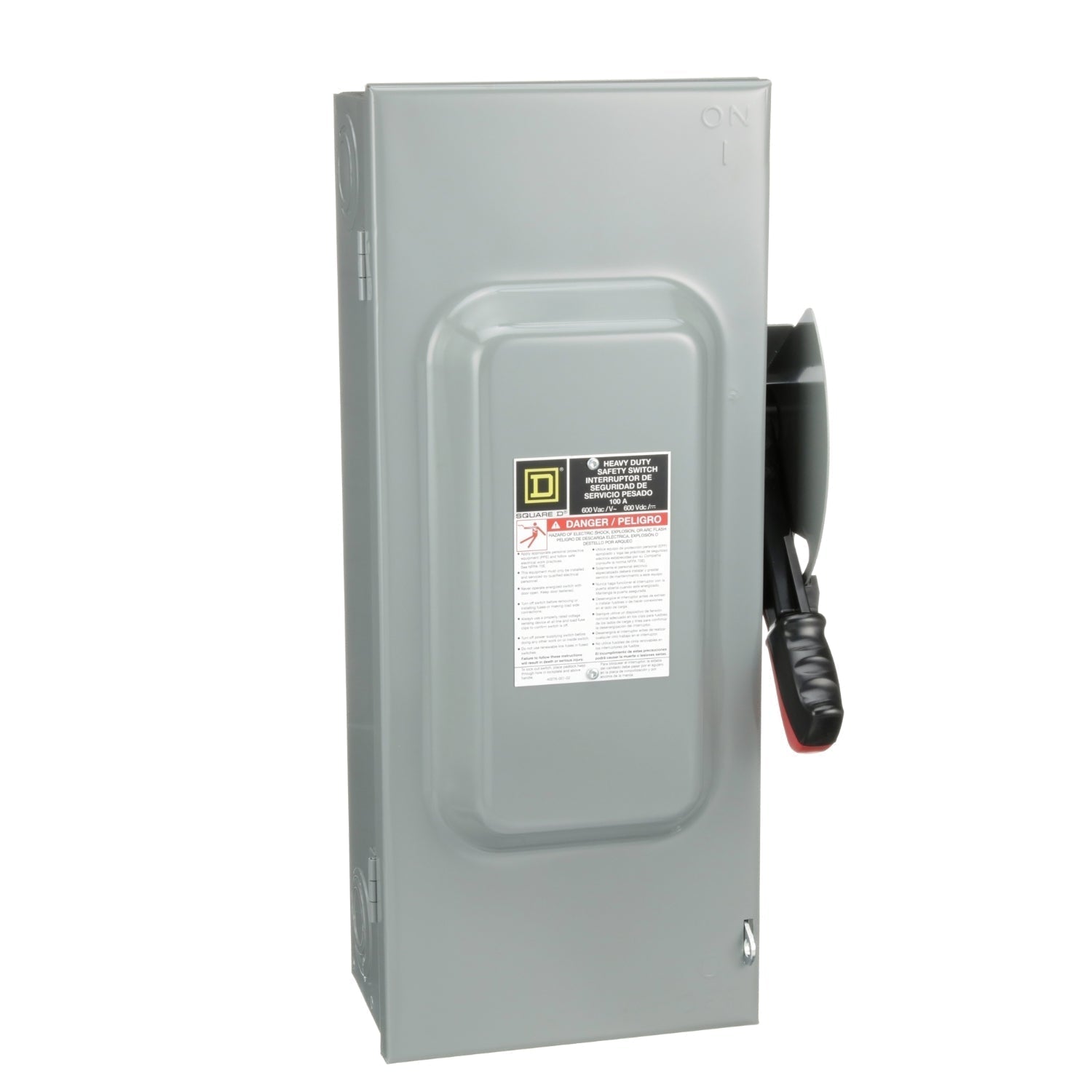

Square D H363 is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 100A on a 3-phase configuration, featuring a robust NEMA 1 enclosure with dimensions of 539.75 mm H x 260.35 mm W x 162.05 mm D and a weight of 17.04 lb. The switch is engineered to an interrupting capacity of 200kA at 600V and complies with industry standards for safety disconnects. Its design is suitable for integration into compatible ED frame equipment for motor control and feeder circuit applications.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 21.25 in (539.75 mm) H x 10.25 in (260.35 mm) W x 6.38 in (162.05 mm) D
  • Standards: NEMA 1 enclosure rating
  • Applications: Industrial power distribution, motor control, feeder circuit protection
  • Switch Style: Fusible
  • Configuration: Single
  • AIC rating: 200kA@600V
  • Poles: 3
  • Phase: 3
  • Fuse Class: R
  • Compatible Frames: ED
  • Weight: 17.04 lb


Product Identification
  • UPC: 785901482253
  • GTIN: 00785901482253
