Square D H362WH - Fusible Disconnect Switch 60A 600V 3P

Square D
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

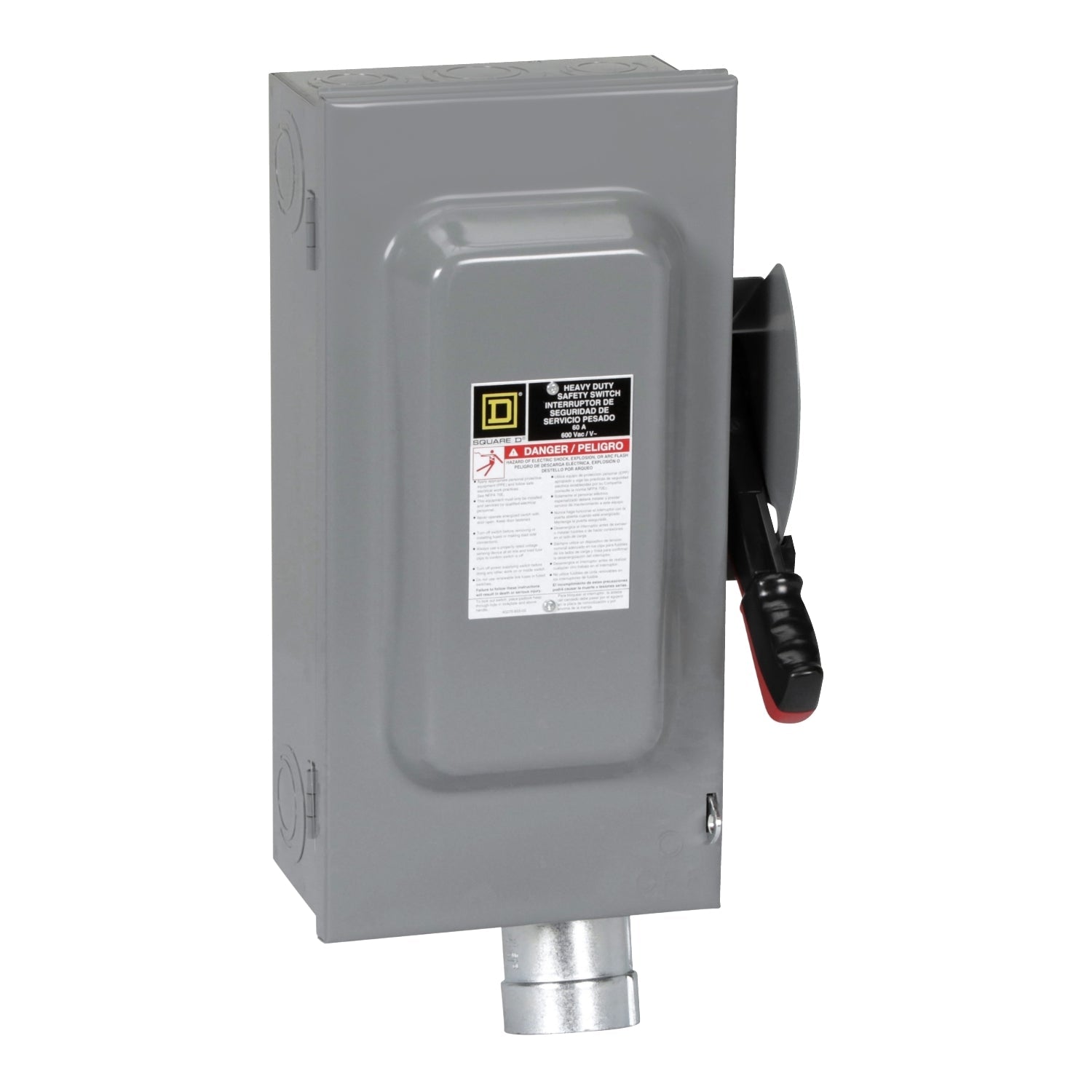

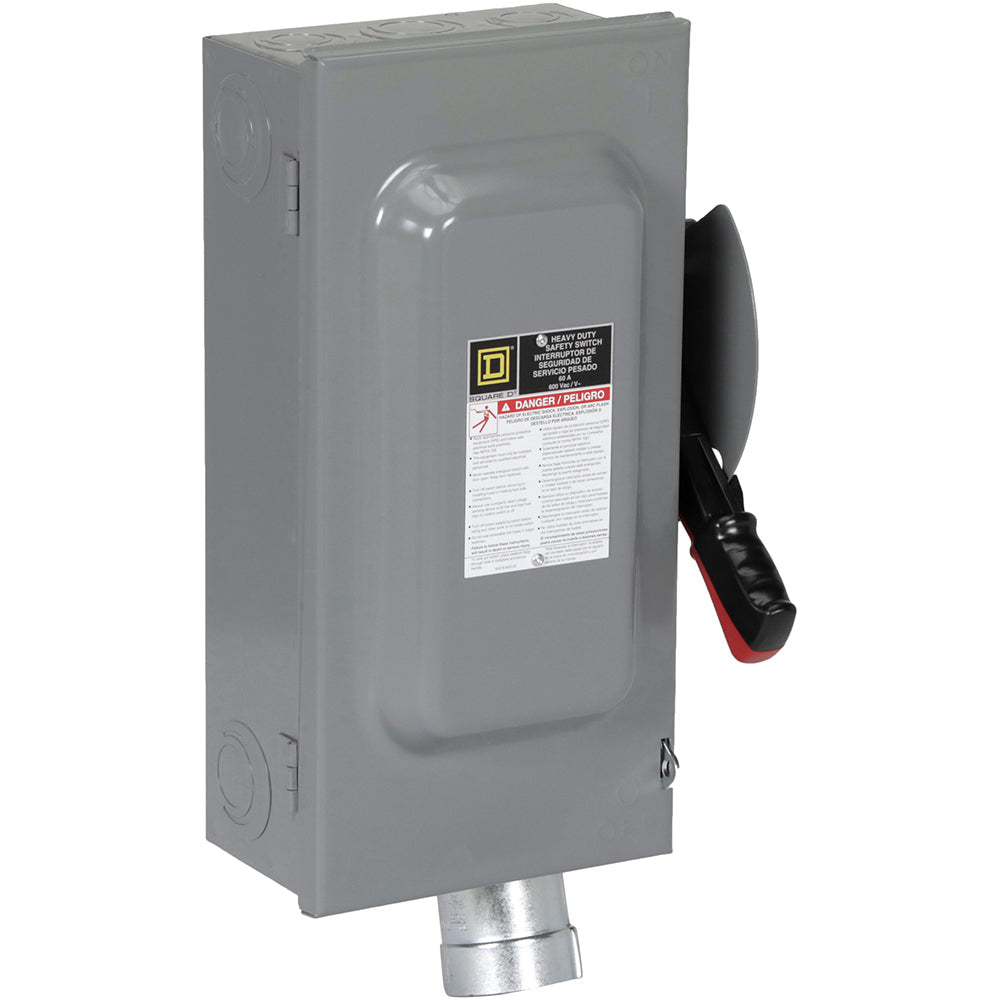

Square D H362WH is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 60A current in three-phase configurations, featuring a robust NEMA 1 enclosure with dimensions of 462.03 mm H x 266.7 mm W x 172.97 mm D and a weight of 17.84 lb. The switch is compliant with industry standards and is constructed for use with H and K class fuses, offering an interrupting capacity of 10kA at 600V. Its typical applications include motor control centers, HVAC systems, and industrial machinery where reliable circuit isolation is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 462.03 mm H x 266.7 mm W x 172.97 mm D (18.19 in x 10.5 in x 6.81 in)
  • Standards: NEMA Rated
  • Applications: Industrial power distribution, motor control, HVAC
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • AIC rating: 10kA@600V
  • Nema Rating: 1
  • Phase: 3
  • Fuse Class: H,K
  • Compatible Frames: ED
  • Country of Origin: United States
  • Weight: 17.84 lb


Product Identification
  • UPC: 78590148213
  • GTIN: 00785901482130
