Square D H362NRB - Fusible Safety Switch, 600V 60A 3-Pole
Square D H362NRB Disconnect Switch (Fusible) - Essential Electric Supply
Square D H362NRB - Fusible Safety Switch, 600V 60A 3-Pole

Square D H362NRB - Fusible Safety Switch, 600V 60A 3-Pole

Square D
Price
Save $260
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

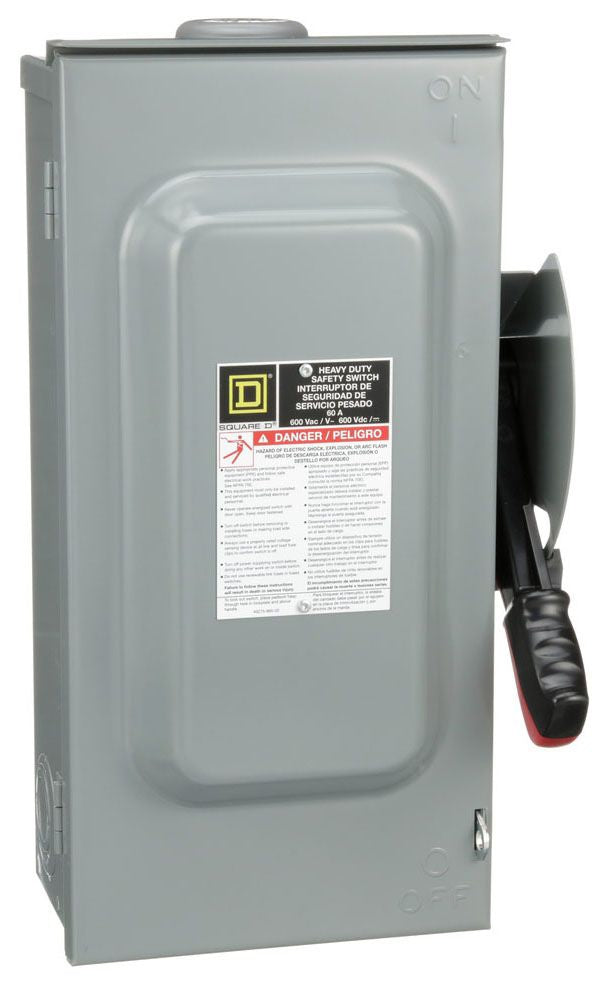

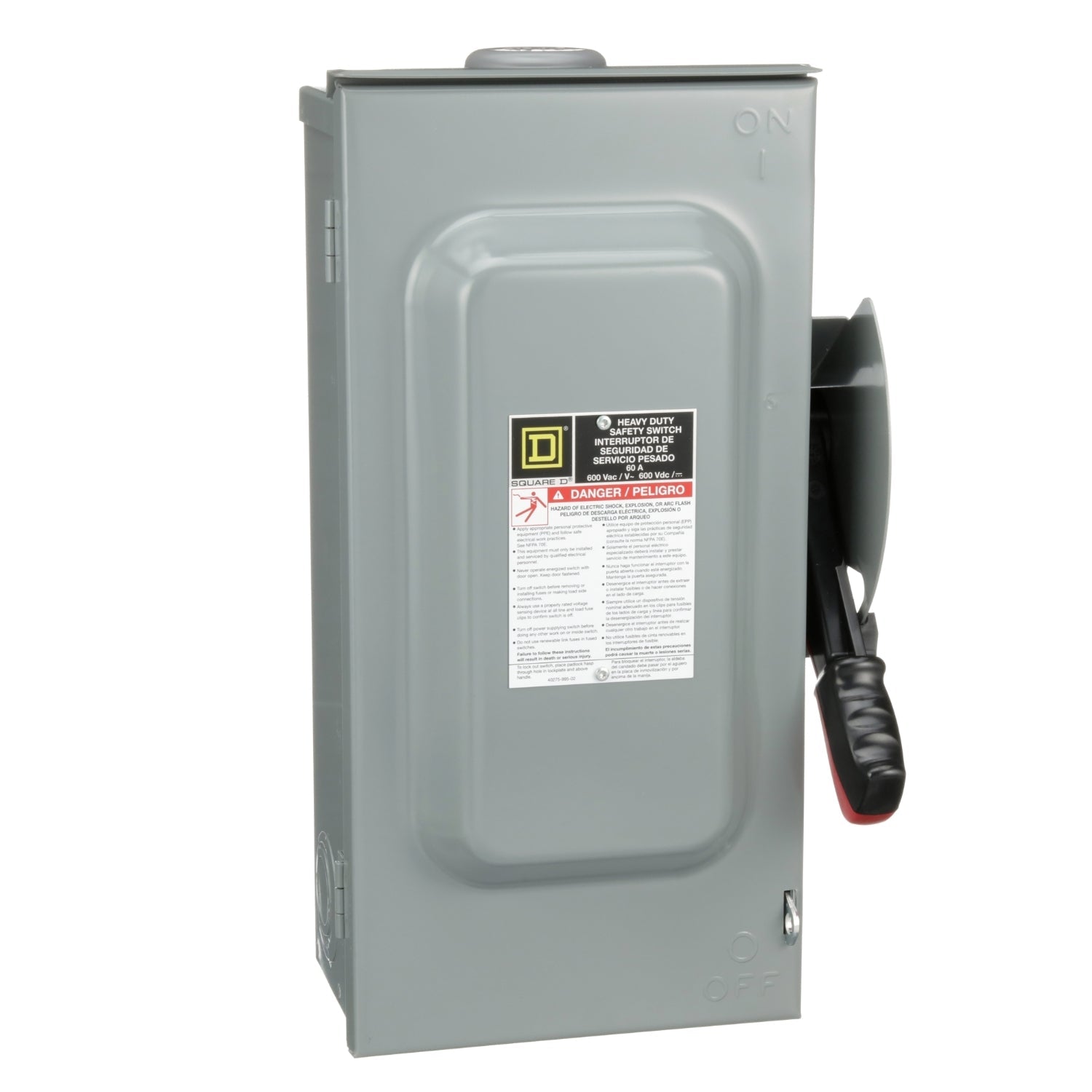

Square D H362NRB is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power systems. It is rated for 600V AC and 60A, featuring a robust NEMA 3R enclosure measuring 444.5 mm H x 266.7 mm W x 162.05 mm D and weighing 15.351 lb for durable outdoor/indoor use. The switch is UL certified and complies with industry standards, offering a 200kA interrupting capacity at 600V for high-fault protection. Its typical applications include service entrance, motor control centers, and machinery where a fused disconnect is required for safety and maintenance.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single, 3-Pole
  • Dimensions: 17.5 in (444.5 mm) H x 10.5 in (266.7 mm) W x 6.38 in (162.05 mm) D
  • Weight: 15.351 lb
  • Standards: UL Certified
  • Applications: Service entrance, motor control, industrial machinery disconnect
  • Switch Style: Fusible
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: 3R (Rainproof, Sleet-Resistant)
  • Fuse Class: R
  • Wire Size: #14 to #3 AWG AL/CU
  • Compatible Frames: ED


Product Identification
  • UPC: 785901122494
  • GTIN: 00785901122494
