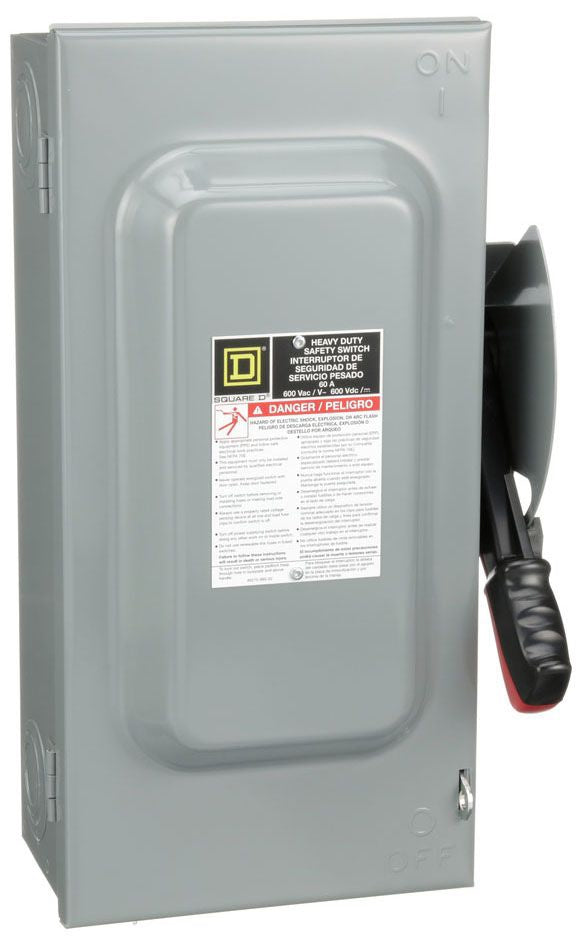

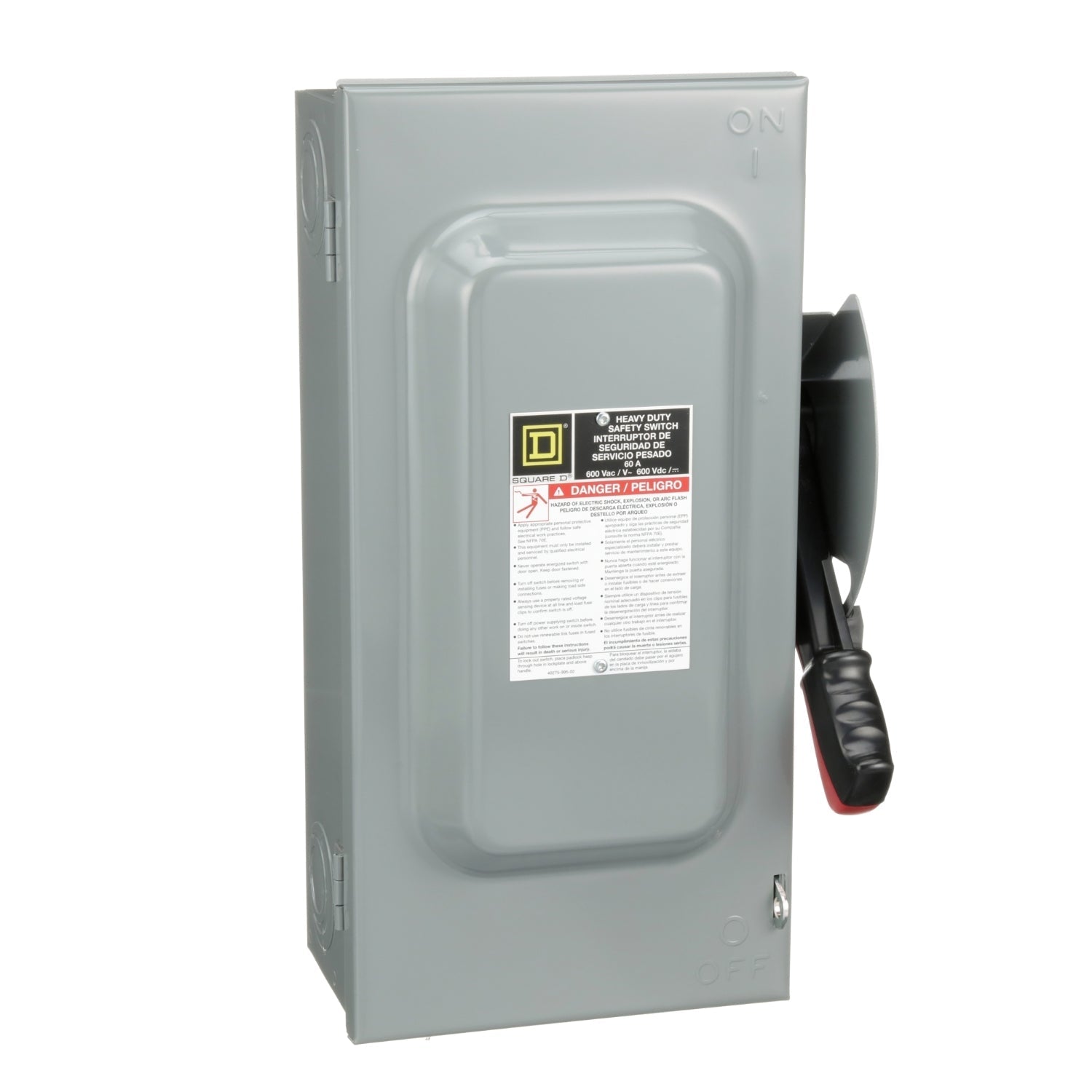

Square D H362N is a fusible safety switch designed for providing reliable circuit isolation and protection in industrial three-phase power systems. It features a 600V AC voltage rating and a 60A current rating, housed in a robust NEMA 1 enclosure with dimensions of 444.5 mm H x 266.7 mm W x 162.05 mm D and a weight of 15.3 lb. The switch is UL Listed and offers a high 200kA interrupting capacity at 600V for superior short-circuit protection. Its three-pole, single-configuration design with Class R fuse compatibility and a #14 to #3 AWG (Al/Cu) wire range makes it suitable for motor control centers, industrial machinery, and power distribution panels where safety and durability are critical.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 17.5 in (444.5 mm) H x 10.5 in (266.7 mm) W x 6.38 in (162.05 mm) D
  • Weight: 15.3 lb
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control, machinery
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: #14 to #3 AWG (Aluminum/Copper)
  • Fuse Class: R
  • NEMA Rating: 1
  • Compatible Frames: ED


Product Identification
  • UPC: 785901482215
  • GTIN: 00785901482215
