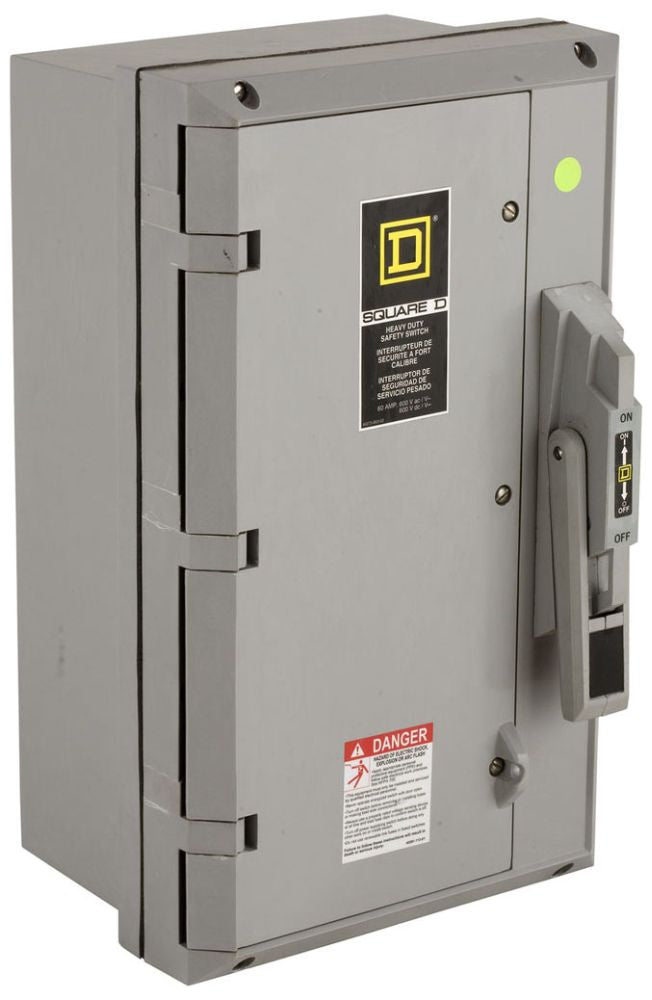

Square D H362DX - Fusible Disconnect Switch 600V 60A (NEMA 4X, 200kA AIC)

Square D H362DX is a fusible safety disconnect switch designed for circuit protection and isolation in industrial applications. This 3-pole switch operates at 600V AC with a 60A current rating and features a 200kA interrupting capacity at 600V for robust fault protection. The unit features a NEMA 4X rated enclosure measuring 11.4" x 8.6" x 19.4" (WxDxH) and weighs 14.04 lb, constructed for harsh environments. It complies with industry standards for safety disconnects and is compatible with Series F ED frames. Typical applications include industrial machinery, motor control centers, and power distribution systems requiring reliable circuit isolation.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Series F family, Type H
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 11.4 in x 8.6 in x 19.4 in (WxDxH)
• Standards: NEMA 4X enclosure rating
• Applications: Industrial machinery, motor control centers, power distribution
• Switch Type: Disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Fuse Class: R
• Wire Size: AWG 14, AWG 3 copper, AWG 12, AWG 3 aluminium
• Compatible Frames: ED
• Weight: 14.04 lb
• Country of Origin: Mexico

Product Identification

• UPC: 785901629023
• GTIN: 00785901629023
