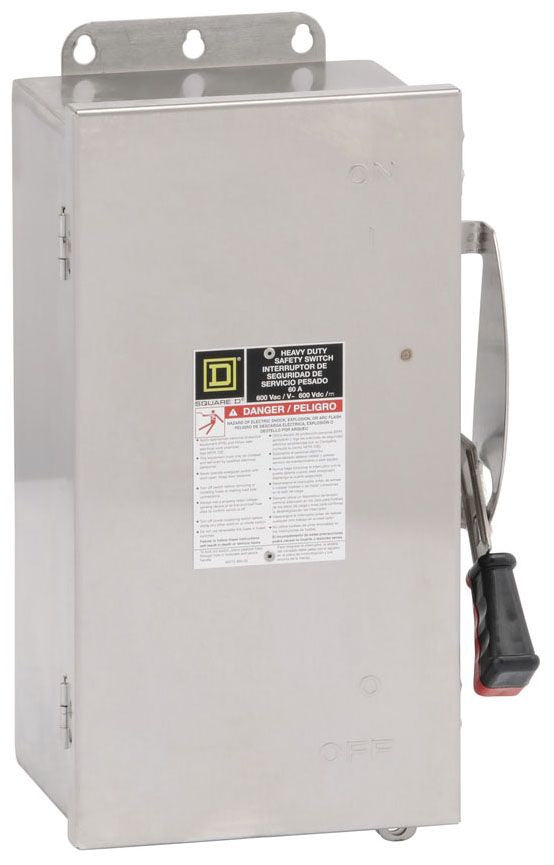

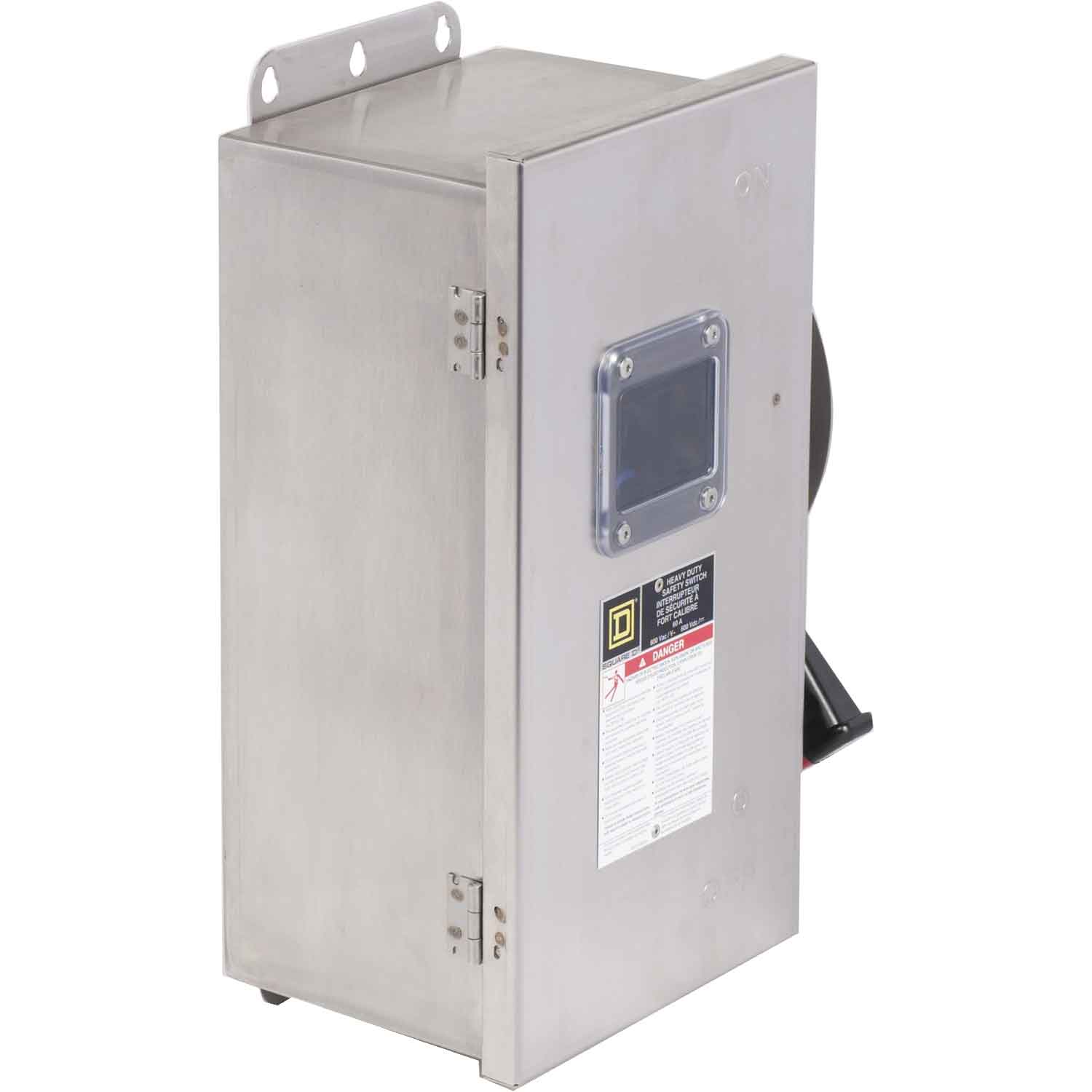

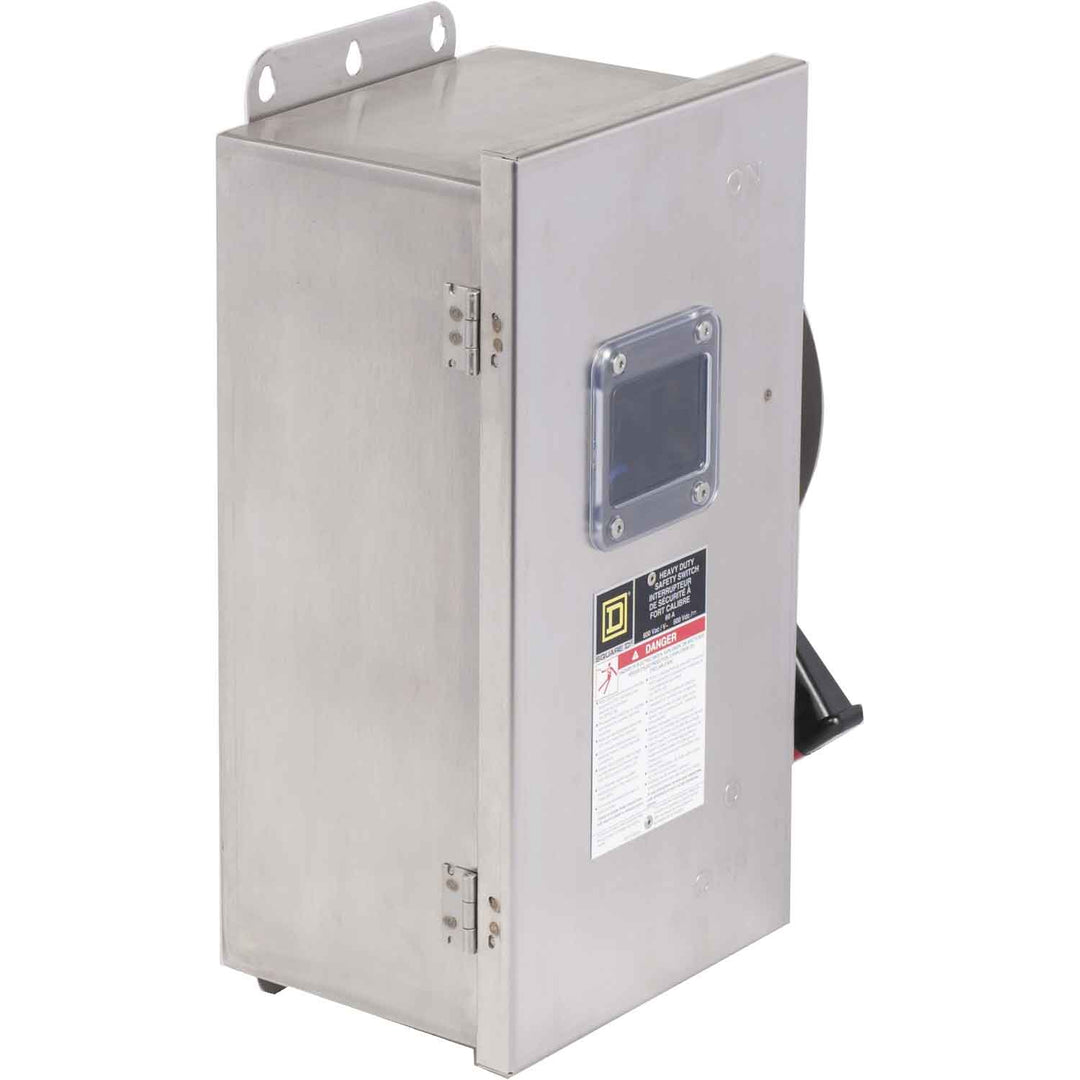

Square D H362DS - Fusible Disconnect Switch 60A 600V (200kA AIC)

Square D H362DS is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial applications. It features a 600V AC voltage rating and 60A current rating with a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch measures 428.5 mm high × 112.78 mm wide × 78.49 mm deep and weighs 30 lb, constructed with a NEMA 4/4X/5 rated enclosure for harsh environments. UL certified and compatible with NSX frames, it operates within a temperature range of -25 to 70°C. This three-phase disconnect is engineered for industrial power distribution systems requiring safe maintenance and overload protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, Series F, Type H
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 428.5 mm H × 112.78 mm W × 78.49 mm D (16.87 in × 4.44 in × 3.09 in)
• Weight: 30 lb
• Standards: UL Certified
• Applications: Industrial power distribution, circuit protection and isolation
• Switch Type: Fusible
• Configuration: Single
• Temp Rating: -25 to 70°C (-13 to 158°F)
• Phase: 3
• AIC Rating: 200kA@600V
• Poles: 3
• Protection: Circuit isolation and overload protection
• Functions: Safety disconnect
• Compatible Frames: NSX
• NEMA Rating: 4/4X/5
• Fuse Class: H, K, R, J
• Wire Size: AWG 14 to AWG 3 Copper, AWG 12 to AWG 3 Aluminum
• Enclosure: NEMA 4/4X/5 rated

Product Identification

• UPC: 785901023661
• GTIN: 00785901023661
