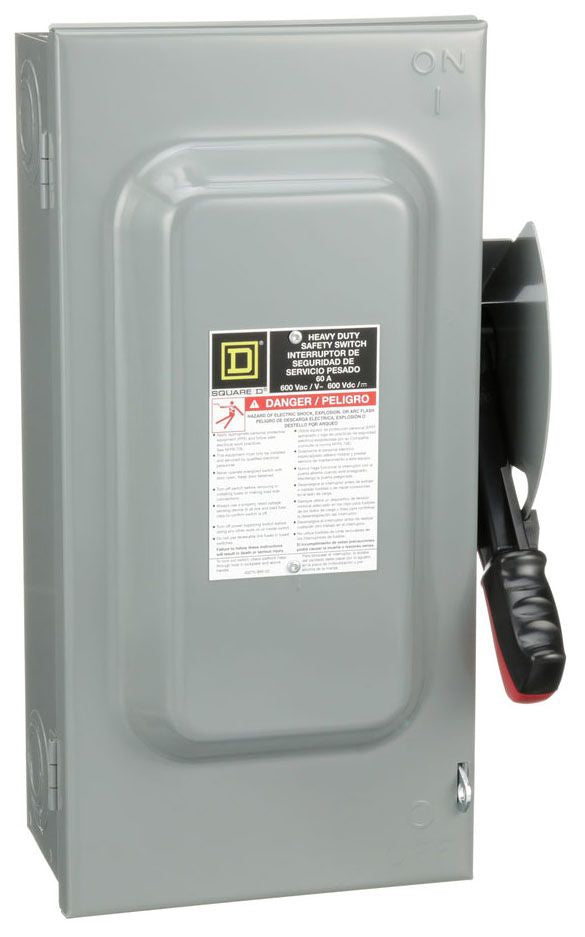

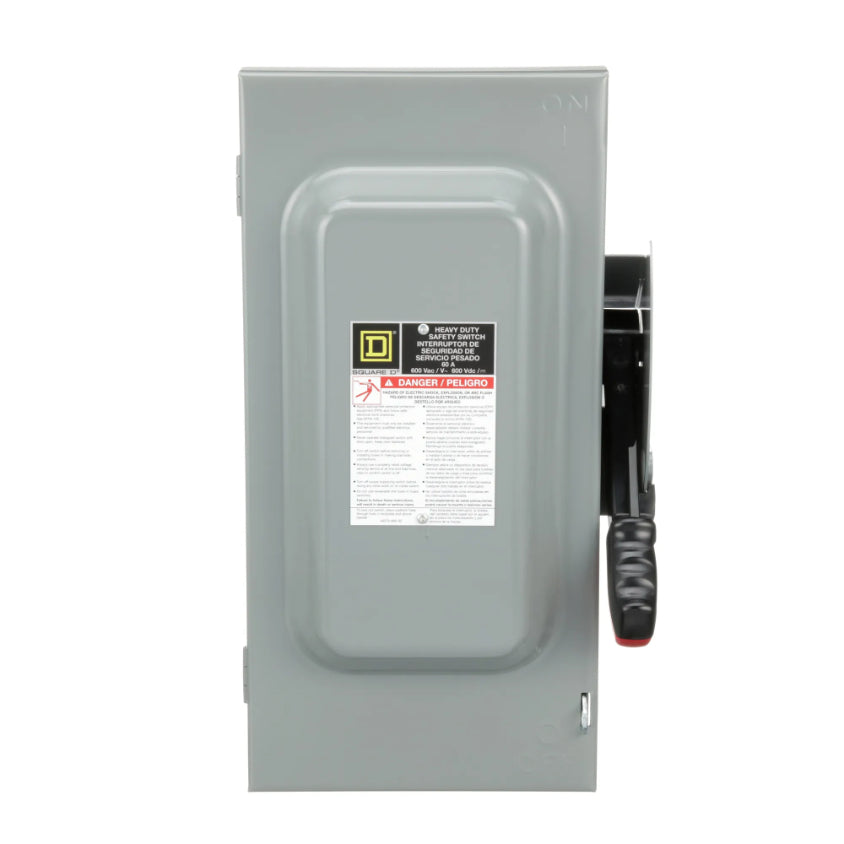

Square D H362 is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC and 60A, featuring a robust NEMA 1 enclosure with dimensions of 444.5 mm H x 266.7 mm W x 162.05 mm D and a weight of 15.099 lb. The switch is UL Listed and offers a high interrupting capacity of 200kA at 600V, ensuring reliable protection. Its three-pole, single-configuration design with Class R fuse compatibility is engineered for use in motor control centers, industrial machinery, and power distribution panels where a secure isolation point is required.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, Series F, Type H
Voltage Rating: 600V AC
Current Rating: 60A
Dimensions: 444.5 mm H x 266.7 mm W x 162.05 mm D (17.5 in x 10.5 in x 6.38 in)
Standards: UL Listed
Applications: Industrial power distribution, motor control, machinery isolation
Switch Type: Fusible
Configuration: Single
Phase: 3
Poles: 3
AIC Rating: 200kA @ 600V
Fuse Class: R
Wire Size: #14 to #3 AWG (Aluminum/Copper)
NEMA Rating: 1
Compatible Frames: ED
Weight: 15.099 lb
Product Identification
UPC: 785901482147
GTIN: 00785901482147
