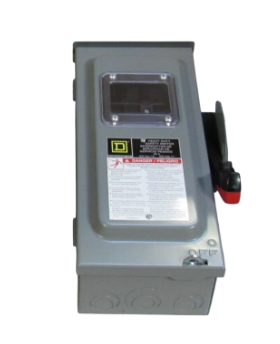

Schneider Electric H361RBVW - Disconnect Switch 30A 600V (200kA AIC)
Schneider Electric H361RBVW - Disconnect Switch 30A 600V (200kA AIC)

Schneider Electric H361RBVW - Disconnect Switch 30A 600V (200kA AIC)

Schneider Electric
Price
Save $-748.34
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric H361RBVW is a heavy-duty disconnect switch designed for providing a visible break and isolation in three-phase industrial power circuits. It is rated for 600V AC systems with a 30A current rating and features a 200kA interrupting capacity at 600V for robust short-circuit protection. The unit is constructed with a compact footprint measuring 377.95 mm H x 191.77 mm W x 123.44 mm D and a weight of 10 lb, designed for compatibility with Series F, Type H and ED frames. It complies with industry standards for safety disconnects and is engineered for use in motor control centers, panelboards, and industrial machinery where reliable circuit isolation is required.

Key Features & Specifications
  • Type: Heavy-duty safety disconnect switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Configuration: Single
  • Fuse Class: R
  • Compatible Frames: ED
  • Wire Size: AWG 12 to 6, AWG 14 to 6 (Aluminum/Copper)
  • Dimensions: 14.88 in (377.95 mm) H x 7.55 in (191.77 mm) W x 4.86 in (123.44 mm) D
  • Weight: 10 lb
