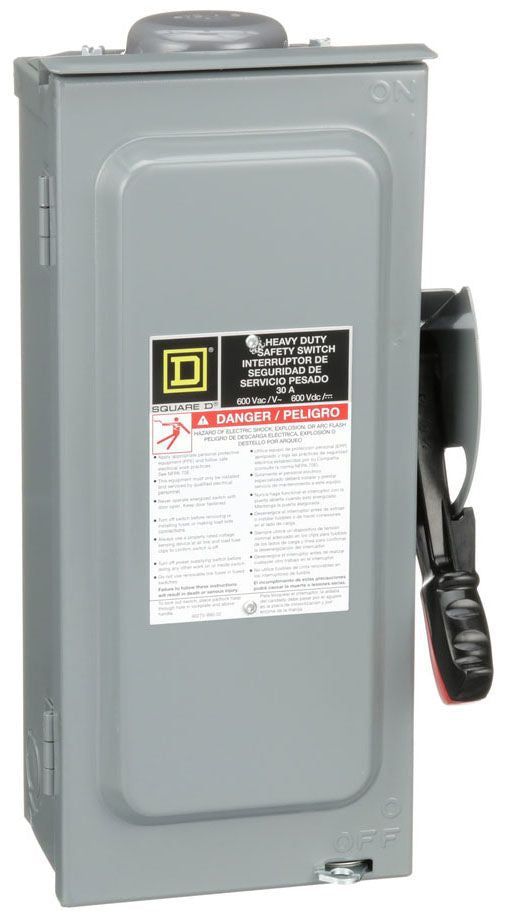

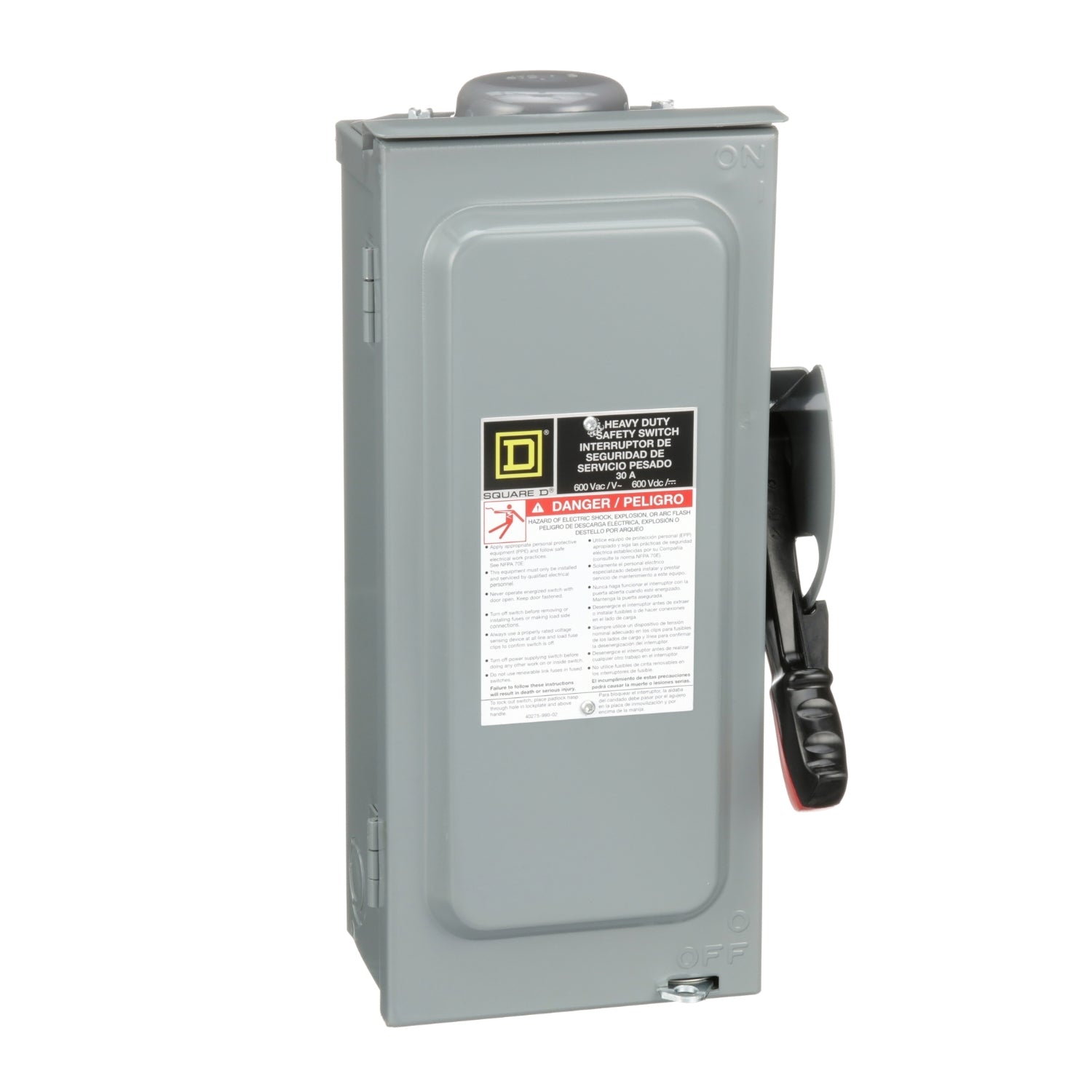

Square D H361RB is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial three-phase power systems. It is rated for 600V AC and 30A, featuring a compact, rugged NEMA 3R enclosure measuring 377.95 mm H x 191.77 mm W x 123.44 mm D and weighing 8.501 lb. The switch is UL Listed and offers a high interrupting capacity of 200kA at 600V, ensuring compliance with stringent safety standards. Its design accommodates Class R fuses and is typically applied in motor control centers, industrial machinery, and power distribution panels where robust protection is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • Dimensions: 14.88 in (377.95 mm) H x 7.55 in (191.77 mm) W x 4.86 in (123.44 mm) D
  • Weight: 8.501 lb
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Industrial power distribution, motor control centers, machinery
  • Switch Style: Fusible
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Wire Size: #12 to #6 AWG (Al) or #14 to #6 AWG (Cu)
  • Compatible Frames: ED


Product Identification
  • UPC: 785901481966
  • GTIN: 00785901481966
