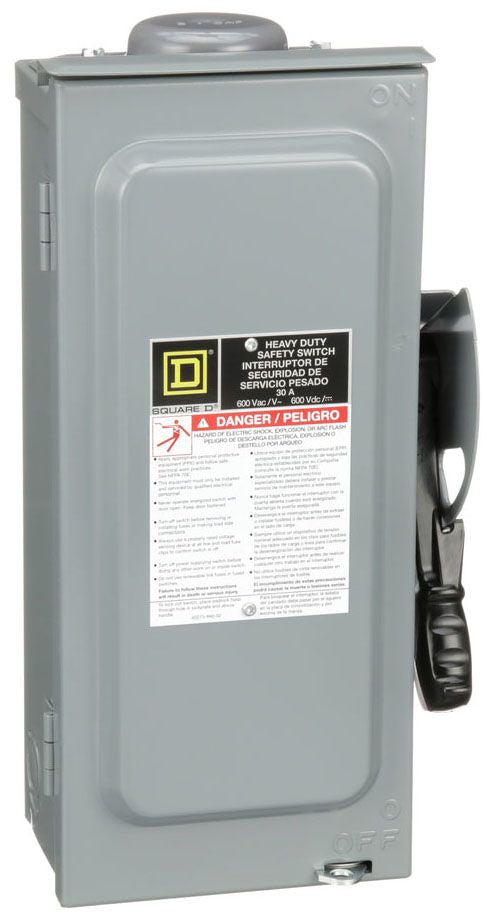

Square D H361NRB - Fusible Safety Switch, 30A 600V 3-Pole

Square D
Price
Save $454.76
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Square D H361NRB is a fusible safety switch designed for providing reliable circuit isolation and protection in industrial power distribution systems. It features a 600V AC voltage rating and a 30A current rating for three-phase applications, housed in a compact enclosure measuring 14.88 in (377.95 mm) H x 7.55 in (191.77 mm) W x 4.86 in (123.44 mm) D with a weight of 8.77 lb. The switch is constructed for durability with a NEMA 3R rainproof enclosure rating and complies with industry standards for safety disconnects. It is typically applied in motor control centers, industrial machinery, and panelboards where a 200kA interrupting capacity at 600V is required for Class R fuse protection.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Wire Size: AWG 12 to 6 (Aluminum), AWG 14 to 6 (Copper)
  • NEMA Rating: 3R
  • Dimensions: 14.88 in H x 7.55 in W x 4.86 in D (377.95 mm x 191.77 mm x 123.44 mm)
  • Weight: 8.77 lb
  • Compatible Frames: ED
  • Standards: Industrial Safety Disconnect
  • Applications: Motor Control Centers, Industrial Machinery, Panelboards


Product Identification
  • UPC: 785901122487
  • GTIN: 00785901122487
