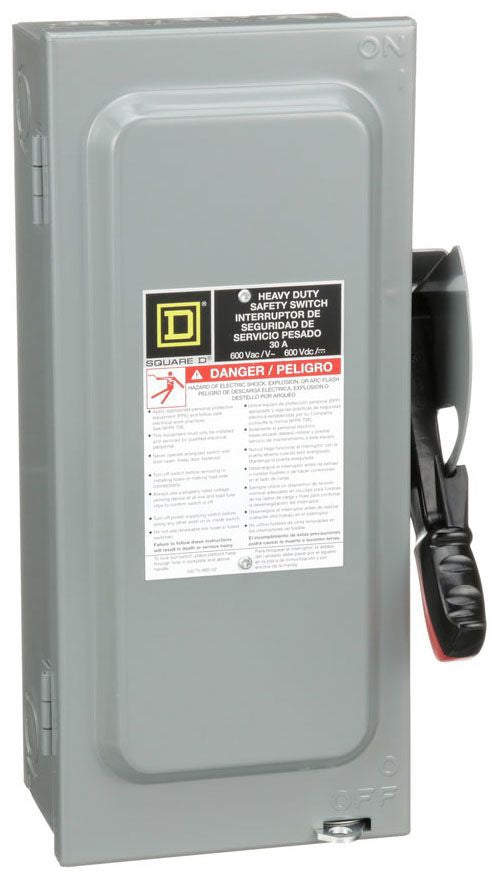

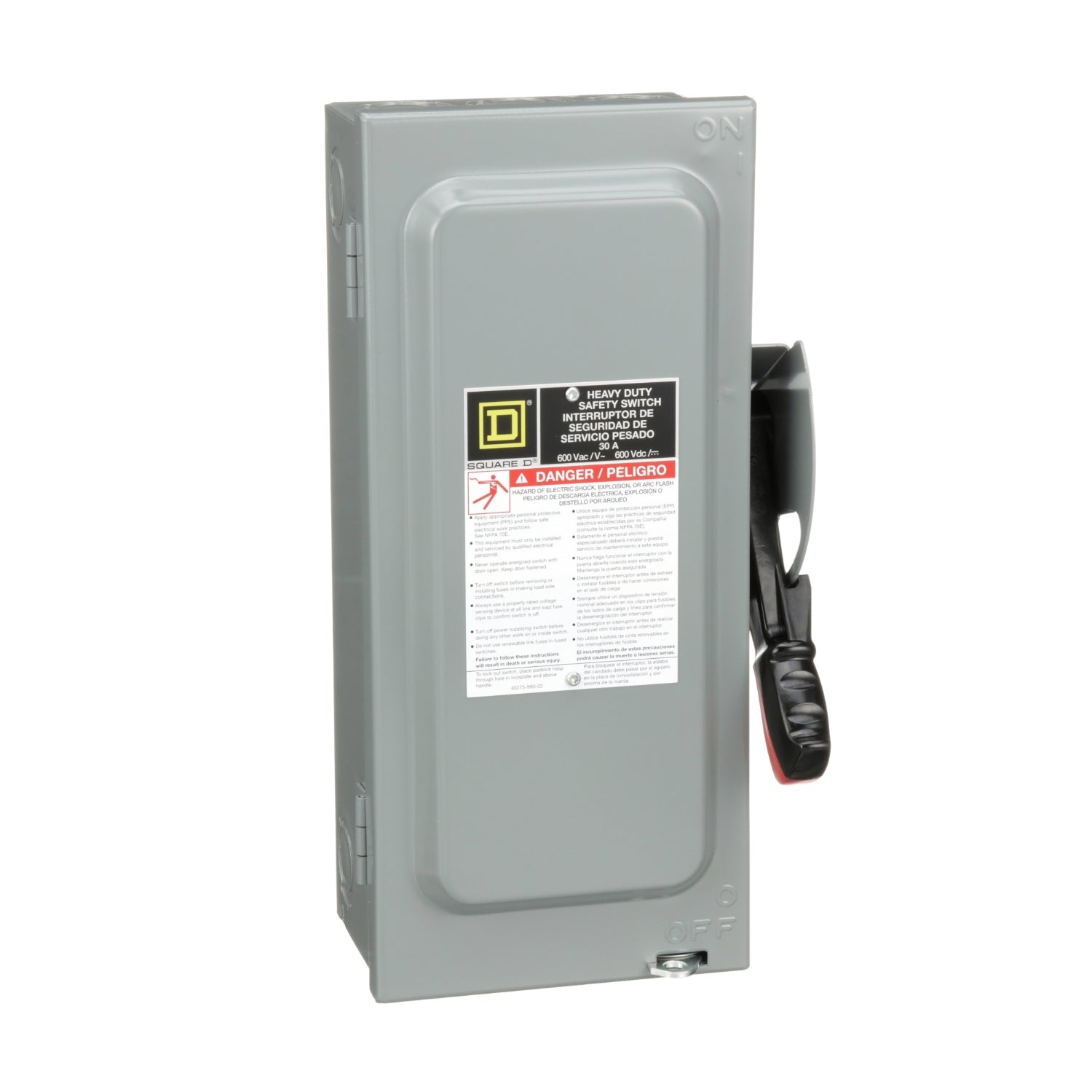

Square D H361N is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC and 30A, featuring a 200kA interrupting capacity at 600V for robust short-circuit protection. The switch is constructed with a NEMA 1 general-purpose indoor enclosure measuring 370.8 mm H x 191.77 mm W x 123.70 mm D and weighs 8.25 lb, utilizing Class R fuse clips for enhanced safety. It is UL Listed and designed for compatibility with Series F, ED frames, ensuring adherence to industry standards. Typical applications include motor control centers, industrial machinery, and panelboards where reliable isolation and protection are required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • Dimensions: 14.6 in (370.8 mm) H x 7.55 in (191.77 mm) W x 4.87 in (123.70 mm) D
  • Weight: 8.25 lb
  • Standards: UL Listed
  • Applications: Industrial machinery, motor control centers, panelboards
  • Switch Style: Fusible
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Wire Size: #12 to #6 AWG (Al) or #14 to #6 AWG (Cu)
  • NEMA Rating: 1
  • Compatible Frames: ED


Product Identification
  • UPC: 785901481911
  • GTIN: 00785901481911
