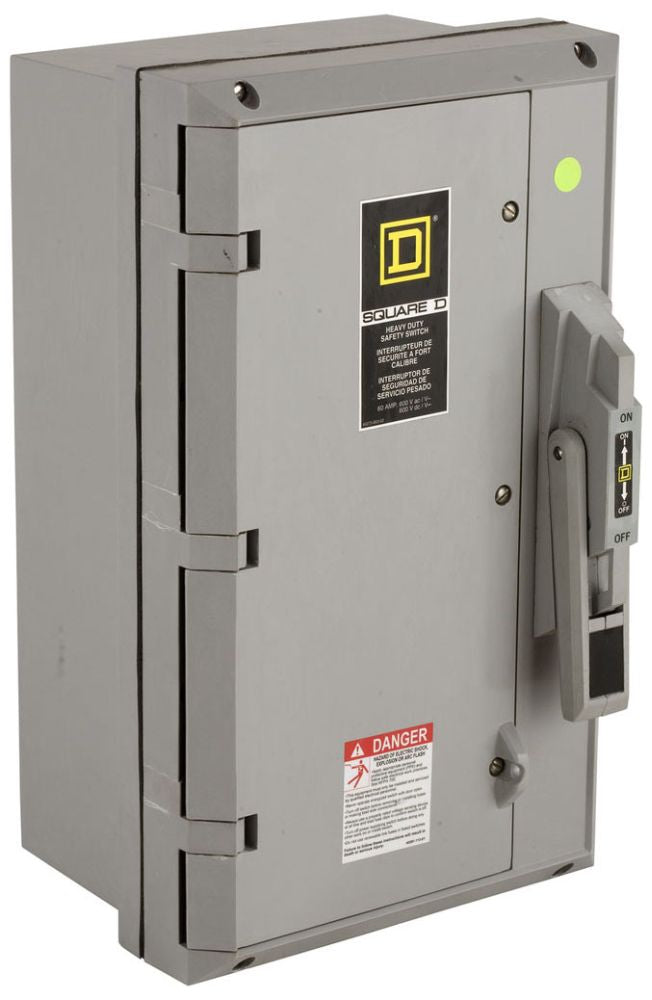

Square D H361DX - Fusible Safety Switch, 600V 30A 3P (200kA AIC)

Square D
Price
Save $2,532.80
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D H361DX is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 30A, featuring a robust three-pole, single-configuration design with a 200kA interrupting capacity at 600V for reliable fault protection. The switch is constructed with a NEMA 4X rated enclosure measuring 19.4 in (H) x 11.4 in (W) x 8.6 in (D) and weighing 32.201 lb, ensuring durability in harsh environments. It complies with UL standards and is compatible with Class R fuses and Series F, ED frames. Typical applications include motor control centers, industrial machinery, and panelboards where a visible break and fused protection are required.

Key Features & Specifications
  • Type: H-Type, Fusible Safety Disconnect Switch
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Wire Size: AWG 12 to 6 (Aluminum), AWG 14 to 6 (Copper)
  • NEMA Rating: 4X
  • Dimensions: 19.4 in H x 11.4 in W x 8.6 in D (492.8 mm x 289.6 mm x 218.4 mm)
  • Weight: 32.201 lb
  • Switch Style: Fusible
  • Certification: UL Listed
  • Compatible Frames: Series F, ED
  • Family: Series F
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901011040
  • GTIN: 00785901011040
