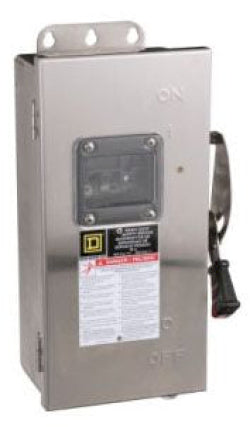

Square D H361DSVW - Fusible Safety Switch 30A 600V (NEMA 4/4X)

Square D
Price
Save $822.73
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H361DSVW is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial three-phase power distribution systems. It is rated for 600V AC and 30A, featuring a rugged NEMA 4/4X enclosure measuring 379.22 mm H x 220.22 mm W x 129.79 mm D and weighing 10 lb for durability in harsh environments. The switch is UL certified and designed for use with Class R fuses, offering an interrupting capacity of 200kA at 600V to protect against high fault currents. Its three-pole, single-configuration design accommodates copper wire from AWG 14 to 6 and aluminum wire from AWG 12 to 6, making it suitable for motor control centers, industrial machinery, and panelboards where reliable isolation is critical.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Series F, Type H, with visible blade operation
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 14.93 in (379.22 mm) H x 8.67 in (220.22 mm) W x 5.11 in (129.79 mm) D
  • Weight: 10 lb
  • Standards: UL Certified
  • Applications: Industrial power distribution, motor control centers, panelboards, machinery
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 12 to AWG 6 Aluminum, AWG 14 to AWG 6 Copper
  • Fuse Class: R
  • NEMA Rating: 4/4X
  • Compatible Frames: ED
  • Enclosure: NEMA 4/4X


Product Identification
  • UPC: 078590120872
  • GTIN: 00785901208723
